APC Easy UPS On-Line UPS 3000 VA
EAN:
Part number:
Item no:
APC Easy UPS On-Line, 3kVA/2700W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outputs, intelligent card slot, LCD
Highlights & Details
- Double Converter (Online)
- 2700 W
- Waveform: Sinusoidal
- Lead acid (VRLA) sealed 72 V
- Black
Technical specifications
- Rechargeable battery technology: Lead-acid (VRLA)
- Product type
UPS
- Nominal power
3000 VA
- No. of outputs
7 x

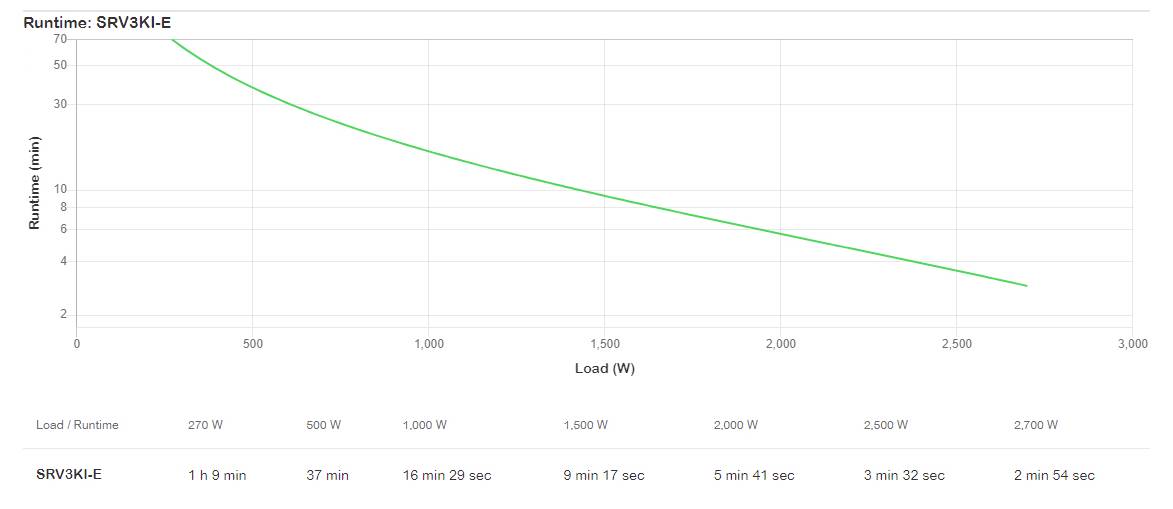

- Bridging time, max load
2.54 min
- Type
Easy UPS On-Line
- Width
190 mm
- Height
336 mm
- Depth
425 mm
- Weight
26 kg
- Cable length
1.5 m
- Factory colour
Black
IP20
- Battery voltage
72 V
- Max. operating noise
50 dB
2700 W
- UKCA
yes
- Battery recharge time
4 h
- USB port
yes
- RS-232 ports
1
- Efficiency
88 %
- Package weight
28 kg
- Surge protection
yes
- Input operation voltage (max)
285 V
- Input operation voltage (min)
110 V
- Output operation voltage (min)
220 V
- Output operation voltage (max)
240 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3557491 APC Easy UPS On-Line UPS 3000 VA
Description

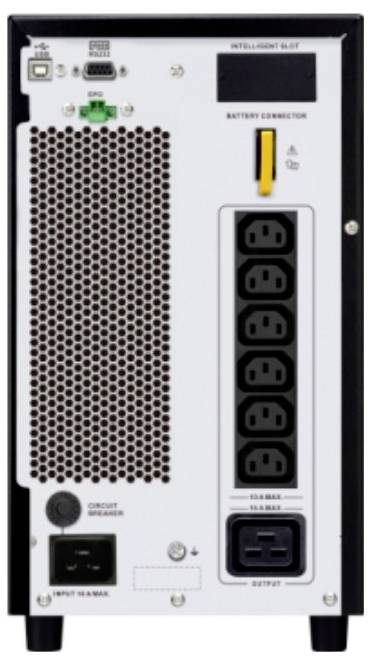

This APC single-phase Easy UPS is designed for IT professionals or network administrators to ensure business uptime and continuity. This 3kVA On-Line-Tower UPS with dual converter provides a sinusoidal output to support critical electronics in case of power failures. The SRV is fitted with an IEC 320 C20 input and 6x IEC 320 C13, 1x IEC 320 C19 outputs. The On-Line UPS has an intelligent card slot for an optional network management card (AP9544, SRVSMB001, VGL9601l) that provides network-based UPS monitoring and management. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The integrated automatic and manual bypass provides an uninterrupted power supply to the load, even if an internal fault or malfunction occurs in the UPS. The SRV UPS is compatible with the replacement battery APCRBCV205. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunications and healthcare IT.
