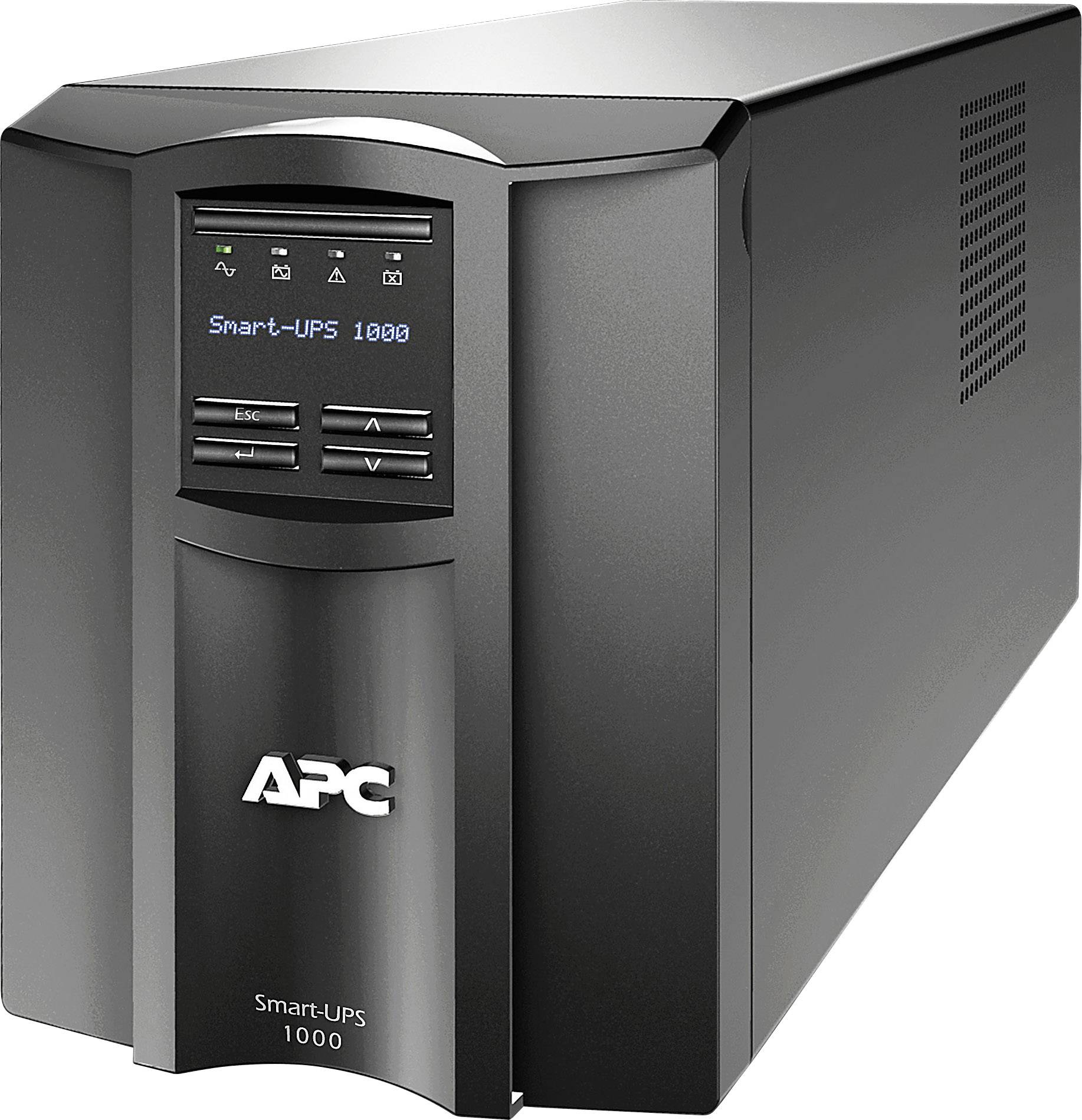

An APC Smart-UPS 1000, an uninterruptible power supply system, displays operational information and control buttons on its screen.

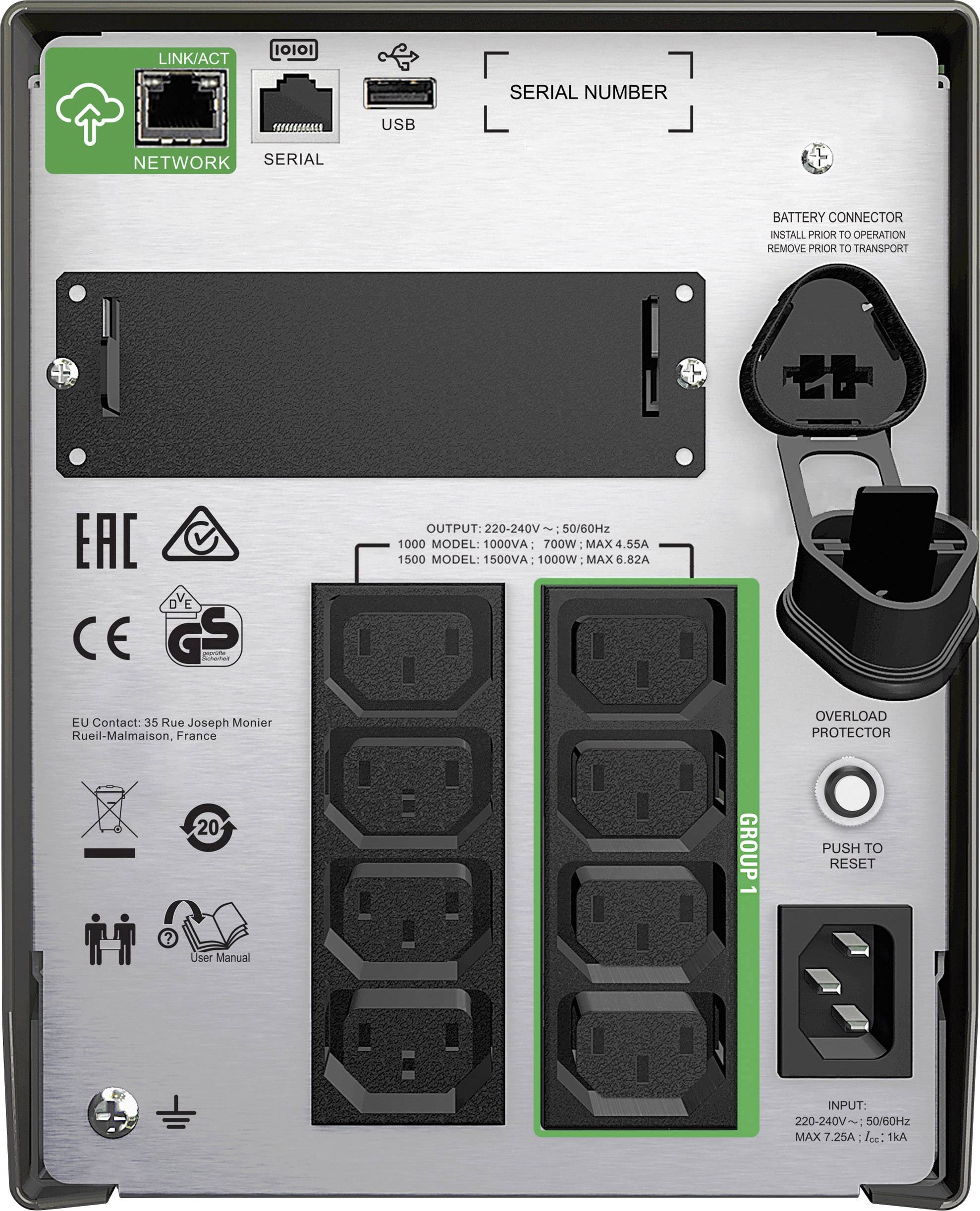

'Back of an electronic device with multiple sockets and an overload protection switch. Labelling and connections visible.'

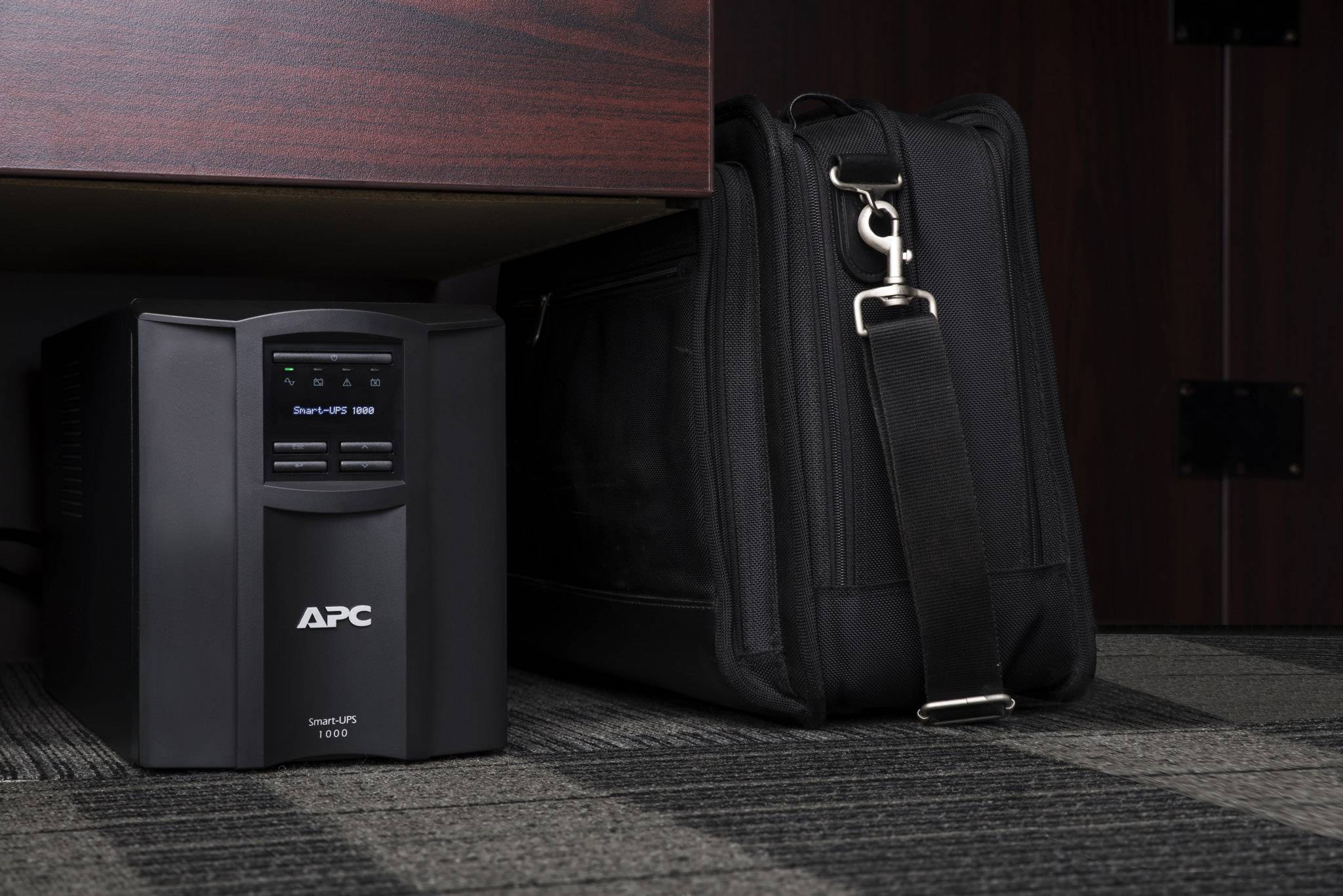

An APC UPS device standing under a table next to a black briefcase on a carpeted floor.

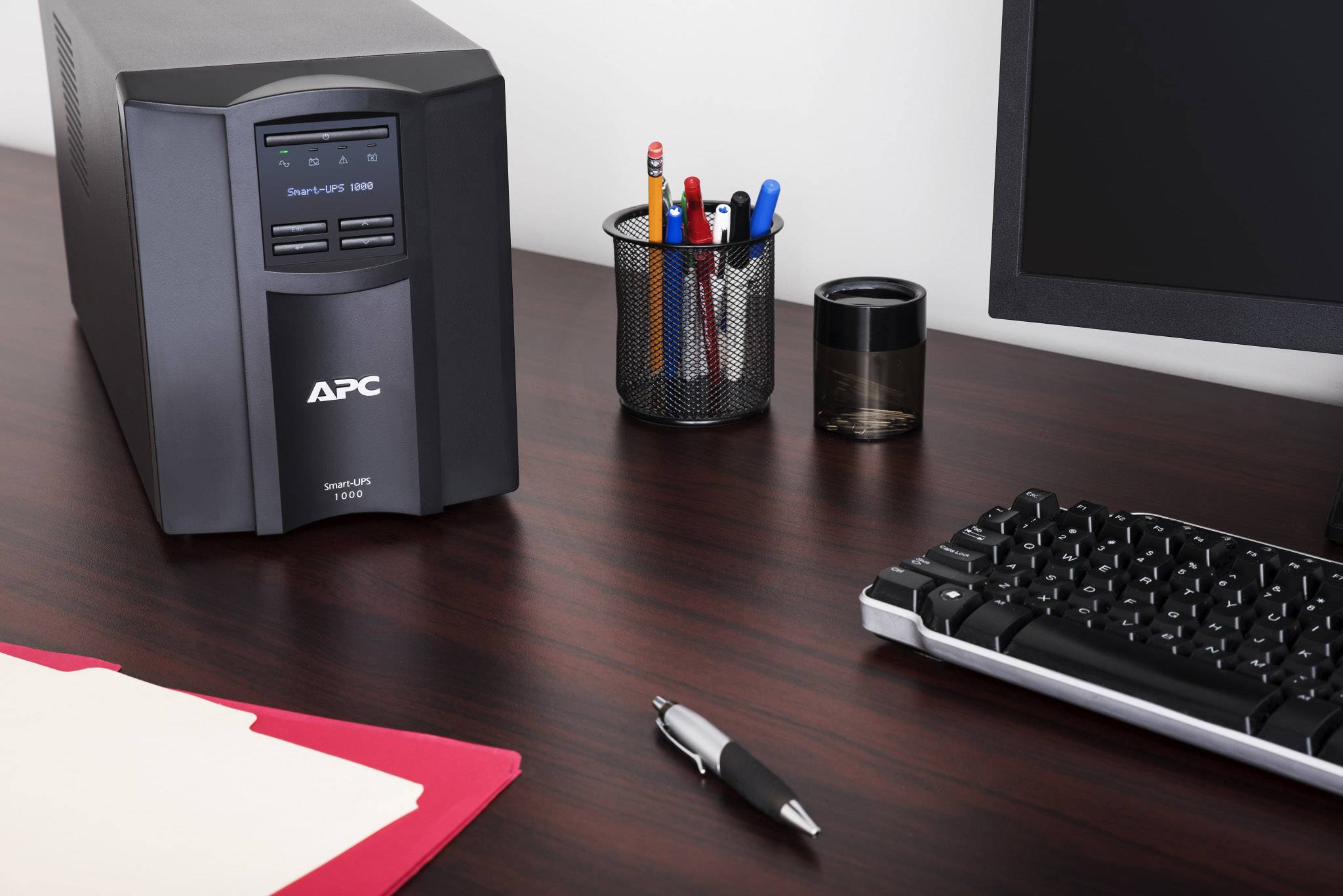

A desk with an uninterruptible power supply (UPS) on the left, a pen holder, a pen, files, and a computer keyboard on the right.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

APC Smart UPS 1000 VA LCD 230 V with smart connec

Highlights & Details

Protects connected devices against overvoltages, voltage peaks, lightning and other power disturbances
Nominal output: 1000 VA
Alpa numeric LC-display with LED status indicators
Battery alarm

Technical specifications

Product type: UPS

Nominal power: 1000 VA

No. of outputs: 8 x

Output: IEC C13 socket

Features: Network port
Serial port
USB port
LCD
Alarm

Bridging time normal load: 45

Bridging time, max load: 6 min

Surge protection for: Networks (RJ45)

Type: SMT1000IC

Width: 171 mm

Height: 219 mm

Depth: 439 mm

Weight: 19.5 kg

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1718117 APC SMT1000IC UPS 1000 VA

User & Safety Instructions

User & Safety Instructions 1718117 APC SMT1000IC UPS 1000 VA

Description

Intelligent and efficient solution for the uninterruptible power supply of network systems, selection of the introductory class up to models with scalable autonomy time. Ideal UPS for servers, point-of-sale systems, routers, switches, hubs and other devices.

This text is machine translated.

Features

Supports a cold start - enables a temporary battery operation, if the power supply fails.
Energy consumption meter indication of use in kilowatt hours for energy-conscious users.
Approximate Running Time at 200 W: 45 minutes
Green operating mode - patent-registered operational mode in the unused electrical components with good power supply conditions can be switched off, so that a very high operating efficiency without compromising on safety can be achieved.
High Online efficiency - reduces the electricity costs, generates less heat.
Intuitive LCD user interface - easy-to-read surface with precise information in multiple languages and support for the configuration of the UPS on site with user-friendly navigation buttons.
Display of the date for the battery exchange - the dynamic display of the appointment for the recommended battery replacement in month and year facilitates the long-term planning of maintenance.
Pure sinusoidal output signal in the battery operation - simulates mains power supply for the highest possible compatibility with servers and sensitive electronic systems with active correction of the power factor.
Single module with switchable outputs - individual output group for separate control via the UPS-system for the targeted restart of not more responsive systems, the successive on or off of systems or the cut-off non-critical loads.
Smart Connect - innovative, easy to use remote monitoring feature, dass Daten an automatic notifications, firmware updates, and advanced support services.
Smart Slot Upgrade Your UPS through Management Cards with individual features.
Charge the battery with temperature compensation - extends the life of the battery by regulating the charging voltage according to the actual battery temperature.
LED status indicators devices and current status are by optical displays quick analysierbar.

Scope of delivery

CD with software
Documentation CD
User manual
Smart UPS signalling RS-232 cable
USB cable.
