APC SMT750RMI2UC UPS 750 VA No. of outputs 4 x
EAN:
Part number:
Item no:
Highlights & Details

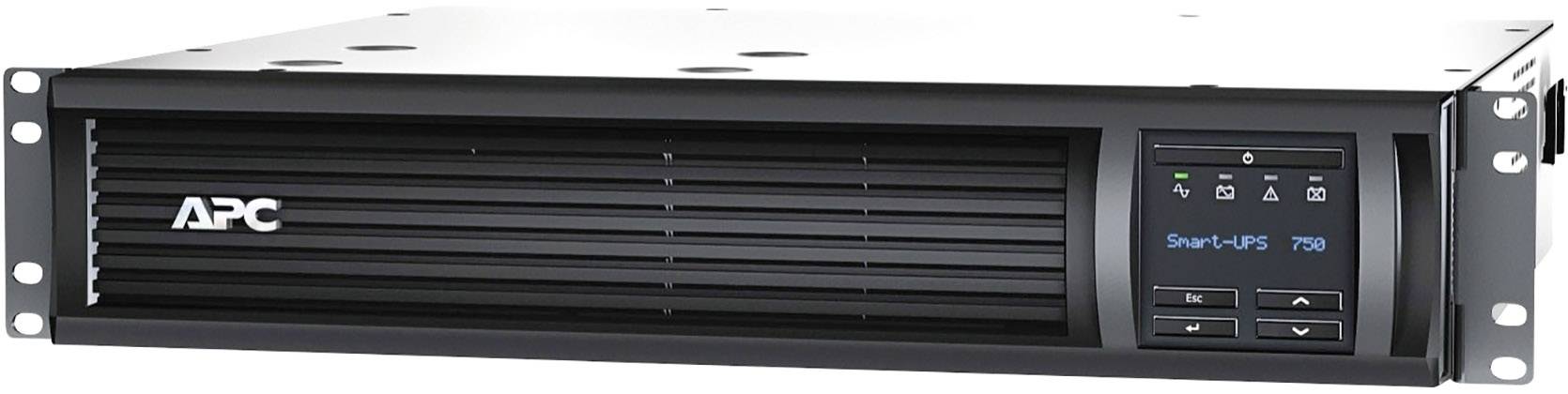

APC Smart UPS 750VA, LCD, Rackmount, 2U, 230V, with SmartConnect
- Intelligent and efficient solution for uninterrupted power supply of network systems, choice from entry level to models with scalable autonomy time.
- Ideal UPS for servers, POS systems, routers, switches, hubs and other devices.
Technical specifications
- Maximum configurable power (watts): 500Watt / 750VA
- Note on output voltage: Configurable for 220, 230 or 240 V rated output voltage
- Voltage distortion: Less than 5%
- Output frequency (line-synchronous): 50/60Hz +/- 3 Hz
- Other output voltages: 220, 240
- Topology: Line-Interactive
- Type of waveform: Sine wave
- Transfer Time: 6ms (typical); 10ms (max.)
- Input frequency: 50/60 Hz +/-3 Hz (automatic sampling)
- Input voltage range for mains operation: 160 - 286 V.
- Input voltage Range for the most important operations: 151 - 302 V.
- Number of supply lines: 1
- Battery type: Maintenance-free sealed lead-acid battery with suspended electrolyte; leak-proof
- Typical charging time: 3 hours
- Expected battery life (in years): 4 - 6
- Number of replacement batteries (RBC™): 1
- Battery charge capacity (watts): 56 watts

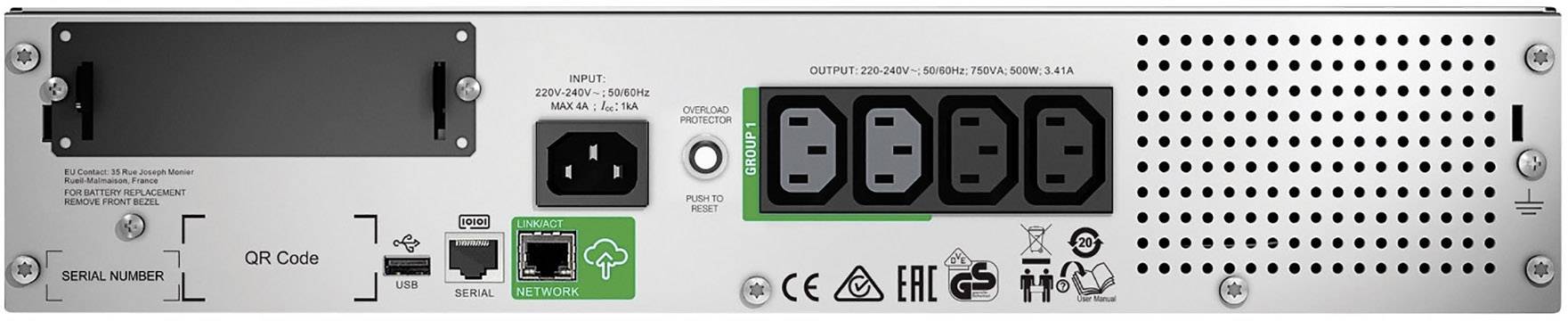

- Data interfaces: RJ-45 Serial, SmartSlot, USB

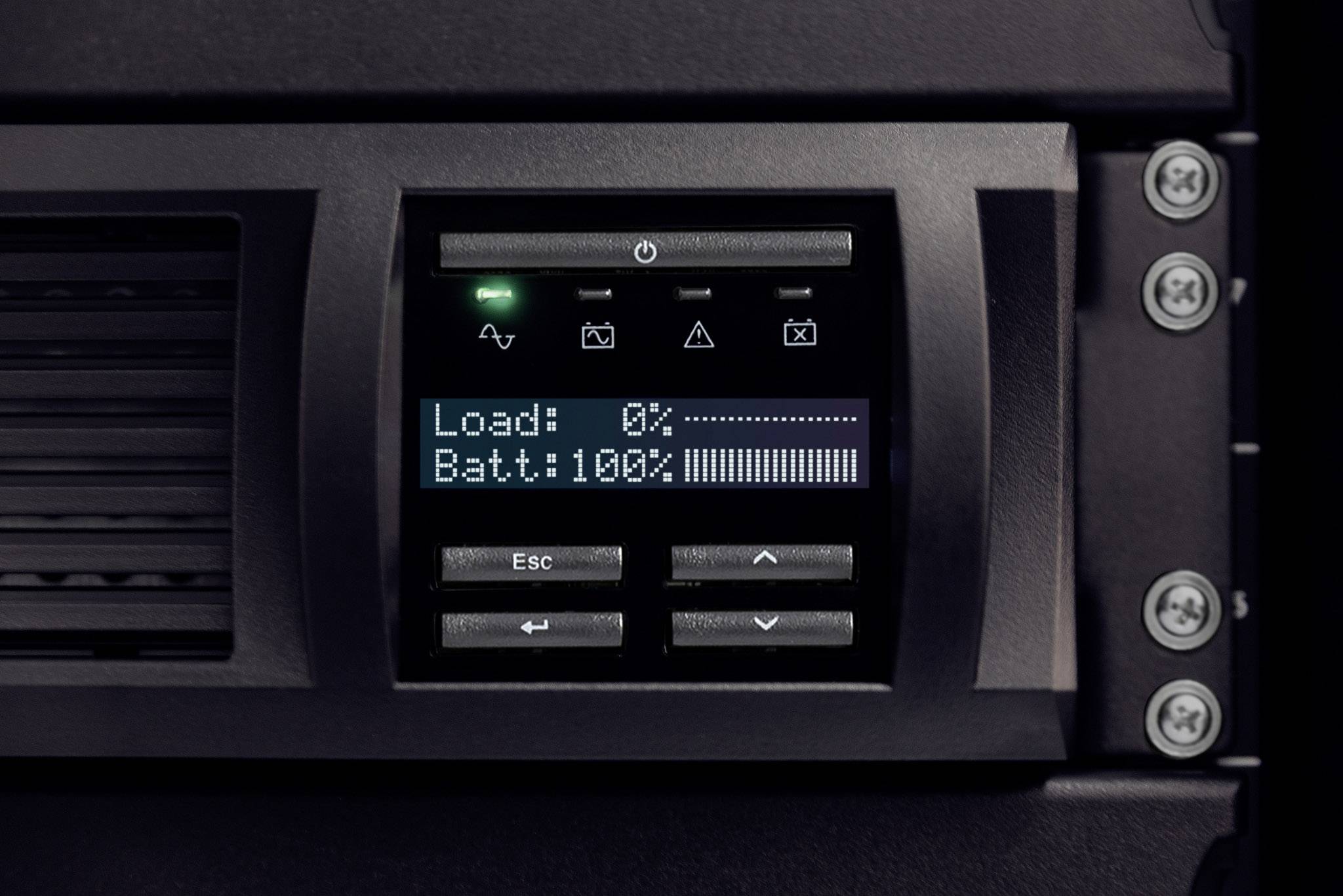

- Control console: Multifunctional LCD status and control console
- Control panel: Alarm when battery is on; specific low battery alarm; configurable delays
- Emergency cut-off (EPO): Optional
- Operating temperature range: 0 - 40 °C
- Operating relative humidity: 0 - 95 %
- Operating elevation: 0 - 3000 meters
- Storage temperature: -15 - 45 °C.
- Storage relative humidity 0 - 95%
- Storage elevation: 0 - 15000 meters
- Noise level (1 meter distance): 42.0 dBA
- Online heat dissipation: 46.0 BTU/hr (British unit of heat per hour)
- CE, CROSS SECTION, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE
- RoHS compliant
- Product type
UPS
- Nominal power
750 VA
- No. of outputs
4 x
- Output
IEC socket
- Type
SMT750RMI2UC
- Width
432 mm
- Height
86 mm
- Depth
409 mm
- Weight
16.6 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246691 APC SMT750RMI2UC UPS 750 VA No. of outputs 4 x
Description
Supports cold start: Allows temporary battery operation in the event of a power failure.
Energy consumption meter: Specification of usage in kilowatt hours for energy-conscious users.
Green operating mode: Patent-pending operating mode in which unused electrical components are switched off under good power conditions, so that very high operational efficiency can be achieved without compromising safety.
High online efficiency: Reduces electricity costs and generates less waste heat.
Intuitive LCD user interface: Easy-to-read interface with accurate information in multiple languages and support for on-site UPS configuration with easy-to-use navigation buttons.
Display of the battery replacement date: The dynamic display of the recommended battery replacement date in month and year facilitates long-term maintenance planning.
Pure sinusoidal output signal in battery operation: Simulates mains power supply for the highest possible compatibility with servers and sensitive electronic systems with active correction of the power factor.
Single module with switchable outputs: Individual output group for separate control via the UPS system for the targeted restart of systems that can no longer be addressed, the successive switch-on or switch-off of systems or the switch-off of non-critical loads.
SmartConnect: The innovative, easy-to-use remote monitoring feature provides automatic notifications, firmware updates, and advanced support services.
SmartSlot: Equip your UPS with management cards with individual functions.
Battery charging with temperature compensation: Extends battery life by regulating the charging voltage according to the actual battery temperature.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management: Patented green mode for an efficiency of over 97%. The Smart-UPS was the first network UPS with the Energy Star seal. The intelligent battery management from the technology leader APC optimizes the power and life of the battery through the intelligent precision charging function with temperature compensation. Dynamic date display for battery replacement and automatic self-tests ensure high reliability and provide timely information about the required battery replacement. The battery modules are convenient, easy to connect and can be replaced during operation. Developed by APC, the Smart-UPS has been produced for 23 years and is the UPS, with over 25 million copies sold, which most customers worldwide trust.
Time savings through simple and convenient remote access: With management function via the network, via serial interface, USB or optional Ethernet connection. Contains the PowerChute® Business Edition software for convenient monitoring and control, secure operating system shutdown and innovative power management functions.
Avoids costly performance problems by keeping your IT equipment and data safe and available: Network optimized voltage conditioning provides protection against harmful surges and electrical noise. The automatic electronic voltage control increases a low input voltage by up to 30% and reduces too high voltages by up to 12% without activating the battery. Reliable battery-backed emergency power supply in the event of a mains power failure or for a controlled system shutdown.
Trouble-free operation through full compatibility and the reliability of a leading supplier: Ensures a purely sinusoidal output signal recommended by server manufacturers through the use of power factor correction power supplies. The Smart-UPS has been tested and certified to safety standards, so you can be sure that the system meets or exceeds the most stringent industry guidelines.
Increase productivity by adapting to your individual requirements: Intuitive LCD interface with precise information and support for on-site UPS configuration with convenient navigation buttons. Over 15 programmable settings, including group of switchable outputs, enable application-specific settings, thresholds and notifications.
This text is machine translated.
Energy consumption meter: Specification of usage in kilowatt hours for energy-conscious users.
Green operating mode: Patent-pending operating mode in which unused electrical components are switched off under good power conditions, so that very high operational efficiency can be achieved without compromising safety.
High online efficiency: Reduces electricity costs and generates less waste heat.
Intuitive LCD user interface: Easy-to-read interface with accurate information in multiple languages and support for on-site UPS configuration with easy-to-use navigation buttons.
Display of the battery replacement date: The dynamic display of the recommended battery replacement date in month and year facilitates long-term maintenance planning.
Pure sinusoidal output signal in battery operation: Simulates mains power supply for the highest possible compatibility with servers and sensitive electronic systems with active correction of the power factor.
Single module with switchable outputs: Individual output group for separate control via the UPS system for the targeted restart of systems that can no longer be addressed, the successive switch-on or switch-off of systems or the switch-off of non-critical loads.
SmartConnect: The innovative, easy-to-use remote monitoring feature provides automatic notifications, firmware updates, and advanced support services.
SmartSlot: Equip your UPS with management cards with individual functions.
Battery charging with temperature compensation: Extends battery life by regulating the charging voltage according to the actual battery temperature.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management: Patented green mode for an efficiency of over 97%. The Smart-UPS was the first network UPS with the Energy Star seal. The intelligent battery management from the technology leader APC optimizes the power and life of the battery through the intelligent precision charging function with temperature compensation. Dynamic date display for battery replacement and automatic self-tests ensure high reliability and provide timely information about the required battery replacement. The battery modules are convenient, easy to connect and can be replaced during operation. Developed by APC, the Smart-UPS has been produced for 23 years and is the UPS, with over 25 million copies sold, which most customers worldwide trust.
Time savings through simple and convenient remote access: With management function via the network, via serial interface, USB or optional Ethernet connection. Contains the PowerChute® Business Edition software for convenient monitoring and control, secure operating system shutdown and innovative power management functions.
Avoids costly performance problems by keeping your IT equipment and data safe and available: Network optimized voltage conditioning provides protection against harmful surges and electrical noise. The automatic electronic voltage control increases a low input voltage by up to 30% and reduces too high voltages by up to 12% without activating the battery. Reliable battery-backed emergency power supply in the event of a mains power failure or for a controlled system shutdown.
Trouble-free operation through full compatibility and the reliability of a leading supplier: Ensures a purely sinusoidal output signal recommended by server manufacturers through the use of power factor correction power supplies. The Smart-UPS has been tested and certified to safety standards, so you can be sure that the system meets or exceeds the most stringent industry guidelines.
Increase productivity by adapting to your individual requirements: Intuitive LCD interface with precise information and support for on-site UPS configuration with convenient navigation buttons. Over 15 programmable settings, including group of switchable outputs, enable application-specific settings, thresholds and notifications.
This text is machine translated.
Features
- Voltage conditioning: Protects connected devices against overvoltages, voltage peaks, lightning strikes and other disturbances of the power supply.
- Battery charging with temperature compensation: Extends battery life by regulating the charging voltage according to the actual battery temperature.
- Automatic restart of connected loads after UPS switch-off: Automatically starts up the connected devices when the mains voltage returns.
- Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
- Battery disconnected notification: Gives a warning when a battery is not available for power supply.
- Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
- Automatic voltage control (AVR) with boost and trim function: Increases the UPS availability by correcting over and under voltages without using the battery.
- LED status indicators: Device and current status can be analyzed quickly by means of optical displays.
- Serial port: Provides management of the UPS through a serial port.
- USB port allows management of the UPS via USB port.
- Battery disconnected notification: Gives a warning when a battery is not available for power supply.
- Network management: Provides remote power management of the UPS over the network via PowerChute Business Edition.
- Warning Tones—notifies users when the power or UPS system status changes.
- Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
- Hot-swappable batteries: Provides continuous power supply to protect systems during battery replacement.
- User-replaceable batteries: Increases availability and reduces average repair time by using trained users to upgrade and replace batteries.
- Resettable breakers: Enables rapid recovery from overload situations.
- Predictive reporting of potential errors: Analysis for early detection of errors enables proactive replacement of components.
- Adjustable voltage switching points: Maximizes battery life with extended input voltage range or more precise output voltage regulation.
- Adjustable voltage sensitivity: Adjusts the UPS to suit the power supply environment or generator application for optimal performance.
- Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
Scope of delivery
- Documentation CD.
- User manual
- Rack-mounted support rails
- USB cable
