APC SRT1500XLI UPS 1500 VA No. of outputs 6 x
EAN:
Part number:
Item no:
Highlights & Details
APC SMART UPS SRT 1500VA 230V
- High-performance UPS systems with double-converter online technology and scalable autonomy time

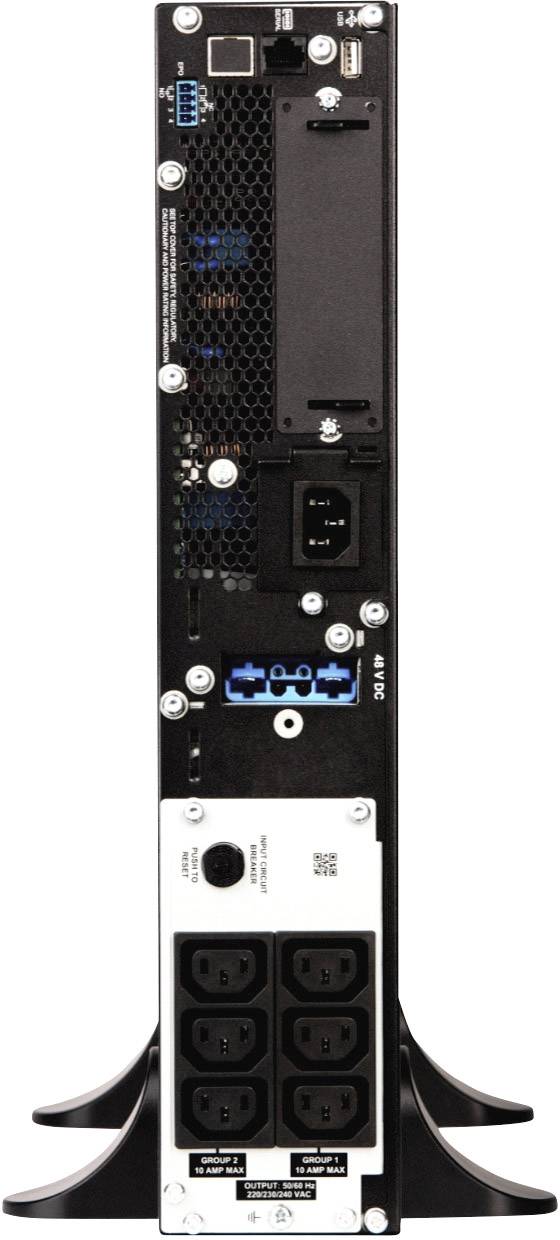

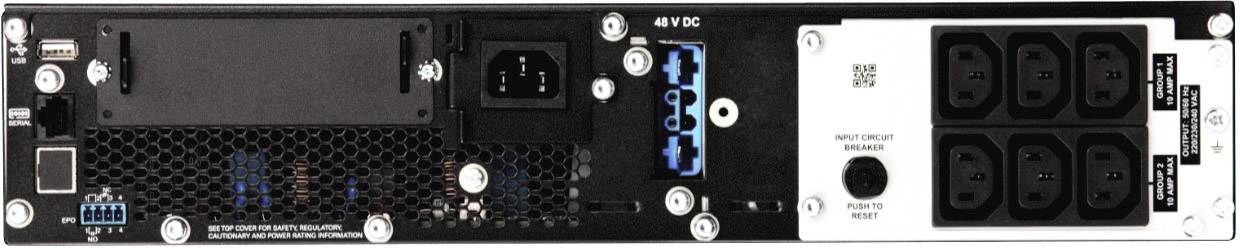

- Output connections: (6) IEC 320 C13 (power failure protection)
- Nominal output voltage: 230V
- Nominal input voltage: 230V
- Input connection type: IEC-320 C14
Technical specifications
- Maximum configurable power (watts): 1.5 kwatts / 1.5 kVA
- Voltage distortion: Less than 2%
- Output frequency (line-synchronous): 50/60 Hz +/- 3 Hz
- Other output voltages: 220, 240
- Load crest factor: 3:1
- Topology: Online double-wall
- Type of waveform: Sine wave
- Continuity: Integrated bypass
- Input frequency 40-70 Hz (auto-sensing)
- Input voltage range for mains operation: 100-275V
- Number of input supply lines: 1
- Other input voltages: 220, 240
- Battery type: Maintenance-free sealed lead-acid battery with suspended electrolyte; leak-proof
- Pre-installed batteries: 1
- Typical charging time: 3 hours
- Nominal battery voltage 48 V.
- Expected battery life (in years): 3 - 5
- Data interface: RJ-45 serial, smart slot, USB
- Control console: Mutlifunctional LCD status and control console
- Control panel: Audible and visual alarms by severity
- Emergency cut-off (EPO): Yes
- Operating temperature range: 0 - 40 °C
- Operating relative humidity: 0 - 95 %
- Operating elevation: 0 - 3000 meters
- Storage temperature -20 - 50°C.
- Storage relative humidity 0 - 95%
- Storage elevation: 0 - 15000 meters
- Noise level (1 meter distance): 50 dBA
- Online heat dissipation: 317 BTU/hr (British unit of heat per hour)
- Protection class: IP20
- Assessment: CE, EAC
- RoHS compliant
- Product type
UPS
- Nominal power
1500 VA
- No. of outputs
6 x
- Output
IEC socket
- Type
SRT1500XLI
- Width
85 mm
- Height
432 mm
- Depth
505 mm
- Weight
20.5 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246674 APC SRT1500XLI UPS 1500 VA No. of outputs 6 x
Description
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
ECO mode: Mode of operation in which unnecessary electrical components are bypassed with proper power supply to enable efficient operation without compromising availability.

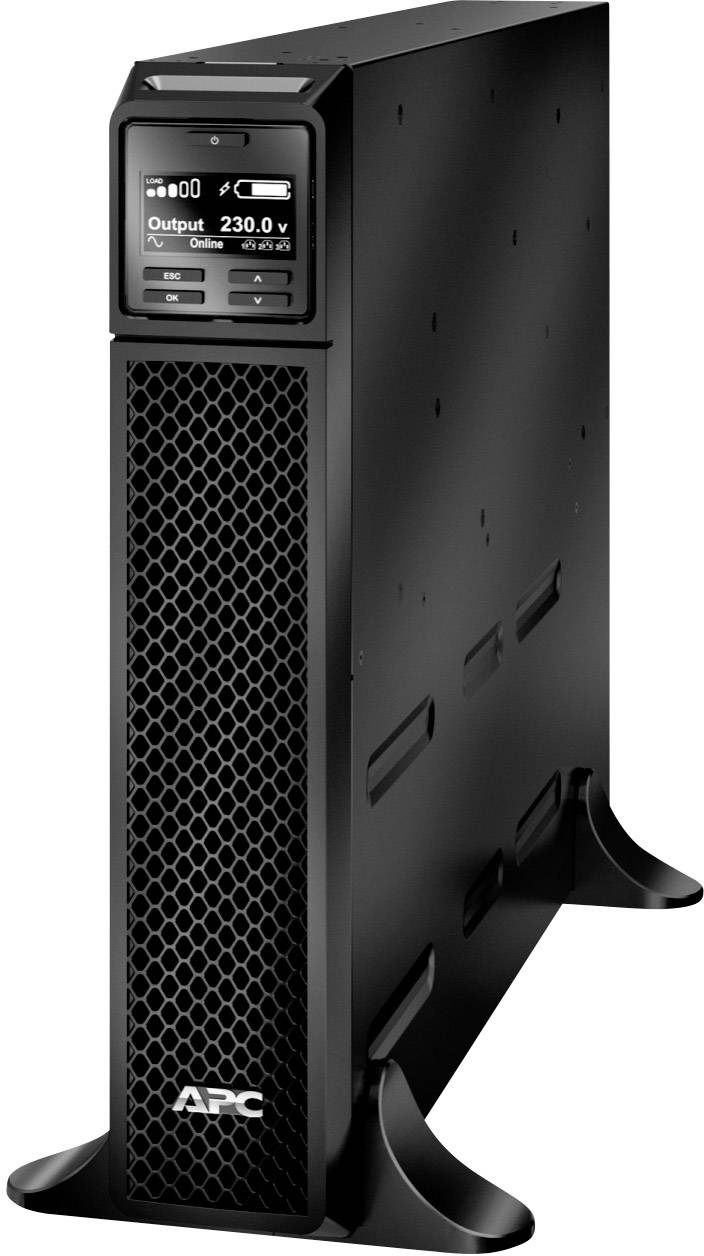

LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.

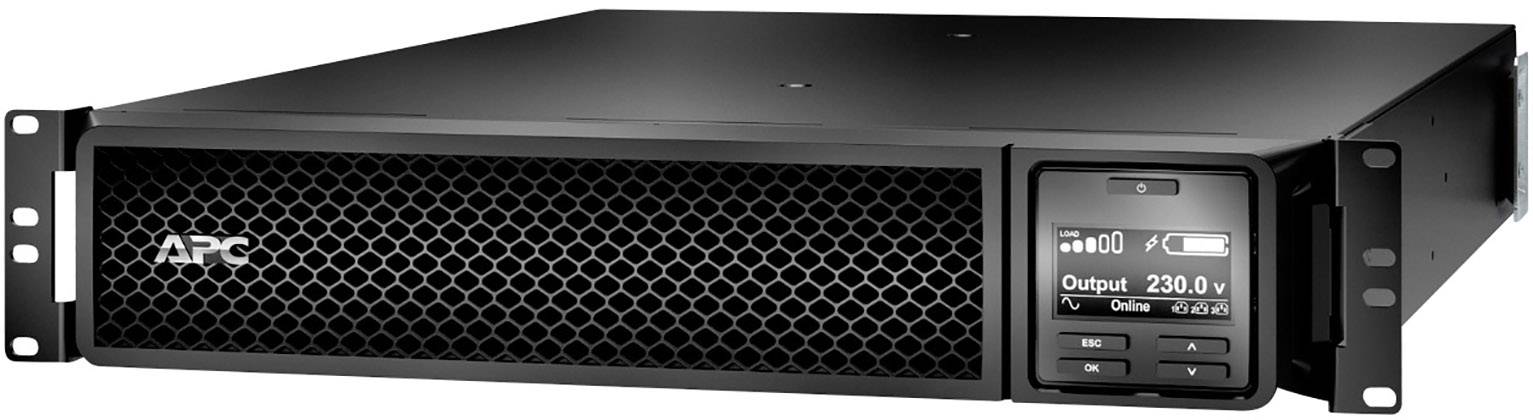

Rack/Tower Combo: Protects existing investments in the UPS when moving from a tower to a rack environment.
Time savings through simple and convenient remote/network access: With management function via the network, via serial interface, USB or optional Ethernet connection. Contains the PowerChute® Network Shutdown software for convenient monitoring and control, secure operating system shutdown and innovative power management functions.
Low operating and maintenance costs with proven reliability and intelligent battery management: The intelligent battery management from the technology leader APC optimizes the performance and service life of the battery through the intelligent precision charging function with temperature compensation. Automatic self-tests ensure battery reliability and early notification of battery replacement. The battery modules are convenient, easy to connect and can be replaced during operation.
Trouble-free operation through full compatibility and the reliability of a leading supplier: Ensures a purely sinusoidal output signal recommended by server manufacturers through the use of power factor correction power supplies. The Smart-UPS has been tested and certified to safety standards, so you can be sure that the system meets or exceeds the most stringent industry guidelines.
Eliminates costly power problems by protecting and keeping your IT equipment and data available: Network-optimized voltage conditioning provides protection against harmful surges and electrical noise. The double-converter technology enables a voltage control with close tolerances, frequency control and delay-free switching to battery current in case of power supply faults.
This text is machine translated.
ECO mode: Mode of operation in which unnecessary electrical components are bypassed with proper power supply to enable efficient operation without compromising availability.
LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
Rack/Tower Combo: Protects existing investments in the UPS when moving from a tower to a rack environment.
Time savings through simple and convenient remote/network access: With management function via the network, via serial interface, USB or optional Ethernet connection. Contains the PowerChute® Network Shutdown software for convenient monitoring and control, secure operating system shutdown and innovative power management functions.
Low operating and maintenance costs with proven reliability and intelligent battery management: The intelligent battery management from the technology leader APC optimizes the performance and service life of the battery through the intelligent precision charging function with temperature compensation. Automatic self-tests ensure battery reliability and early notification of battery replacement. The battery modules are convenient, easy to connect and can be replaced during operation.
Trouble-free operation through full compatibility and the reliability of a leading supplier: Ensures a purely sinusoidal output signal recommended by server manufacturers through the use of power factor correction power supplies. The Smart-UPS has been tested and certified to safety standards, so you can be sure that the system meets or exceeds the most stringent industry guidelines.
Eliminates costly power problems by protecting and keeping your IT equipment and data available: Network-optimized voltage conditioning provides protection against harmful surges and electrical noise. The double-converter technology enables a voltage control with close tolerances, frequency control and delay-free switching to battery current in case of power supply faults.
This text is machine translated.
Features
- Voltage conditioning: Protects connected devices against overvoltages, voltage peaks, lightning strikes and other disturbances of the power supply.
- Frequency and voltage control: Increases UPS availability by correcting insufficient frequency and voltage values without using the battery.
- Generator-compatible: Ensures the uninterrupted supply of clean current to connected devices during generator operation.
- Input power factor correction: Reduces installation costs by using smaller generators and thinner cables.
- Resettable breaker: Easy recovery after overload; no need to replace a backup.
- Supports cold start: Allows temporary battery operation in the event of a power failure.
- Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
- Automatic restart of connected loads after UPS switch-off: Automatically starts up the connected devices when the mains voltage returns.
- Battery charging with temperature compensation: Extends battery life by regulating the charging voltage according to the actual battery temperature.
- Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
- Hot-swappable batteries: Provides continuous power supply to protect systems during battery replacement.
- Automatic internal bypass: Supplies power to the connected loads if the UPS becomes overloaded or fails.
- Scalable bridging time: Enables a fast extension of the bridging time with increasing capacity requirements.
- User-replaceable batteries: Increases availability and reduces average repair time by using trained users to upgrade and replace batteries.
- Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
- Warning Tones—notifies users when the power or UPS system status changes.
- Predictive reporting of potential errors: Analysis for early detection of errors enables proactive replacement of components.
- Battery disconnected notification: Gives a warning when a battery is not available for power supply.
- Network management: Provides remote power management of the UPS over the network via PowerChute Business Edition.
- Compatible with InfraStruXure Manager: Enables centralized management via InfraStruXure Manager from APC.
- Serial port: Provides management of the UPS through a serial port.
- SmartSlot: Equip your UPS with management cards with individual functions.
- LED status indicators: Device and current status can be analyzed quickly by means of optical displays.
- External Plug-and-Play Batteries: Provides clean power to connected devices during installation of extension modules.
- Rack/Tower Combo: Protects existing investments in the UPS when moving from a tower to a rack environment.
- Flash upgradeable firmware: Maintenance releases of the firmware can be installed remotely via FTP.
Scope of delivery
- CD with software
- Communication cable
- Documentation CD.
- User manual
- Removable support legs
- USB cable
- Power cord 1.8 m
