1/2

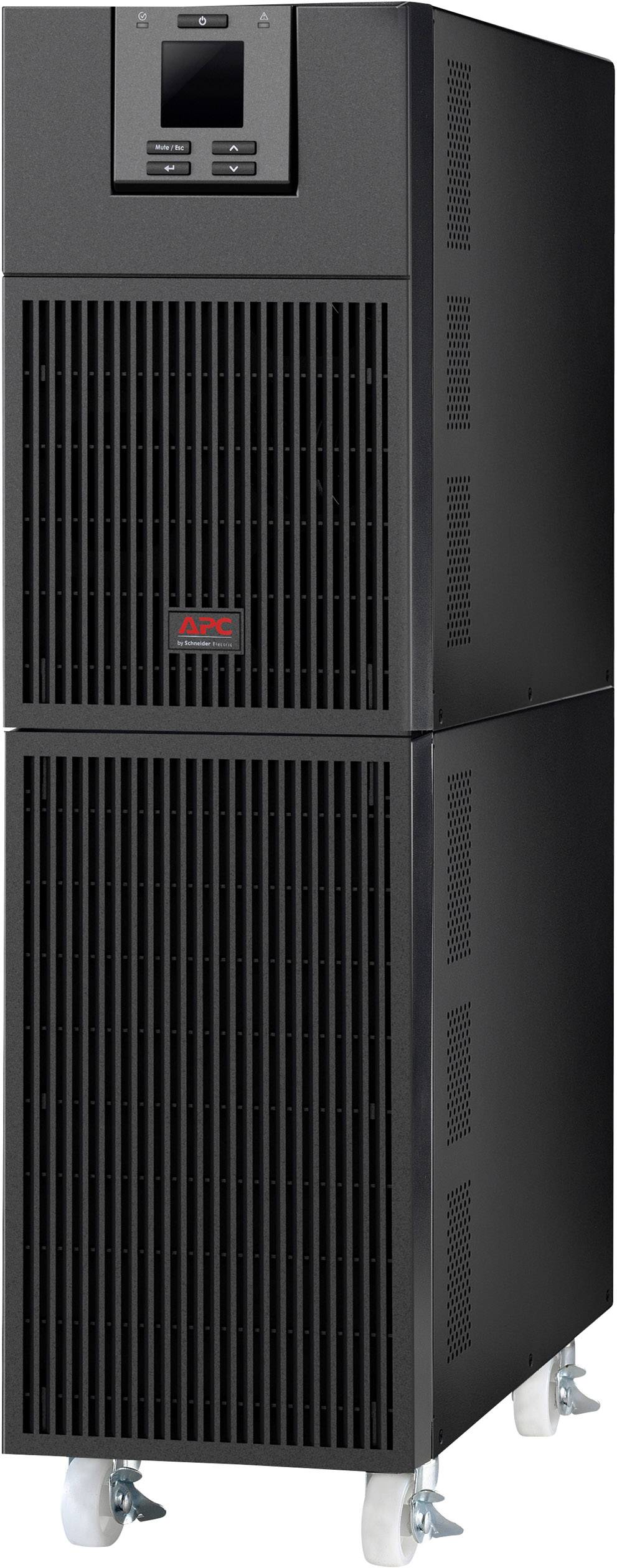

APC SRV6KI UPS 6000 VA No. of outputs 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
APC SRV6KI UPS 6000 VA No. of outputs 1 x
- High-quality, double-conversion online UPS designed to meet the essential requirements of power protection, even under the most unstable performance conditions
Technical specifications
- Maximum configurable power (watts): 6.0kWatt / 6.0kVA
- Efficiency at full charge: 94.0%
- Output frequency (line-synchronous): 50/60Hz +/- 3 Hz
- Other output voltages: 220, 240
- Load crest factor: 3:1
- Topology: Online double conversion
- Type of waveform: Sine wave
- Continuity: Internal bypass (automatic and manual)
- Input frequency 40 - 70 Hz
- Input voltage range for mains operation: 100 - 280 (half load) V.
- Input voltage range for the most important operations: 100 - 280 (half load) V.
- Other input voltages: 220, 240
- Battery type: Maintenance-free sealed lead-acid battery with suspended electrolyte; leak-proof
- Typical charging time: 3 hours
- Battery charge capacity (watts): 373 watts
- Data interfaces: DB-9 RS-232, Smart-Slot, USB
- Control console: Multifunctional LCD status and control console
- Control panel: Alarm when battery is on; specific low battery alarm; overload alarm with continuous tone
- Emergency cut-off (EPO): Yes
- Operating temperature range: 0 - 40 °C
- Operating relative humidity: 0 - 95 %
- Operating elevation: 0 - 3000 meters
- Storage temperature: -15 - 60 °C.
- Storage relative humidity 0 - 95%
- Storage elevation: 0 - 15000 meters
- Noise level (1 meter distance): 55.0dBA
- Protection class: IP20
- Product type
UPS
- Nominal power
6000 VA
- No. of outputs
1 x
- of which battery-buffered
1
- Output
USB
- Features
LCD
- Type
SRV6KI
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2246682 APC SRV6KI UPS 6000 VA No. of outputs 1 x
Datasheet 2246682 APC SRV6KI UPS 6000 VA No. of outputs 1 x
Datasheet 2246682 APC SRV6KI UPS 6000 VA No. of outputs 1 x
User & Safety Instructions
User & Safety Instructions 2246682 APC SRV6KI UPS 6000 VA No. of outputs 1 x
Conformity certificate
Conformity certificate 2246682 APC SRV6KI UPS 6000 VA No. of outputs 1 x
Description
Automatic internal bypass: Supplies power to the connected loads if the UPS becomes overloaded or fails.
Automatic restart of connected loads after UPS switch-off: Automatically starts up the connected devices when the mains voltage returns.
ECO mode: Mode of operation in which unnecessary electrical components are bypassed with proper power supply to enable efficient operation without compromising availability.
EPO (Energy Power-Off): The device can be connected to an EPO (Emergency Power Off) system, so that it is automatically switched off in an emergency situation.
Input power factor correction: Reduces installation costs by using smaller generators and thinner cables.
Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
Serial port: Provides management of the UPS through a serial port.
USB port allows management of the UPS via USB port.
This text is machine translated.
Automatic restart of connected loads after UPS switch-off: Automatically starts up the connected devices when the mains voltage returns.
ECO mode: Mode of operation in which unnecessary electrical components are bypassed with proper power supply to enable efficient operation without compromising availability.
EPO (Energy Power-Off): The device can be connected to an EPO (Emergency Power Off) system, so that it is automatically switched off in an emergency situation.
Input power factor correction: Reduces installation costs by using smaller generators and thinner cables.
Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
Serial port: Provides management of the UPS through a serial port.
USB port allows management of the UPS via USB port.
This text is machine translated.
Features
- Input power factor correction: Reduces installation costs by using smaller generators and thinner cables.
- High efficiency: High efficiency even at low operating power
- Wide input voltage range: Special model for environments with frequent/strong power disturbances and functions for extending the battery life.
- Generator-compatible: Ensures the uninterrupted supply of clean current to connected devices during generator operation.
- SmartSlot: Equip your UPS with management cards with individual functions.
- Intuitive LCD user interface: Easy-to-read interface with accurate information in multiple languages and support for on-site UPS configuration with easy-to-use navigation buttons.
- Online double-converter technology: Ensures a consistently high power quality. Any distortion of the voltage wave form is smoothed via an AC-DC and subsequent DC-AC conversion (without switching time). The battery is only used as an emergency power supply.
- ECO mode: Mode of operation in which unnecessary electrical components are bypassed with proper power supply to enable efficient operation without compromising availability.
- Management software: Easy monitoring of power quality and user-friendly management of the UPS.
- USB Connection: Use your PC to access additional management functions of your UPS via a USB connection.
- Pure sinusoidal output signal in battery operation: Simulates mains power supply for the highest possible compatibility with servers and sensitive electronic systems with active correction of the power factor.
- Management Software: Allows the user to manage the UPS functions, schedule automatic power-off, and monitor power events through an interactive interface that provides easy and intuitive monitoring.
- Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
- SmartSlot: Equip your UPS with management cards with individual functions.
- Network management: Provides remote power management of the UPS over the network via PowerChute Business Edition.
- Serial port: Provides management of the UPS through a serial port.
- LCD graphic screen: Display of operating modes, system parameters and alarms in the form of texts and overview circuit diagrams.
- LED indicators: Clear displays for power quality, UPS and battery status.
- Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
- Predictive reporting of potential errors: Analysis for early detection of errors enables proactive replacement of components.
- Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
- Warning Tones—notifies users when the power or UPS system status changes.
- Battery disconnected notification: Gives a warning when a battery is not available for power supply.
Scope of delivery
- Basic UPS signaling cable RS-232
- CD with software
- USB cable
- User manual
