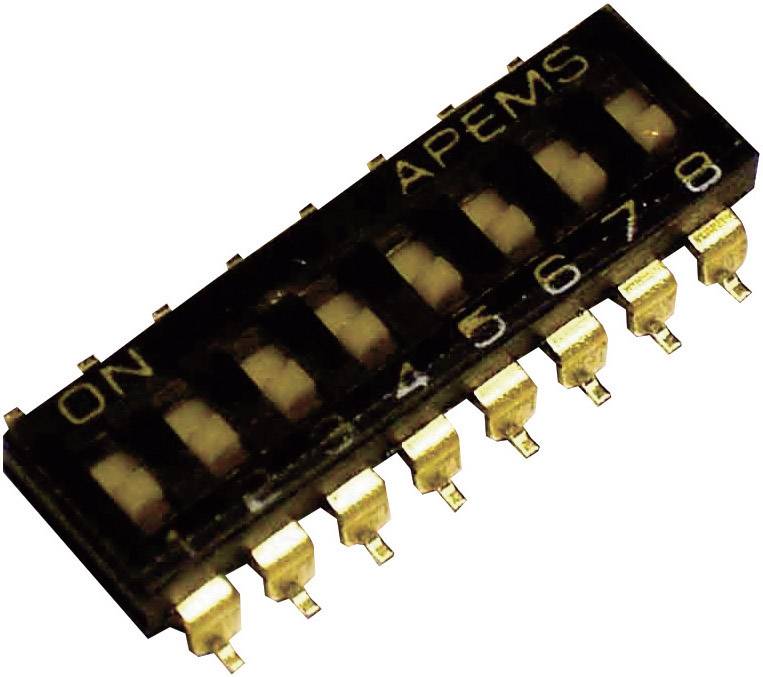

APEM IKD0803000 DIP switch Number of pins 8 SMD 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIP switch
Type
SMD
Number of pins
8
CS
2.54 mm
Type
SMD
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.47
10
6% = € 0.03
€ 0.44
25
11% = € 0.05
€ 0.42
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.47 / piece)
€ 0.47
plus VAT.
14-day return policy included
Technical specifications
- Product type
DIP switch
- Type
SMD
- Number of pins
8
- Type
SMD
- Switching capacity
not switched 100 mA/50 V/DC, switched 100 mA/20 V DC
- Switch position
Off/On
- Dimensions length (A)
21.26 mm
- CS
2.54 mm
- Electrical lifespan
(Max. 80 mΩ) 2000 cycles
- Insulation resistance
(500 V/DC) at least 1000 MΩ
- Contact resistance
(Initial value) max. 20 mΩ, (after 2000 cycles) 80 mΩ
- Dielectric strength
500 V DC
- Type
IKD0803000
- Content
1 pc(s)
- Dim
- RoHS-compliant
- Temperature range
-40 - +100 °C
Documents & Downloads
Datasheet
Datasheet 700496 APEM IKD0803000 DIP switch Number of pins 8 SMD 1 pc(s)
User & Safety Instructions
User & Safety Instructions 700496 APEM IKD0803000 DIP switch Number of pins 8 SMD 1 pc(s)
