Buy APNX APNX AP1-V CPU-Kühler - 120mm, schwarz CPU cooler + fan Intel® 1200, Intel® 1700, Intel® 1150, Intel® 1151v2, Intel

A square CPU cooler with an illuminated fan in a blue-green colour. The cooler features a modern, elegant design.

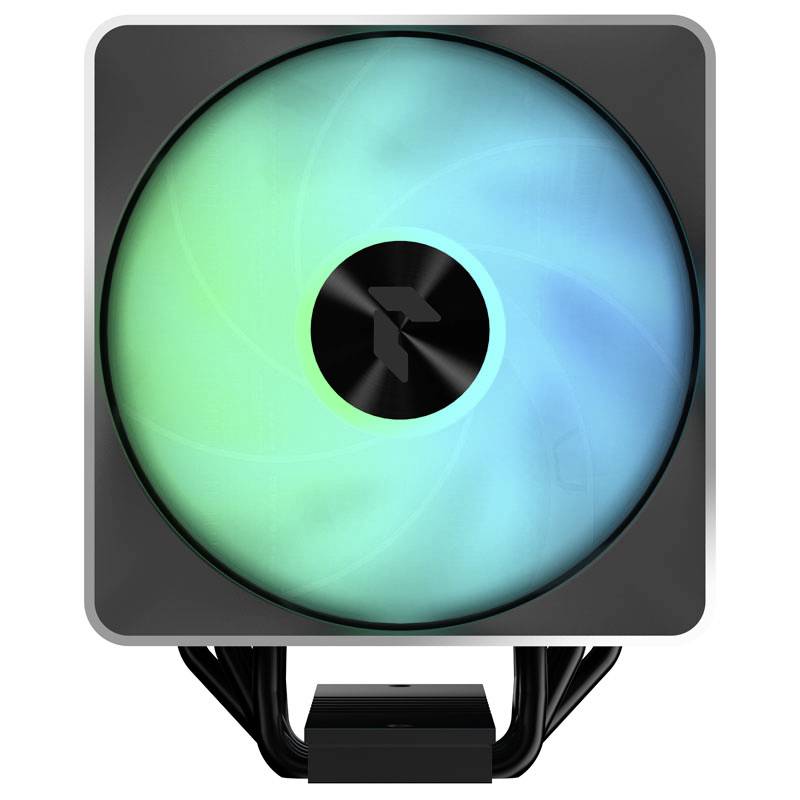

PC cooling fan with illuminating LED light in green and blue. For cooling computer cases or processors.

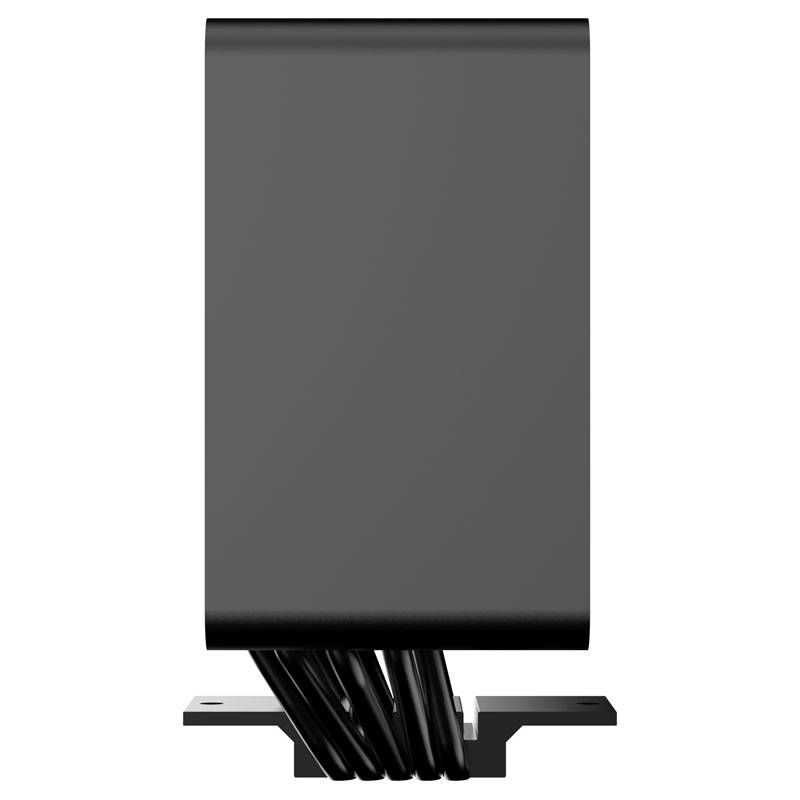

A black, rectangular heat sink component with multiple metal pipes leading downwards; used for heat dissipation.

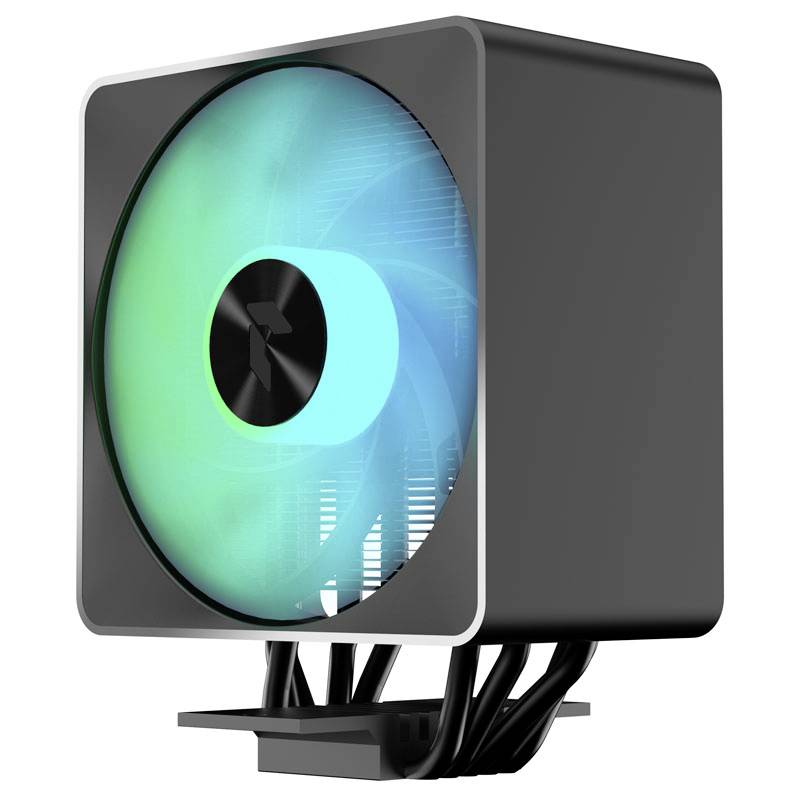

A square computer heatsink with an illuminated fan in a bluish-green colour, mounted on a black base, for PC cooling.

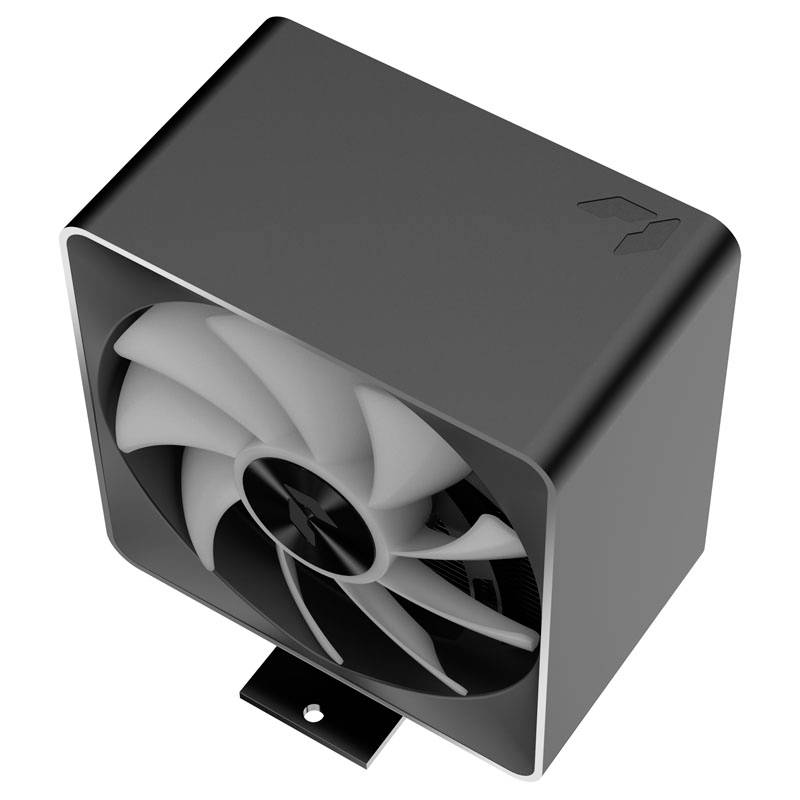

Black cooling fan in a rectangular housing for computers or electronic devices; shows fan blades and mounting bracket.

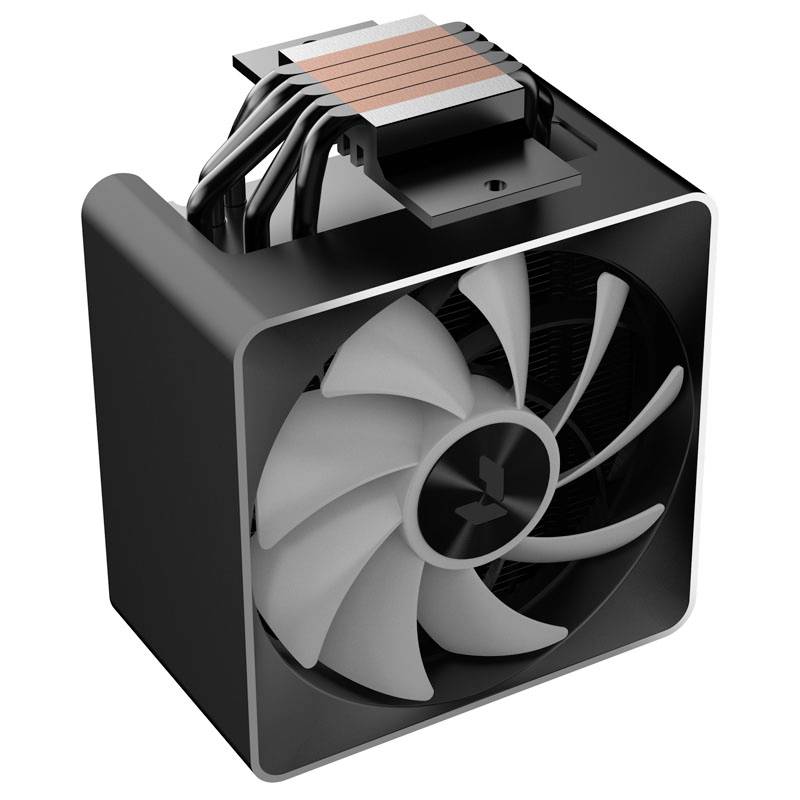

A black CPU cooler with a large, white fan and several visible heat pipes that contribute to heat dissipation.

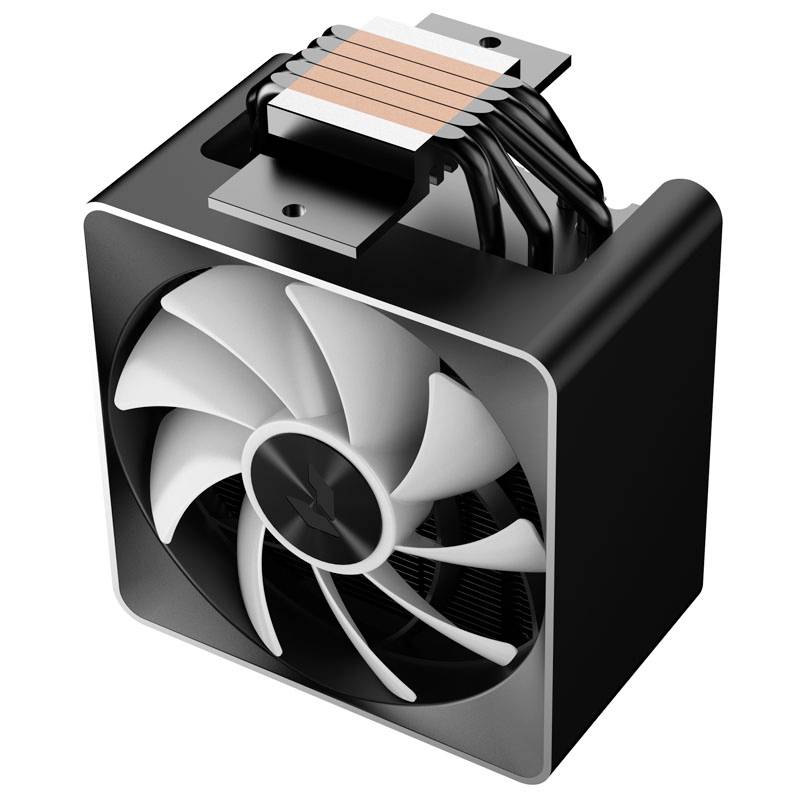

A black computer cooler with a large fan and cooling fins for heat dissipation. Copper heat pipes are visible in the foreground.

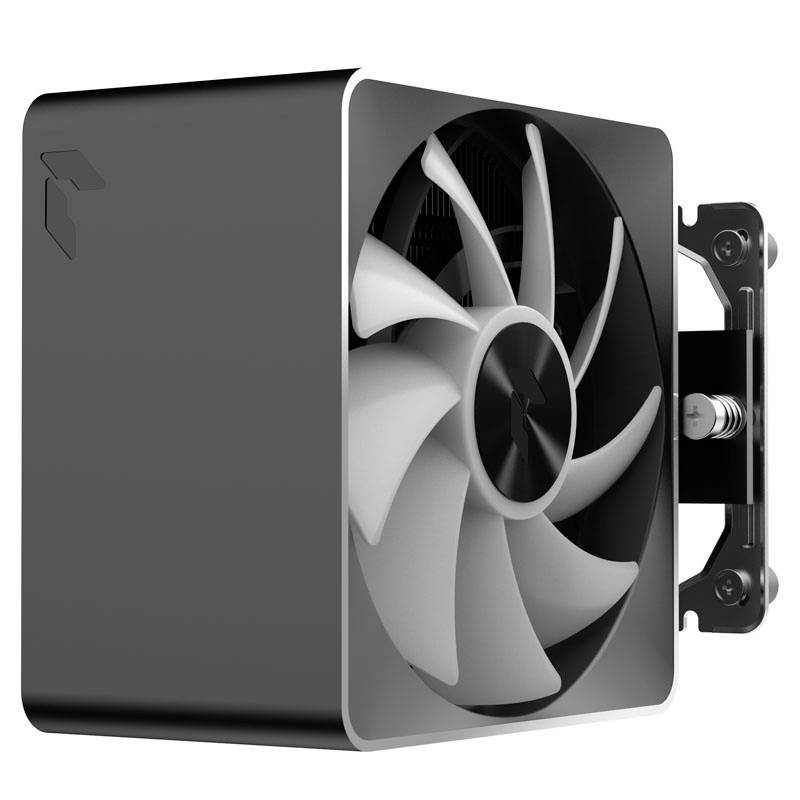

A black computer fan in a rectangular housing with a large white fan blade, mounted on a heatsink.

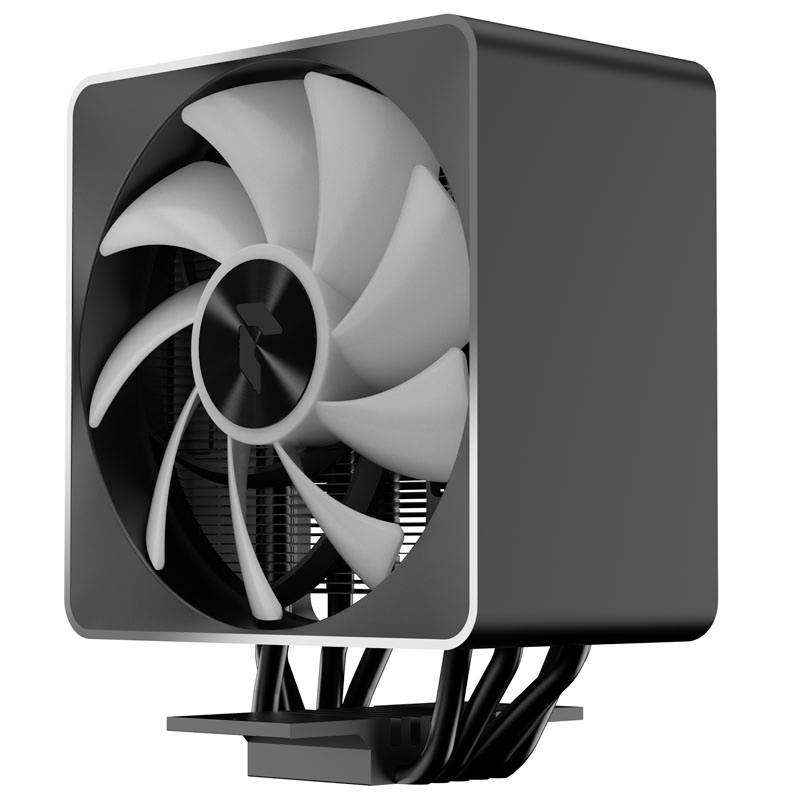

'Black CPU cooler with grey fan and multiple heatpipes to improve cooling performance.'

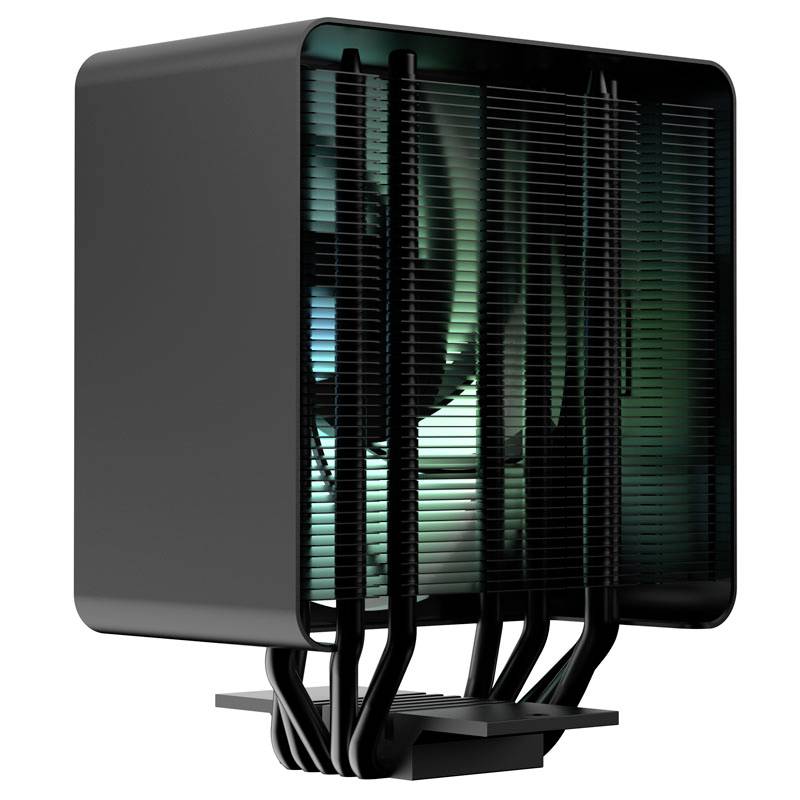

A black computer CPU cooler with multiple heat pipes and cooling fins. A glowing fan is visible inside.

1/10

Dispatches on Wed, 16 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

Report legal concerns

Highlights & Details

APNX APNX AP1-V CPU-Kühler - 120mm, schwarz CPU cooler + fan

Powerful CPU cooler
Five 6 mm heat pipes with direct contact to the CPU
Cooling block made of aluminum
Cooling element with frame made of aluminum
1x low-noise 120-mm fan with PWM-connection
High compatibility with sockets and RAM
High TDP of 245 Watt

Technical specifications

Material: Aluminium
Colour, black
Heat pipes: 5x Ø 6 mm
TDP: 245 Watt
Fan:
Dimensions: 120 x 120 x 25 mm (W x H x D)
Speed 600 to 1,800 rpm
Volume flow: Max. 129.6 m³/h
Static pressure: 3.36 mmH2O
Volume 16.1 - 32.8 dB (A)
Connection:4-pin-PWM, 3-pin ARGB
Operating voltage 12 V.
Start voltage 5 V
Current 0.32 A
Power consumption 3.84 W
MTBF: 80000 h
Compatibility:
Intel socket LGA 1700, 1200, 115x
AMD SOCKET AM5, AM4

Product type: CPU cooler + fan

: Intel® 1200
Intel® 1700
Intel® 1150
Intel® 1151v2
Intel® 1155
Intel® 1157
AMD AM4
#####AMD AM5

Noise emission (max.): 32.8 dBa

Rotational speed (min.): 600 U/min

Rotational speed (max.): 1800 U/min

Air discharge: 129.6 m³/h

Weight: 1030 g

Width: 129 mm

Height: 75 mm

Depth: 165 mm

Noise emission: 30.1 dBa - 40 dBa

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3203219 APNX APNX AP1-V CPU-Kühler - 120mm, schwarz CPU cooler + fan Intel® 1200, Intel® 1700, Intel® 1150, Intel® 1151v2, Intel

Description

Powerful CPU cooler
Five 6 mm heat pipes with direct contact to the CPU

This text is machine translated.

Features

Single tower cooler with a cooling capacity of up to 245 W TDP
Five 6-mm heat-pipes and optimized cooling fins made of aluminum
Cooling element with frame made of aluminum increases the cooling performance
A fan with PWM and ARGB-connection in the 120-mm format
Design of the cooling tower for high RAM compatibility
High compatibility with AMD and Intel processors
Mounting system for easy installation including fan
