Aratas G9K MOSFET 450 mA 1 maker 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
MOSFET
Contact type
1 maker
Switching voltage (max.)
20 V AC
Switching current (max.)
450 mA
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details

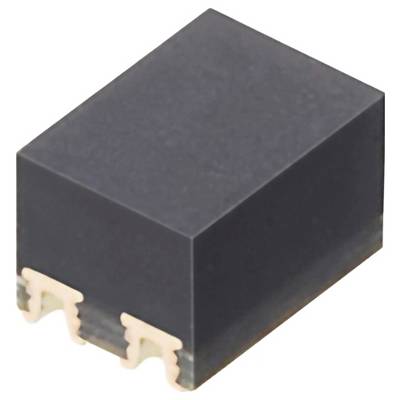

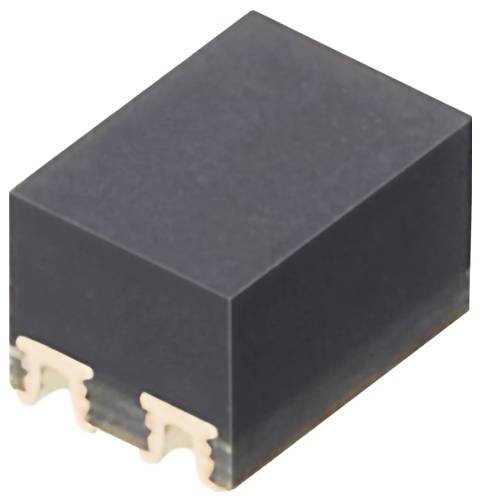

G3VM-21QR1(TR05) Compact MOSFET-Relay in S-VSON(L)-Casing
- Load voltage 20 V
- Low capacitance × Resistance (C × R) 5.2 pF/Ω (standard) provide excellent output characteristics in the high-frequency range.
- Response time max. 0.15 ms, recovery time max. 0.1 ms
- High ambient temperature range -40 °C to +110 °C.
Technical specifications
- Packaging type
Piece
- Product type
MOSFET
- Type
G9K
- Contact type
1 maker
- Switching voltage (max.)
20 V AC
- Switching current (max.)
450 mA
- Connection
SMD
- Insulation voltage
500 V RMS
- Response time
0.15 ms
- Fall time
0.1 ms
- Min. temperature
-40 °C
- Max. temperature
110 °C
- Weight
0.01 g
- Factory colour
Black
- Length
2 mm
- Width
1.45 mm
- Height
1.3 mm
- Dim
(L x W x H) 2 x 1.45 x 1.3 mm
- Industrial packaging
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3589254 Aratas G9K MOSFET 450 mA 1 maker 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3589254 Aratas G9K MOSFET 450 mA 1 maker 1 pc(s) Piece
Description
The compact 4-pin housing S-VSON (L) (L 2.0 × B 1.45 × H 1.3 mm) contributes to reducing the space requirements on printed circuit boards.
