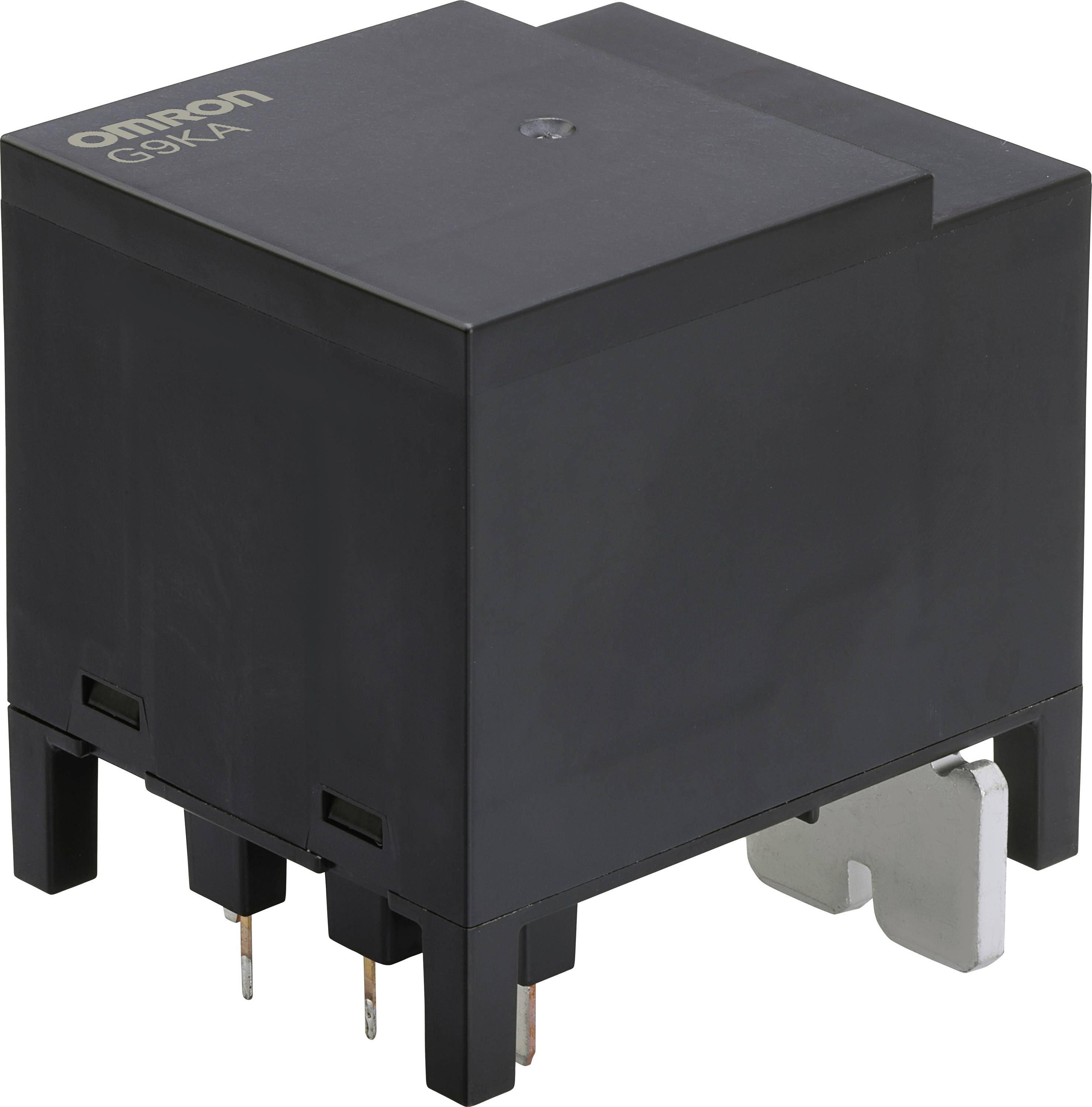

Aratas G9K PCB relay 24 V DC 300 A 1 breaker 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
24 V DC
Contact type
1 breaker
Switching voltage (max.)
1.000 V AC
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
14-day return policy included
Highlights & Details
G9KA-1A1B-E PCB HIGH-PERFORMANCE RELAY 1,000 VAC AND 300 A. 24 VDC
- The relay has a high switching capacity of up to 300 A at 1,000 VAC
- It has a normally closed (N.C.) Auxiliary contact to monitor contact faults
- The auxiliary contact corresponds to the mirror contact structure according to the standard IEC/EN 60947-4-1 Annex F7.2
- The main contact has a high current carrying capacity of 300 A and a low contact resistance of up to 0.2 mOhm
- These values are among the highest for PCB relays
Technical specifications
- Packaging type
Piece
- Product type
PCB relay
- Type
G9K
- Coil nominal voltage
24 V DC
- Max. pick-up voltage
1.000 V AC
- Resistance (coil)
96 Ω
- Coil voltage rating
6.000 mW
- Contact type
1 breaker
- Switching voltage (max.)
1.000 V AC
- Switching current (max.)
300 A
- Connection
Print
- Features
+ auxiliary contact
- Factory colour
Black
- Length
56.7 mm
- Width
61 mm
- Height
58.4 mm
- Dim
(L x W x H) 56.7 x 61 x 58.4 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3477008 Aratas G9K PCB relay 24 V DC 300 A 1 breaker 1 pc(s) Piece
Datasheet 3477008 Aratas G9K PCB relay 24 V DC 300 A 1 breaker 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3477008 Aratas G9K PCB relay 24 V DC 300 A 1 breaker 1 pc(s) Piece
Conformity certificate
Conformity certificate 3477008 Aratas G9K PCB relay 24 V DC 300 A 1 breaker 1 pc(s) Piece
Description
The relay can replace conventional contactors and has the advantage that less space and less labor is required for installation. The relay is particularly well suited to applications which require high reliability. These include PV/ESS inverters, quick EV chargers and power/UPS systems. The reliable auxiliary contact of the relay can accelerate the exchange of contactors with PCB relays. The high reliability of the auxiliary contact is an important factor for use in systems that require a high level of operational safety. Designers can replace conventional contactors with auxiliary contacts with fewer design changes with this relay.
