Aratas Optical sensor 392314 392314 Light-ON, Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Optical sensor
Min. operating voltage
4.5 V DC
Max. operating voltage
26.4 V DC
Type
392314
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Optical sensor
- Type
392314
- Content
1 pc(s)
- Min. operating voltage
4.5 V DC
- Max. operating voltage
26.4 V DC
- Operating voltage
4.5 - 26.4 V DC
IP50
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
13.4 mm
- Width
26 mm
- Height
22.2 mm
- Dim
(L x W x H) 13.4 x 26 x 22.2 mm
- Wavelength
940 nm
- Enclosure material
Plastic
- Functions
Light-ON
Dark-ON
- Outputs
NPN
- Transmitter type
IRED
- Type
Special design
- Response time
0.17 ms
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819224 Aratas Optical sensor 392314 392314 Light-ON, Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3819224 Aratas Optical sensor 392314 392314 Light-ON, Dark-ON 1 pc(s)
Description

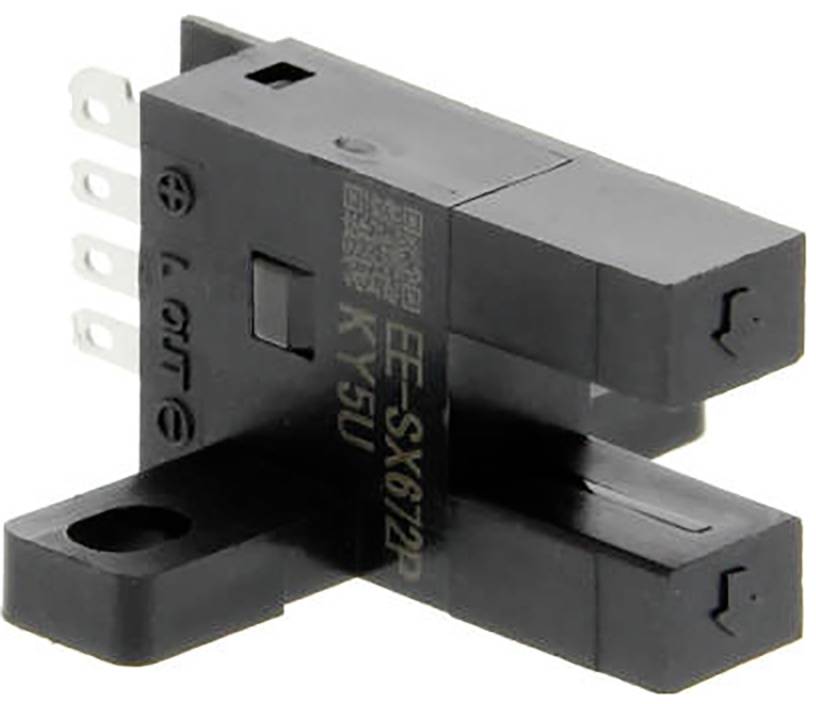

Optical micro sensor, slot, T-shape, L-On/D-On selectable, NPN, Connectors
This text is machine translated.
This text is machine translated.
Hints
For more information on this 392314, please refer to its datasheet under 'downloadable documents'
