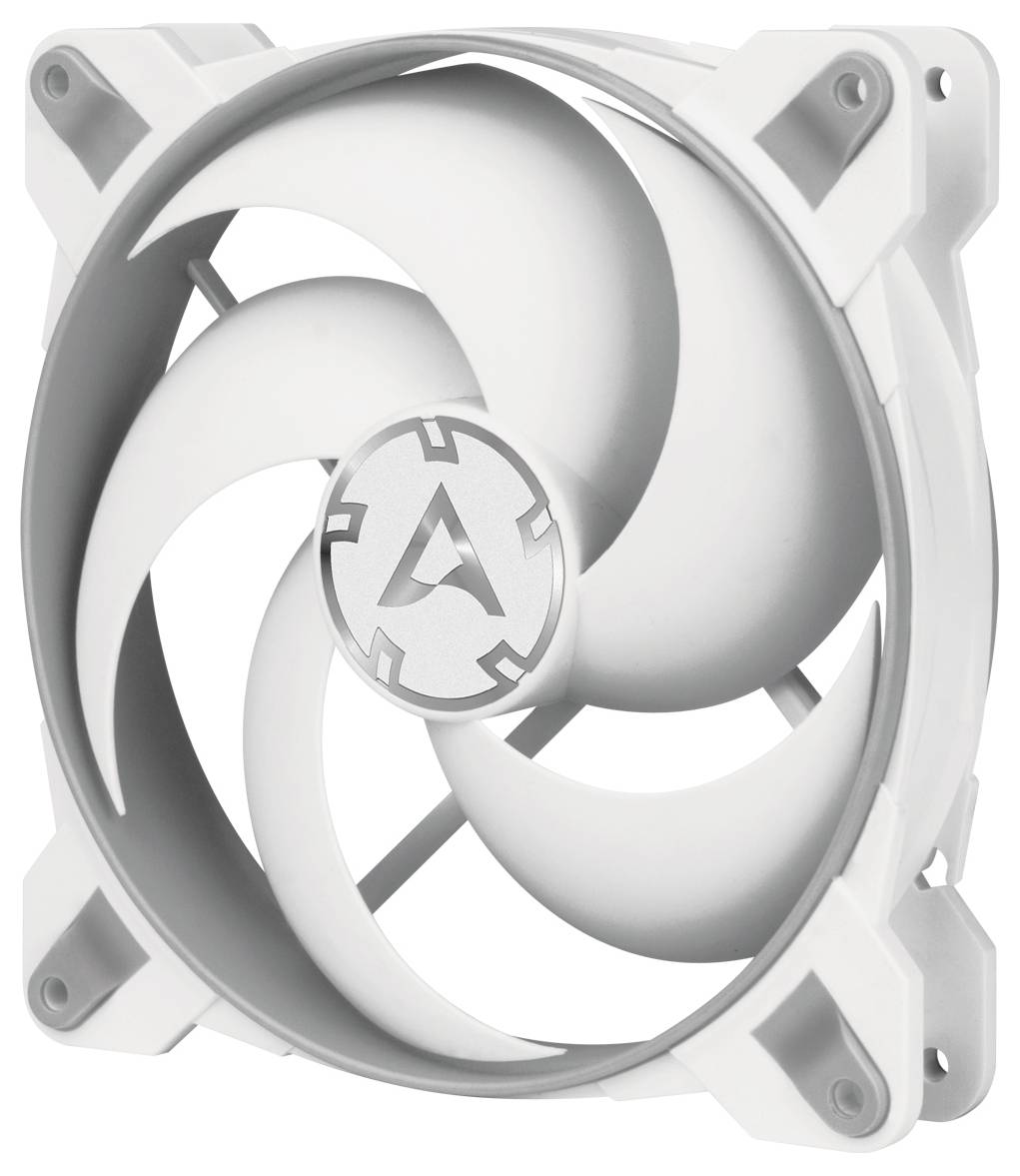

Arctic ACFAN00160A PC fan Grey, White (W x H x D) 140 x 140 x 28 mm
EAN:
Part number:
Item no:
Arctic ACFAN00160A PC fan
Highlights & Details
- Computer housing fan 14 cm 1950 RPM
- 77.6 CFM 2.85 mmH2O Fluid dynamic bearing (FDB)
- Support for pulse width modulation
- Grey, white
Technical specifications
- Type: Fan
- Product color: Grey, white
- Fan diameter 14 cm
- Number of fans: 1 fans
- Number of fan blades: 5
- Fan connection 4-pin + 4-pin
- Voltage: 12 V
- Nominal current: 0.15 A
- Power consumption (standard mode) 1.8 W.
- Width 140 mm
- Depth: 28 mm
- Height: 140 mm
- Weight: 181 g
- Package width 148 mm
- Packaging depth 35 mm
- Packaging height 148 mm
- Recommended placement: Computer chassis
- Rotation speed (min.): 200 RPM
- Rotation speed (max.): 1950 RPM
- Maximum air flow: 77.6 cfm
- Maximum air pressure 2.85 mmH2O
- Support for pulse width modulation: Yes
- Storage type: Fluid dynamic bearing (FDB)
- Supported processor slots: Not supported
- Compatible Processors: Not supported
- Noise level: 0.45 Sone
- Air flow: 131.92 m³/h.
- Screws included: Yes
- Number of screws: 4
- Cable length: 0.4 m.
- Mounting hole dimensions 125 x 125 mm
- Product type
PC fan
- Fan size
140 mm
- Rotational speed (min.)
200 U/min
- Air discharge
131.92 m³/h
- Rotational speed (max.)
1950 U/min
- Type of bearing
Fluid dynamic bearing
- Connection
4-pin
- Factory colour
Grey
White
- Weight
181 g
- Width
140 mm
- Height
140 mm
- Depth
28 mm
- Dim
(W x H x D) 140 x 140 x 28 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3222302 Arctic ACFAN00160A PC fan Grey, White (W x H x D) 140 x 140 x 28 mm
Description
Bionix P140 (white)
140 mm PWM PST gaming fan optimized for static pressure
The Bionix P140 fan has a completely newly developed fan design and is optimized for high static pressure. It is predestined for use on heat sinks and at higher air resistance.
The wide speed range of 200 to 1950U/min can be regulated continuously and synchronously with other fans in the casing by means of the PWM sharing technology (PST) of Arctic.
This text is machine translated.
Features
- Optimised for static printing
- Ideal choice for heatsinks, radiators and (partially) hidden housing inlets
- Wide speed range for highest cooling performance and low noise
- Push- or pull-configuration is possible
- PWM Sharing Technology (PST) regulates all the fans synchronously
- Newly developed, very quiet and efficient motor
- Improved life
- Available in different colors
