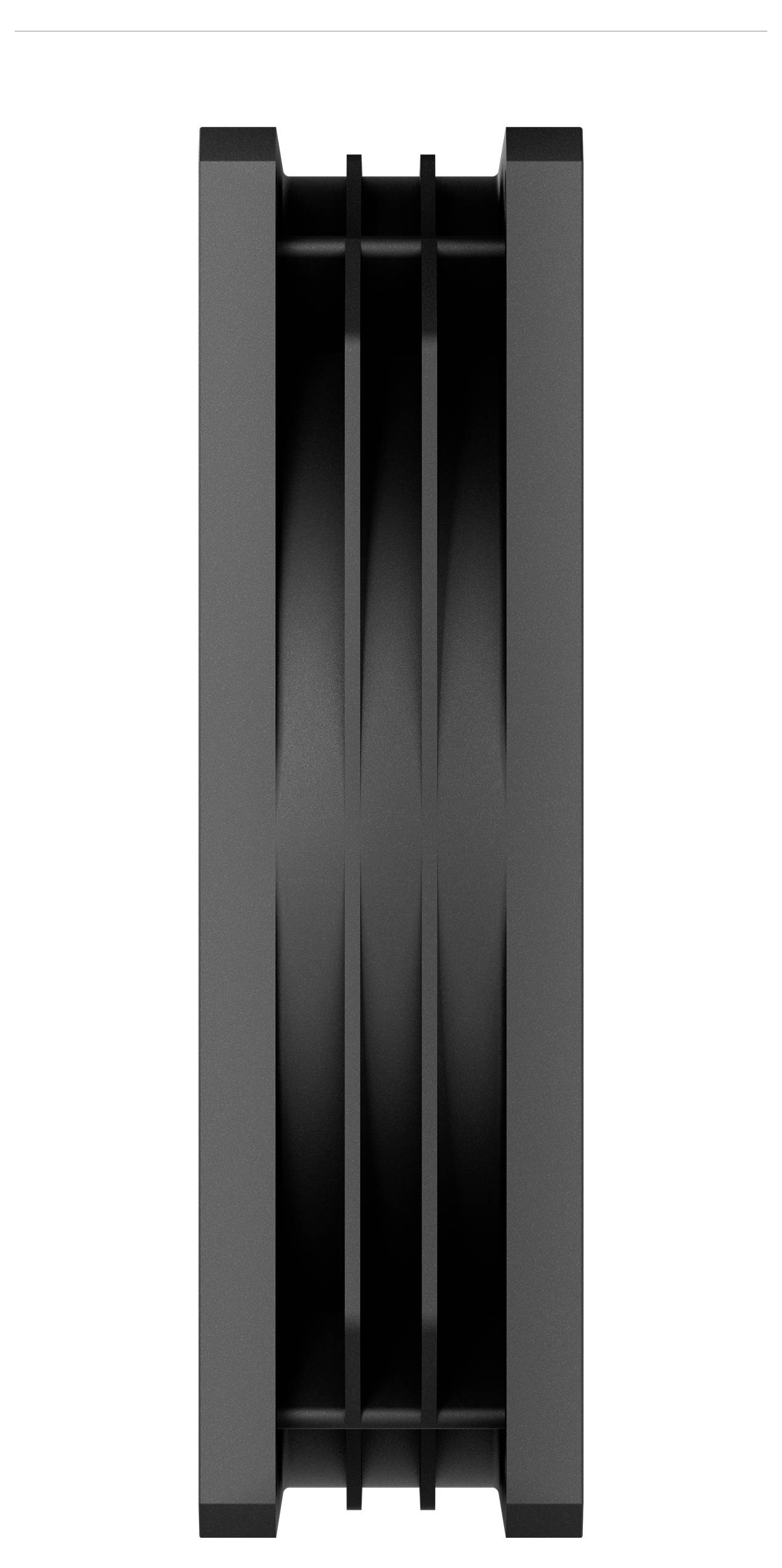

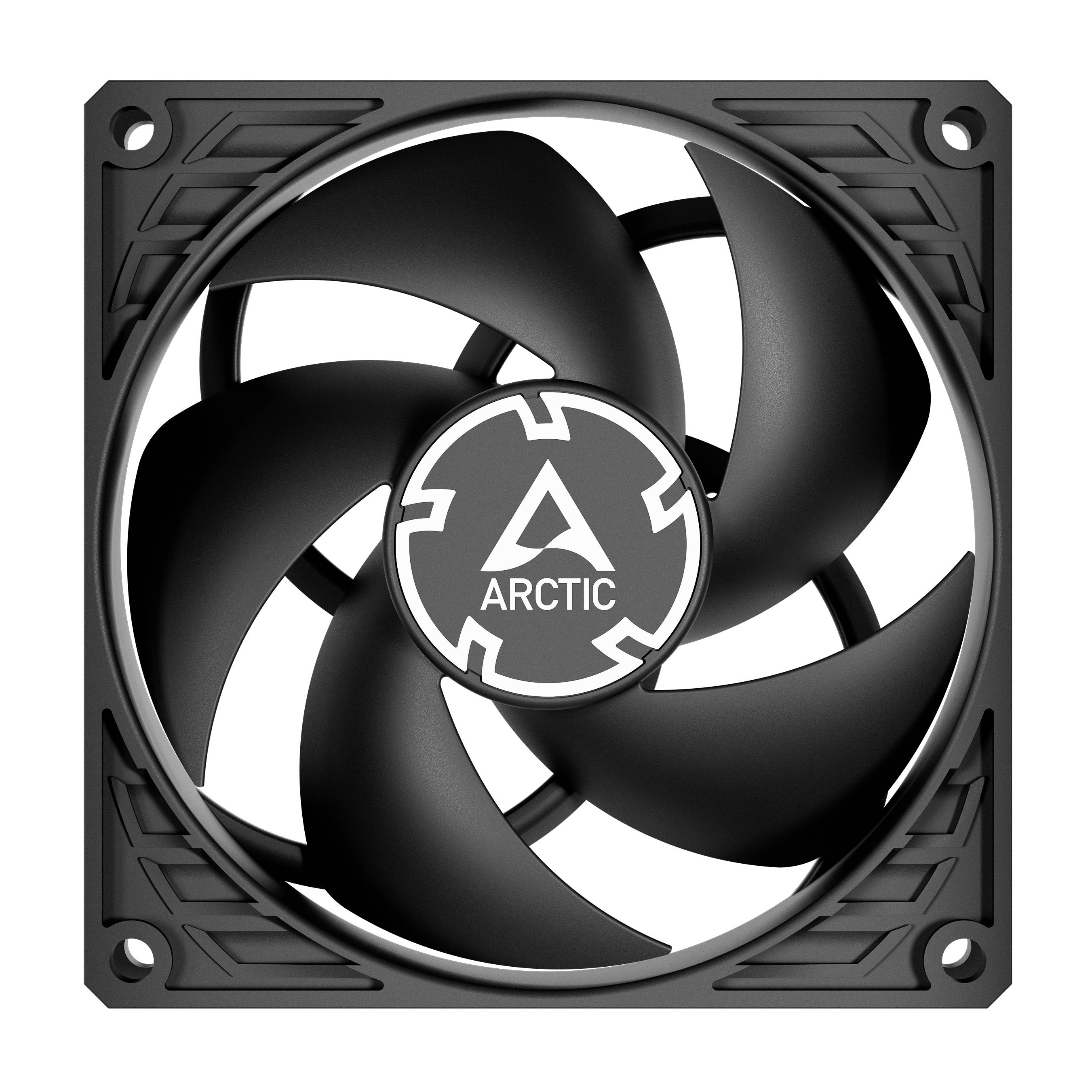

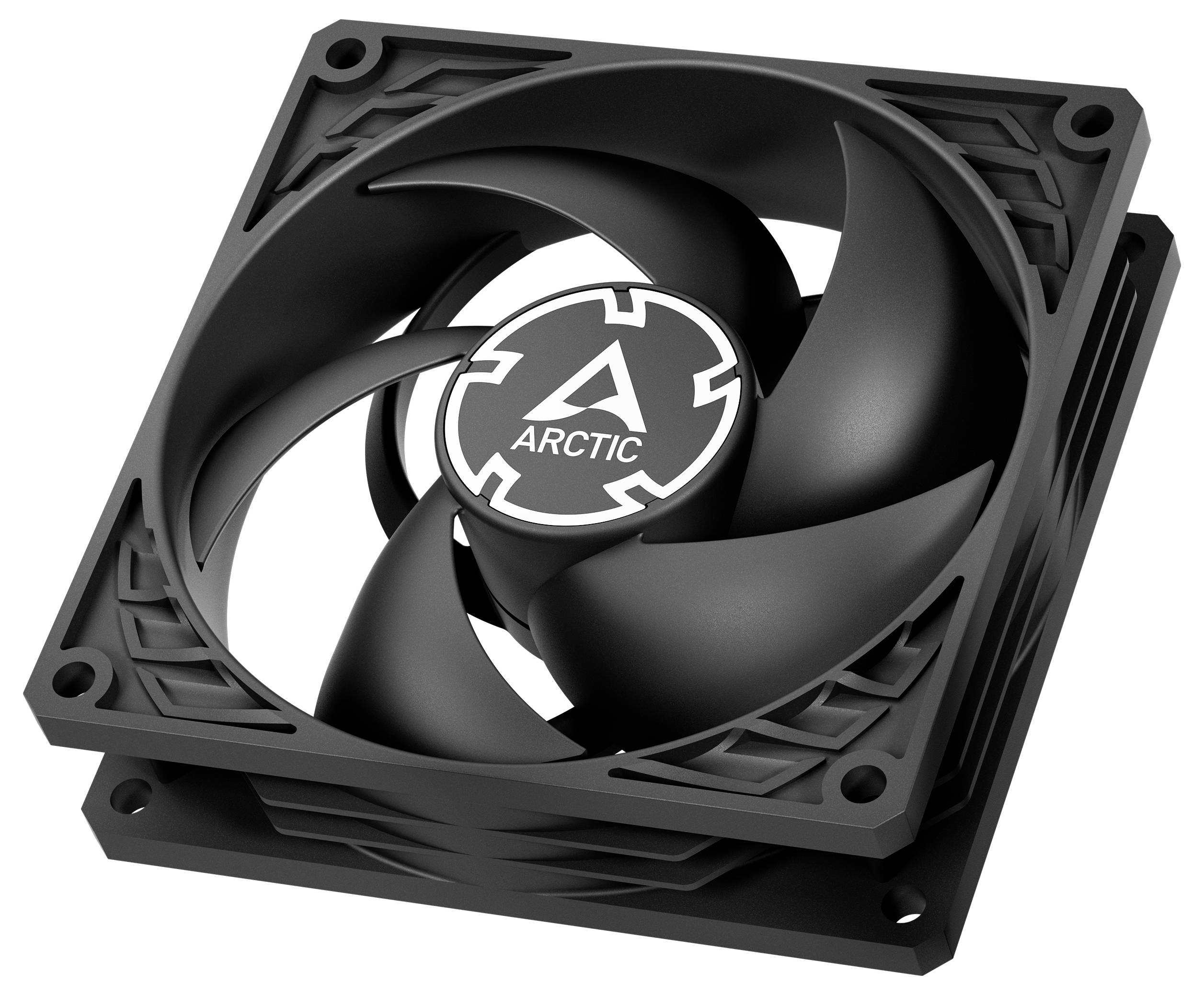

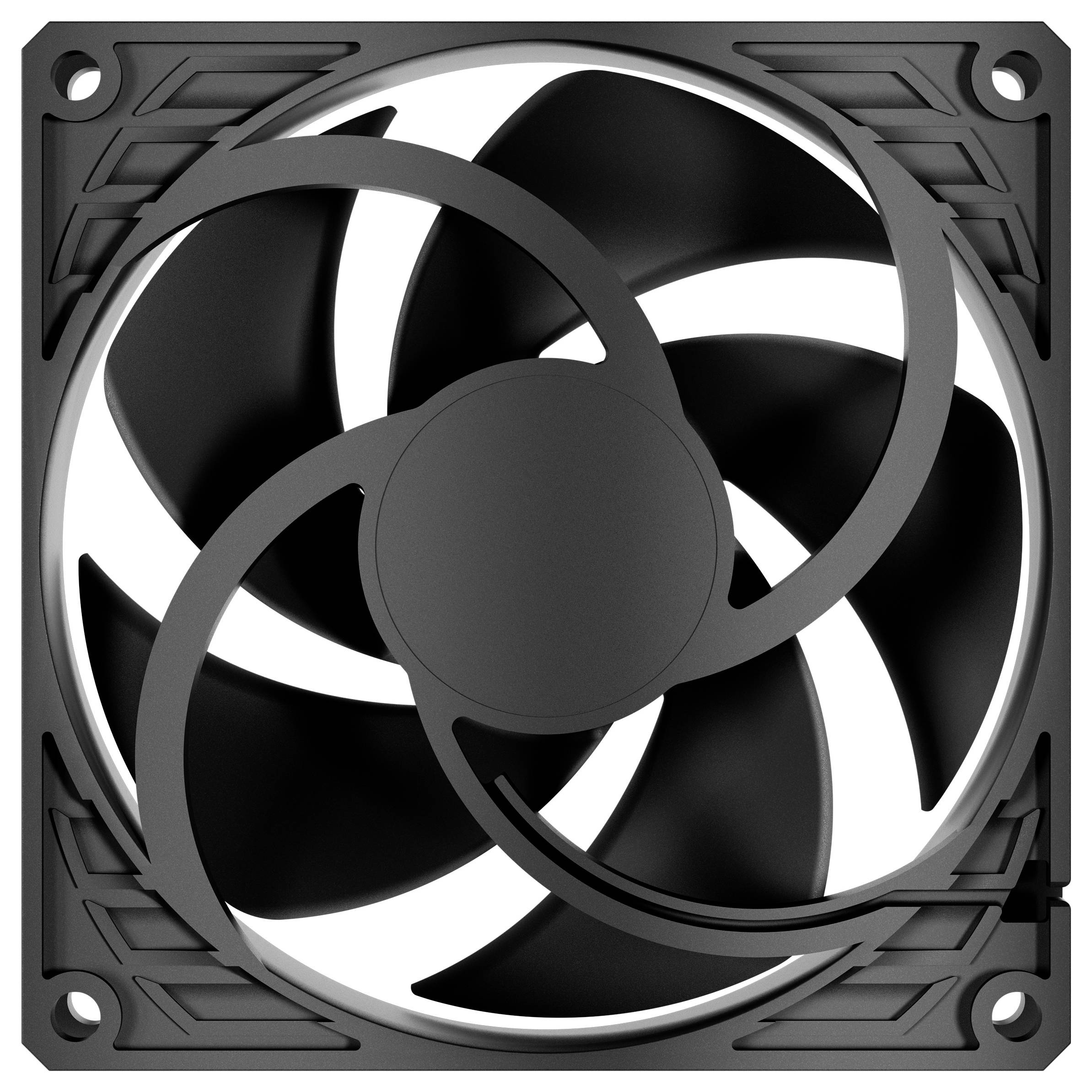

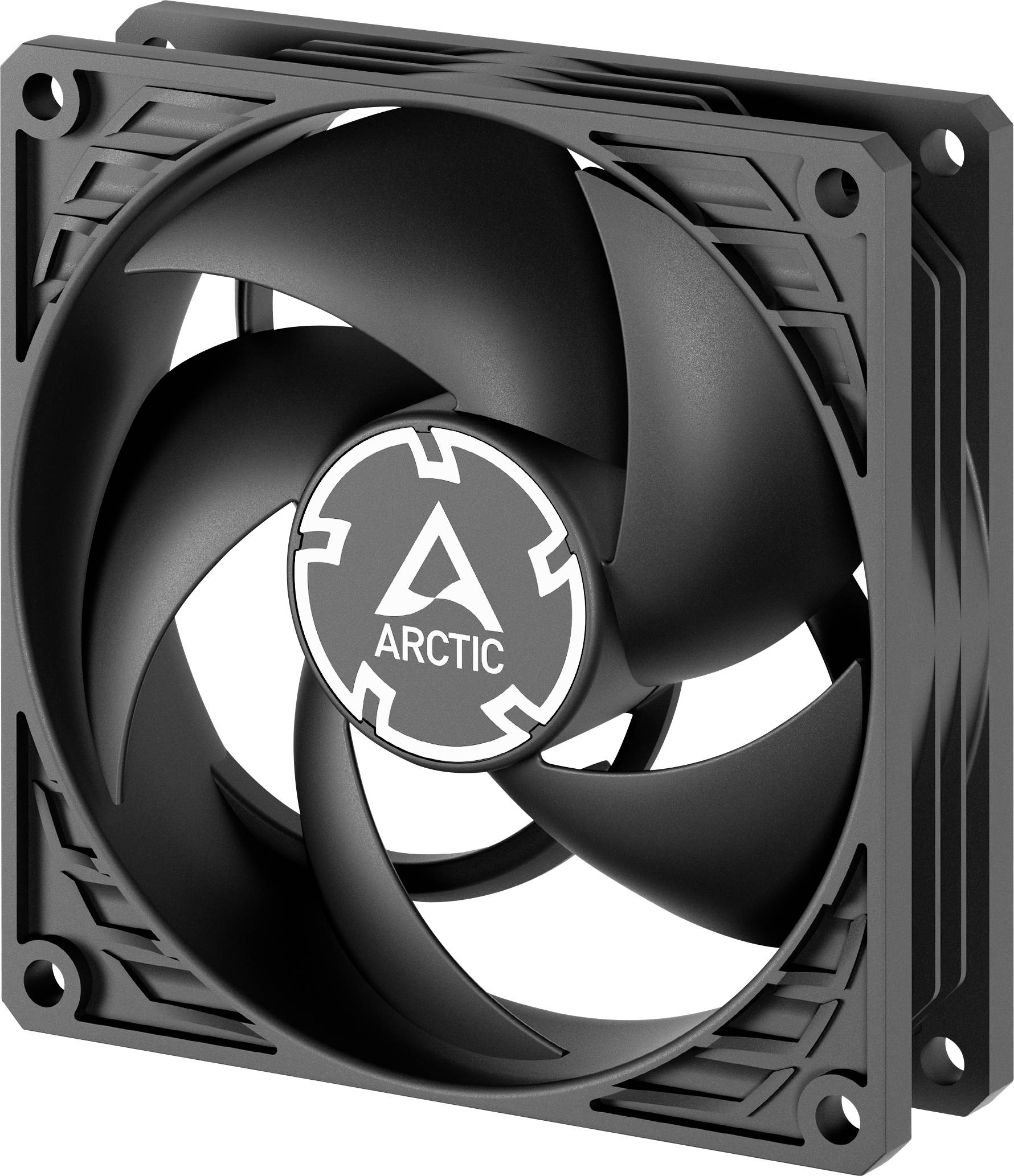

Arctic ACFAN00298A PC fan Black (W x H x D) 92 x 25 x 92 mm
EAN:
Part number:
Item no:
Highlights & Details
Arctic ACFAN00298A PC fan
- Powerful and energy efficient
- Optimised for high static pressure
- 0 dB Mode — Zero rpm
- Hydrodynamic plain bearing
- 200 to 3000 rpm controlled via PWM PST
Technical specifications
- Maximum air flow: 38.83 cfm
- Support for pulse width modulation: Yes
- Static fan pressure 3.12 mmH2O
- Operating temperature: 0 - 40 °C
- Number of fans: 1 fans
- Start voltage 5 V
- Fans voltage: 12 V.
- Fans Current 0.12 A
- Cable length: 0.4 m.
- Product type
PC fan
- Fan size
92 mm
- Rotational speed (min.)
200 U/min
- Air discharge
65.97 m³/h
- Rotational speed (max.)
3000 U/min
- Type of bearing
Fluid dynamic bearing
- Factory colour
Black
- Weight
106 g
- Width
92 mm
- Height
25 mm
- Depth
92 mm
- Dim
(W x H x D) 92 x 25 x 92 mm
- Content
1 pc(s)
- Cable length
0.4 m
- Type
Fan
- UKCA
yes
- Fan speed (max)
3000 RPM
- Fan speed (min)
200 RPM
- Fan voltage
12 V
- Fan current
0.12 A
- Operating temperature (T-T)
0 - 40 °C
- Fan dimensions (W x D x H)
92 x 92 x 25 mm
- Quantity per pack
1 Stück(e)
- Pulse-width modulation (PWM) support
yes
- Fan static pressure
3.12 mmwc
- Starting voltage
5 V
- Package weight
125 g
- Maximum airflow
38.83 cfm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3395835 Arctic ACFAN00298A PC fan Black (W x H x D) 92 x 25 x 92 mm
Description
Our versatile fans are quiet and powerful. We have the right variant and size for every application and need – from 80 to 140 mm. Our fans are equipped with the latest engine technology, innovatively designed fan blades and high-quality bearings, which makes them especially durable and efficient.
Powerful and energy efficient
The P9 PWM PST is a powerful 92 mm fan with a speed of 200 to 3000 rpm. It supplies a static pressure of 3.12 mmH2O and generates an air flow of 38.83 cfm. With pulse width modulation (PWM), it enables precise control of the fan speed and with a consumption of only 0.12 A is extremely energy-efficient. Additionally it has a 0 dB mode which provides for a silent operation in idle state.
Optimised for high static pressure
The P9 PWM PST provides a focused air flow and also ensures a high air flow in case of especially Hohem air resistance. This makes the fan Ideal suitable for use in heatsinks, radiators as well as in hole covers and filters.
0 dB Mode — Zero rpm
The fan can be throttled by PWM to a standstill, WAS allows a silent operation in idling and at the same time ensure maximum power, when needed. Thus, the P9 PWM PST offers an extremely flexible speed adjustment, in order to optimally regulate the air flow in each casing.
Hydrodynamic plain bearing
The P9 PWM PST is equipped with ARCTIC's proven hydrodynamic plain bearing, which enables an especially quiet operation. Arctic makes no compromises in durability
200 to 3000 rpm controlled via PWM PST
Arctic's PST fans (PWM Sharing Technology) are already equipped with a Y-cable splitter in order to switch in series up to four more PST-fans. This allows the fan speed of the P9 PWM PST and the other fan to be controlled via a single connection.
This text is machine translated.
Powerful and energy efficient
The P9 PWM PST is a powerful 92 mm fan with a speed of 200 to 3000 rpm. It supplies a static pressure of 3.12 mmH2O and generates an air flow of 38.83 cfm. With pulse width modulation (PWM), it enables precise control of the fan speed and with a consumption of only 0.12 A is extremely energy-efficient. Additionally it has a 0 dB mode which provides for a silent operation in idle state.
Optimised for high static pressure
The P9 PWM PST provides a focused air flow and also ensures a high air flow in case of especially Hohem air resistance. This makes the fan Ideal suitable for use in heatsinks, radiators as well as in hole covers and filters.
0 dB Mode — Zero rpm
The fan can be throttled by PWM to a standstill, WAS allows a silent operation in idling and at the same time ensure maximum power, when needed. Thus, the P9 PWM PST offers an extremely flexible speed adjustment, in order to optimally regulate the air flow in each casing.
Hydrodynamic plain bearing
The P9 PWM PST is equipped with ARCTIC's proven hydrodynamic plain bearing, which enables an especially quiet operation. Arctic makes no compromises in durability
200 to 3000 rpm controlled via PWM PST
Arctic's PST fans (PWM Sharing Technology) are already equipped with a Y-cable splitter in order to switch in series up to four more PST-fans. This allows the fan speed of the P9 PWM PST and the other fan to be controlled via a single connection.
This text is machine translated.
