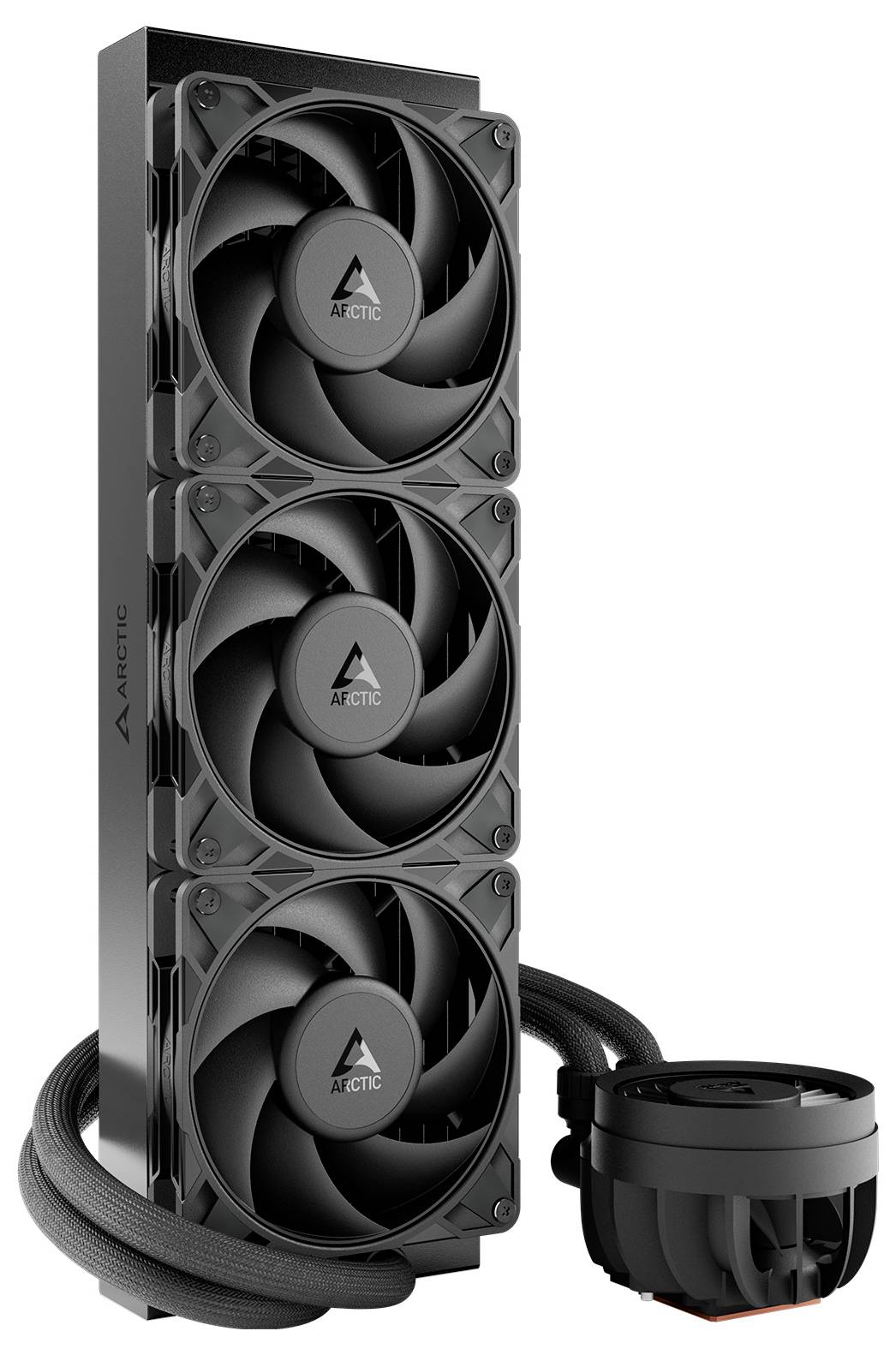

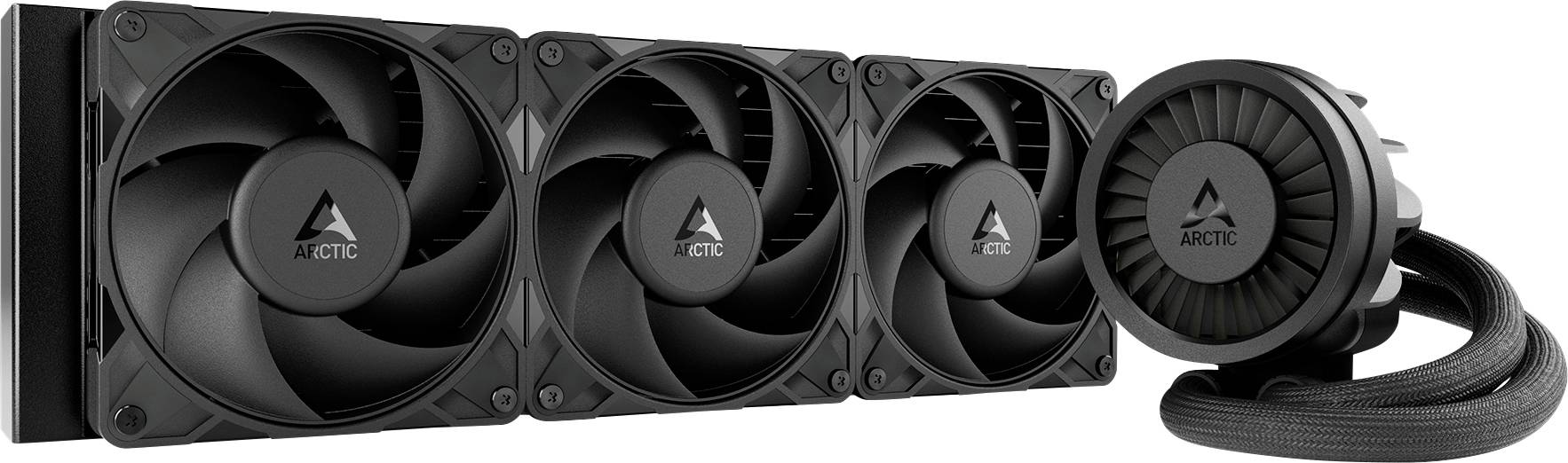

Arctic ACFRE00180A Water cooling kit
EAN:
Part number:
Item no:
Arctic ACFRE00180A Water cooling kit
Highlights & Details
- Processor liquid cooling 12 cm
- Supported processor slots: Intel LGA1851, LGA 1700, socket AM4, socket AM5
- 77 CFM Fluid dynamic bearing (FDB)
- Support for pulse width modulation
- 120 x 120 x 25mm
- Black
- 1 pieces(s)
Technical specifications
- Fan diameter 12 cm
- Supported processor slots: Intel LGA1851, LGA 1700,Socket AM4,Socket AM5
- Storage type: Fluid dynamic bearing (FDB)
- Number of fans: 3 fans
- 4-pin fan connector
- Product type
Water cooling kit
- Suitable for
Intel® 1700
#####Intel® 1851
AMD AM4
#####AMD AM5
- Weight
2.02 kg
- Factory colour
Black
- Dim
(W x H x D) 120 x 66 x 398 mm
- Rotational speed (max.)
3000 U/min
- Rotational speed (min.)
600 U/min
- Heatsink material
Aluminium
- Air discharge
131 m³/h
- Fan dimensions
120 x 120 mm
- Width
120 mm
- Height
66 mm
- Depth
398 mm
- Type
Liquid cooling
- UKCA
yes
- Pump motor speed (max)
2800 RPM
- Pump motor speed (min)
800 RPM
- Pump current
350 mA
- Fan voltage
12 V
- Fan current
0.33 A
- Radiator width
12 cm
- Radiator depth
39.8 cm
- Radiator height
3.8 cm
- Tube length
45 cm
- Operating temperature (T-T)
0 - 40 °C
- Fan dimensions (W x D x H)
120 x 120 x 25 mm
- Quantity per pack
1 Stück(e)
- Pulse-width modulation (PWM) support
yes
- Fan static pressure
6.9 mmwc
- Tube inner diameter
6 mm
- VRM fan diameter
9.1 cm
- VRM fan speed (max)
2500 RPM
- VRM fan speed (min)
400 RPM
- Package weight
2.46 kg
- Tube diameter
1.24 cm
- Maximum airflow
77 cfm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3410942 Arctic ACFRE00180A Water cooling kit
Description
CPU water cooler
Superior cooling performance thanks to liquid cooling. ARCTICs Premium Liquid Freezer series offers impressive performance at moderate prices without the complexity of conventional CPU water coolers. The all-in-one cooling system with various models for small and large housings completely maintenance-free covers all the most important current CPU sockets.
