Arctic Lüfter 120*120*25 P12 Pro Reverse Graphics card cooler + fan Black
EAN:
Part number:
Item no:

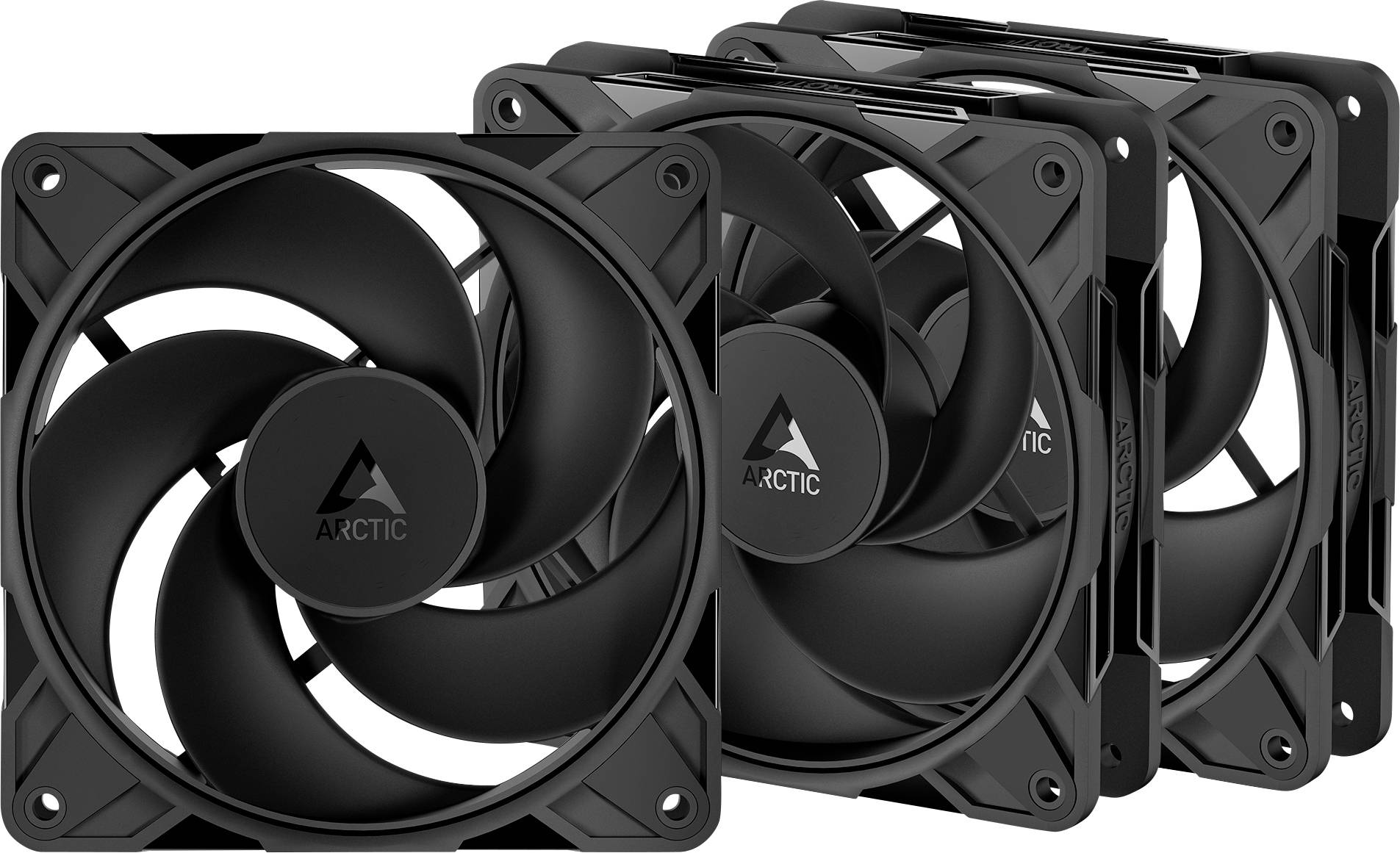

Arctic Lüfter 120*120*25 P12 Pro Reverse Graphics card cooler + fan
Highlights & Details
- Fan diameter of 120 mm at a speed of 0–3000 rpm
- Efficient air flow of 73 cfm and air pressure of 4.5 mm
- Fluid-dynamic bearings for improved durability
- Reversed wing design for versatile airflow options
- Daisy chain compatible for easy set-up
Technical specifications
- Fan diameter 12 cm
- Storage type: Fluid dynamic bearing (FDB)
- Number of fans: 3 fans
- 4-pin fan connector
- Product type
Graphics card cooler + fan
- Rotational speed (min.)
500 U/min
- Air discharge
124 m³/h
- Rotational speed (max.)
3000 U/min
- Factory colour
Black
- Weight
167 g
- Content
1 pc(s)
- Cable length
0.48 m
- Type
Fan
- UKCA
yes
- Number of screws
12
- Screws included
yes
- Fan voltage
12 V
- Fan current
0.4 A
- Operating temperature (T-T)
0 - 40 °C
- Fan dimensions (W x D x H)
120 x 120 x 27 mm
- Quantity per pack
3 Stück(e)
- Pulse-width modulation (PWM) support
yes
- Fan static pressure
4.5 mmwc
- Starting voltage
3.5 V
- Number of fan blades
5
- Package weight
563 g
- Maximum airflow
73 cfm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730241 Arctic Lüfter 120*120*25 P12 Pro Reverse Graphics card cooler + fan Black
Description
The Arctic P12 Pro Reverse was developed for efficient cooling performance and is thus an ideal choice for system accessories. With a fan diameter of 120 mm and a speed of 0 to 3000 rpm it ensures an optimal air current of 73 cfm and thereby maintains a flat profile with a height of only 27 mm. The fluid-dynamic bearing increases the service life and the fan operates in a temperature range from 0 °C to 40 °C, making it suitable for different environments.
Equipped with functions like the reverse Blade design and reversible air current, this fan is extremely versatile for installation and performance. The integration of microcontroller technology and support for pulse width modulation (PWM) enables precise speed control, while the daisy chain compatibility ensures easy connection to other components. Improve your cooling solution with the reliability and performance of the Arctic P12 Pro Reverse.
