Arducam Camera unit MBS-SES-256
EAN:
Part number:
Item no:
Number
Total (€ 424.37 / piece)
€ 424.37
plus VAT.
Technical specifications
- Optical size: 1/1.7" (9.25mm diagonal (7.4x5.5 mm))
- Focus type: Manual/auto
- Sensor resolution 9152 x 6944
- Video mode (on Raspberry Pi): 1080p30, 720p60 and 640 x 480p60/90
- Video mode (camera module): 1280x720@120fps, 1920x1080@60fps, 2312x1736@30fps, 3840x2160@20fps, 4624x3472@10fps, 9152x6944@2.7fps
- Four-way Bayer coding (QBC) color filter
- Supported platforms (full resolution - 64MP): Pi 4B/CM4
- Supported platforms (Superpixel resolution – 16MP): Pi2/3/CM3/Zero W/Zero 2 W.
- Raspberry Pi OS: Bullseye (32-bit/64-bit) (28.01.2022 or later versions)
- Focus: 8cm to infinity
- F-stop ratio: F1.8
- Focal length: 5.1 mm
- 84° viewing angle (diagonal)

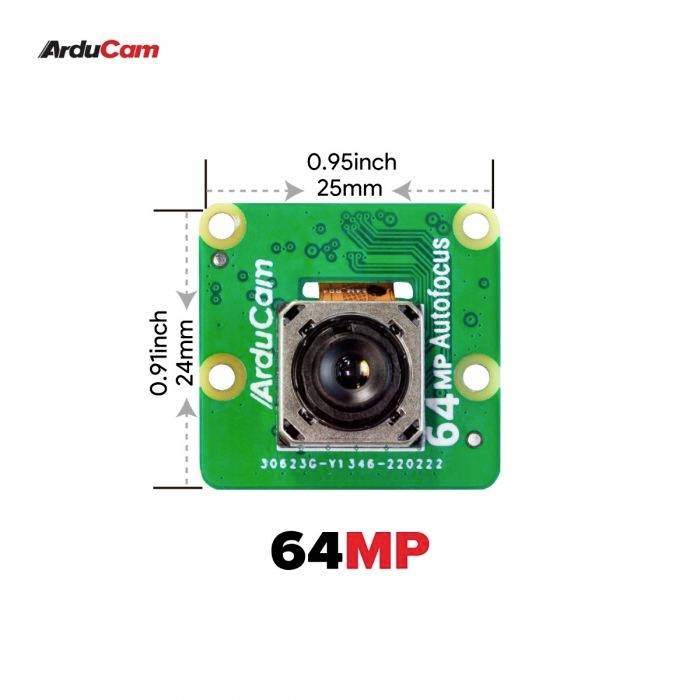

- Dimensions 25 x 24 mm
- Shutter type: Rolling
- OUTPUT FORMAT: JPEG/YUV/RGB/RAW10
- Product type
Camera unit
- Length
25 mm
- Width
24 mm
- Manufacturer part #
MBS-SES-256
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205105 Arducam Camera unit MBS-SES-256
Description

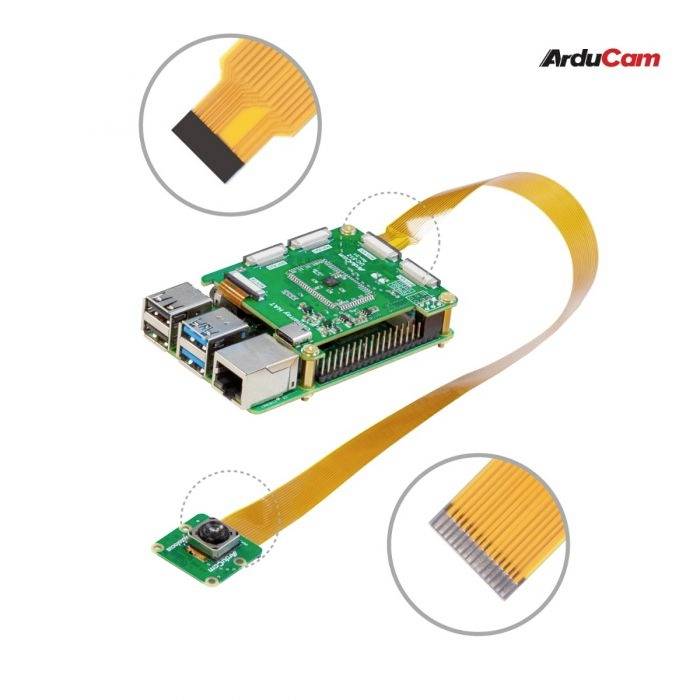

This quad camera kit allows up to four 64MP autofocus cameras to be used on a standard Raspberry Pi model. By default, the ArduCam kit operates in four-channel mode, i.e. all cameras are configured to take photos/videos at the same time.
Supported modes
Single channel (no synchronization): The four cameras operate one after the other, one recording one after the other. Full-res for all.
Dual channel (synchronized): Two cameras become a full-res frame, these work synchronous. 1/2 res for each.
Four-channel (synchronized): All four cameras work in a full-res frame synchronously, 1/4 res for each.
This text is machine translated.
Supported modes
Single channel (no synchronization): The four cameras operate one after the other, one recording one after the other. Full-res for all.
Dual channel (synchronized): Two cameras become a full-res frame, these work synchronous. 1/2 res for each.
Four-channel (synchronized): All four cameras work in a full-res frame synchronously, 1/4 res for each.
This text is machine translated.

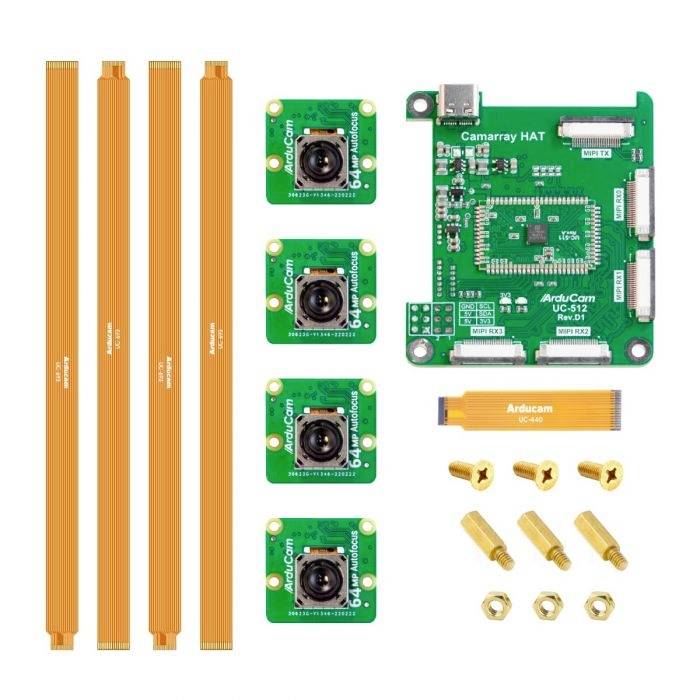

Scope of delivery
- 4x 64MP camera module

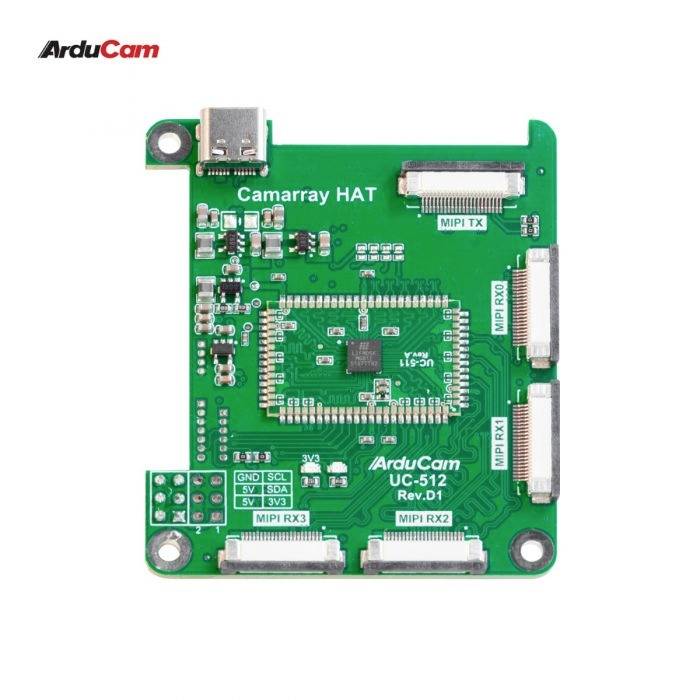

- 1x UC-512 HAS A array
- 4x 30cm 15-22pin camera cable
- 1x 7cm 15-22pin camera cable
- 1x screw set
