Arducam Lens MBS-Z-143-08
EAN:
Part number:
Item no:
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Highlights & Details

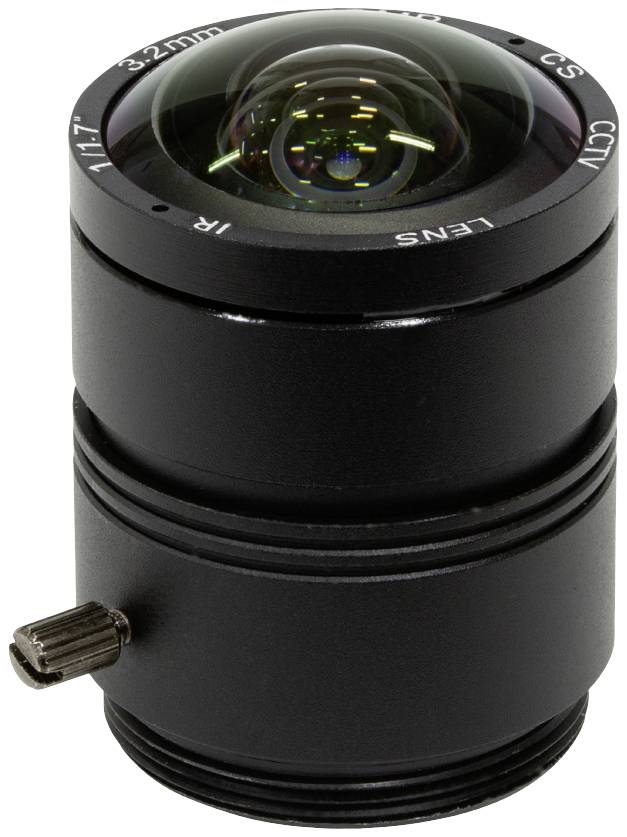

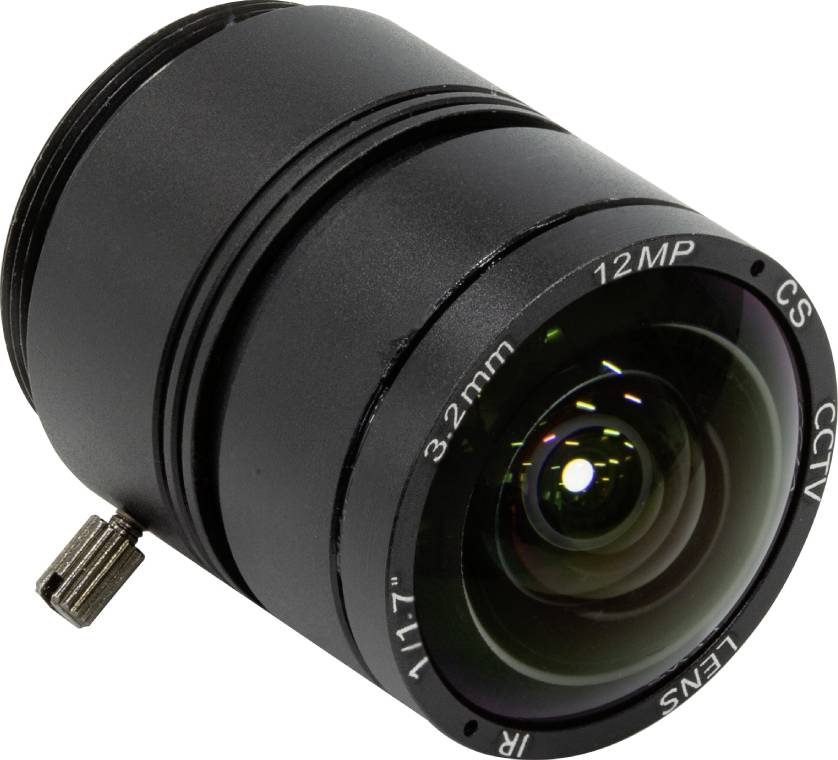

ArduCam Lens CS-Mount 120° 3.2mm
- Compatible with any Pi/Jetson/Arduino camera with a C-mount lens
- Wide focal length range from 3.2 mm to 50 mm
- Adjustable aperture options
- Selective lens bundle with ultra-wide angle options
- Optional zoom control
Technical specifications
- Optical format: 1/7″
- Focal length: 3.2 mm
- Max F2.0 aperture
- Field of view (FOV): 120°(H) on Raspberry Pi High Quality Camera, 70°(H) on Raspberry Pi V1/V2 camera
- Focus type: Manual
- CS mount
- Rear focal length 5.94 mm
- Mod 0.3 m
- Dimensions: Ø28 × 30 mm
- Weight: 54 g
- Product type
Lens
- Length
30 mm
- Width
28 mm
- Manufacturer part #
MBS-Z-143-08
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205066 Arducam Lens MBS-Z-143-08
Description

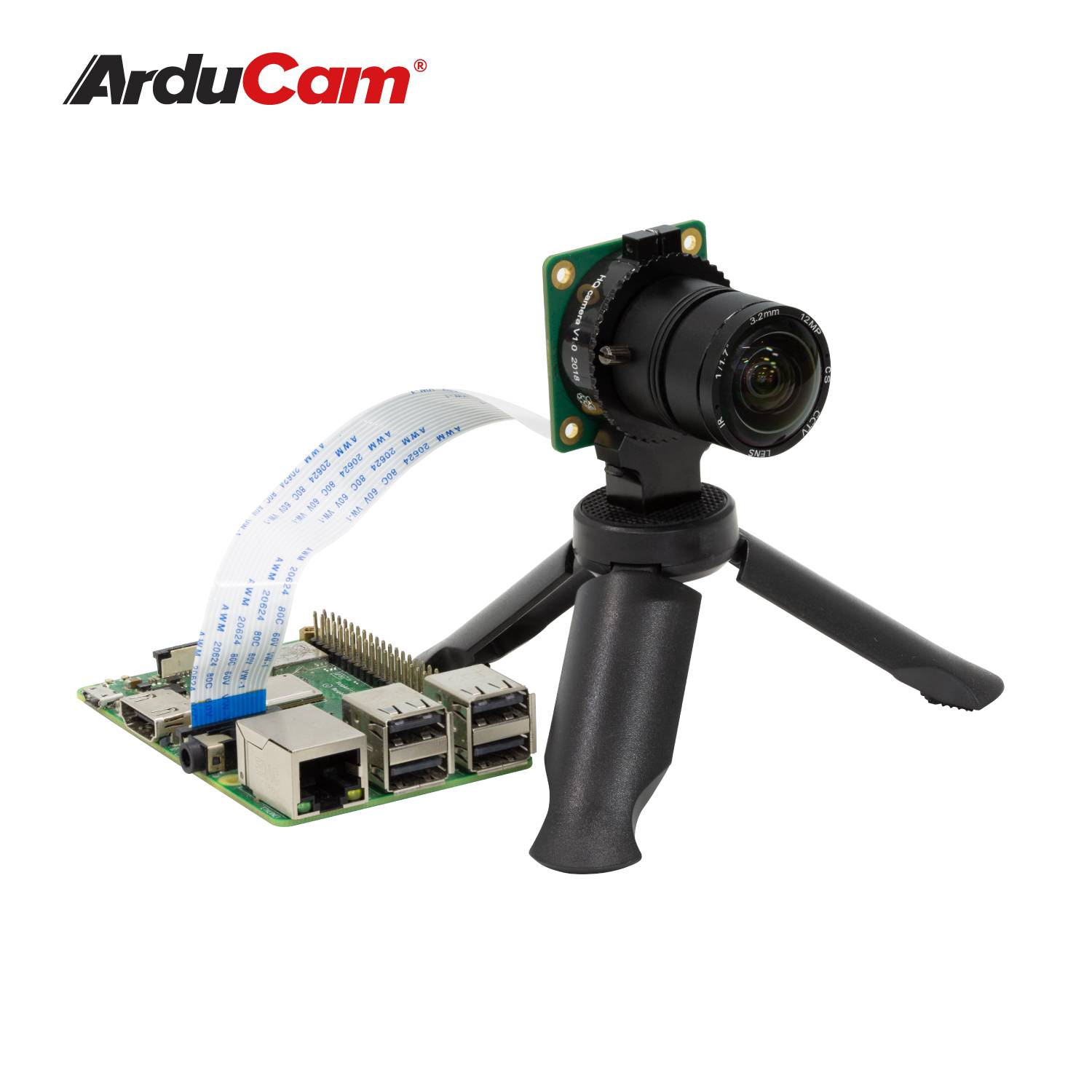

ArduCam lenses have various types of connectors. They were built for RPi cameras and any embedded systems. Each offers a wide range of focal lengths and FOVs. They are compatible with all Pi/Jetson/Arduino cameras featuring an M12/C mount lens.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x ArduCam lens
