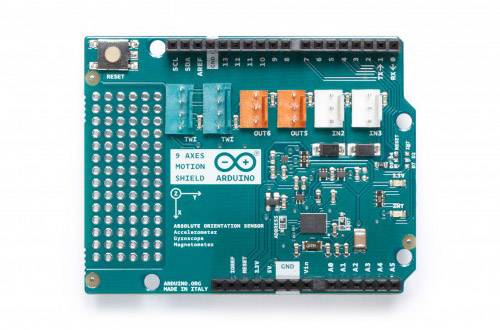

An Arduino board with various ports and sensors, including a motion sensor, reset button, and LEDs for status indicators.

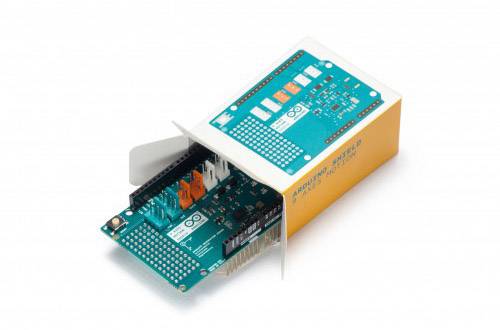

An Arduino board, partially pulled out of an orange and white package, reveals its connections and circuits.

1/4

Fast track dispatch on Mon, 14 Sep

23 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 31.92 / piece)

€ 31.92

plus VAT.

Report legal concerns

ARDUINO 9 AXS MOTION SHIELD

Highlights & Details

Your Arduino can now measure orientation, acceleration & magnetic field!
Let your Arduino measure the movement: Orientation, acceleration and magnetic field!

Technical specifications

Product type: Shield

Suitable for: Arduino Uno

Compatible with: Arduino UNO

Series: Core

Weight: 0.045

UKCA: not relevant

Description

The Arduino 9 Axs Motion Shield is based on the Bosch Sensortec GmbH BNO055 absolute orientation sensor, which integrates a triaxial 14-bit acceleration sensor, a 16-bit triaxial gyroscope with a range of ±2000 degrees per second, and a triaxial geomagnetic sensor with a 32-bit microcontroller with the BSX3.0 FusionLib software.The sensor has three-dimensional acceleration, Yaw rate and magnetic field strength data in each of 3 vertical axes.

This text is machine translated.

Scope of delivery

Arduino 9 Axs Motion Shield
