Arduino Ethernet Shield 2 Development board Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.

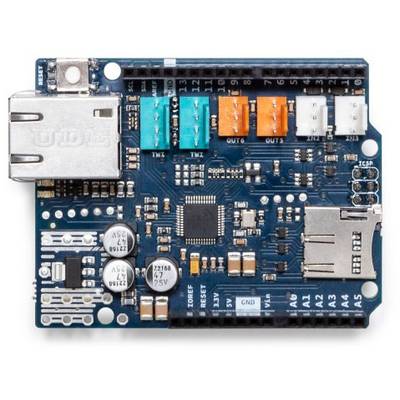

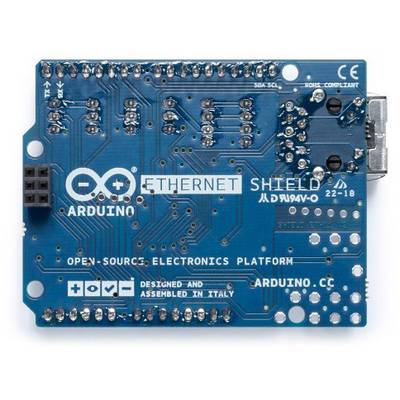

Arduino becomes Ethernet-capable!
Highlights & Details
- The Arduino Ethernet Shield 2 is available in two versions: One with (A000025) and one without (A000024) PoE (power over Ethernet). The Shields are designed to integrate a fast Internet connection into Arduino board designs. Other shields can be stacked directly onto the Ethernet Shield, which was designed to provide optimal integration of functionality into your designs. Both shields are equipped with the Ethernet chip W5500 from Wiznet, which provides an IP stack to support TCP and UDP protocols. The W5500 also supports up to 8 slot connections simultaneously.
Technical specifications
- Product type
Development board
- Suitable for
Arduino Mega
- Suitable for
Arduino Mega
- Compatible with
Arduino UNO
- Interfaces
Ethernet
- Series
Core
- Tool type
Expansion board
- Internal ports
LAN (10/100)
- Compatible with
Arduino
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1969882 Arduino Ethernet Shield 2 Development board Compatible with (development kits): Arduino
Information
Information 1969882 Arduino Ethernet Shield 2 Development board Compatible with (development kits): Arduino
Download
Download 1969882 Arduino Ethernet Shield 2 Development board Compatible with (development kits): Arduino
Description
Version 2 has a built-in microSD card slot as opposed to standard-size SD cards. The new version 2 also offers greater compatibility with Arduino boards – the previous version did not support the Mega board.
What was ich needed to use the version 2 shield?
All was needed was an Arduino board, a 5 V power supply (this comes from the Arduino board), an Ethernet controller, 10/100 Mbit connection speed and a connection to an Arduino via an SPI connection.
This text is machine translated.
What was ich needed to use the version 2 shield?
All was needed was an Arduino board, a 5 V power supply (this comes from the Arduino board), an Ethernet controller, 10/100 Mbit connection speed and a connection to an Arduino via an SPI connection.
This text is machine translated.
Features
- – Ethernet chip w5500
- – Dimensions: 2.7 x 2.1 inch
- – microSD card/card reader slot
- – Reset controller
- – RJ45 Ethernet jack
- – 5 status LEDs
Scope of delivery

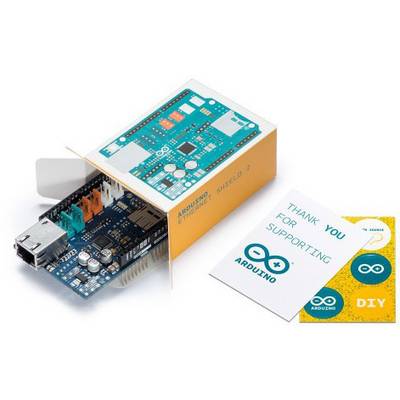

- Arduino Ethernet Shield 2
