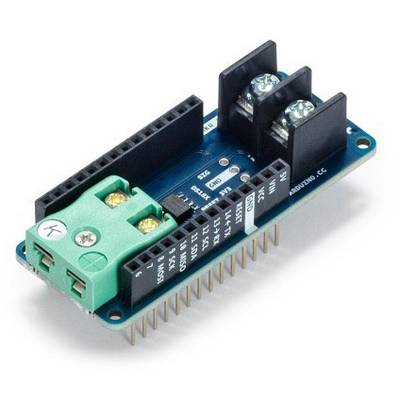

Image of a small electrical module with connection terminals and pin headers, potentially suitable for controlling devices or sensors.

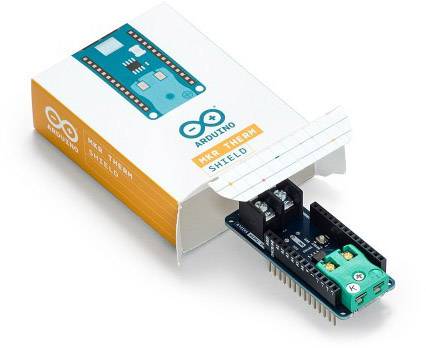

Arduino MKR Therm Shield in packaging, drawn out, showing sensors and connections. Ideal for temperature measurement in projects.

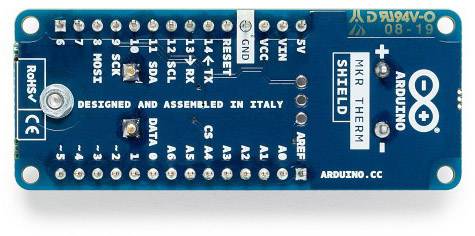

Arduino MKR Therm Shield, blue circuit board with connectors and text reading 'Designed and Assembled in Italy'.

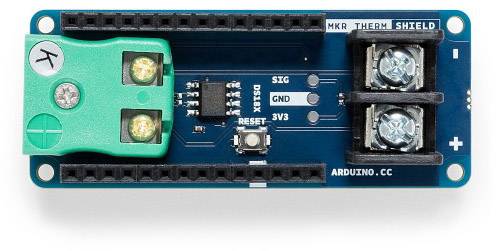

Arduino MKR Therm Shield with connections for thermocouples, reset button and three pin indicators: SIG, GND, 3V3.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Arduino® Shield MKR THERM (Thermo)

Highlights & Details

Your solution for precise and long-term stable temperature measurements with an MKR board!

Technical specifications

Product type: Shield

Height: 60 mm

Length: 21 mm

Width: 80 mm

Suitable for: Arduino

Compatible with: Arduino

Interfaces: 1-Wire®

Series: MKR

Tool type: Expansion board

Weight: 40

Compatible with: Arduino

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2107972 Arduino MKR THERM Shield Compatible with (development kits): Arduino

Description

The MKR THERM Shield allows a board of the MKR family to record temperatures from a K-type thermocouple and a DS18Bxx digital single-wire sensor. The thermocouple is a type of temperature sensor that offers high accuracy and a wide measurement range. Its analogueue nature requires a specific interface, and this shielding is based on the digital interface of the MAX31855 thermocouple. The two connections of the MKR THERM Shield allow the use of K-type thermocouples with or without connectors on the metal wires. The MKR THERM Shield has its own library for reading the temperature measured by the thermocouple.
