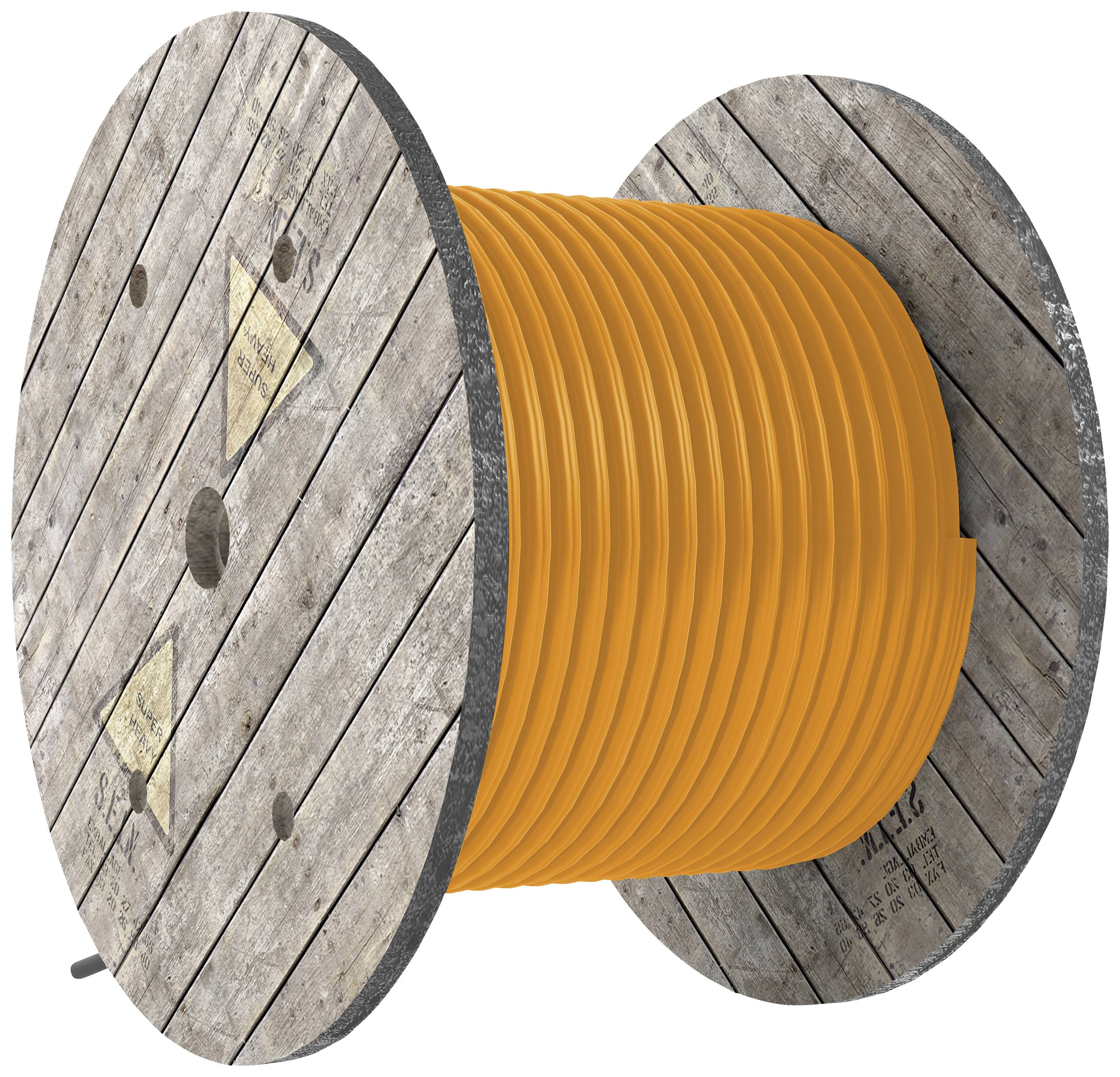

AS Schwabe 10046 Heavy duty cable H07BQ-F 3 x 2.5 mm² Sold per metre
EAN:
Part number:
Item no:
Product type
Heavy duty cable
Cable type
H07BQ-F
No. of leads
3 x
Cross section (each core)
2.5 mm²
No. of leads (part 2)
3 x
Datasheet (PDF)
Highlights & Details
as - Schwabe construction site cable 1 m, H07BQ-F3G1.5, both sides smooth cut, bound to the ring, 230 V / 16 A for commercial / construction site
- Application area: The connection with 230 V / 16 A offers Ideal for the application with construction site equipment & drills.
- Sustainable adapter management using high-quality materials.
- Also recommended for private use
Technical specifications
- Product type
Heavy duty cable
- Cable type
H07BQ-F
- No. of leads
3 x
- Cross section (each core)
2.5 mm²
- No. of leads (part 2)
3 x
- Cross section (each core) (part 2)
2.5 mm²
- Cross section
3 x 2.5 mm² + 3 x 2.5 mm²
- Cable features
PUR coating
- Factory colour
Yellow
- Outside Ø
11 mm
- Content
Sold per metre
- Nominal voltage
230 V
- Nominal voltage U0
450 V
- Bend radius (no. of ODs for fixed installation)
5
- Packaged
No
- Sold per metre
Yes
- Manufacturer part #
10046
- Insulation material
Polyurethane
- RoHS-compliant
Yes
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
90 °C
- Certification marks
DIN EN 50525-2-21; VDE 0285-525-2-21
- Type
10046
- Nominal current
16 A
Documents & Downloads
Datasheet
Datasheet 2890979 AS Schwabe 10046 Heavy duty cable H07BQ-F 3 x 2.5 mm² Sold per metre
User & Safety Instructions
User & Safety Instructions 2890979 AS Schwabe 10046 Heavy duty cable H07BQ-F 3 x 2.5 mm² Sold per metre
Description
The power line was tested according to current standards and certified with protection class IP44. Heavy rubber hose line for the necessary insulation. Approved for use in industry
Sheath made of polyurethane (PUR). Flame-resistant, ozone resistant, oil-resistant, abrasion-proof
finely stranded according to VDE 0295
Wire insulation made of rubber mixture, stranded wires
Suitable for commercial enterprises and building sites with demanding conditions for use such as grinding and scouring applications.
For high mechanical requirements in dry, damp and wet rooms as well as for permanent use in the open air.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Sheath made of polyurethane (PUR). Flame-resistant, ozone resistant, oil-resistant, abrasion-proof
finely stranded according to VDE 0295
Wire insulation made of rubber mixture, stranded wires
Suitable for commercial enterprises and building sites with demanding conditions for use such as grinding and scouring applications.
For high mechanical requirements in dry, damp and wet rooms as well as for permanent use in the open air.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- Very simple installation with wire end sleeves.
- Also use our extension cable in agricultural holdings.
- Your replacement part for every commercially available drill
