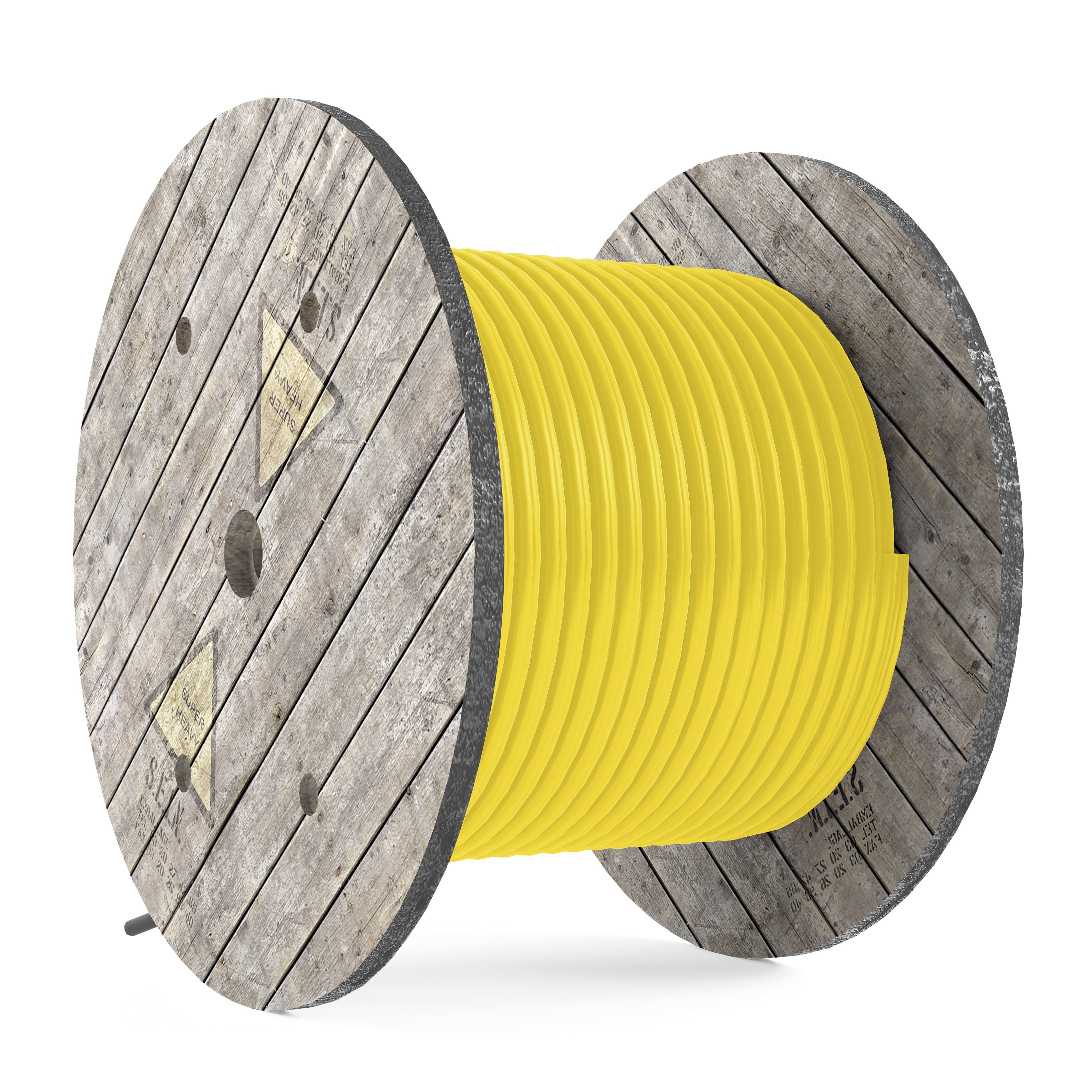

AS Schwabe 10074 Heavy duty cable AT-N07V3V3-F 5 x 4 mm² Yellow Sold per metre
EAN:
Part number:
Item no:
Product type
Heavy duty cable
Cable type
AT-N07V3V3-F
No. of leads
5 x
Cross section (each core)
4 mm²
No. of leads (part 2)
5 x
Datasheet (PDF)
Highlights & Details
as - Schwabe cable-cable 1 m, K35 AT-N07 V3V3-F 5G45, lfm. Yellow, both sides cut off smoothly
- Range of application: The connection is Ideal suitable for outdoor use.
- Sustainable adapter management using high-quality materials.
- Also recommended for private use
Technical specifications
- Product type
Heavy duty cable
- Cable type
AT-N07V3V3-F
- No. of leads
5 x
- Cross section (each core)
4 mm²
- No. of leads (part 2)
5 x
- Cross section (each core) (part 2)
4 mm²
- Cross section
5 x 4 mm² + 5 x 4 mm²
- Cable features
Cold-resistant
- Factory colour
Yellow
- Outside Ø
17.8 mm
- Content
Sold per metre
- Nominal voltage
750 V
- Nominal voltage U0
450 V
- Bend radius (no. of ODs for fixed installation)
6
- Packaged
No
- Sold per metre
Yes
- Manufacturer part #
10074
- Insulation material
PVC
- RoHS-compliant
Yes
- Min. temperature range (fixed installation)
-35 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
ÖVE/ÖNORM E8241-55
- Type
10074
Documents & Downloads
Datasheet
Datasheet 2890983 AS Schwabe 10074 Heavy duty cable AT-N07V3V3-F 5 x 4 mm² Yellow Sold per metre
User & Safety Instructions
User & Safety Instructions 2890983 AS Schwabe 10074 Heavy duty cable AT-N07V3V3-F 5 x 4 mm² Yellow Sold per metre
Description
The power line was tested according to current standards and certified with protection class IP44. Heavy rubber hose line for the necessary insulation. Approved for use in industry
Sheath cold-resistant polyvinyl chloride (PVC). Flame-resistant, oil-resistant
Approved up to 1,000V alternating voltage for protected laying in pipes or devices
Finely stranded according to VDE 0295
Wire insulation made of polyvinyl chloride (PVC)
Suitable for continuous use outdoors and in agricultural plants. Approved for use on building sites in Austria.
For high loads in dry and damp rooms, outdoors and in water Can be used permanently outdoors.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Sheath cold-resistant polyvinyl chloride (PVC). Flame-resistant, oil-resistant
Approved up to 1,000V alternating voltage for protected laying in pipes or devices
Finely stranded according to VDE 0295
Wire insulation made of polyvinyl chloride (PVC)
Suitable for continuous use outdoors and in agricultural plants. Approved for use on building sites in Austria.
For high loads in dry and damp rooms, outdoors and in water Can be used permanently outdoors.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- Very simple installation with wire end sleeves.
- Also use our extension cable in agricultural holdings.
- Your replacement part for every commercially available drill
