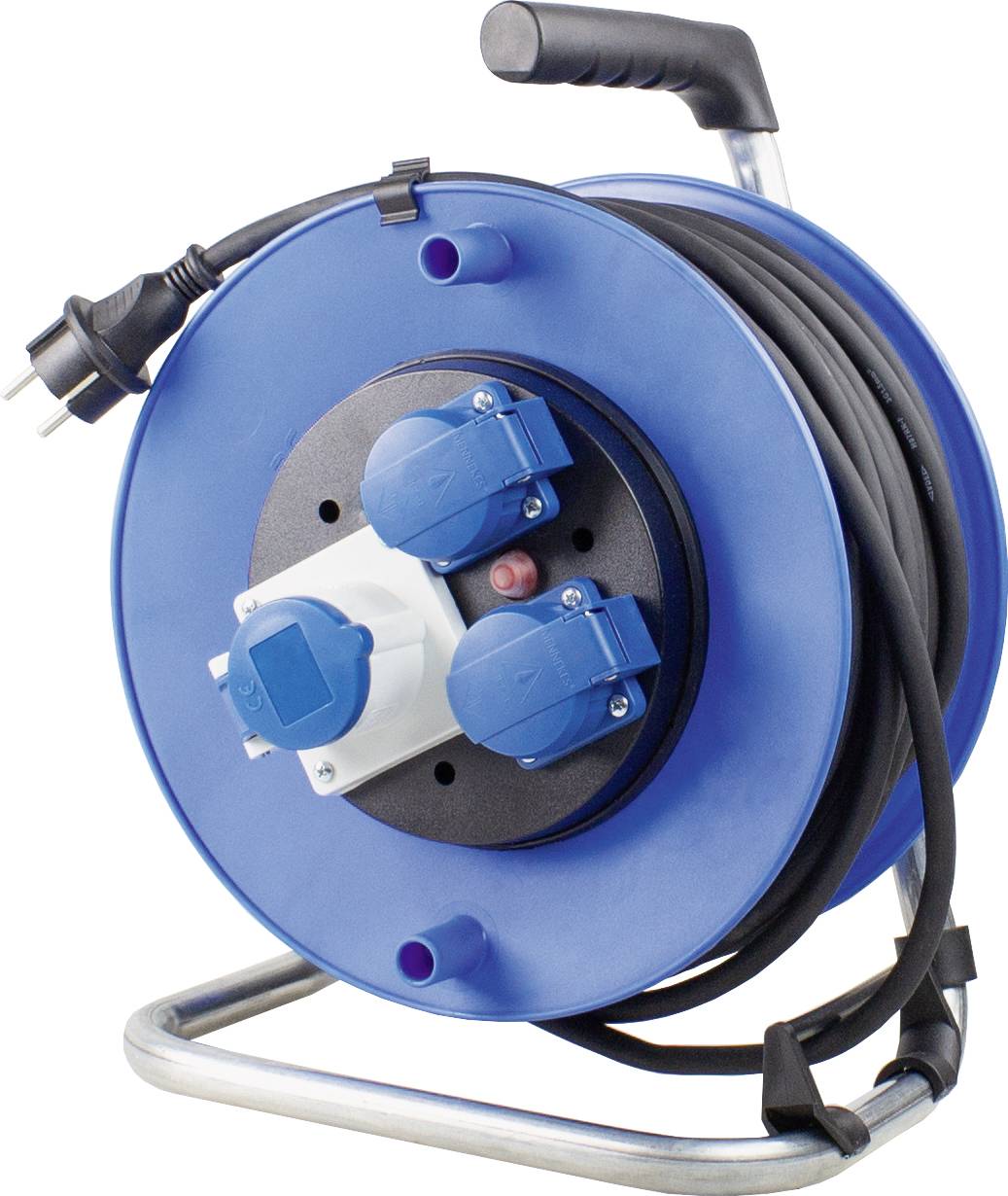

AS Schwabe 10173 Cable reel 25 m PG plug
EAN:
Part number:
Item no:
Highlights & Details
- RN rubber hose lines made of rubber
- The heavy rubber hose lines "RN-F" have rubber insulating sleeves and are covered with neoprene rubber. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C. Due to their good mechanical resistance, they can withstand heavy loads in dry and damp rooms as well as in water and can be used permanently outdoors, e.g. on farms or on construction sites.
- Drum body made of robust, high-breaking special plastic
- With sturdy, shock-absorbing and galvanized single base frame with parking brake
- Frame with ergonomically designed handle and cable routing
- With built-in thermal protection switch
- With heavy rubber sheathed cable H07RN-F 3G2.5
- With safety plug 230 V, 16 A
- With 2x 230 V earthing contact socket outlets with safety hinged lids and hammer marks
- And 1x CEE socket with hinged cover 230 V, 16 A, 3-pin
- IP44: foreign bodies and splash-proof
- This text is machine translated.
Technical specifications
- Product type
Cable reel
- Cable length
25 m
- Type A
PG plug
- Connector version
straight
- Type B
PG socket
CEE socket (3-pin, 16 A)
- Outlets
3
- Cable standard
H07RN-F 3G 2,5 mm²
- Used at
Outdoors
- Material
Plastic
- Factory colour
Blue
- Nominal input voltage
230 V
- Power rating
3.5 kW
- Reel diameter
28.5 cm
- Weight
7.25 kg
IP44
- Standards
EN 61242
DIN VDE 0620-2-1
DIN EN 50525-
