AS Schwabe 12647 Wall-mounted cable reel 18 m Black PG plug
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Automatic cable retractor ideal for the workshop or construction site
- With "EASY TO GO" function: Simply detach the cable winder from the wall attachment and use it on the move.
Technical specifications
- Product type
Wall-mounted cable reel
- Cable length
18 m
- Type A
PG plug
- Connector version
straight
- Type B
PG connector
- Outlets
1
- Cable colour
Black
- Cable standard
H07RN-F 3G 1,5 mm²
- Used at
Outdoors
- Material
Plastic
- Factory colour
Anthracite grey
- Nominal input voltage
230 V
IP44
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484832 AS Schwabe 12647 Wall-mounted cable reel 18 m Black PG plug
User & Safety Instructions
User & Safety Instructions 2484832 AS Schwabe 12647 Wall-mounted cable reel 18 m Black PG plug
Description
Drum body made of robust, high-breaking special plastic: Extremely robust design
Swivels through 180° at the wall mounting
With handle for comfortable carrying
No more tedious winding of the cable. A light pull on the cable is enough and the retractor stores the entire cable in the casing of the cable retractor.
Due to the fixed locking on the cable, the earthing contact coupler cannot be pulled into the housing when rolling it up.
With built-in thermal protection switch
With earthing contact plug and earthing contact coupler with cover cap
With heavy rubber sheathed cable H07RN-F 3G1.5

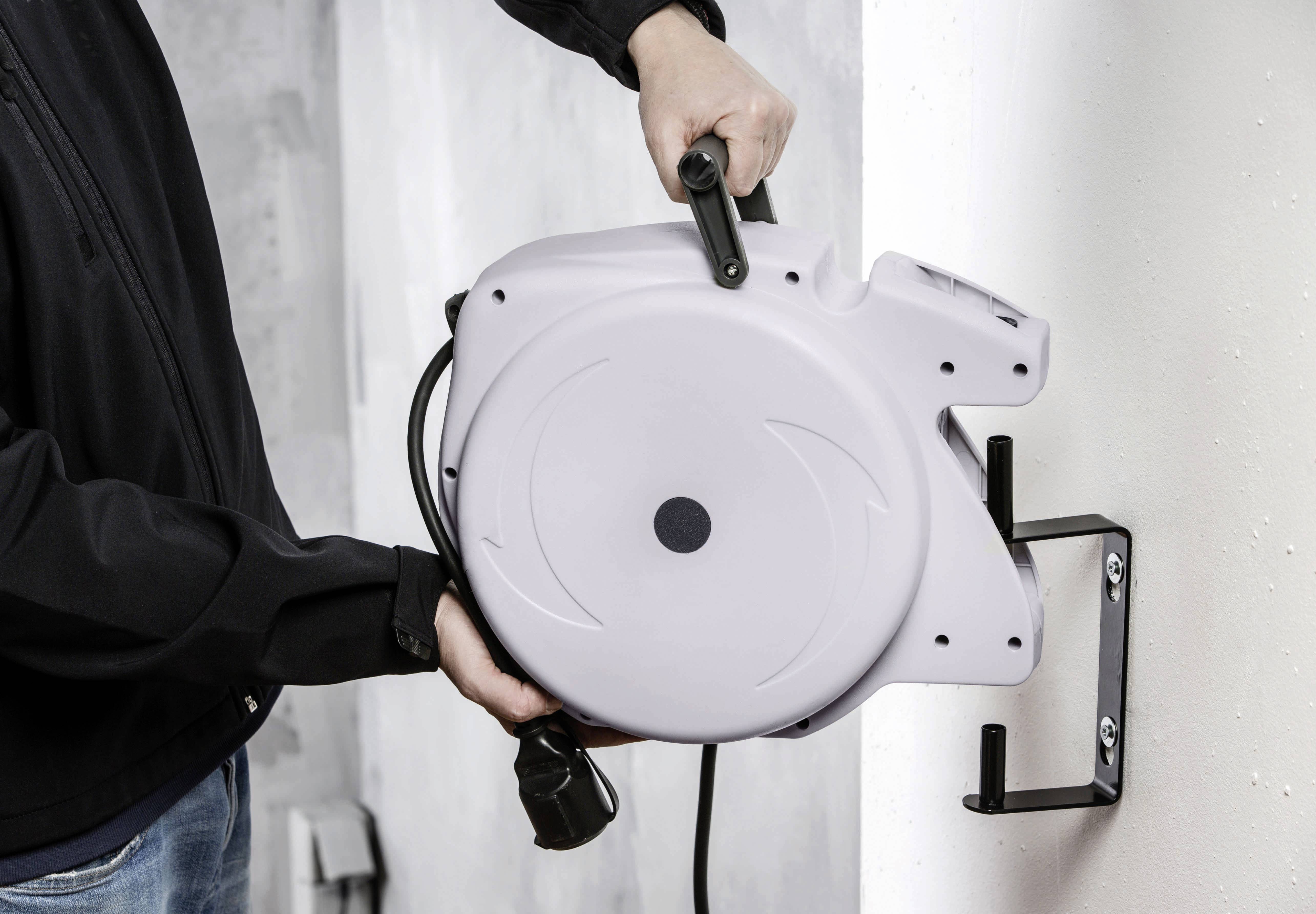

Including heavy-duty dowel/screws for wall mounting
IP44: Suitable for use in the workshop
This text is machine translated.
Swivels through 180° at the wall mounting
With handle for comfortable carrying
No more tedious winding of the cable. A light pull on the cable is enough and the retractor stores the entire cable in the casing of the cable retractor.
Due to the fixed locking on the cable, the earthing contact coupler cannot be pulled into the housing when rolling it up.
With built-in thermal protection switch
With earthing contact plug and earthing contact coupler with cover cap
With heavy rubber sheathed cable H07RN-F 3G1.5
Including heavy-duty dowel/screws for wall mounting
IP44: Suitable for use in the workshop
This text is machine translated.
