AS Schwabe 12649 Wall-mounted cable reel 15 m Black CEE plug (5-pin, 16 A)
EAN:
Part number:
Item no:
Highlights & Details

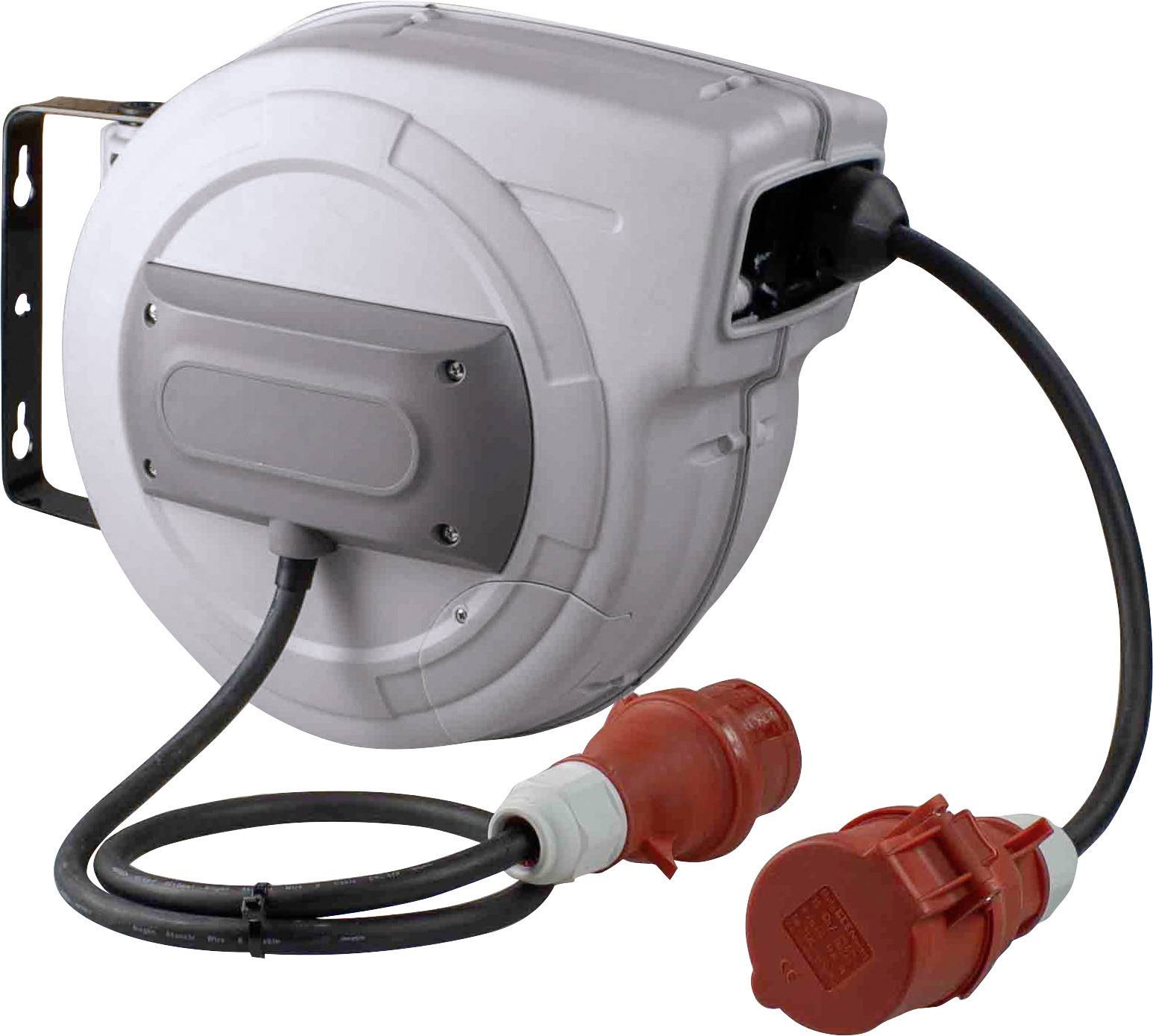

as - Schwabe Automatic CEE cable reel 15 m H07RN-F 5G2.5, IP44 outdoor, 400V 16A 5-pole 10 kW, wall and ceiling mounting, 180° swiveling
- Powerful & reliable: 15 m H07RN-F 5G2.5 with CEE connector and 1 m cable with CEE connector (400 V, 16 A, 10 kW, 5-pin), IP44 – Ideal for workshop, construction site and industrial use.

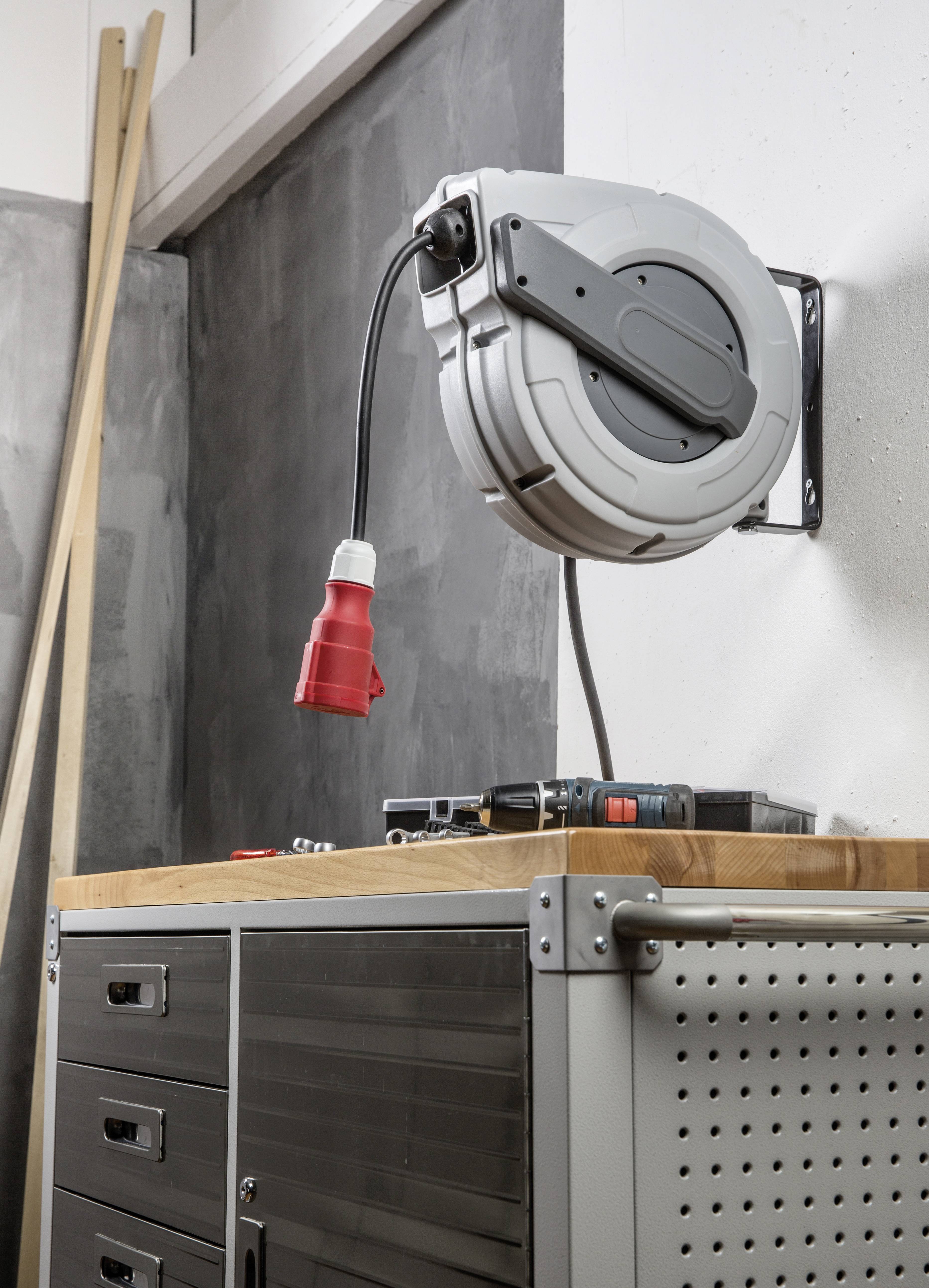

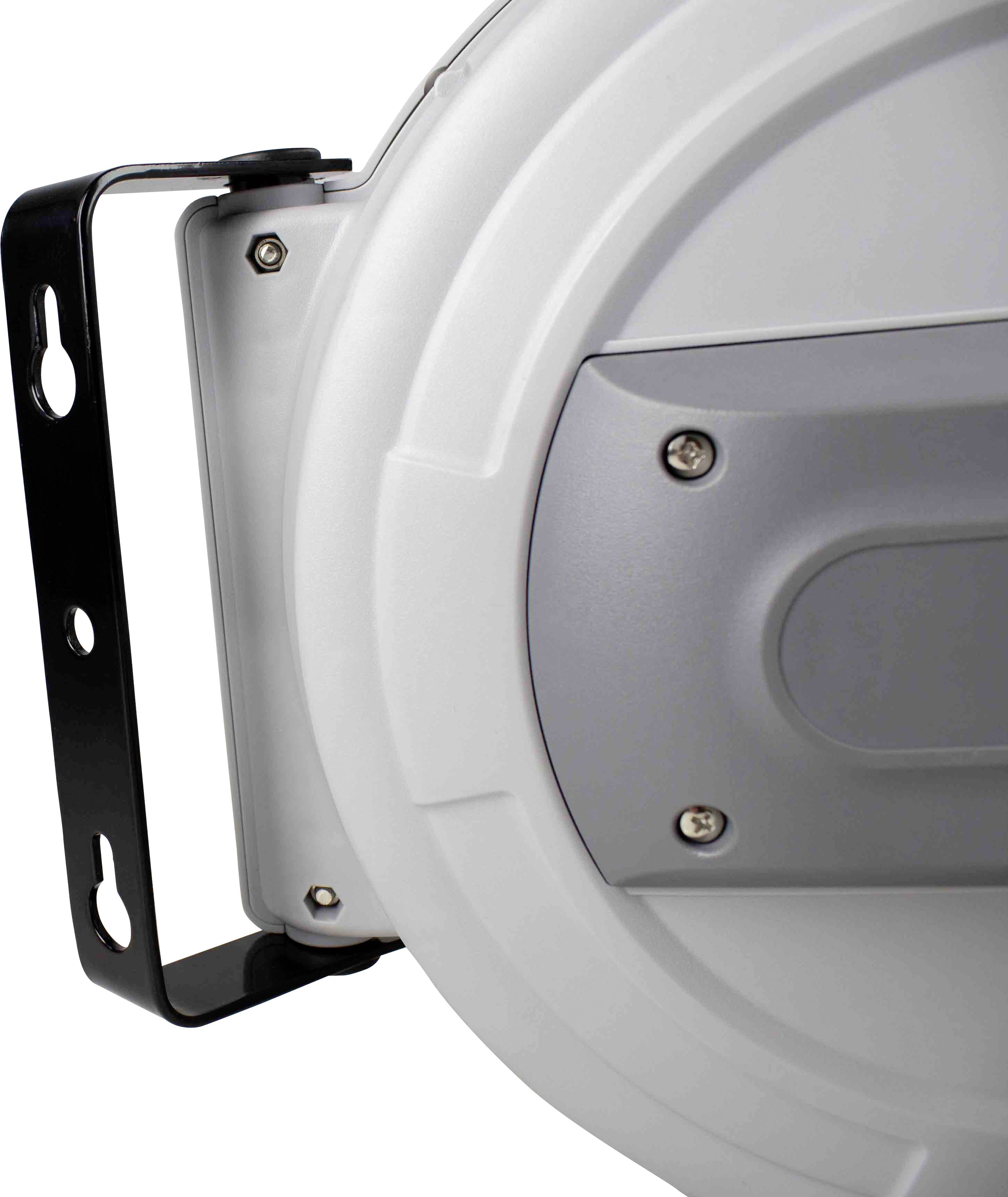

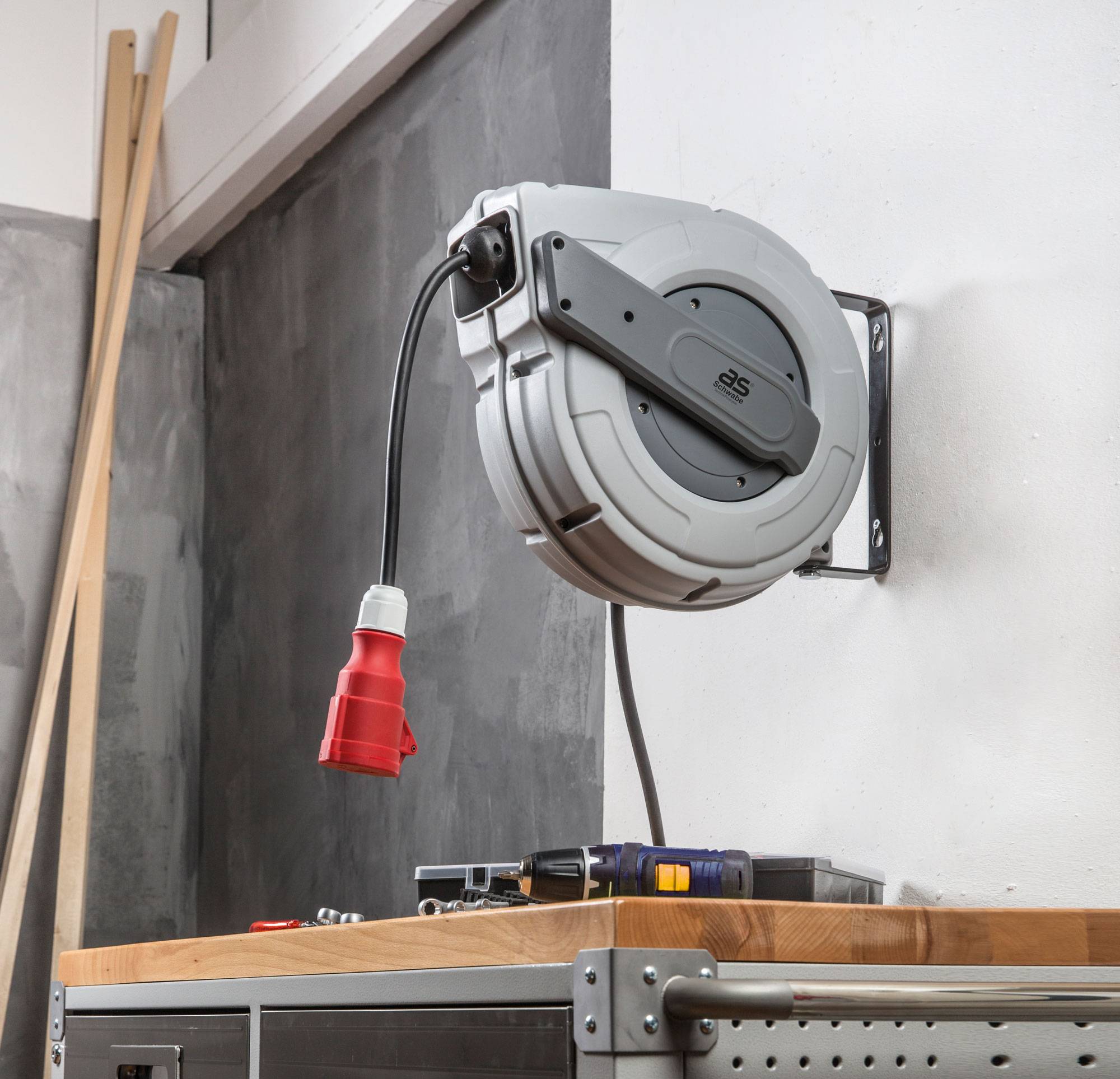

- Flexible mounting: Wall and ceiling mounting possible, easily removable and can be used mobile thanks to the carry handle; including heavy-duty dowel and screws for secure fixing.
- 180° pivoting: Cable coiler rotatable to the left and right, adapts flexibly to different work stations and areas of application.
- Automatic roll-up & protection: One easy tension is sufficient, the automatic roll-up keeps the cable tidy in the housing; integrated thermal protection, the CEE clutch remains external.
- Robust design: Drum body made of highly break special plastic, long-life, shock-resistant and designed for professional continuous use.
Technical specifications
- Product type
Wall-mounted cable reel
- Cable length
15 m
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
- Outlets
1
- Cable colour
Black
- Cable standard
H07RN-F 5G 2,5 mm²
- Used at
Outdoors
- Material
Plastic
- Factory colour
Anthracite grey
- Nominal input voltage
400 V
- Nominal current (details)
16 A
- Power rating
10 kW
IP44
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2484834 AS Schwabe 12649 Wall-mounted cable reel 15 m Black CEE plug (5-pin, 16 A)
Description
The automatic CEE cable reel from as - Schwabe is the professional solution for safe, high-performance power supply in industry, trade and workshop. With 15 m robust H07RN-F 5G2.5 cable and 1 m feed line with CEE plug and 5-pin CEE connector, it reliably supplies up to 10 kW at 400 V and 16 A. Thanks to IP44 protection, it is optimally suitable for moist and dusty environments.
The device convinces through maximum flexibility: Wall and ceiling mounting, easily removable and thanks to built-in carrying handle mobile application. The cable winder can also be pivoted 180°, so that it serves different work places quickly and without conversion.
For security and easy handling, the automatic roll-up function is provided that the cable can be stowed away neatly in the housing. The CEE-clutch remains outside, while the integrated thermal protection switch protects against overheating.
The drum body made of highly break special plastic guarantees long-lasting robustness even with intensive use on construction sites, in the workshop or in industrial use. This professional cable management system saves time, reduces falls and ensures a safe power connection that is always ready for use.
This text is machine translated.
