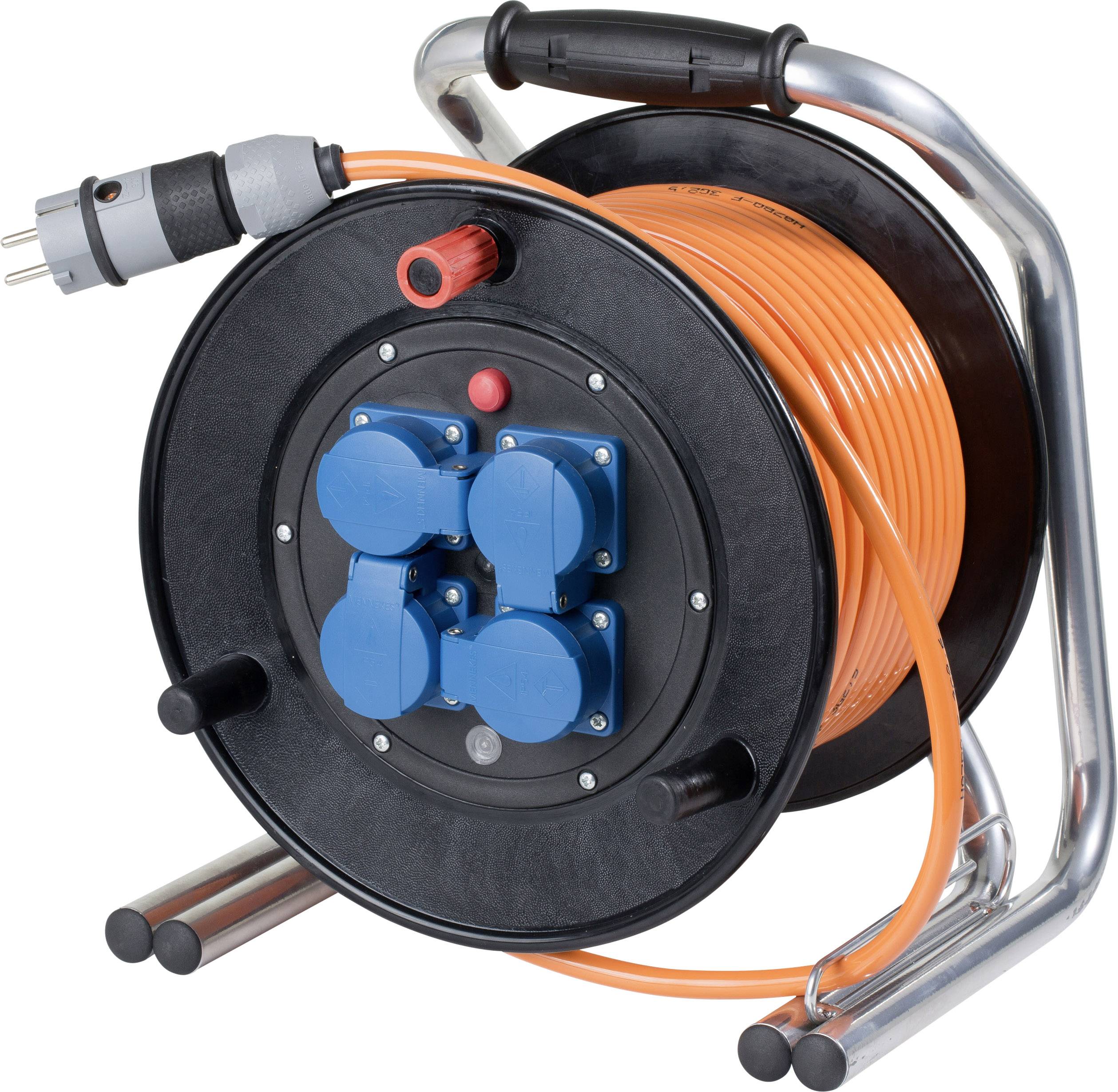

AS Schwabe 20742 Cable reel 50 m PG plug
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
50 m polyurethane cable H07BQ-F 3G1.5
- Drum body made from highly robust material vulkanisiertem hard rubber material for the hardest of conditions in professional industrial and construction sites
- Extremely impact resistant, oil, grease and petrol resistant, very good insulating properties, unbreakable
- Extremely robust double-pipe frame made from 22 mm steel tube
- 3 large crank handles, one of which can be rotated for light wind up
- With carry handle and brake
- VDE-thermal protection switch and 4 earthing contact socket-outlets with safety-hinged lids and hammer characters
- Suitable for use on construction sites
- With patented cable management
- With Phase monitoring display
- With earthing contact ULTRA II earthing contact plug 230 V
- This text is machine translated.
Technical specifications
- Product type
Cable reel
- Cable length
50 m
- Type A
PG plug
- Type B
PG socket
- Outlets
4
- Cable standard
H07BQ-F 3G 1,5 mm²
- Used at
Outdoors
- Material
Rubber
- Nominal input voltage
230 V
- Load capacity (wound/unwound)
1000/3500
- Reel diameter
29 mm
- Weight
12.2
IP54
- Standards
Tested according to EN 61242,
DIN VDE 0620-1,
DIN VDE 0282-4,
IEC 60309
