AS Schwabe 20752 Cable reel 40 m Orange CEE plug (5-pin, 16 A)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

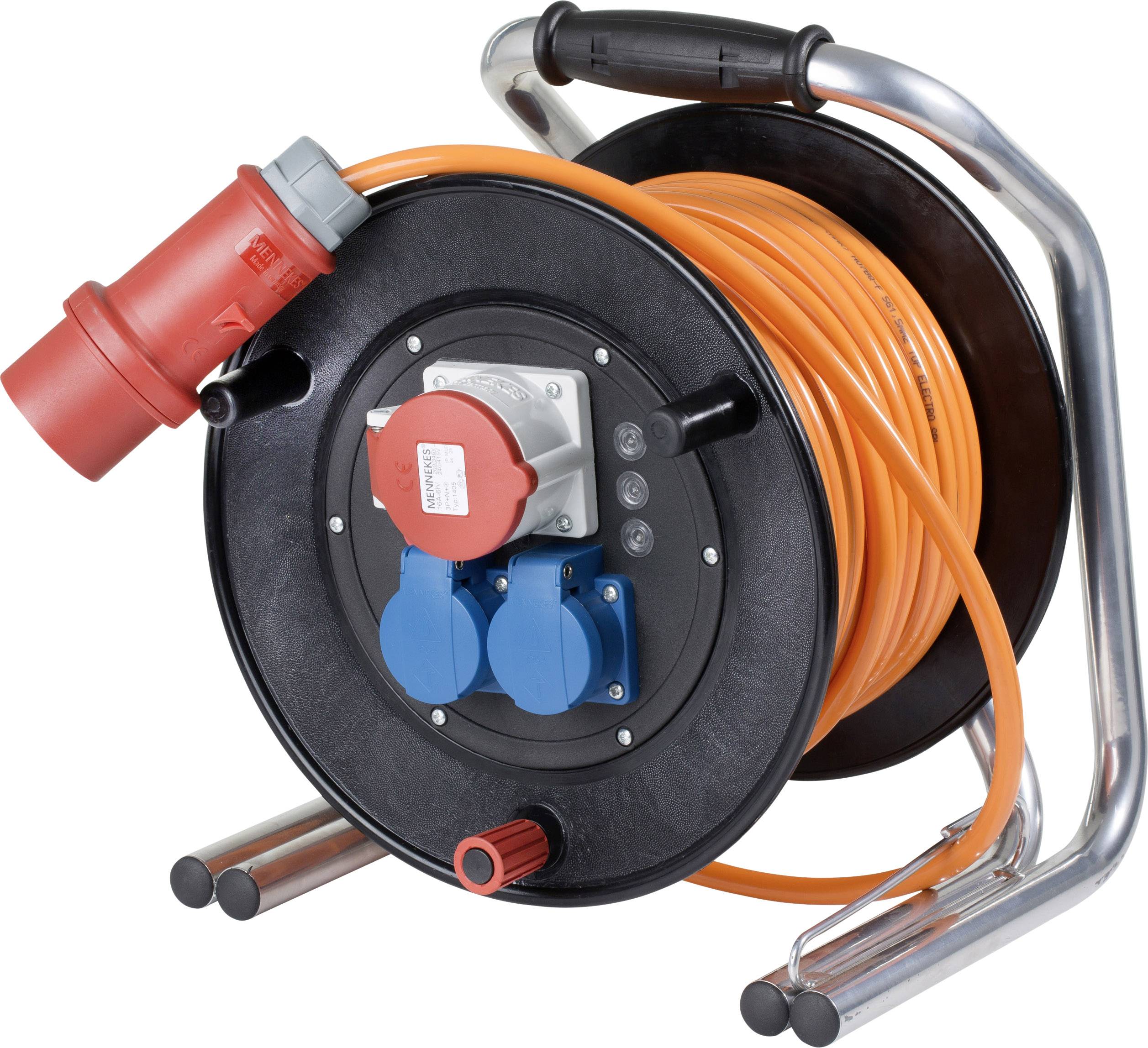

CEE-armoured solid rubber cable reel 40 m
- Drum body made from highly robust material vulkanisiertem hard rubber material for the hardest of conditions in professional industrial and building site.
- Extremely impact resistant, oil, grease and petrol resistant, very good insulating properties, unbreakable.
- Extremely robust double-pipe frame made from 22 mm steel pipe.
- 3 large crank handles, one of which can be rotated for light wind up.
- With carry handle and parking brake.
- 2 protective contact sockets 230V safety hinged lids and hammer characters, 1 CEE-socket 400 V, 16 A
- For use on construction sites.
- With patented wire routing.
- With Phase monitoring display.
- This text is machine translated.
Technical specifications
- Product type
Cable reel
- Cable length
40 m
- Type A
CEE plug (5-pin, 16 A)
- Connector version
straight
- Type B
CEE connector (5-pin, 16 A)
PG socket
- Outlets
3
- Cable colour
Orange
- Cable standard
H07BQ-F 5G 1,5 mm²
- Used at
Outdoors
- Material
Rubber
- Factory colour
Black
- Nominal input voltage
400 V
- Nominal current (details)
16 A
- Power rating
10,000 W
- Load capacity (wound/unwound)
3500 W
- Reel diameter
29 cm
- Weight
11.0 kg
IP54
- Standards
Tested according to EN 61242, DIN VDE 0620-1, IEC 60309, DIN VDE 0282-4
