Buy AS Schwabe 22166 Cable reel 20 m Yellow CEE plug (5-pin, 16 A)

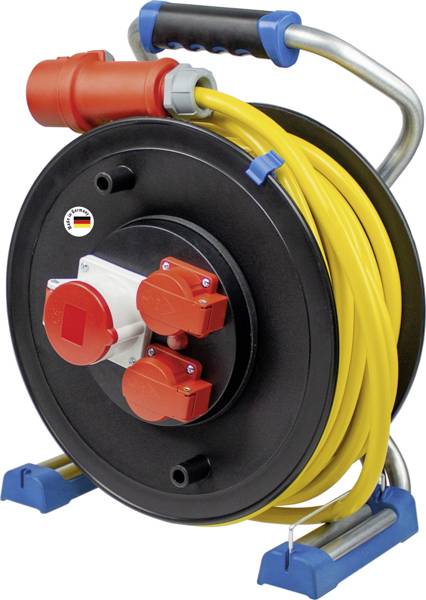

A cable reel with a yellow cable and multiple red sockets, suitable for electrical applications, mounted on a metal stand.

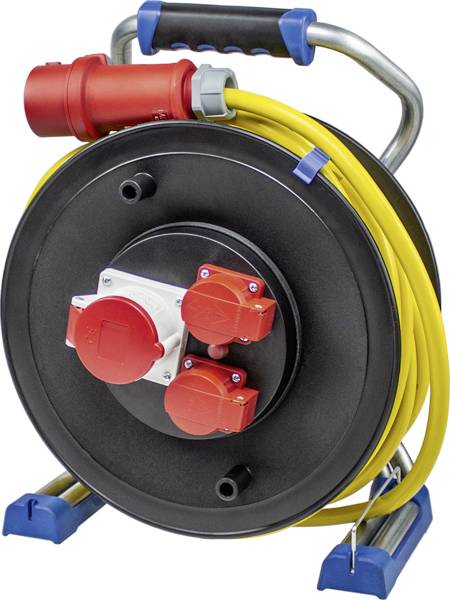

A cable reel with a yellow cable, standing on blue plastic feet. It has several red socket connections.

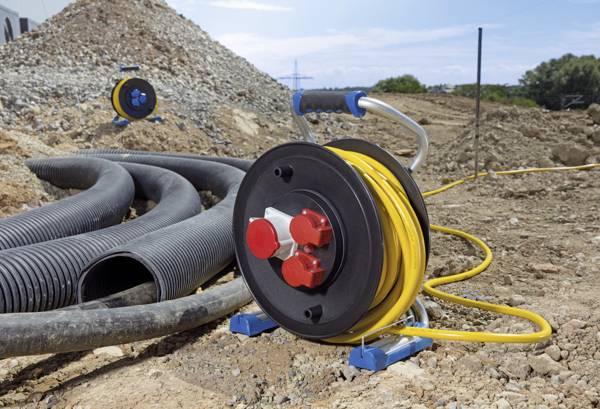

A cable reel with a yellow extension lead is standing on a building site. Large black pipes are lying on the ground in the background.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable drum Xperts armoured cable yellow CEE plug and earthing contact socket outlets

High-breaking special plastic
Stable X-double pipe frame
ARMOURED CABLE K35 AT-N07 V3V3-F
Can be used from -35 to +70°C.
Oil and UV-resistant and also extremely resistant to abrasion
Sockets with safety hinged lid

Technical specifications

Product type: Cable reel

Cable length: 20 m

Type A: CEE plug (5-pin, 16 A)

Inputs: 16 A

Connector version: straight

Type B: PG socket
CEE socket (5-pin, 16 A)

Outlets: 3

Cable colour: Yellow

Cable standard: N07V3V3-F 5G 2,5 mm²

Used at: Outdoors
Indoors

Material: Plastic

Cable features: Heat-resistant
Cold-resistant
UV-resistant
Acid-resistant
highly flexible
Oil- and abrasion-resistant

Factory colour: Black

Nominal input voltage: 400 V

Nominal current (details): 16 A

Power rating: 400V, 16A, approx. 11 kW

Load capacity (wound/unwound): 3x 1000W / 3x 3500 W

Reel diameter: 28.5 cm

Type: 2.5 mm².

Weight: 5.75 kg

: IP44

Standards: EN 61242
DIN VDE 0620-1
EVE E8241-55
IEC 60309

Outputs: 2 screw contact sockets
1 CEE-sockets 16 A 5polig

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249511 AS Schwabe 22166 Cable reel 20 m Yellow CEE plug (5-pin, 16 A)

Description

The Xperts CEE cable reel convinces through its quality and safety in all areas. It convinces through its drum body made of high-break-proof special plastic with stable X-double pipe frame, the ergonomically shaped, slip-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch. The highly flexible, abrasion-resistant cable is resistant to acid, oil and embrittlement and is therefore 100% weather-proof. Can be used in water, dry and damp rooms. Ideal for use in outdoor areas and agricultural applications.

This text is machine translated.

Features

Drum body made of high-breaking special plastic with sturdy, shock-absorbing X-double pipe frame
ergonomically designed, non-slip 2-component handle
Panzer cable K35 AT-N07 V3V3-F, very stable, can be used from -35 to +70°C, oil and UV-resistant and also extremely resistant to abrasion
Outdoor cable reel with overheating protection
CEE plug 400V, 16A, 5-pin
2 earthing contact socket outlets 1 CEE mains socket
Safety hinged lid
IP44
Made in Germany.
