Buy AS Schwabe 22629 Cable reel 40 m Black PG plug

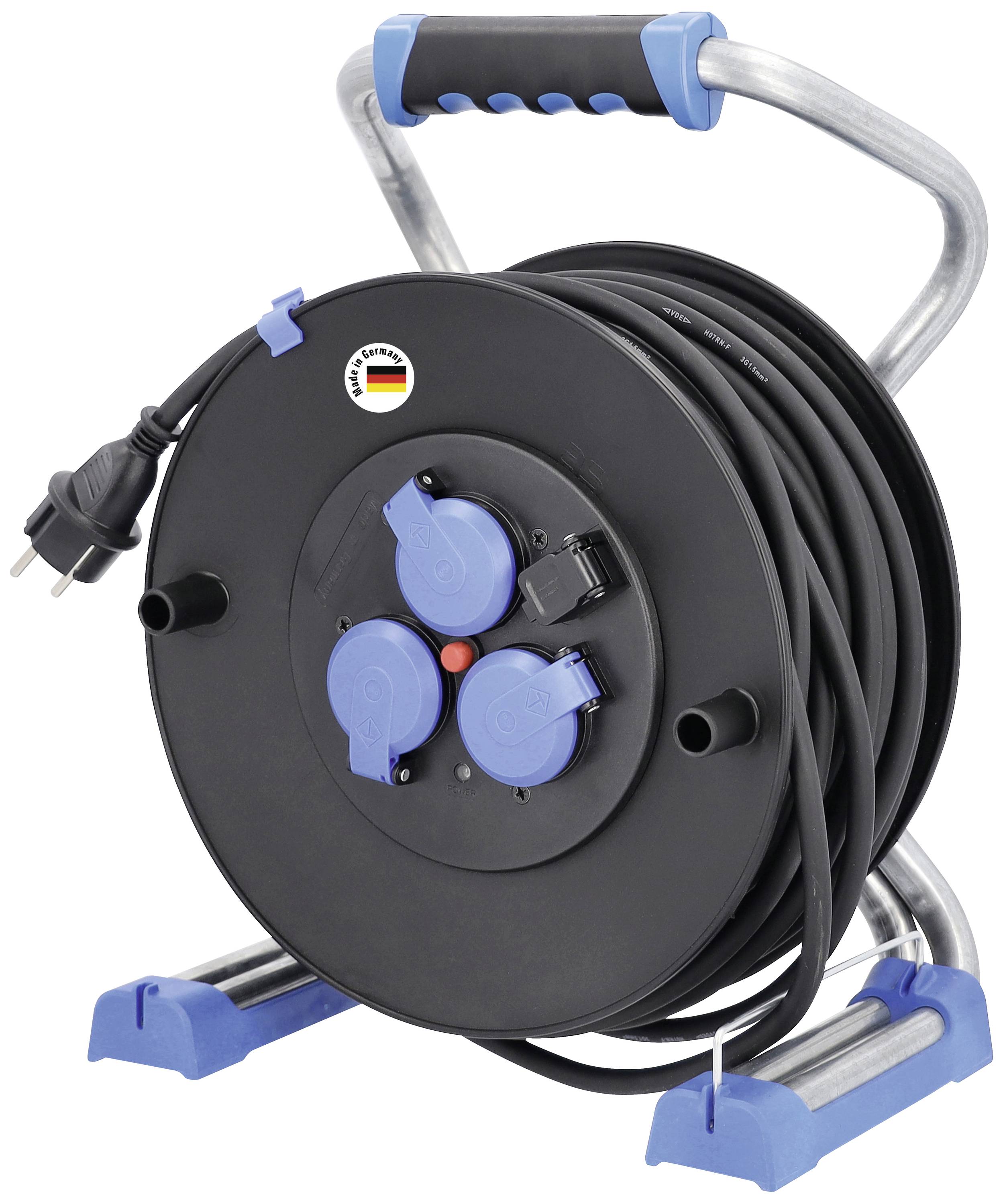

A black extension lead on a cable reel with three blue sockets and a German origin seal.

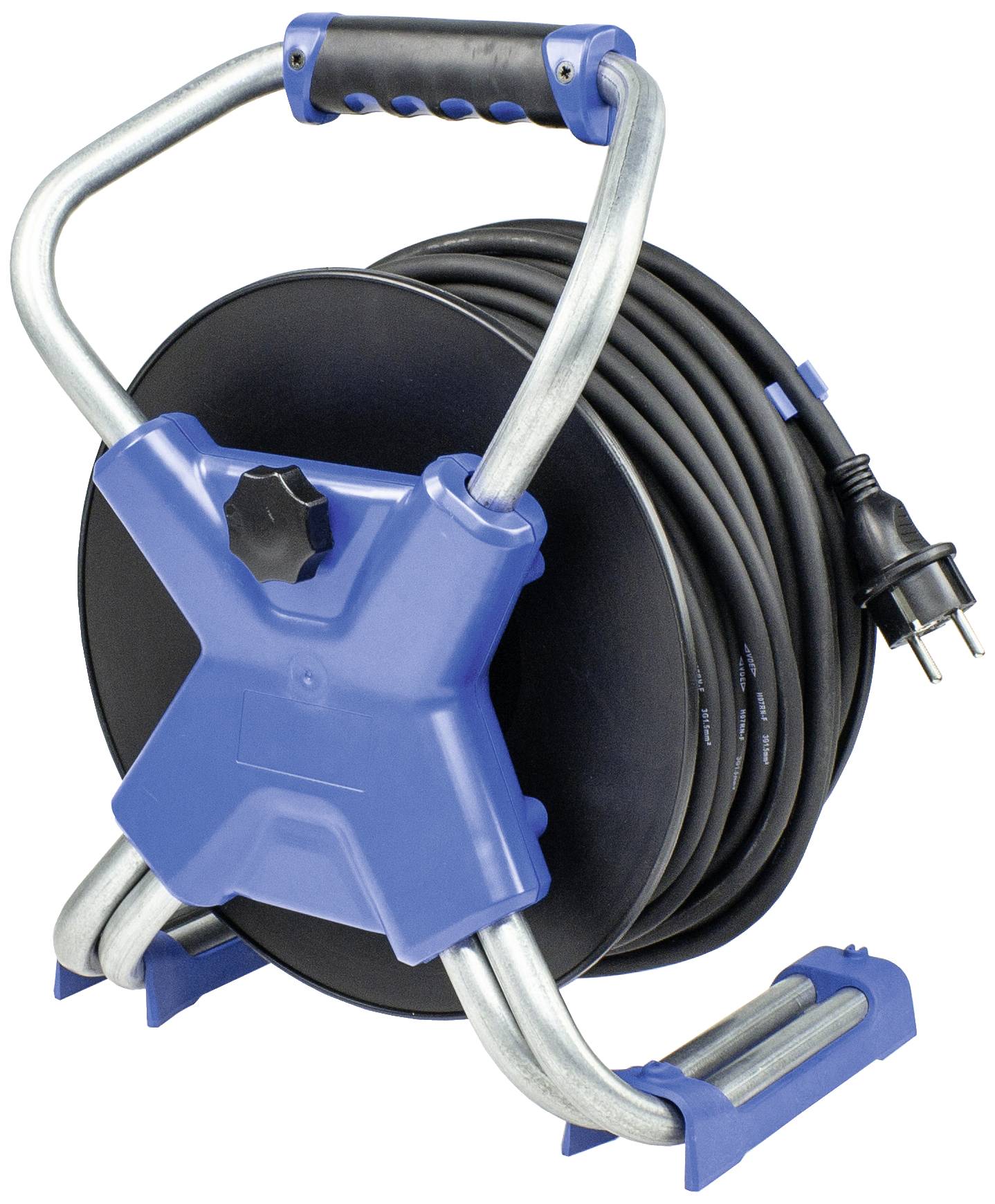

A black cable reel with a blue casing and metal handle. The cable is wound and has a plug at the end.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable drum Xperts safety plug

High-breaking drum housing
Shock-absorbing X-double pipe frame
Non-slip 2-component handle
Rubber flexible cable
Oil-resistant

Technical specifications

Product type: Cable reel

Cable length: 40 m

Type A: PG plug

Inputs: 16 A

Connector version: straight

Type B: PG socket

Outlets: 3

Cable colour: Black

Cable standard: H07RN-F 3G 1,5 mm²

Used at: Outdoors
Indoors

Material: Neoprene
Gum elastic

Cable features: Cold-resistant
Harmonised
Oil-resistant
UV-resistant

Factory colour: Black

Nominal input voltage: 230 V

Nominal current (details): 16 A

Power rating: 230V, 16A, max. 3500 W

Load capacity (wound/unwound): 3x 1000W / 3x 3500 W

Reel diameter: 28.5 cm

Type: 1.5 mm².

Weight: 7.6 kg

: IP44

Standards: EN61242 / GS-ET35

Outputs: 3 protective contact sockets 230 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249516 AS Schwabe 22629 Cable reel 40 m Black PG plug

Description

The Xperts CEE cable reel from as - Schwabe convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch. The flexible, mechanically resilient cable is oil-resistant, flame-resistant and suitable for temperature ranges from -25 to +60°C. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.

This text is machine translated.

Features

Drum body made of high-breaking special plastic with stable X-double pipe frame
RN cables have a rubber insulating sleeve and are covered with black neoprene rubber
Oil-resistant and for use in outdoor areas and on farms
Withstand high demands in dry and damp rooms as well as in the water used
Can be used permanently outdoors
Ergonomically designed, non-slip 2-component handle
