Buy AS Schwabe 22655 Cable reel 25 m Black CEE plug (5-pin, 16 A)

Cable reel with handle and sockets, red Schuko plugs, black and grey housing, German flag on the side.

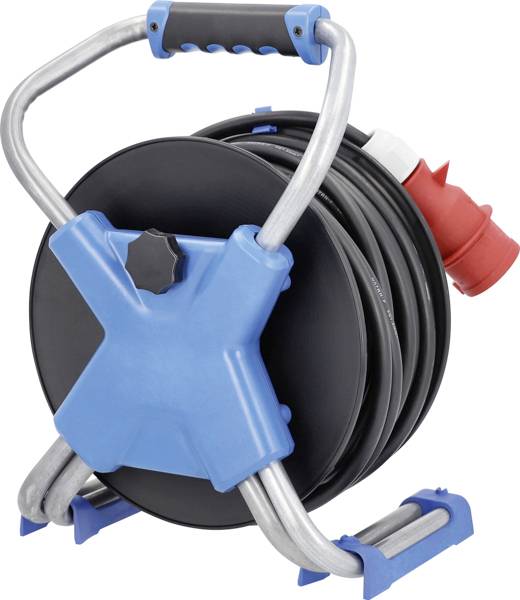

A blue cable reel with a black cable and red plug, suitable for power connections on construction sites or at events.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable DRUM Xperts RUBBER HOSE CABLE

High-break-resistant special plastic
Stable X-double pipe frame
Rubber flexible cable
Rubber insulating sleeve
Neoprene rubber sheath
Oil-resistant
Can be used permanently outdoors

Technical specifications

Product type: Cable reel

Cable length: 25 m

Type A: CEE plug (5-pin, 16 A)

Inputs: 16 A

Connector version: straight

Type B: PG socket
CEE connector (5-pin, 16 A)

Outlets: 3

Cable colour: Black

Cable standard: H07RN-F 5G 1,5 mm²

Used at: Outdoors
Indoors

Material: Plastic

Cable features: Cold-resistant
Harmonised
Oil-resistant
UV-resistant

Factory colour: Black

Nominal input voltage: 400 V

Nominal current (details): 16 A

Power rating: 400V, 16A, approx. 11 kW

Load capacity (wound/unwound): 3x 1000W / 3x 3500 W

Reel diameter: 28.5 cm

Type: 1.5 mm².

Weight: 7.9 kg

: IP44

Standards: EN 61242 / GS-ET35

Outputs: 2x earthing contact socket-outlet 230V
1x CEE-socket 400V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249519 AS Schwabe 22655 Cable reel 25 m Black CEE plug (5-pin, 16 A)

Description

The Xperts CEE cable reel convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch. The flexible, mechanically resilient cable is oil-resistant, flame-resistant and suitable for temperature ranges from -25 to +60°C. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings.

This text is machine translated.

Features

Robust, high-breaking drum housing
stable and shock-absorbing X-double pipe frame
ergonomically designed, non-slip 2-component handle
RN-Line has a rubber insulating sleeve and is covered with black neoprene rubber
Oil-resistant and suitable for use in outdoor areas and on farms
