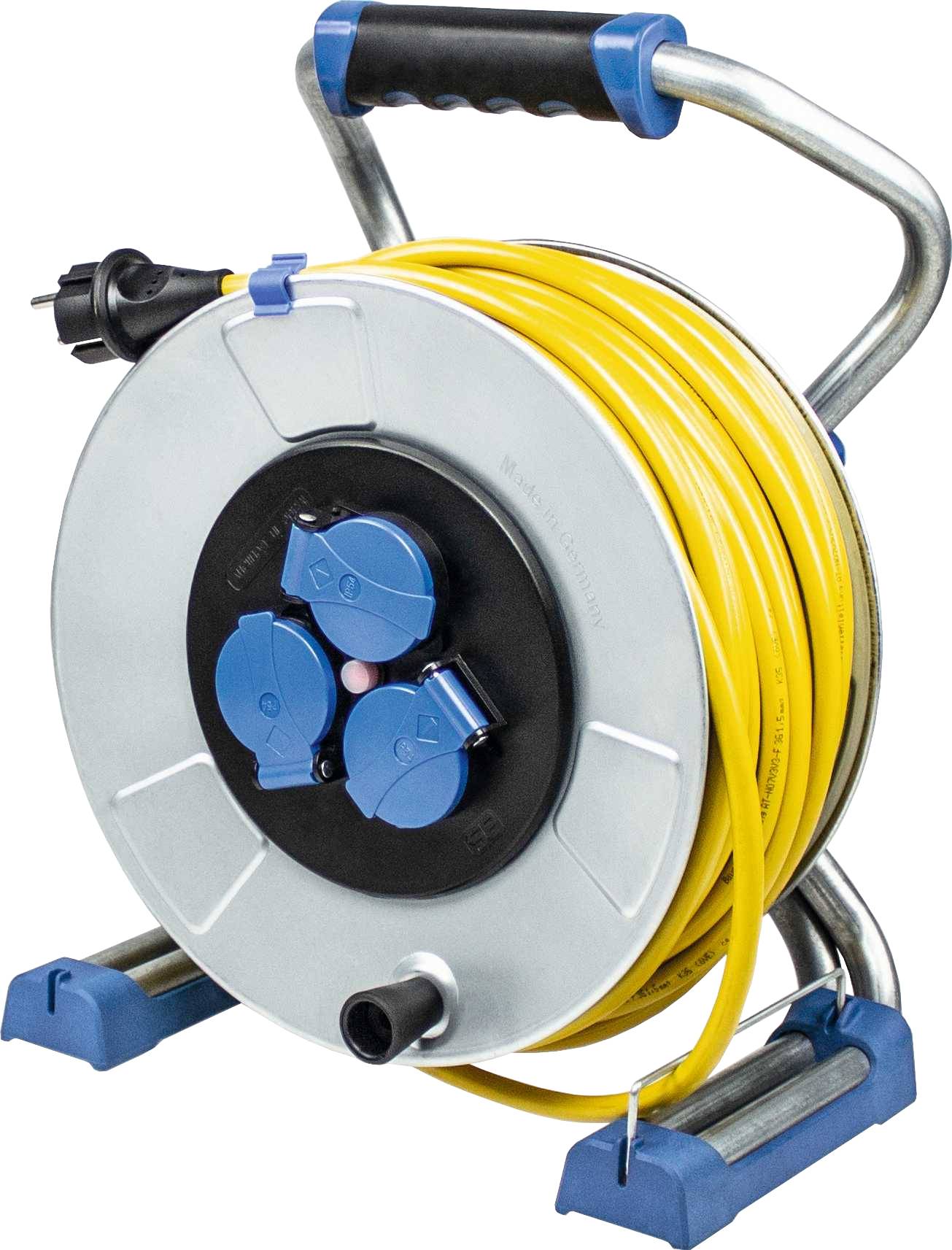

AS Schwabe 22733 Cable reel 50 m Yellow PG plug
EAN:
Part number:
Item no:
Highlights & Details
- Yellow armoured cable with earthing contact plug
- Hot-dip galvanized metal drum
- Shock-absorbing X-double pipe frame
- Ergonomic non-slip handle
Technical specifications
- Product type
Cable reel
- Cable length
50 m
- Type A
PG plug
- Inputs
16 A
- Connector version
straight
- Type B
PG socket
- Outlets
3
- Cable colour
Yellow
- Cable standard
N07V3V3-F 3G 1,5 mm²
- Used at
Outdoors
Indoors
- Material
PVC
- Cable features
Heat-resistant
Cold-resistant
UV-resistant
Acid-resistant
highly flexible
Oil- and abrasion-resistant
- Factory colour
Silver
- Nominal input voltage
230 V
- Nominal current (details)
16 A
- Power rating
230V, 16A, max. 3500 W
- Load capacity (wound/unwound)
3x 1000W / 3x 3500 W
- Reel diameter
32 cm
- Weight
9 kg
IP44
- Standards
EN 61242
DIN VDE 0620-1
OIL E8241-55
IEC 60309
- Outputs
3 earthing contact socket-outlets
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2249527 AS Schwabe 22733 Cable reel 50 m Yellow PG plug
Description
The IronCoat Xperts metal cable drum with 40m cable length of as - Schwabe convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing.
The IP44 cable reel has a thermal protection switch. The highly flexible, abrasion-resistant cable is resistant to acid, oil and embrittlement and is therefore 100% weather-proof. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings.
This text is machine translated.
The IP44 cable reel has a thermal protection switch. The highly flexible, abrasion-resistant cable is resistant to acid, oil and embrittlement and is therefore 100% weather-proof. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings.
This text is machine translated.
Features
- ARMOURED CABLE K35 AT-N07 V3V3-F 3G*
- Can be used from -35 to +70°C.
- Oil and UV-resistant and also extremely resistant to abrasion
- Cable drum with overheating protection
- Earthing contact plug 230V, 16A, 3-pin
- 3 earthing contact socket outlets 230V with safety hinged lids
- Mechanically heavy-duty and temperature-resistant galvanized metal drum housing with additional protective insulation
- Shock-absorbing X-double pipe frame
- Ergonomic non-slip 2-component handle
Hints
Not permitted on construction sites in Germany
