Buy AS Schwabe 23328 Cable reel 40 m Orange PG plug

A round cable reel with a long, orange cable. It has blue electrical sockets and a carrying handle.

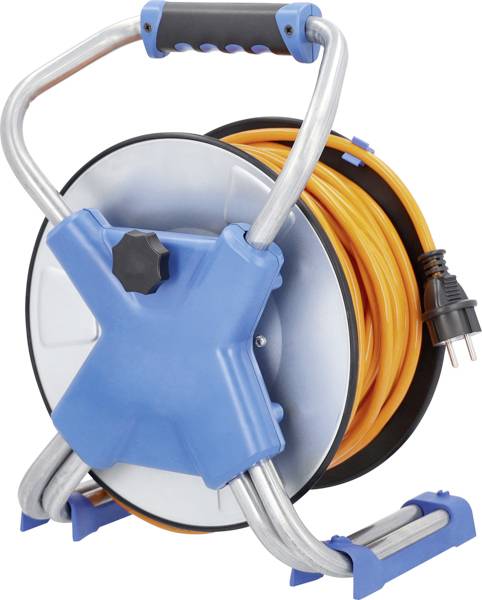

A cable reel with a blue mounting and an orange cable neatly coiled. There is a handle at the top for carrying.

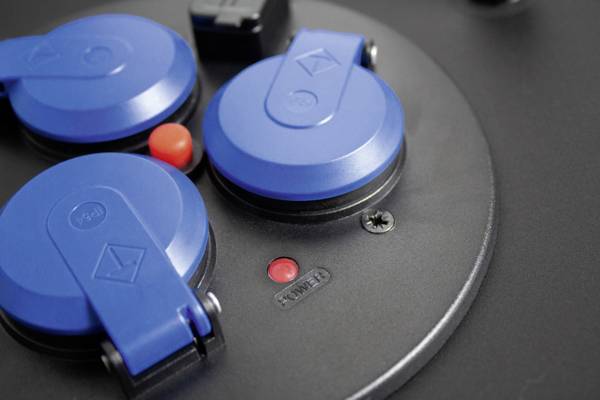

Three blue covers on a black plate, two red buttons and a screw.

Three blue electrical sockets with covers on a black plate. A red button and a red indicator light visible beneath them.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

as - Schwabe IronCoat Xperts metal cable reel 40 m construction site cable H07BQ-F 3G1.5 with earthing contact plug

The cable reel with construction site cable has 3 earthing contact sockets 230 V with safety hinged lids and hammer marks
Patented cable routing for easy unwinding and unwinding
The hot-dip galvanized metal drum has a shock-absorbing X-double pipe frame
Ergonomic, non-slip handle
Construction site lines made of polyurethane in orange safety color are oil-resistant, extremely abrasion-proof and suitable for extreme mechanical stress
Approved for temperature ranges from -40°C to +80°C.
Particularly suitable for industrial and construction sites, in dry, damp and wet rooms, in domestic water, in the open and in agricultural and fire-prone production sites.

Technical specifications

Product type: Cable reel

Cable length: 40 m

Type A: PG plug

Inputs: 16 A

Connector version: straight

Type B: PG socket

Outlets: 3

Cable colour: Orange

Cable standard: H07BQ-F 3G 1,5 mm²

Used at: Outdoors
Indoors

Material: Metal

Cable features: Harmonised
Flame-retardant
Heat-resistant
Cold-resistant
PUR coating
UV-resistant
chemical-resistant
suitable for outdoor use
Oil- and abrasion-resistant

Factory colour: Black

Nominal input voltage: 230 V

Nominal current (details): 16 A

Power rating: 230V, 16A, MAX. 3500 W.

Load capacity (wound/unwound): 1000W / 3500 W

Reel diameter: 28.5 cm

Type: as - Schwabe IronCoat Xperts Metal-Cable drum 40 m Construction site cable H07BQ-F 3G1.5. With 3 Schuko sockets (230 V, 16 A). IP44 – Made in Germany.

Weight: 8 kg

: IP44

Standards: EN61242 / GS-ET 35

Outputs: 3x SCHUKO socket 230V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249533 AS Schwabe 23328 Cable reel 40 m Orange PG plug

Description

The IronCoat Xperts metal cable drum with 40m cable length of as - Schwabe convinces through its quality and safety in all areas. IronCoat cable reels offer the advantages of a classic steel cable reel in terms of higher mechanical load capacity, resistance and resistance to temperature fluctuations. Additional protective insulation of the cable drum and the side panels offers improved protection against dangerous contact voltages on touchable construction parts in case of damage to the cable. With stable X-double pipe frame, ergonomically shaped, non-slip 2-component handle and patented cable routing.
The IP44 cable reel has a thermal protection switch. The construction site management made of polyurethane in orange safety color is oil-resistant, extremely abrasion-proof and suitable for extreme mechanical stress. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.

This text is machine translated.

Features

Mechanically heavy-duty and temperature-resistant galvanized metal drum housing with additional protective insulation
Stable and shock-absorbing X-double pipe frame
Ergonomically designed, non-slip 2-component handle
The construction site management made of polyurethane in orange safety color is oil-resistant, extremely abrasion-proof and suitable for extreme mechanical stress
Oil-resistant and suitable for use outdoors and on farms
Approved on construction sites
