Buy AS Schwabe 23623 Cable reel 40 m Orange PG plug

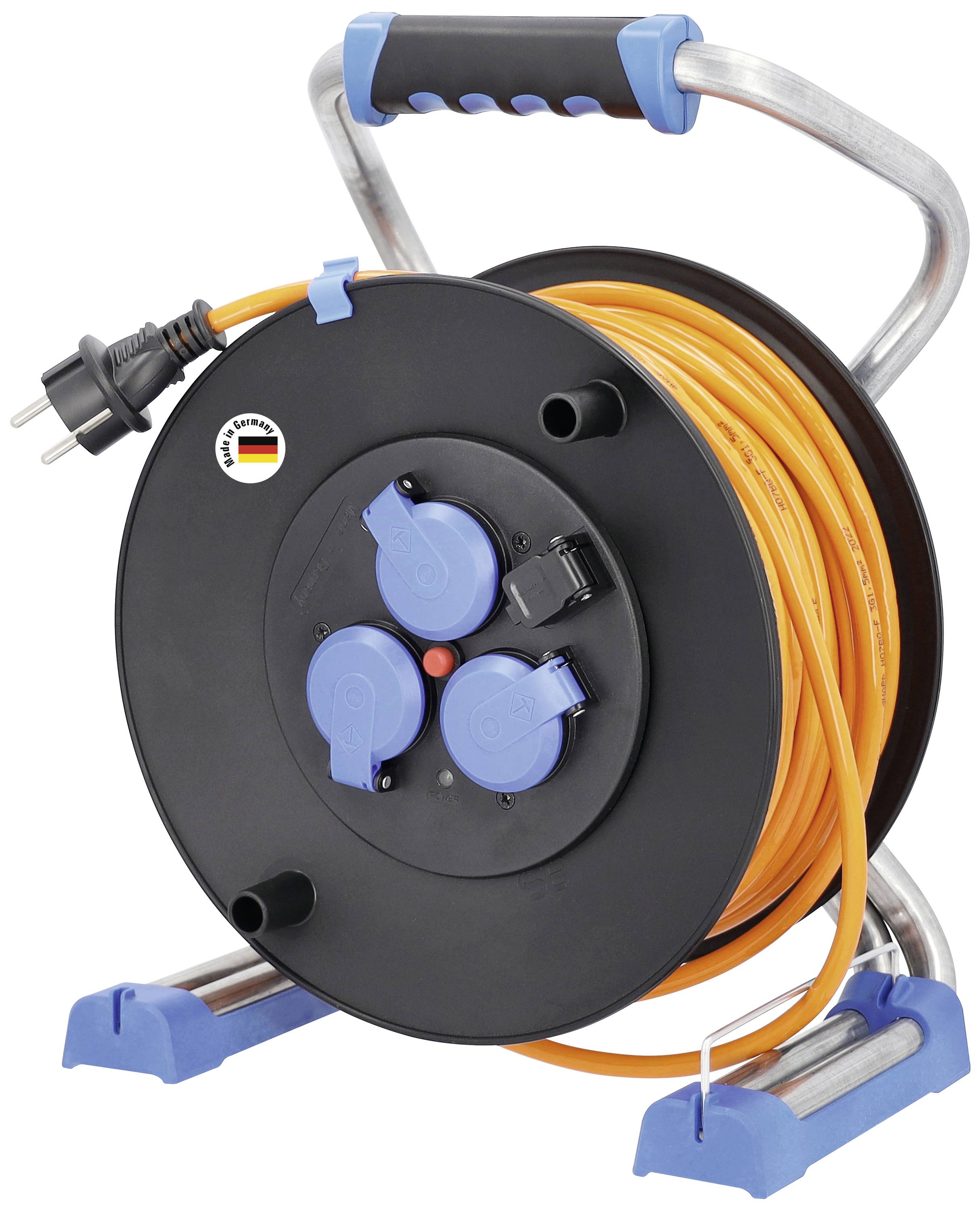

An orange extension lead on a cable reel with three blue plug sockets, with a carrying handle. Made in Germany symbol.

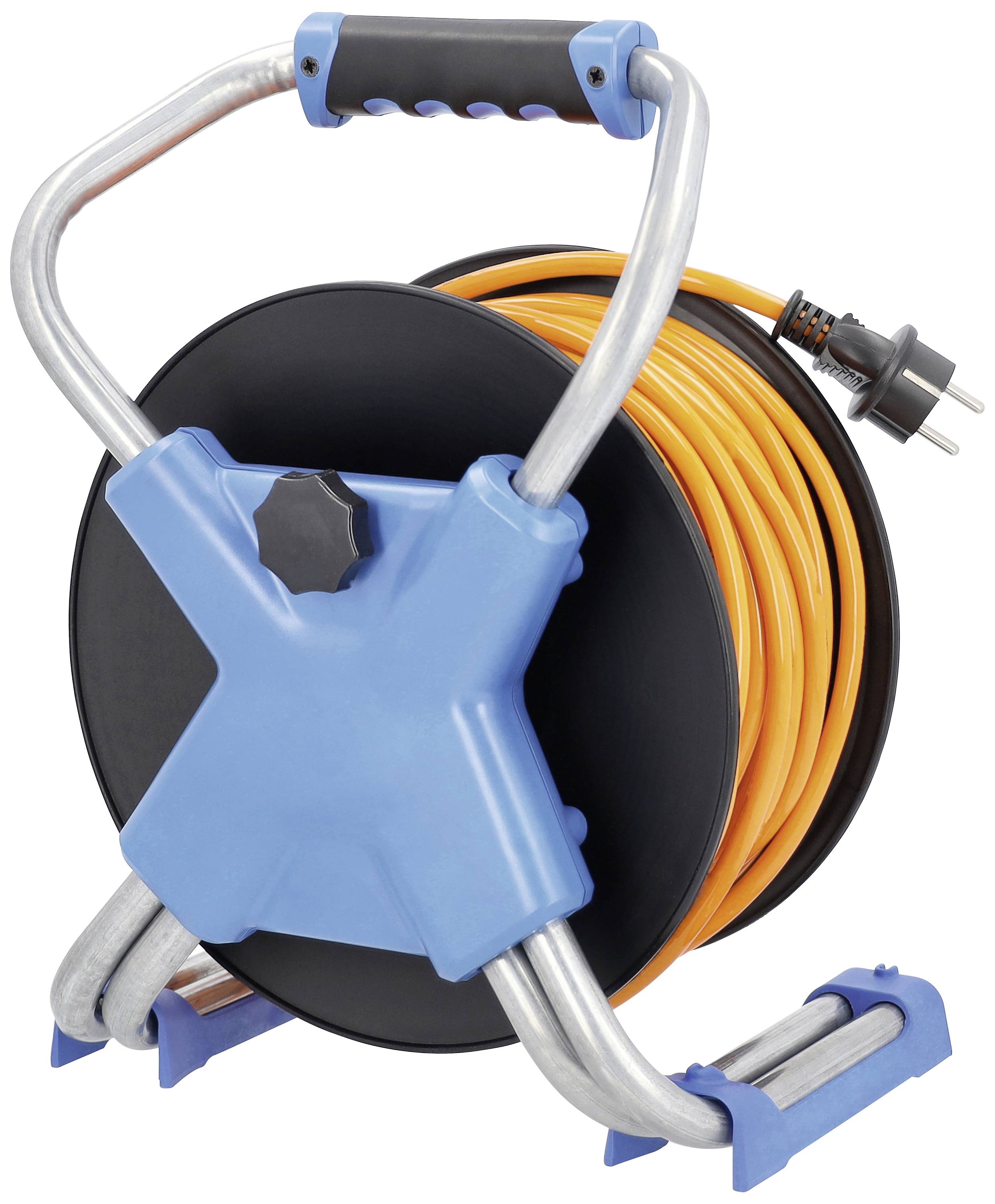

An extension lead with a black cable reel housing and orange cable, mounted on a blue and silver stand.

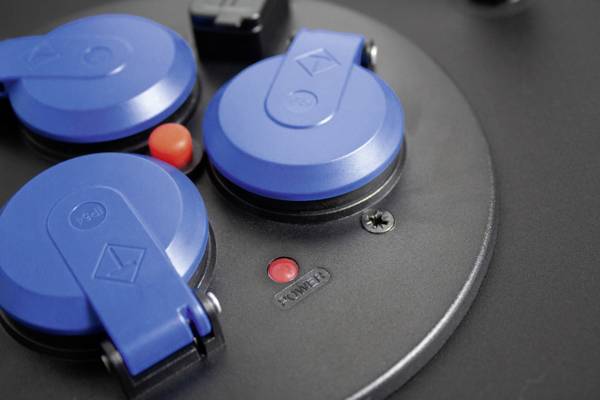

Close-up of a black power strip with blue safety covers and a red button in the centre.

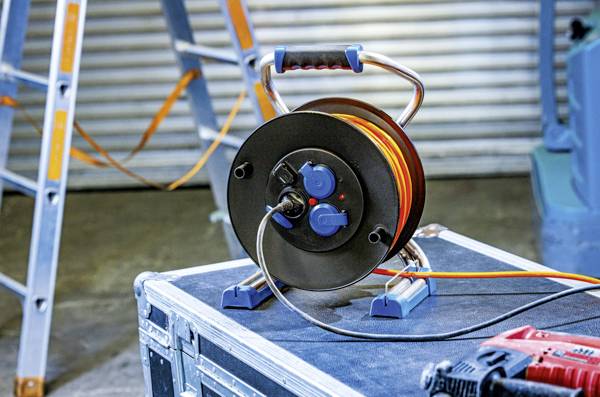

A cable reel with an orange extension lead is standing on a black box. A ladder and metal wall are visible in the background.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable DRUM Xperts CONSTRUCTION LINE H07BQ-F.

High-breaking drum housing
Shock-absorbing X-double pipe frame
Ergonomic non-slip 2-component handle
Construction site management made of polyurethane

Technical specifications

Product type: Cable reel

Cable length: 40 m

Type A: PG plug

Inputs: 16 A

Connector version: straight

Type B: PG socket

Outlets: 3

Cable colour: Orange

Cable standard: H07BQ-F 3G 1,5 mm²

Used at: Outdoors
Indoors

Material: Synthetic rubber
Polyurethane

Cable features: Harmonised
Flame-retardant
Heat-resistant
Cold-resistant
PUR coating
UV-resistant
chemical-resistant
suitable for outdoor use
Oil- and abrasion-resistant

Factory colour: Black

Nominal input voltage: 230 V

Nominal current (details): 16 A

Power rating: 230V, 16A, max. 3500 W

Load capacity (wound/unwound): 3x 1000W / 3x 3500 W

Reel diameter: 28.5 cm

Type: 1.5 mm².

Weight: 7.8 kg

: IP44

Standards: EN61242 / GS-ET 35

Outputs: 3 earthing contact socket-outlets

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249536 AS Schwabe 23623 Cable reel 40 m Orange PG plug

Description

The Xperts cable reel convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch. The construction site management made of polyurethane in orange safety color is oil-resistant, extremely abrasion-proof and suitable for extreme mechanical stress. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.

This text is machine translated.
