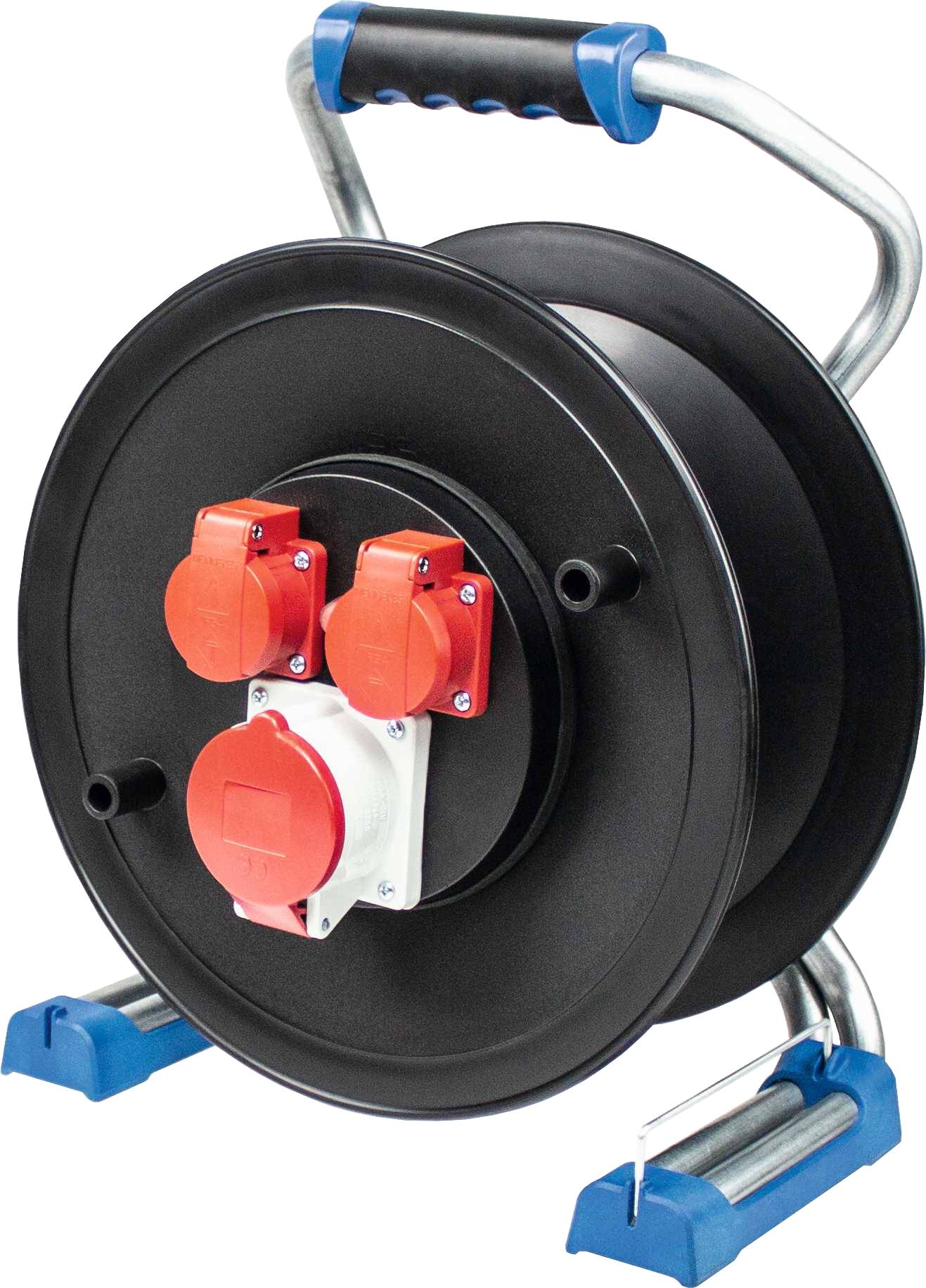

AS Schwabe 23650 Cable reel (w/o cable)
EAN:
Part number:
Item no:
Highlights & Details
Cable reel Xperts for 40 m cable
- Robust, high-breaking drum housing
- Stable and shock-absorbing X-double pipe frame
- Ergonomically designed, non-slip 2-component handle
Technical specifications
- Product type
Cable reel (w/o cable)
- Type B
PG socket
CEE connector (5-pin, 16 A)
- Outlets
3
- Used at
Outdoors
Indoors
- Material
Plastic
- Cable features
built-in thermal switch
- Factory colour
Black
- Nominal input voltage
400 V
- Nominal current (details)
16 A
- Power rating
400V, 16A, approx. 11 kW
- Reel diameter
32 cm
- Weight
3 kg
IP44
- Standards
EN 61242
- Outputs
2 earthing contact socket-outlet
1 CEE-coupling 16 A 5polig
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2249544 AS Schwabe 23650 Cable reel (w/o cable)
Description
The Xperts empty drum convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 empty drum has a thermal protection switch. It can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings.
This text is machine translated.
This text is machine translated.
Features
- The empty drum has 1 CEE socket and 2 earthing contact sockets with safety hinged lids and hammer marks
- easy unwinding and winding of power cables thanks to patented cable routing
- The plastic cable drum is highly break-proof and has a shock-absorbing X-double pipe frame and a star-grip brake
- ergonomic, non-slip handle
- the cable retractor is equipped with a thermal protection switch and approved for construction sites The power distributor drum is ideal for indoor and outdoor use thanks to the protection class IP44
- ideal for home, camping, garden, construction site, caravan & caravan
