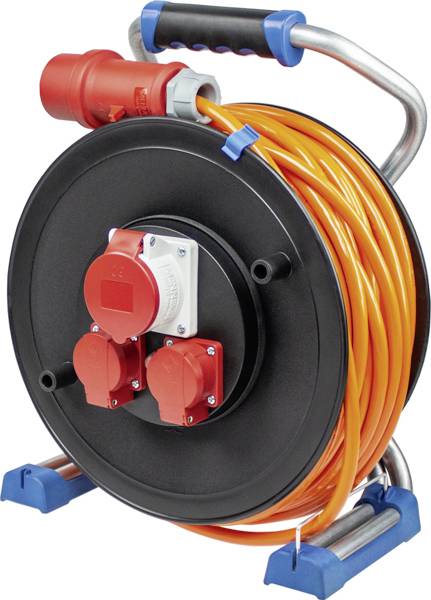

An orange cable reel with multiple power sockets, suitable for use on construction sites or outdoors.

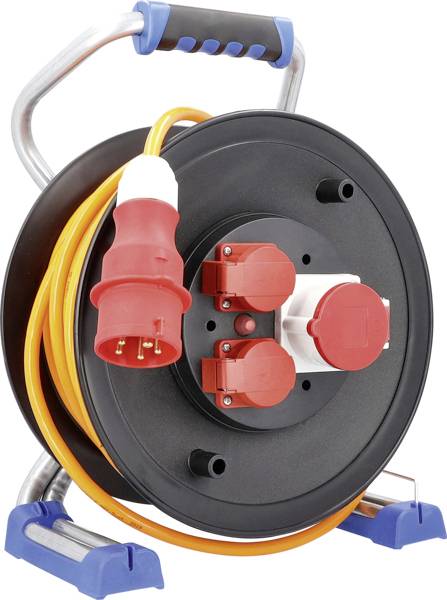

A black cable reel with multiple red sockets and an orange cable attached to a blue handle.

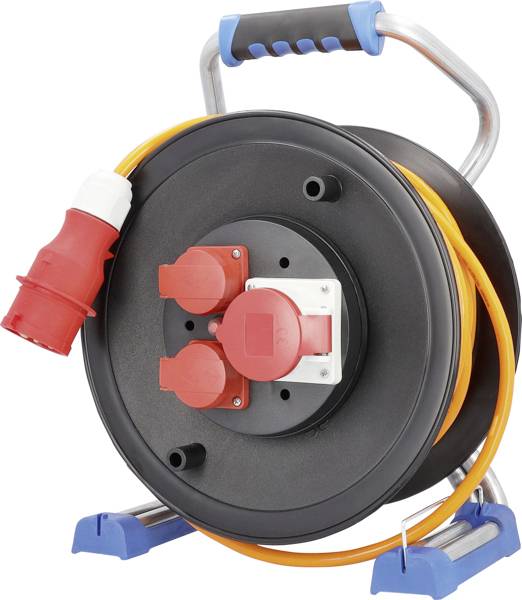

'Black extension lead on reel with red sockets and orange cable.'

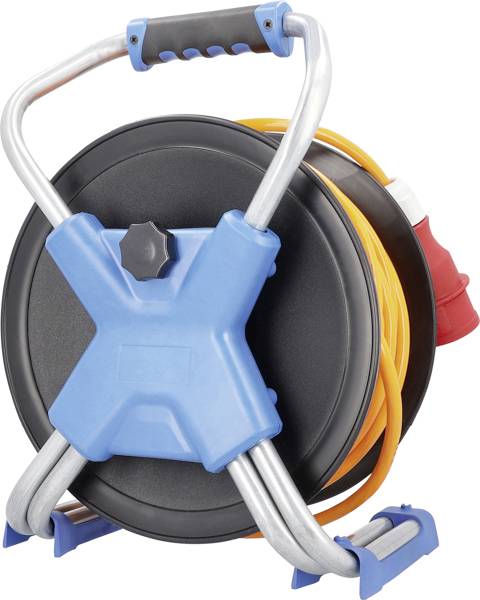

A portable cable reel with an orange cable, black drum and blue handle, suitable for power connections on construction sites.

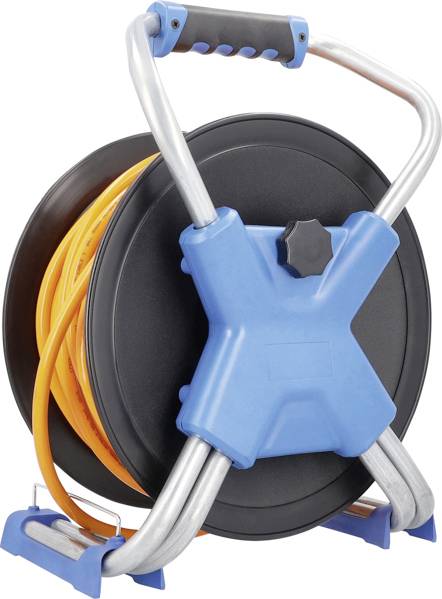

A blue hose reel with an orange hose and silver handle, standing on a floor stand.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable drum 40 m Xperts construction site management

Robust, high-breaking drum housing
Shock-absorbing X-double pipe frame
Ergonomic non-slip 2-component handle
Oil-resistant
Safety color orange
Extremely resistant to abrasion
Temperature range from -40 to +80°C.

Technical specifications

Product type: Cable reel

Cable length: 40 m

Type A: CEE plug (5-pin, 16 A)

Connector version: straight

Type B: PG socket
CEE socket (5-pin, 16 A)

Outlets: 3

Cable colour: Orange

Cable standard: H07BQ-F 5G 1,5 mm²

Used at: Outdoors
Indoors

Material: Plastic

Cable features: Harmonised
Flame-retardant
Heat-resistant
Cold-resistant
PUR coating
UV-resistant
chemical-resistant
suitable for outdoor use
Oil- and abrasion-resistant

Factory colour: Black

Nominal input voltage: 400 V

Nominal current (details): 16 A

Power rating: 400V, 16A, approx. 11 kW

Load capacity (wound/unwound): 3x 1000W / 3x 3500 W

Reel diameter: 32 cm

Type: 1.5 mm².

Weight: 9.55 kg

: IP44

Standards: EN 61242 / GS-ET35

Outputs: 2x earthing contact socket-outlet 230V
1x CEE-socket 400V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2249548 AS Schwabe 23664 Cable reel 40 m Orange CEE plug (5-pin, 16 A)

Description

The Xperts cable reel convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch.
The construction site management made of polyurethane in orange safety color is oil-resistant, extremely abrasion-proof and suitable for extreme mechanical stress. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.

This text is machine translated.

Features

Drum body made of high-breaking special plastic with stable X-double pipe frame
Polyurethane construction site lines in safety color Orange are oil-resistant, extremely abrasion-proof and suitable for extreme mechanical stress
approved for temperature ranges from -40 to +80°C.
