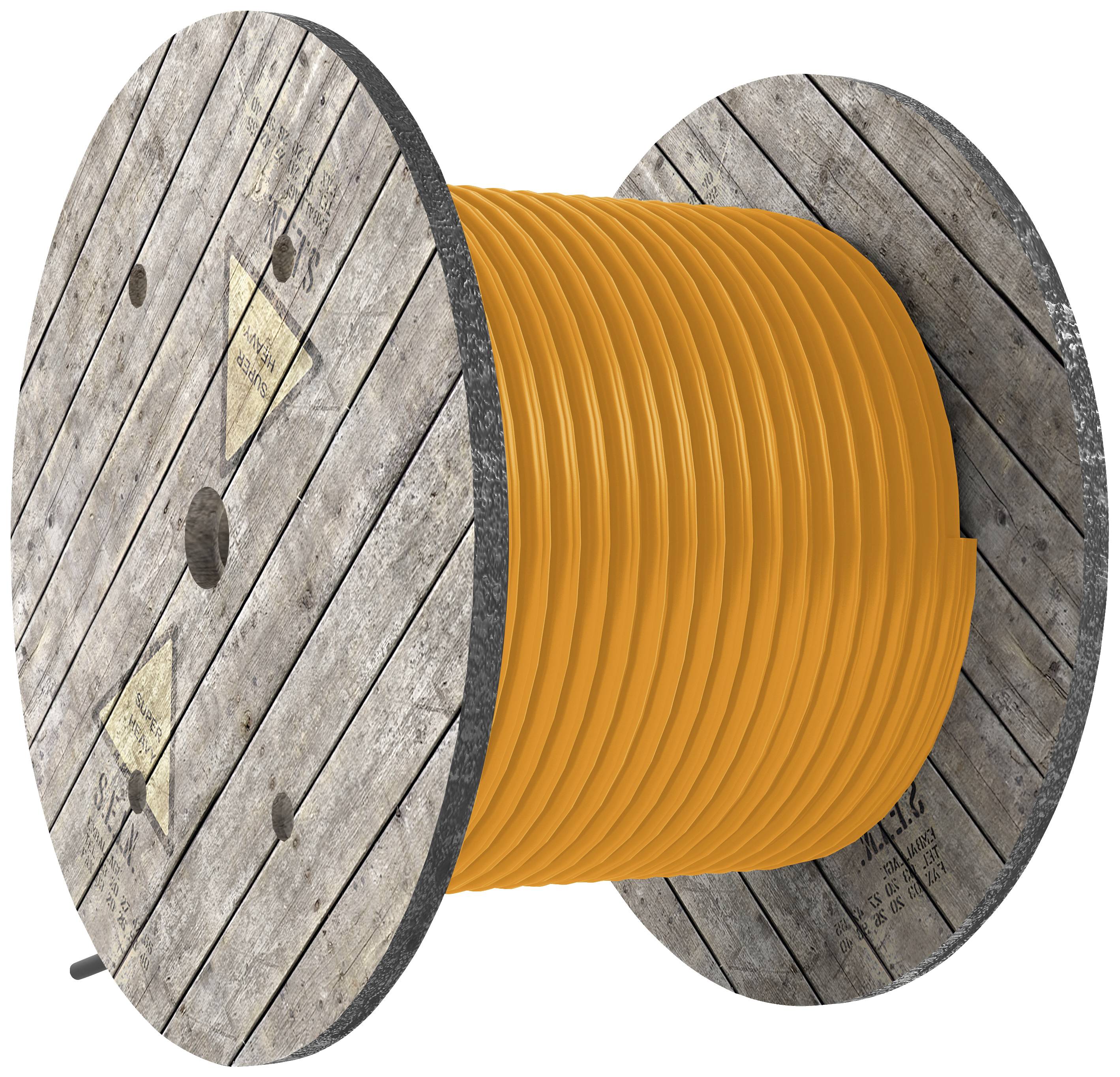

AS Schwabe 59446 Heavy duty cable H07BQ-F 5 x 6 mm² Orange (neon) Sold per metre
EAN:
Part number:
Item no:
Product type
Heavy duty cable
Cable type
H07BQ-F
No. of leads
5 x
Cross section (each core)
6 mm²
No. of leads (part 2)
5 x
Datasheet (PDF)
Highlights & Details
as - Schwabe construction site cable H07BQ-F 5G6
- Construction site cable ring lfm., orange, 400V/32A
- For industrial use, construction sites
- Sustainable adapter management using high-quality materials.
- Also recommended for private use
Technical specifications
- Product type
Heavy duty cable
- Cable type
H07BQ-F
- No. of leads
5 x
- Cross section (each core)
6 mm²
- No. of leads (part 2)
5 x
- Cross section (each core) (part 2)
6 mm²
- Cross section
5 x 6 mm² + 5 x 6 mm²
- Cable features
PUR coating
- Factory colour
Orange (neon)
- Content
Sold per metre
- Nominal voltage
400 V
- Nominal voltage U0
450 V
- Bend radius (no. of ODs for fixed installation)
5
- Sold per metre
Yes
- Manufacturer part #
59446
- Insulation material
Polyurethane
- RoHS-compliant
Yes
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
90 °C
- Certification marks
DIN EN 50525-2-21; VDE 0285-525-2-21
- Type
59446
- Nominal current
32 A
Documents & Downloads
Datasheet
Datasheet 2891032 AS Schwabe 59446 Heavy duty cable H07BQ-F 5 x 6 mm² Orange (neon) Sold per metre
User & Safety Instructions
User & Safety Instructions 2891032 AS Schwabe 59446 Heavy duty cable H07BQ-F 5 x 6 mm² Orange (neon) Sold per metre
Description
Sheath made of polyurethane (PUR). Flame-resistant, ozone resistant, oil-resistant, abrasion-proof
finely stranded according to VDE 0295
Wire insulation made of rubber mixture, stranded wires
Suitable for commercial enterprises and building sites with demanding conditions for use such as grinding and scouring applications.
For high mechanical requirements in dry, damp and wet rooms as well as for permanent use in the open air.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
finely stranded according to VDE 0295
Wire insulation made of rubber mixture, stranded wires
Suitable for commercial enterprises and building sites with demanding conditions for use such as grinding and scouring applications.
For high mechanical requirements in dry, damp and wet rooms as well as for permanent use in the open air.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- Very simple installation with wire end sleeves.
- Also use our extension cable in agricultural holdings.
- Your replacement part for every commercially available drill
