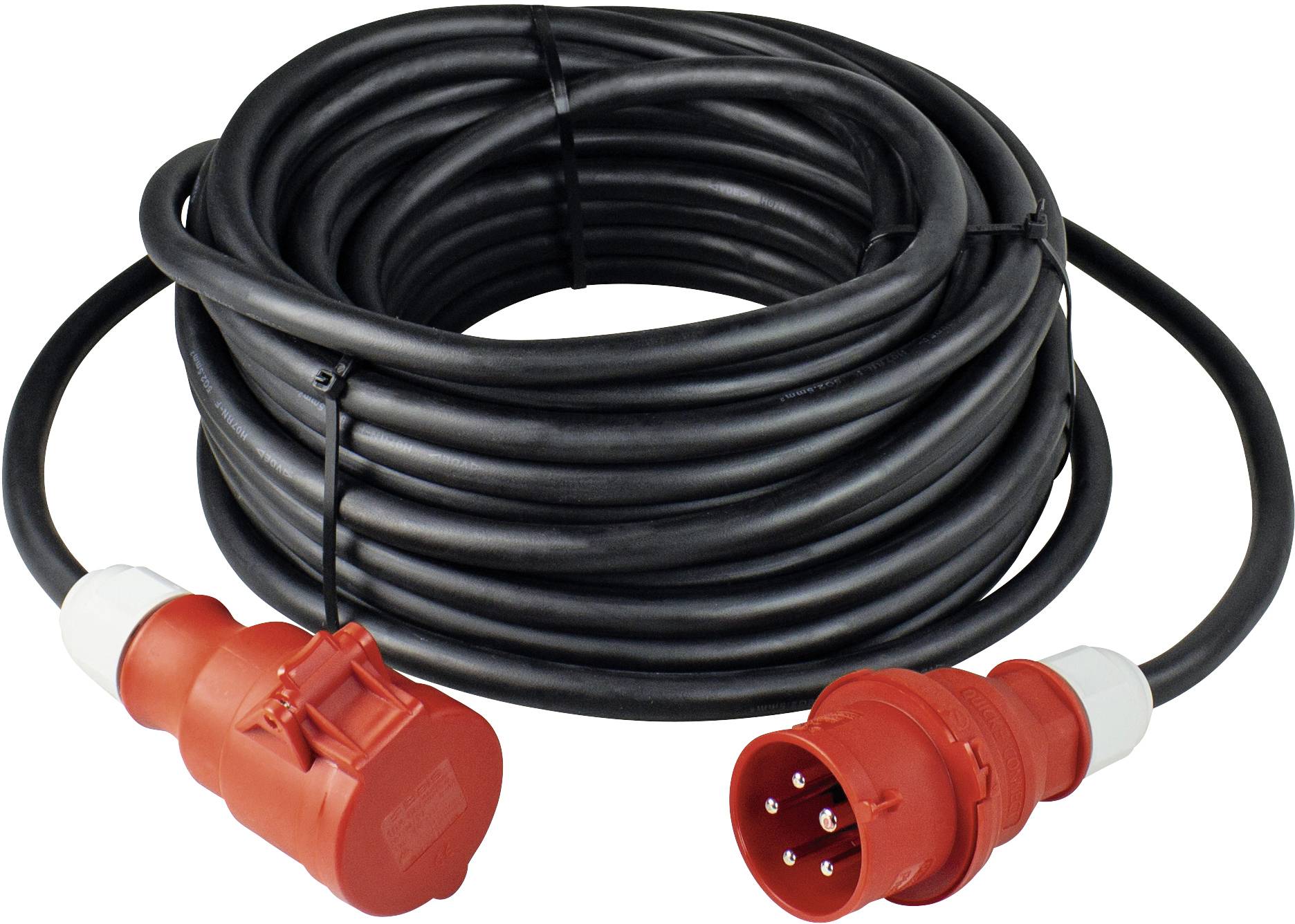

AS Schwabe 61335 Current Cable extension 32 A Black 5.00 m H07RN-F 5G 6 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Heavy current extension cord 32 A
- Approved for construction sites and agricultural operations
- With high-quality CEE plug and CEE connector with hinged lid
- Plugs and couplings of the latest generation, "Made in Germany"
- 400 V, 5-pin, 6 h
- Tested according to IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to IEC 60309, DIN VDE 0282-4
- Product type
Current Cable extension
- Version
Cable extension
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 32 A)
- Outlets
1
- Cable standard
H07RN-F 5G 6 mm²
- Cable length
5.00 m
- Cable features
Oil-resistant
- Operating voltage
400 V
- Used at
Outdoors
IP44
- Factory colour
Black
- Cable use
Current
- Nominal current
32 A
- Connector version
straight
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1857818 AS Schwabe 61335 Current Cable extension 32 A Black 5.00 m H07RN-F 5G 6 mm²
User & Safety Instructions
User & Safety Instructions 1857818 AS Schwabe 61335 Current Cable extension 32 A Black 5.00 m H07RN-F 5G 6 mm²
Description
The heavy rubber sheathed cables "RN-F" have rubber insulating sleeves and are encased in neoprene rubber. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C. Due to their good mechanical resistance they withstand high loads in dry and damp rooms as well as in water and can be used permanently outdoors, e.g. in agricultural holdings or on construction sites.
