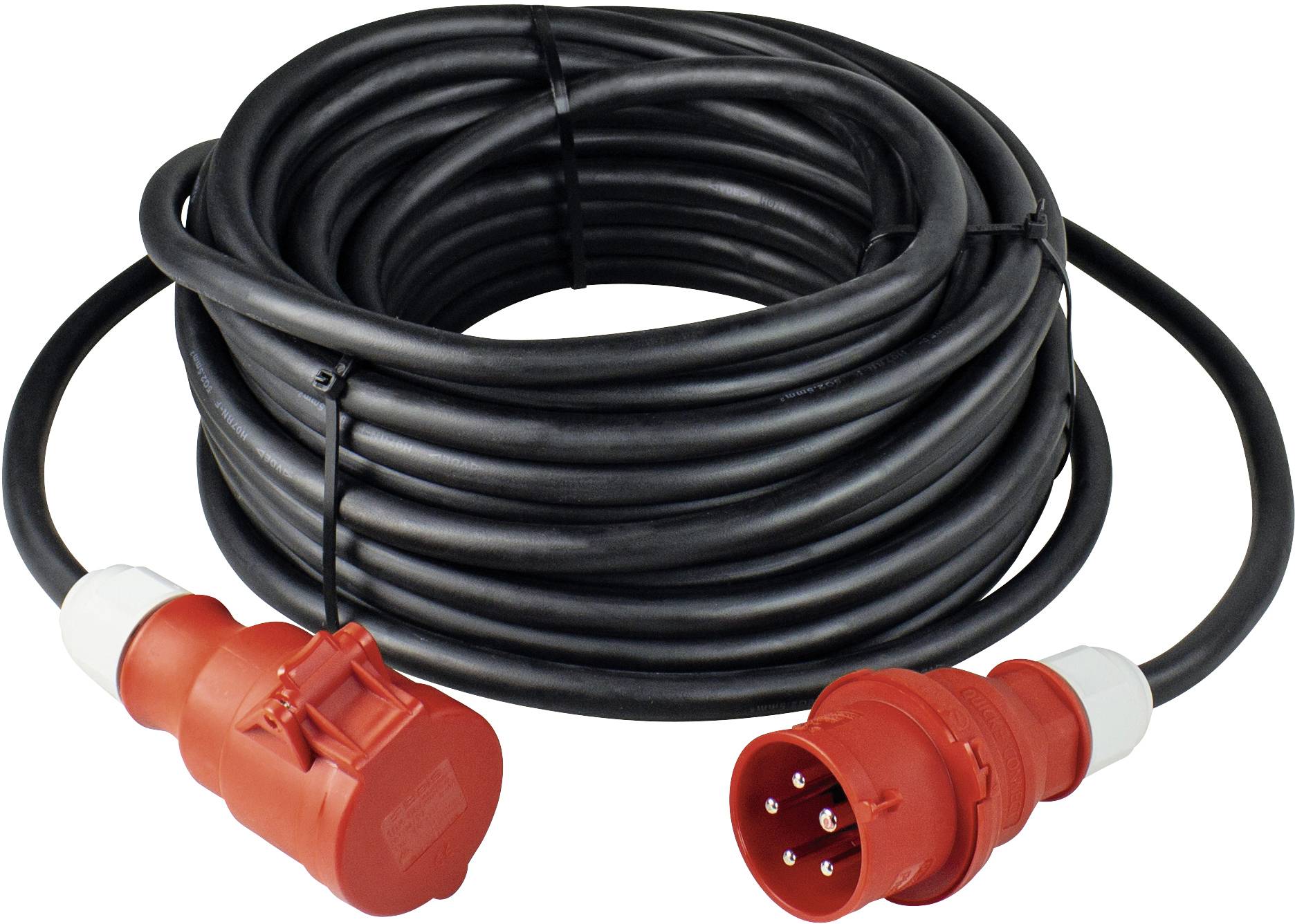

AS Schwabe 61364 Current Cable extension 16 A Black 5.00 m H07RN-F 5G 2,5 mm² incl. phase inverter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Heavy current extension cord 16 A
- Approved for construction sites and agricultural operations
- With high-quality CEE plug and CEE connector with hinged lid
- Plugs and couplings of the latest generation, "Made in Germany"
- 400 V, 5-pin, 6 h
- Tested according to IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
Technical specifications
- Tested according to IEC 60309, DIN VDE 0282-4
- Version
Cable extension
- Type A
CEE phase inverter plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
- Outlets
1
- Cable standard
H07RN-F 5G 2,5 mm²
- Cable length
5.00 m
- Cable features
incl. phase inverter
- Operating voltage
400 V
- Used at
Outdoors
IP44
- Factory colour
Black
- Cable use
Current
- Connector version
straight
- Nominal current
16 A
- Product type
Current Cable extension
Documents & Downloads
Datasheet
Datasheet 1857820 AS Schwabe 61364 Current Cable extension 16 A Black 5.00 m H07RN-F 5G 2,5 mm² incl. phase inverter
User & Safety Instructions
User & Safety Instructions 1857820 AS Schwabe 61364 Current Cable extension 16 A Black 5.00 m H07RN-F 5G 2,5 mm² incl. phase inverter
Description
RN-Rubber hose pipes made of rubber
The heavy rubber sheathed cables "RN-F" have rubber insulating sleeves and are encased in neoprene rubber. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C. Due to their good mechanical resistance they withstand high loads in dry and damp rooms as well as in water and can be used permanently outdoors, e.g. in agricultural holdings or on construction sites.
This text is machine translated.
The heavy rubber sheathed cables "RN-F" have rubber insulating sleeves and are encased in neoprene rubber. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C. Due to their good mechanical resistance they withstand high loads in dry and damp rooms as well as in water and can be used permanently outdoors, e.g. in agricultural holdings or on construction sites.
This text is machine translated.
Features
- With high-quality CEE plug and CEE coupling with hinged lid
- Plug and couplings of the latest generation
- 400 V, 5-pin, 6 h
- Tested according to IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
