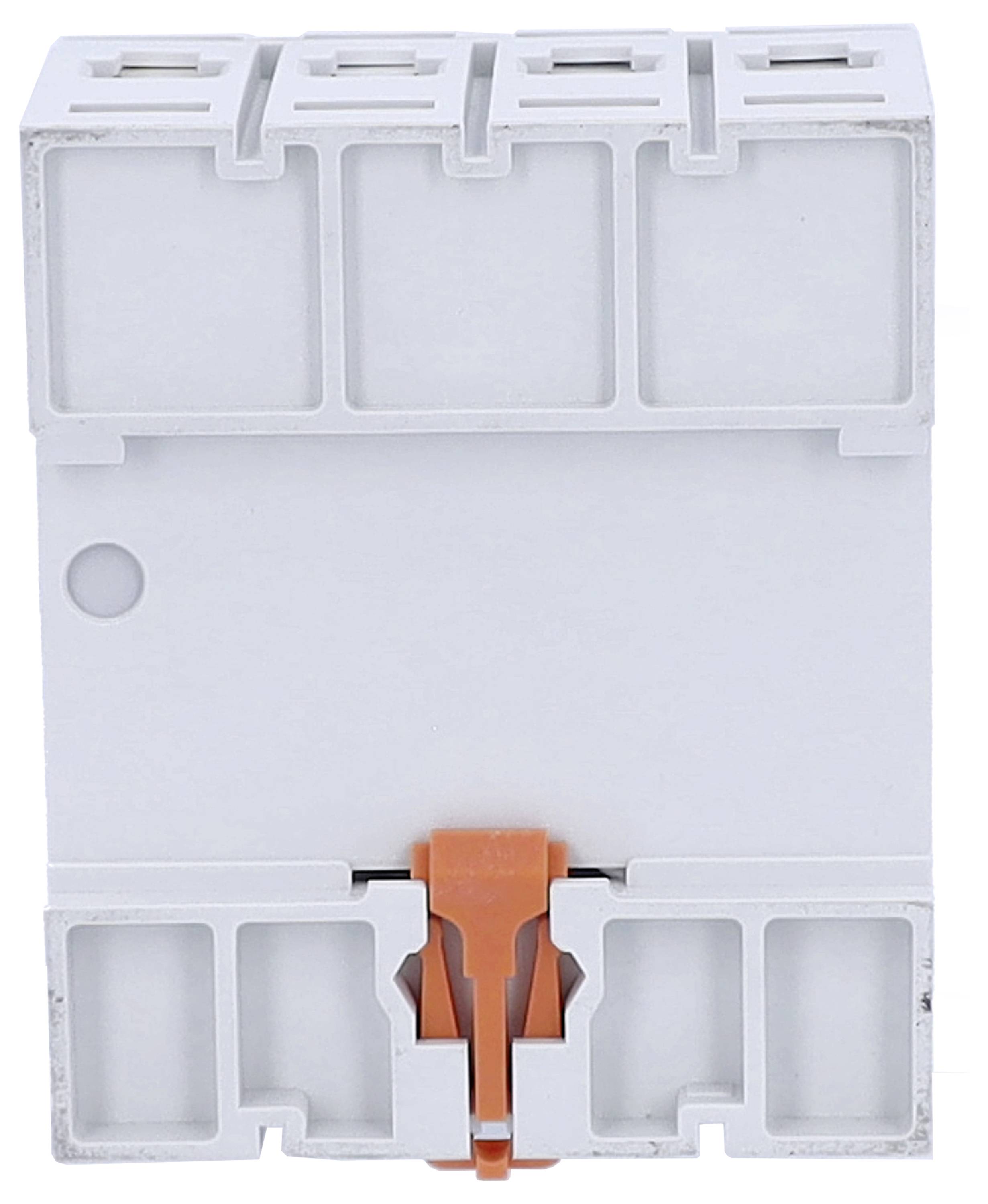

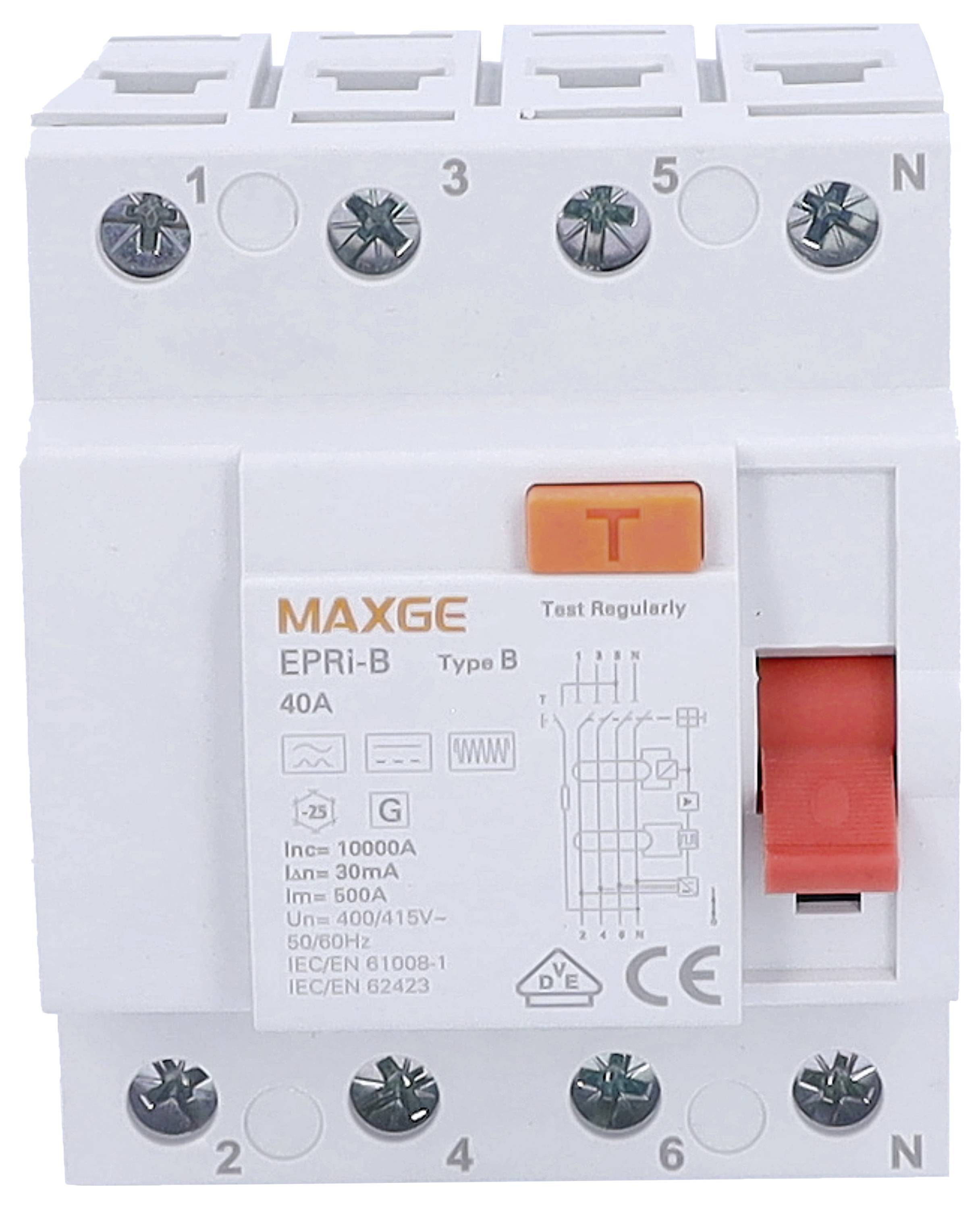

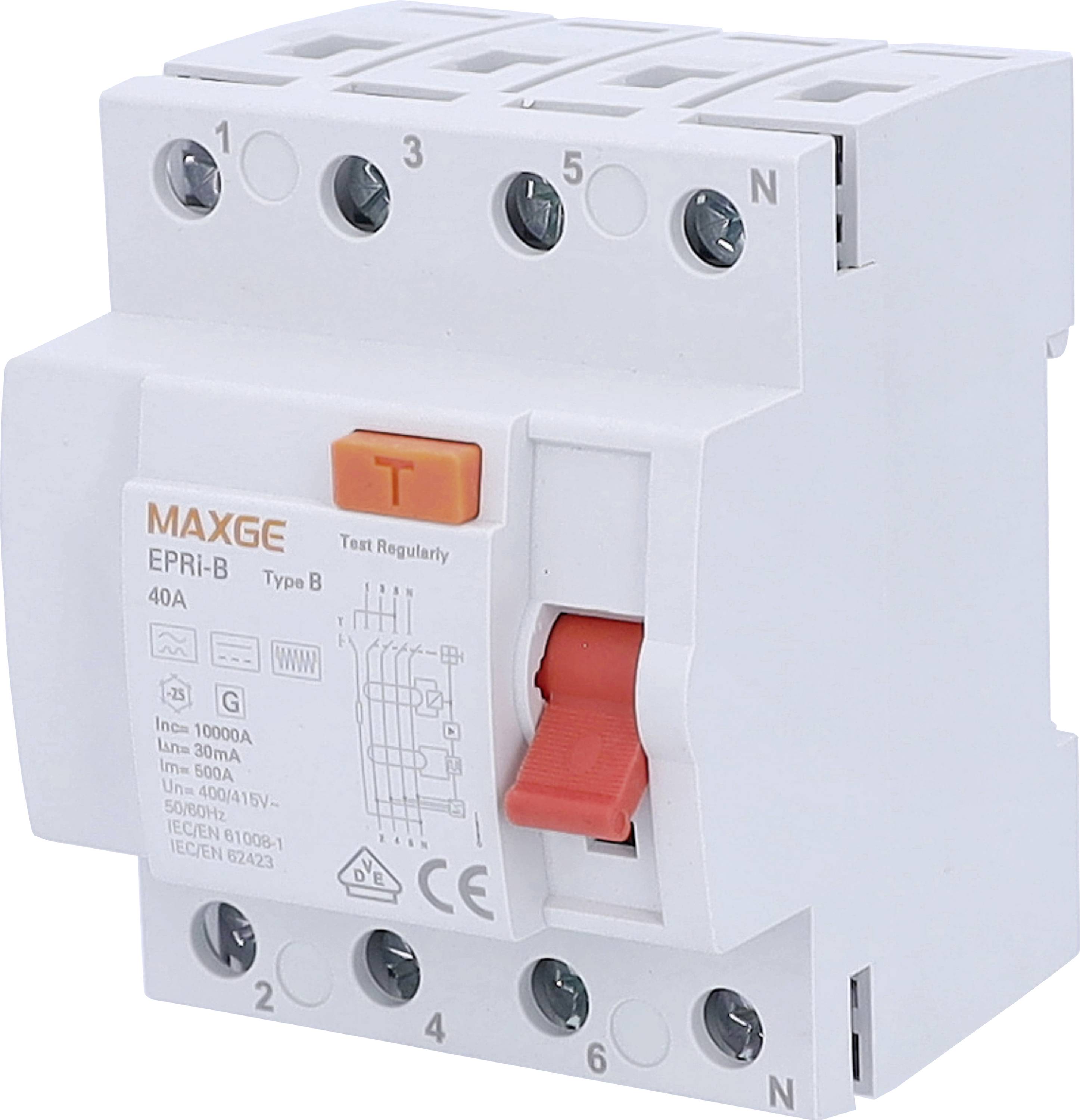

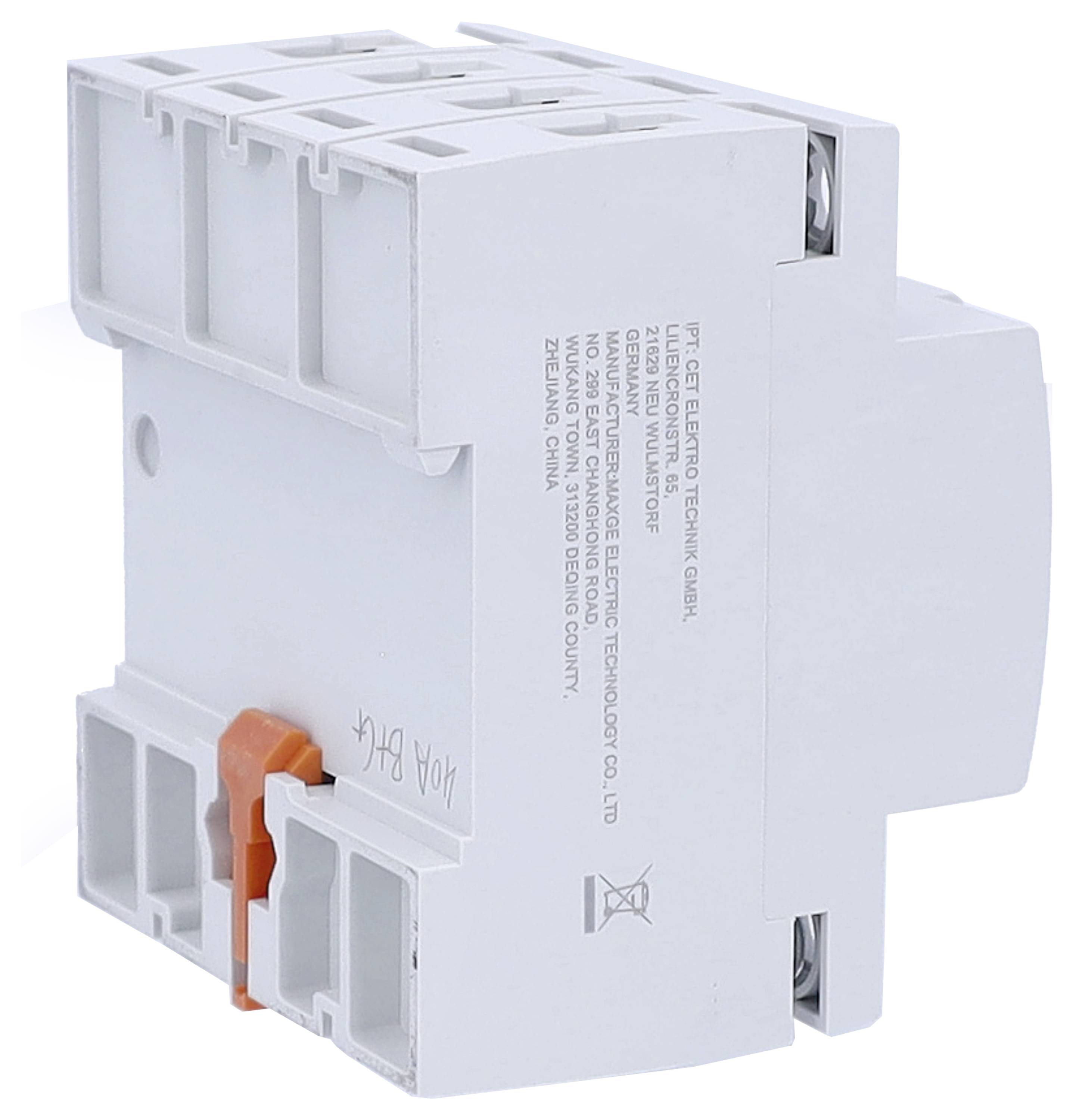

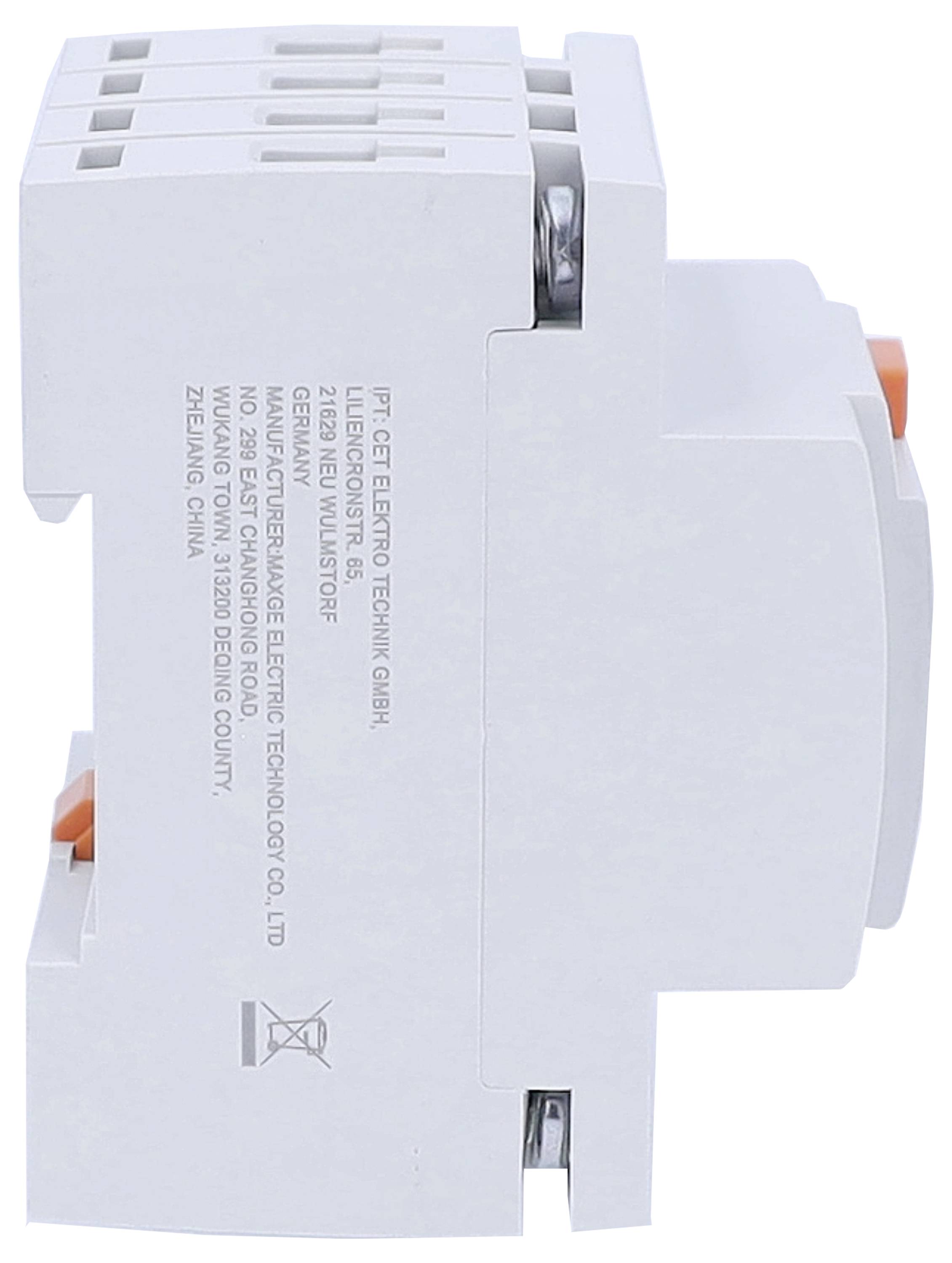

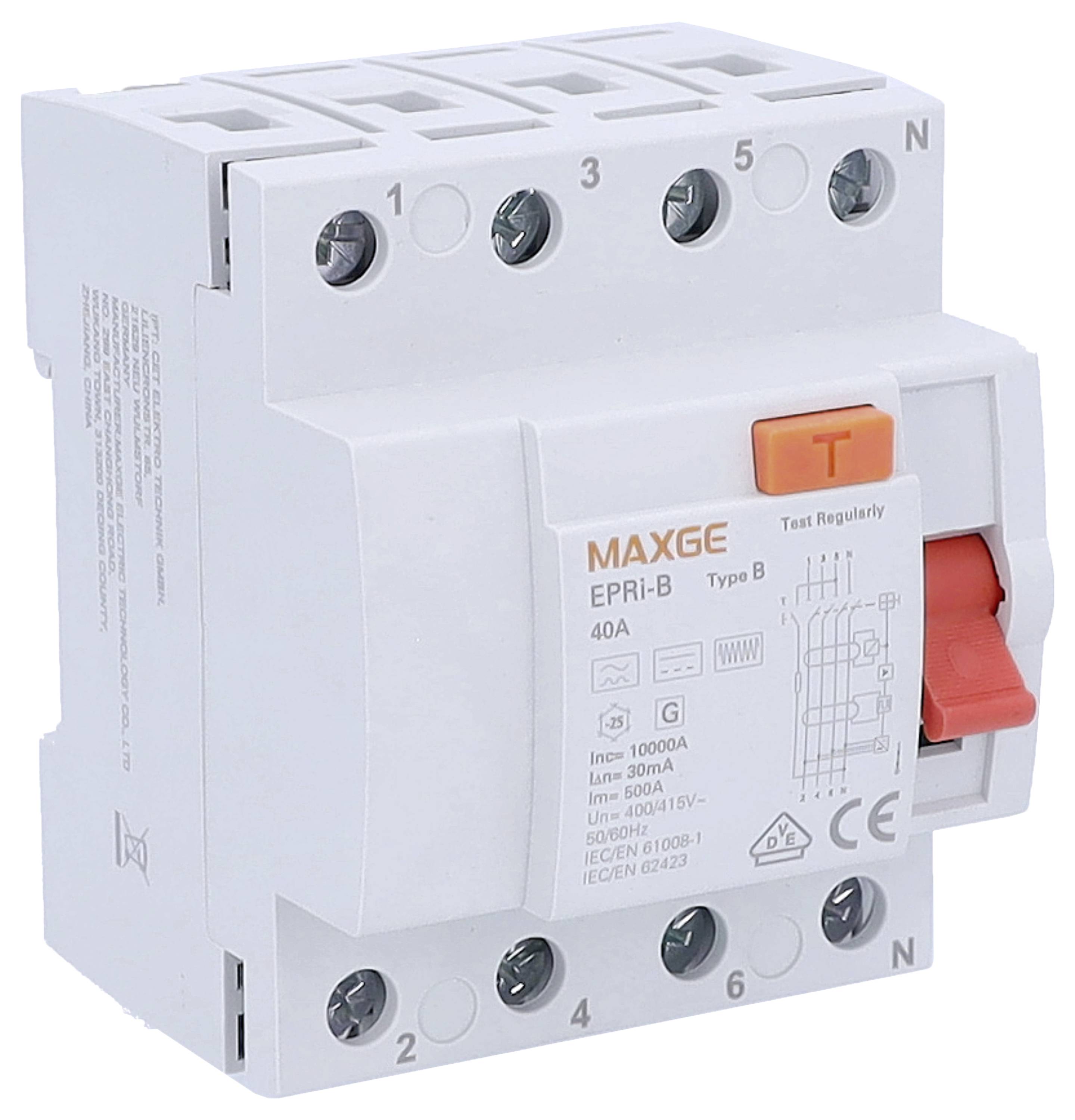

AS Schwabe 61880 RCCB
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
3
Differential current rating
0.03 A
Content
1 pc(s)
Model
RCD (all types of current)
Datasheet (PDF)
Highlights & Details
Allcurrent sensitive RCD type B, 40A, 30mA, 3-pole, 4TE, short-time delay, RCD RCCB for construction sites & industry
- 30mA
- Type B
- short-time delay
- 3-pin / 4 TE
Technical specifications
- Dimension: 8.8 x 7.2 x 6.8 cm
- Weight 0.50 kg.
- Product type
RCCB
- Number of pins
3
- Differential current rating
0.03 A
- Content
1 pc(s)
- Model
RCD (all types of current)
Documents & Downloads
Datasheet
Datasheet 3410716 AS Schwabe 61880 RCCB
User & Safety Instructions
User & Safety Instructions 3410716 AS Schwabe 61880 RCCB
Description
The FI-protection switch (type B) reliably protects against fault currents, including smooth DC-fault currents, Ideal for construction sites, industry and three-phase power sockets.
40A, 30mA, short-term delayed, 3-pole (4TE), Ideal for harsh conditions. Prevents dangerous electric shocks and protects people and devices.
Complies with DIN VDE 0100-704 for three-phase sockets up to 40A. Optimum for electricians who use the highest standards of safety.
All-current sensitive - Detects alternating, pulsating and smooth DC fault currents. Perfect for power supply units, frequency converters and cranes.
Compact dimensions (8.8 x 7.2 x 6.8 cm) for space-saving installation. High quality for long-term protection in demanding electrical installations.
This text is machine translated.
40A, 30mA, short-term delayed, 3-pole (4TE), Ideal for harsh conditions. Prevents dangerous electric shocks and protects people and devices.
Complies with DIN VDE 0100-704 for three-phase sockets up to 40A. Optimum for electricians who use the highest standards of safety.
All-current sensitive - Detects alternating, pulsating and smooth DC fault currents. Perfect for power supply units, frequency converters and cranes.
Compact dimensions (8.8 x 7.2 x 6.8 cm) for space-saving installation. High quality for long-term protection in demanding electrical installations.
This text is machine translated.
