AS Schwabe 62432 Current Cable extension 16 A Orange 10 m H07BQ-F 3G 2,5 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

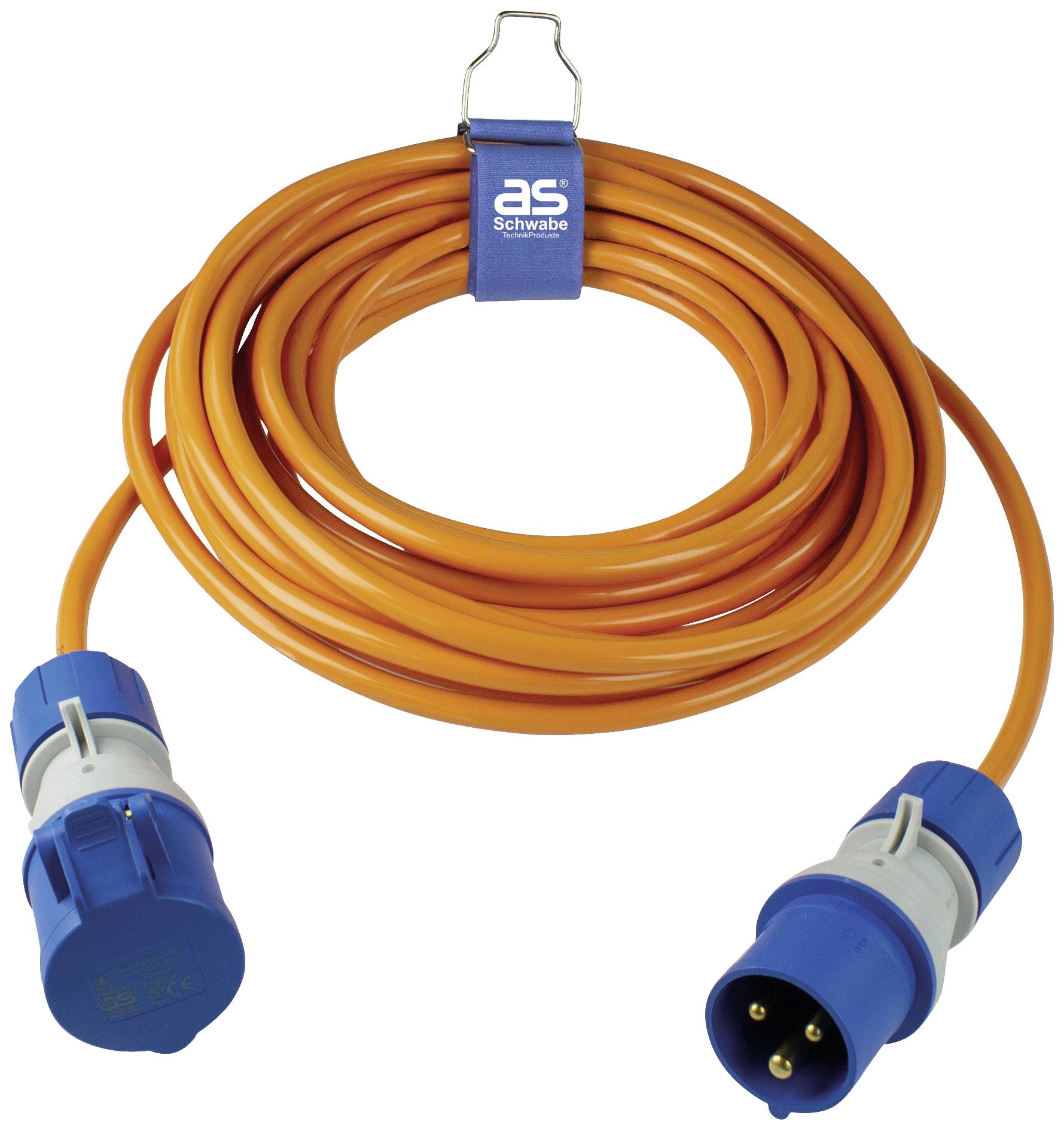

as - Schwabe camping CEE extension cable caravan 10 m made of polyurethane
- Cable length=10 m
- DIN/VDE cable standards=H07BQ-F 3G 2,5 mm²
- CEE plug (3-pin, 16 A)
- CEE connector (3-pin, 16 A)
- IP rating=IP44
- With PowerLight voltage display
Technical specifications
- Product type
Current Cable extension
- Version
Cable extension
- Type A
CEE plug (3-pin, 16 A)
- Connector version
straight
- Type B
CEE connector (3-pin, 16 A)
- Outlets
1
- Cable standard
H07BQ-F 3G 2,5 mm²
- Cable length
10 m
- Operating voltage
230 V
- Used at
Outdoors
IP44
- Factory colour
Orange
- Cable use
Current
- Nominal current
16 A
- Insulation material
Polyurethane
16 A
2.5 mm²
10 m
Orange
Polyurethane (PUR)
3
230-230 V
IP44
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2891070 AS Schwabe 62432 Current Cable extension 16 A Orange 10 m H07BQ-F 3G 2,5 mm²
User & Safety Instructions
User & Safety Instructions 2891070 AS Schwabe 62432 Current Cable extension 16 A Orange 10 m H07BQ-F 3G 2,5 mm²
Description
Quality: as - Schwabe has been convincing for over 38 years with the highest quality in the electrical engineering sector.
Our name stands for Swabian precision, reliability and innovation.
This text is machine translated.
Our name stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- “PowerLight” voltage indicator connector and coupler: The LED lights up red when the connector or coupler is connected to power and voltage is present
- Cable: For optimum range our 10 m PUR cable H07BQ-F 3G2.5 in orange.
- The pipe is splash-proof and suitable for outdoor use due to the robust materials
Hints
Material: The housing of the plug and the coupling are made of robust material and therefore have a long life. Can be used for standard 16 ampere sockets (max. 3500 watt).
System requirements
- Closure: Convenient hook and loop fastener for easy storage of the cable in a mobile home or caravan. No more cable spaghetti. With integrated suspension.
