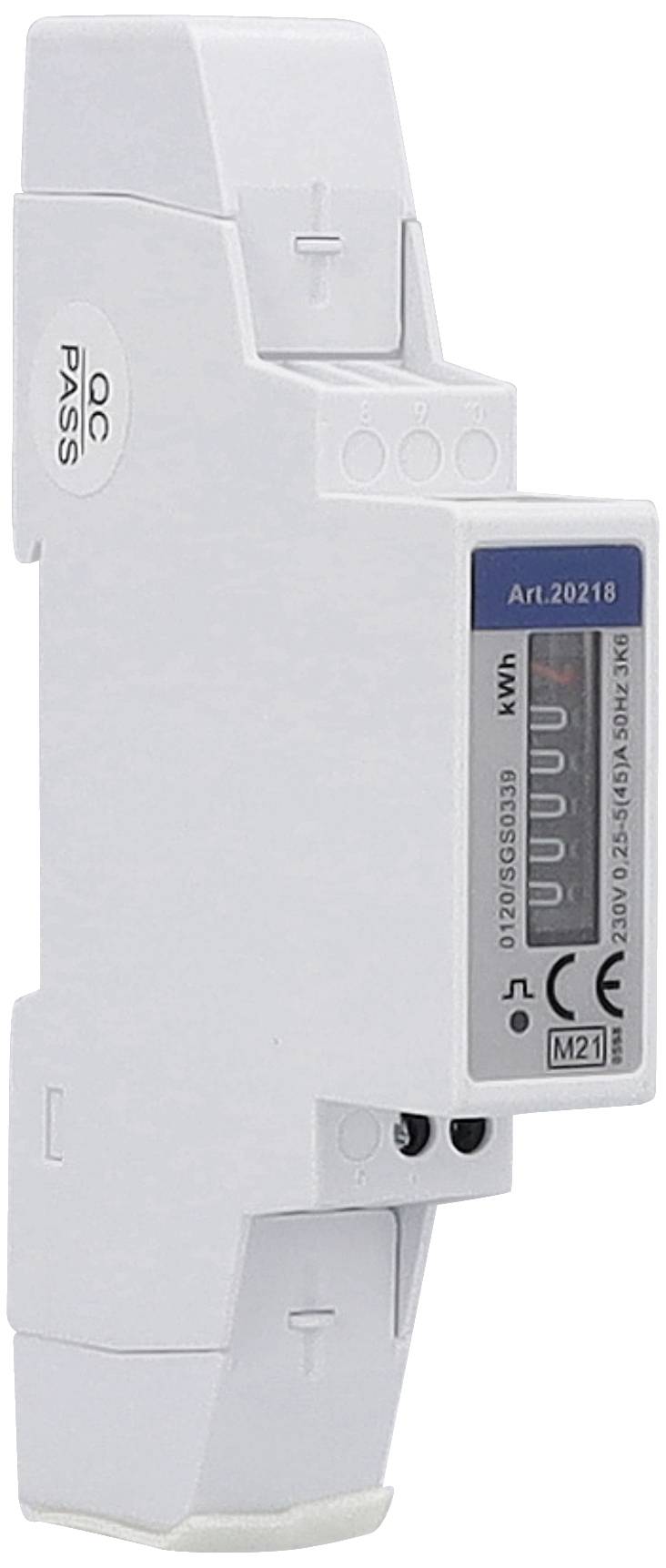

AS Schwabe 62511 Electricity meter (AC) Mechanical MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Display
Mechanical
Counter type
Roller counter: MID-approved
Factory colour
Light grey
Dim

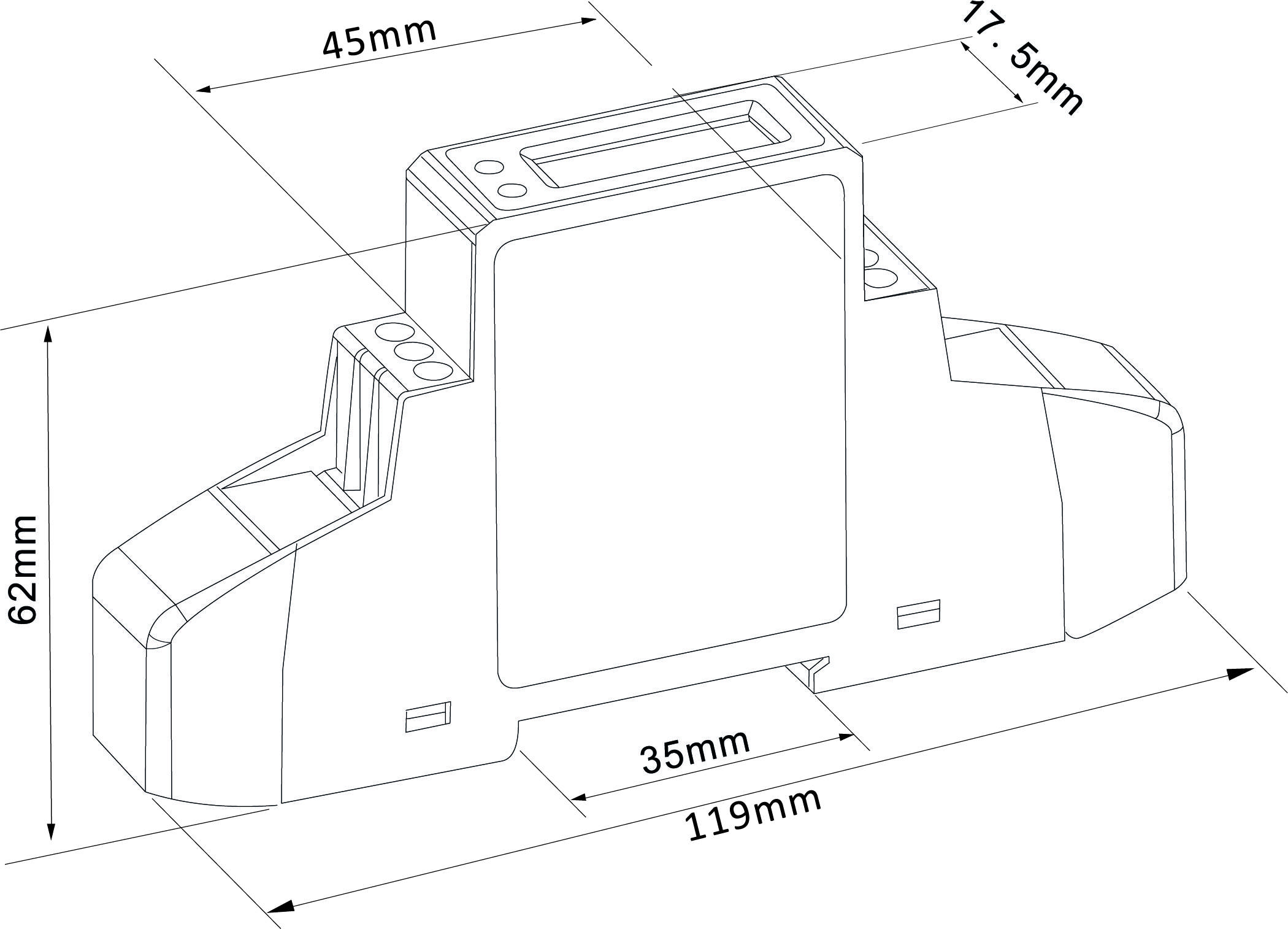

(L x W x H) 62 x 17.5 x 119 mm
Highlights & Details
as - Schwabe DIN rail alternating current counter 230V, 1-phase, SDM120A, 230V, 50Hz,0.25-5(45)A, Roller counter, 5+1-digit analogue, white, 62511
- 1-phase, SDM120A
- Analogue display 5+1-digit, anytime readable
- Display for max. 99,999.9 kWh
- Roller counter cannot be reset to 0
Technical specifications
- Counter type
Roller counter: MID-approved
- Product type
Electricity meter (AC)
- Display
Mechanical
- Factory colour
Light grey
- Dim
(L x W x H) 62 x 17.5 x 119 mm
- Operating voltage
230 V
- Energy consumption (max.)
99999.9 kWh
- Energy consumption (min.)
0 kWh
- Energy consumption range
0 up to 99999.9 kWh
- Frequency
50 Hz
- Accuracy class
B
- MID-approved
Yes
- Reading type
Active energy
- Nominal voltage range
220 up to 240 V
- Mains voltage (max.)
240 V
- Mains voltage (min.)
220 V
- Width
17.5 mm
- Height
119 mm
- Length
62 mm
- Current (max.)
5 A
- Current (min.)
0.25 A
- Current range
0.25 up to 5 A
- Type
62511
- Effective current range
0.25-5 A (max. 45 A) A
IP20
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2891082 AS Schwabe 62511 Electricity meter (AC) Mechanical MID-approved: Yes 1 pc(s)
Description
H/B/T 119/17.5/62mm, color: White
MID compliant, accuracy class 1/B
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
MID compliant, accuracy class 1/B
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- Measurement of current in accordance with calibration law for the settlement of insurance claims
- Suitable also for construction sites and agricultural use
- DIN rail mount for easy self mounting
- Tested according to DIN EN 50525-2, IEC 60309, IEC EN 50470-1
- MID compliant and suitable for balancing purpose
- Accuracy class B
- Analogue display 5+1-digit, anytime readable
- Display for max. 99,999.9 kWh
- Roller counter cannot be reset to 0
- Current 0,25-5 A (max. 45 A)
- Operating temperature from -30 °C to +50 °C
- SDM 120 A, 230 V, 50 HZ
- S0: 1000 imp/kWh
