AS Schwabe 62512 Electricity meter (AC) Mechanical MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Display
Mechanical
Counter type
Roller counter: MID-approved
Factory colour
Light grey
Dim
(L x W x H) 62 x 54 x 119 mm
Highlights & Details

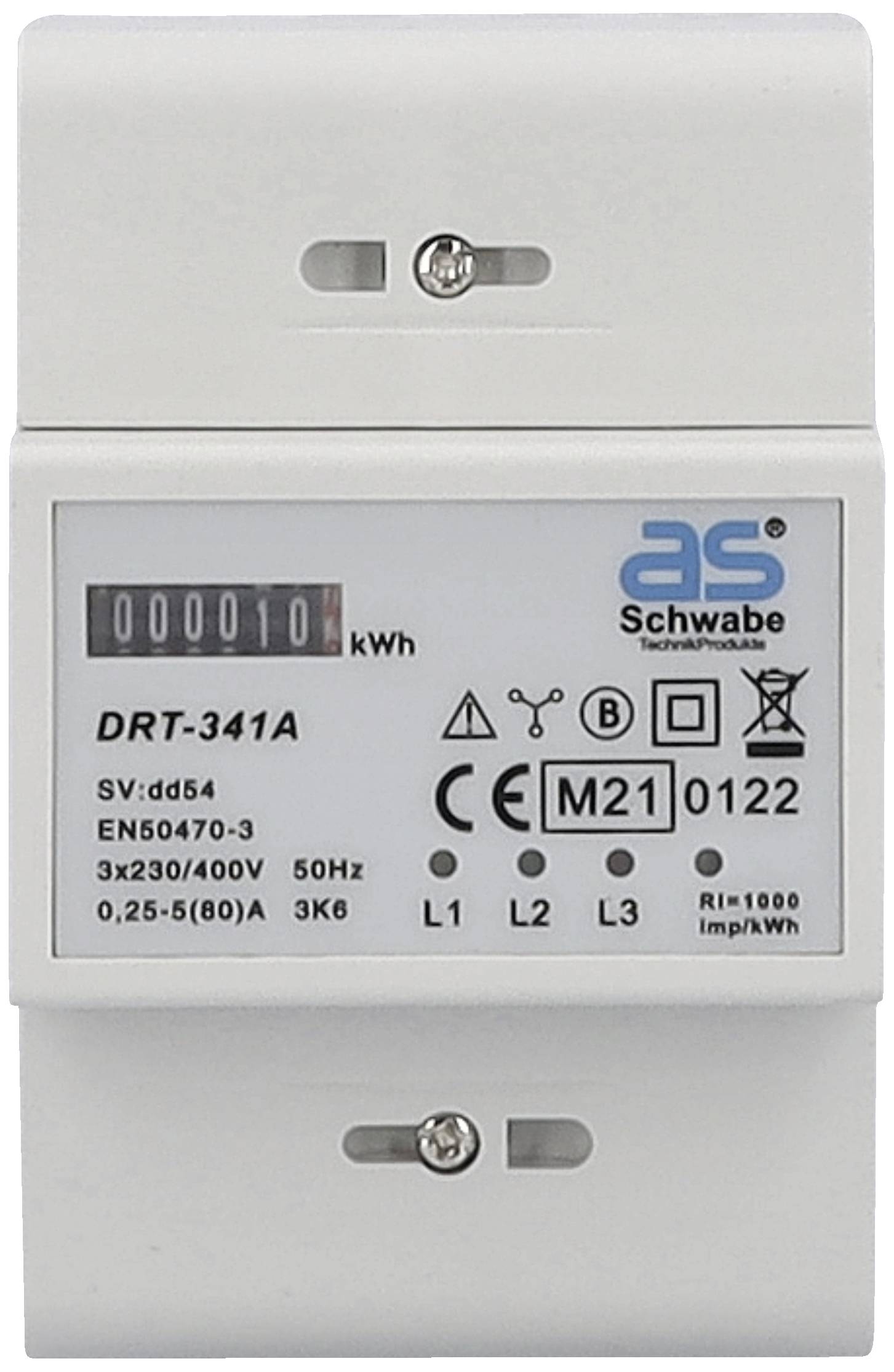

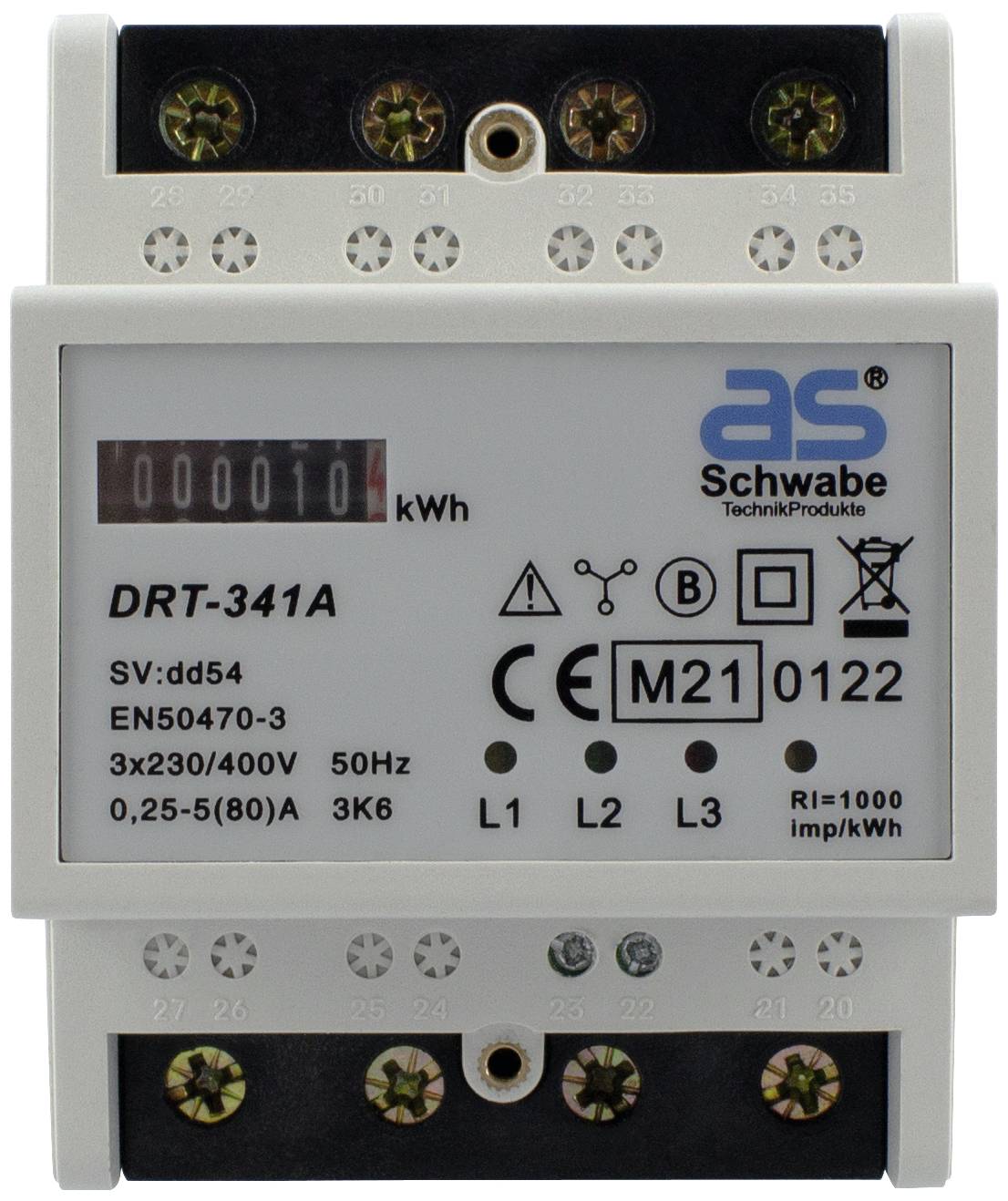

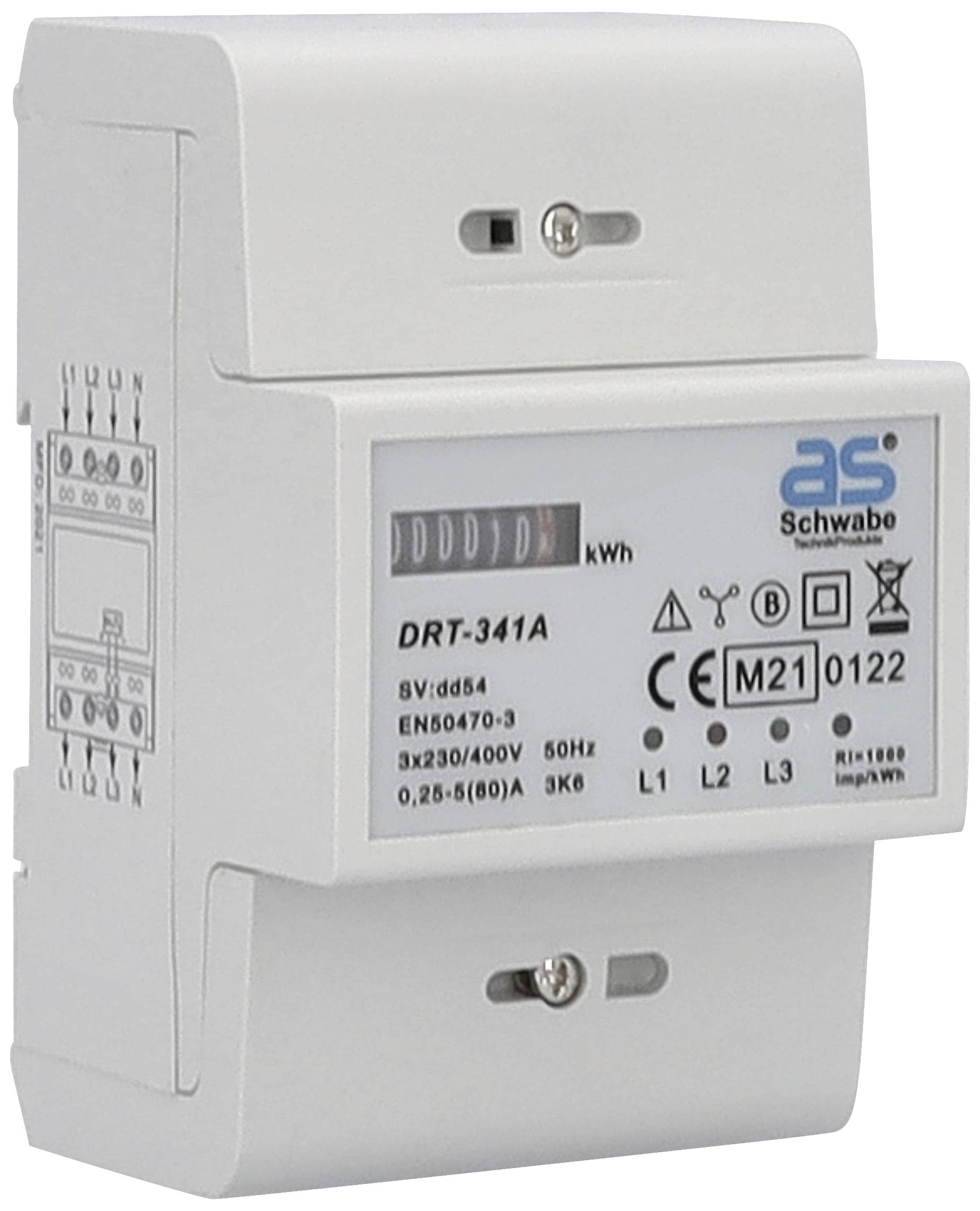

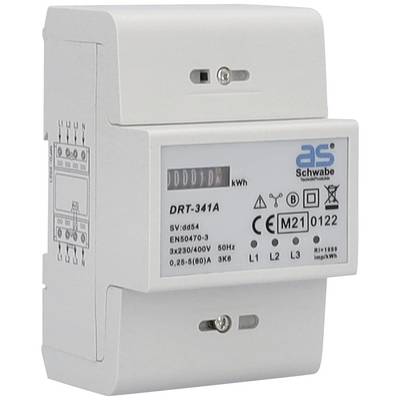

as - Schwabe top hat rail alternating current counter with roller counters 400 V, 3-phase, 6+1-digit analogue, IP20, Made in Germany, white, 62512
- 3-phase, DRT-341A MID Certificate
Technical specifications
- Counter type
Roller counter: MID-approved
- Product type
Electricity meter (AC)
- Display
Mechanical
- Factory colour
Light grey
- Dim
(L x W x H) 62 x 54 x 119 mm
- Operating voltage
400 V
- Recess width
54 mm
- Energy consumption (max.)
999999.9 kWh
- Energy consumption (min.)
0 kWh
- Energy consumption range
0 up to 999999.9 kWh
- Accuracy class
B
- MID-approved
Yes
- Reading type
Amperage
- Nominal voltage range
400 V (max)
- Mains voltage (max.)
400 V
- Width
54 mm
- Height
119 mm
- Length
62 mm
- Current (max.)
5 A
- Current (min.)
0.25 A
- Current range
0.25 up to 5 A
- Type
62512
- Effective current range
0.25-5 A
IP20
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2891083 AS Schwabe 62512 Electricity meter (AC) Mechanical MID-approved: Yes 1 pc(s)
Description
Colour: white
MID compliant, accuracy class 1/B
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
MID compliant, accuracy class 1/B
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- Roller counter, not resettable
- 6+1-digit analogue
