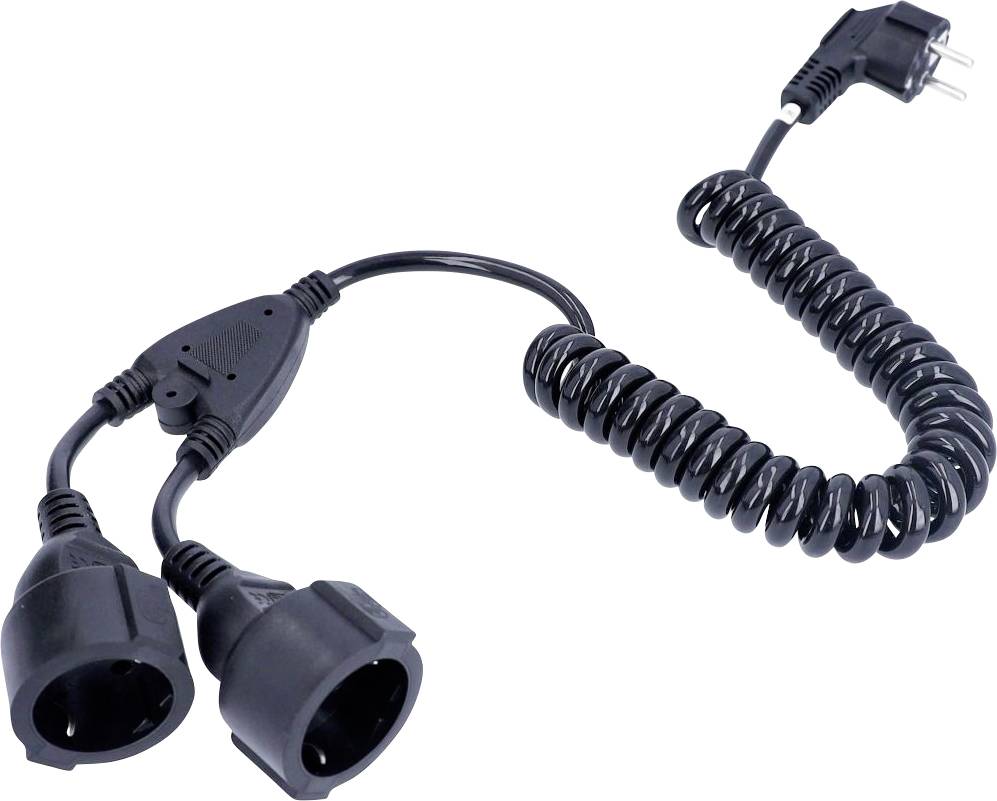

AS Schwabe 70433 Spiral cable 2 m / 4 m Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Spiral cable
Cable type
H05VV-F
Spiral length (min.)
2 m
Spiral lenght (max.)
4 m
No. of leads
3 G
Datasheet (PDF)
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details
AS Schwabe Spiral cable 2 to 4 m - 2 Schuko sockets, 230V/16A - Stretchable spiral cable with safety plug, IP20, black
- With earthing contact angled plug and 2-way earthing contact coupler
- Plastic sheathed cable H05VV-F 3G1.5 expandable up to approx. 4 m
- With increased protection against accidental contact
- 230V / 16A / MAX. 3500W / IP20
- This text is machine translated.
Technical specifications
- Product type
Spiral cable
- Cable type
H05VV-F
- Spiral length (min.)
2 m
- Spiral lenght (max.)
4 m
- No. of leads
3 G
- Cross section (each core)
1.5 mm²
- Cross section
3 G 1.5 mm²
- Cable features
Flexible
- Factory colour
Black
- Content
1 pc(s)
- Manufacturer part #
70433
- Insulation material
Plastic
- Type
70433
- Cable length
2 m
- Cable standard
H05VV-F 3G 1,5 mm²
- Type A
PG plug
- Type B
PG socket
IP44
- Connector version
straight
- Nominal current
16 A
- Used at
Indoors
- Outlets
2
- Operating voltage
230 V/50 Hz
Documents & Downloads
Datasheet
Datasheet 3645928 AS Schwabe 70433 Spiral cable 2 m / 4 m Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3645928 AS Schwabe 70433 Spiral cable 2 m / 4 m Black 1 pc(s)
Description
Features
- Spiral plastic sheathed cable H05VV-F 3G1.5 black
- 1st side: Right-angle power plug with double contact protection system
- 2nd side: 2-way earthing contact coupler with increased contact protection
- Can be flexibly extended to up to 4 m.
- Automatically reunites
- Remains highly flexible even during continuous use
- For light and medium loads
- For use in dry rooms
- For indoor use
- IP44: Protected against foreign objects and water
Scope of delivery
- AS Schwabe 2-way earthing contact spiral cable, black
