Buy AS Schwabe CEE power distributor FIXO 1 61522 400 V 16 A

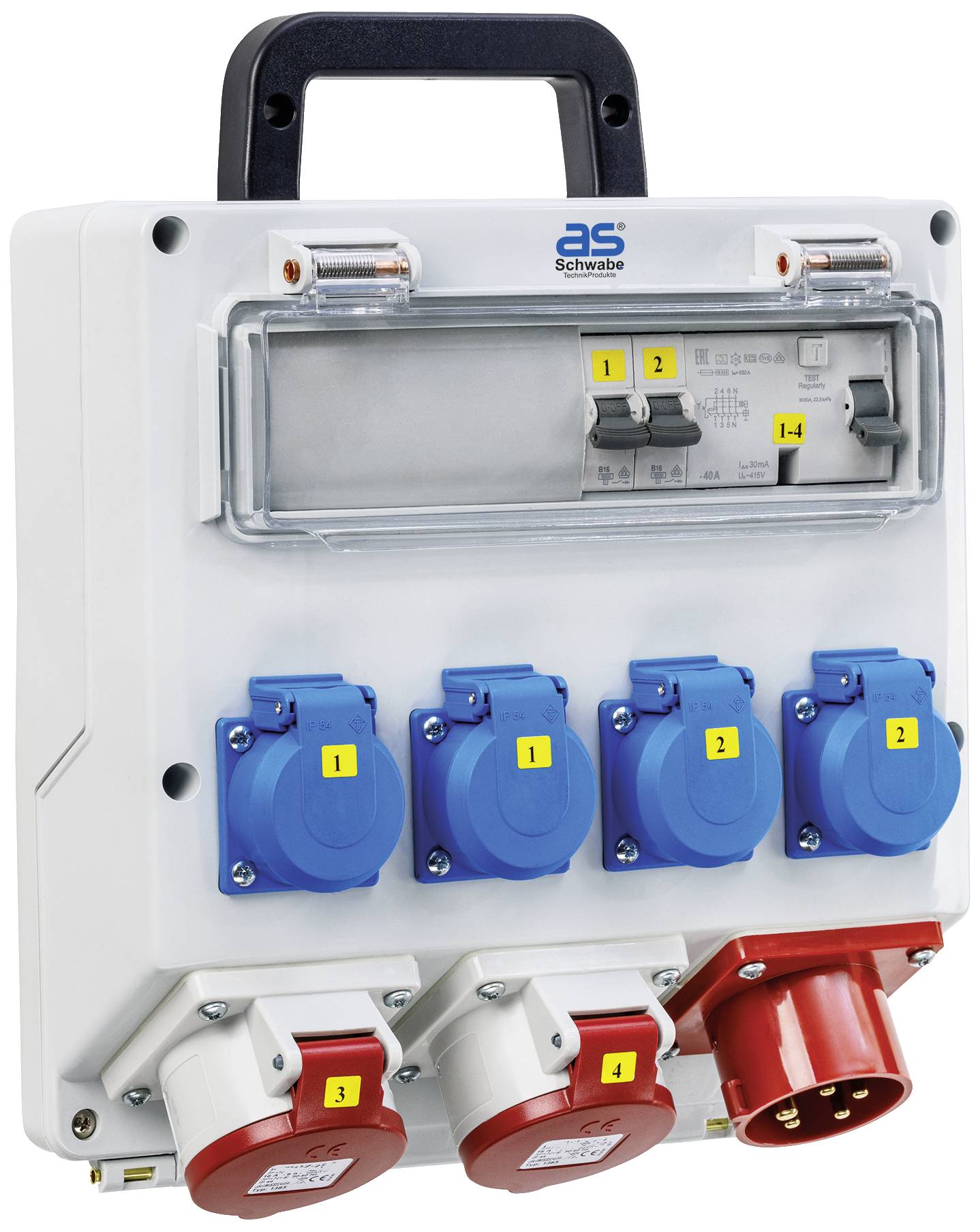

Electrical distribution box with multiple blue and red numbered sockets. Black handle on top, suitable for construction sites.

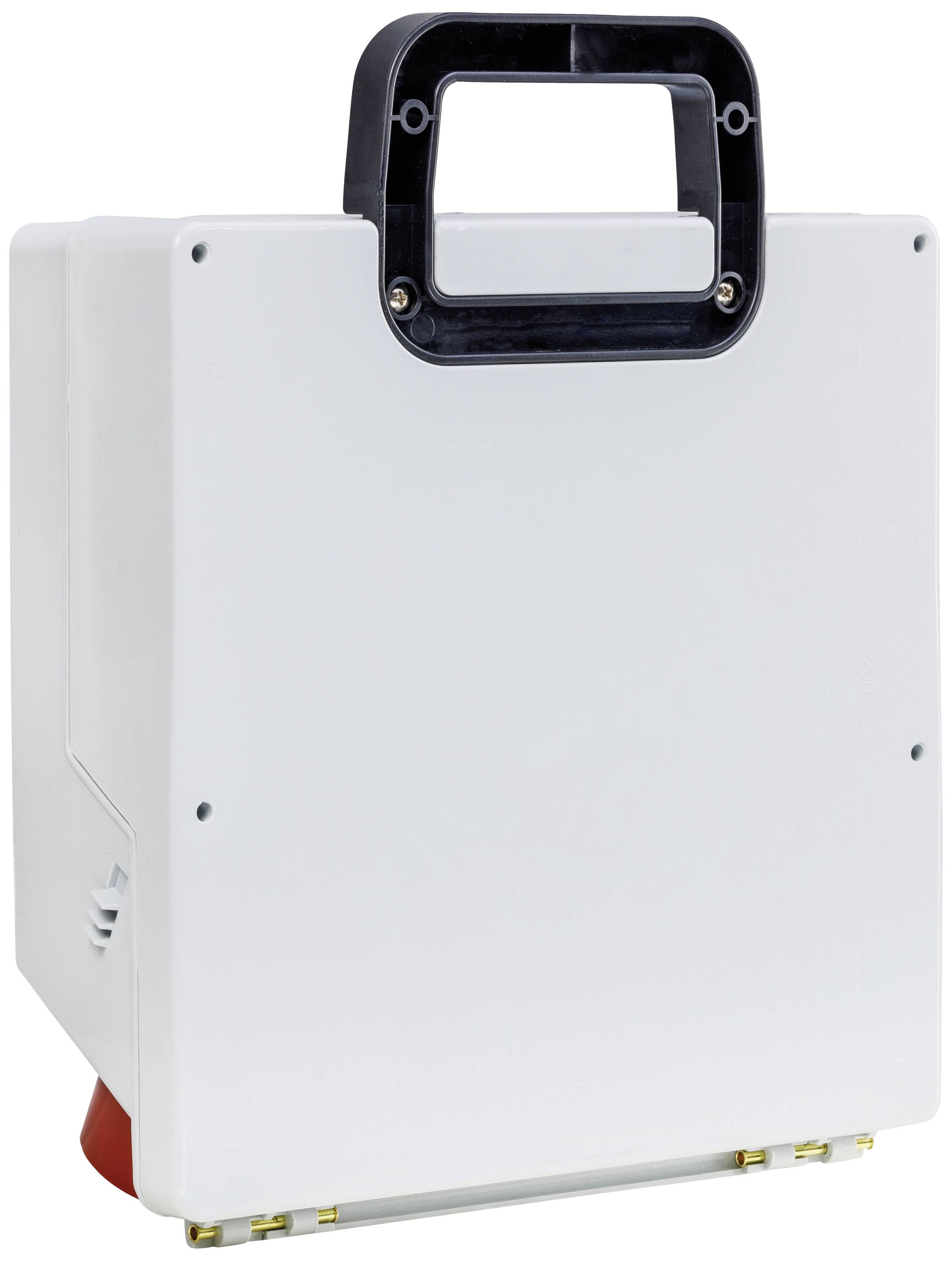

A white, portable suitcase with a black handle.

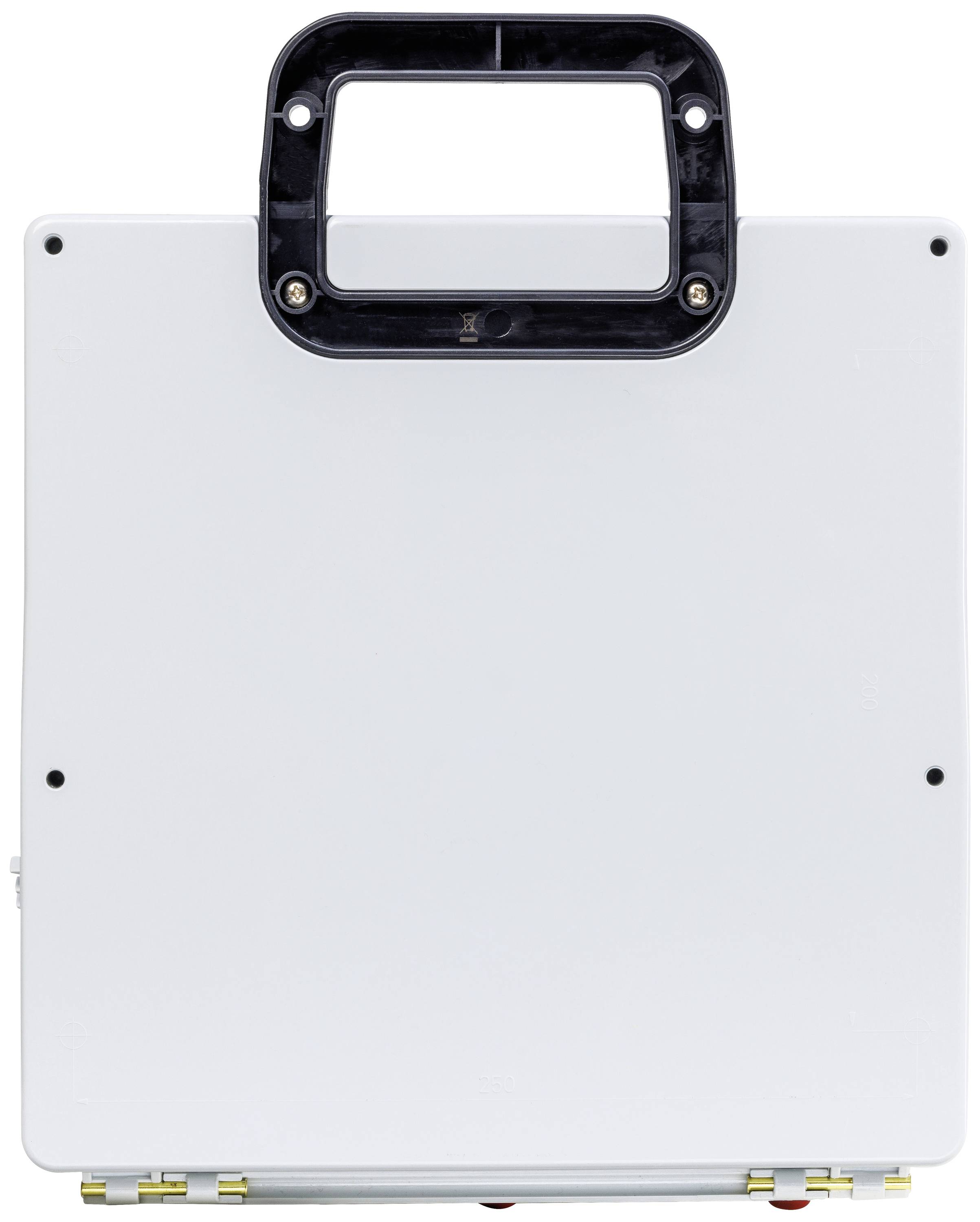

A white, square device with a black handle on top, possibly a portable electrical appliance.

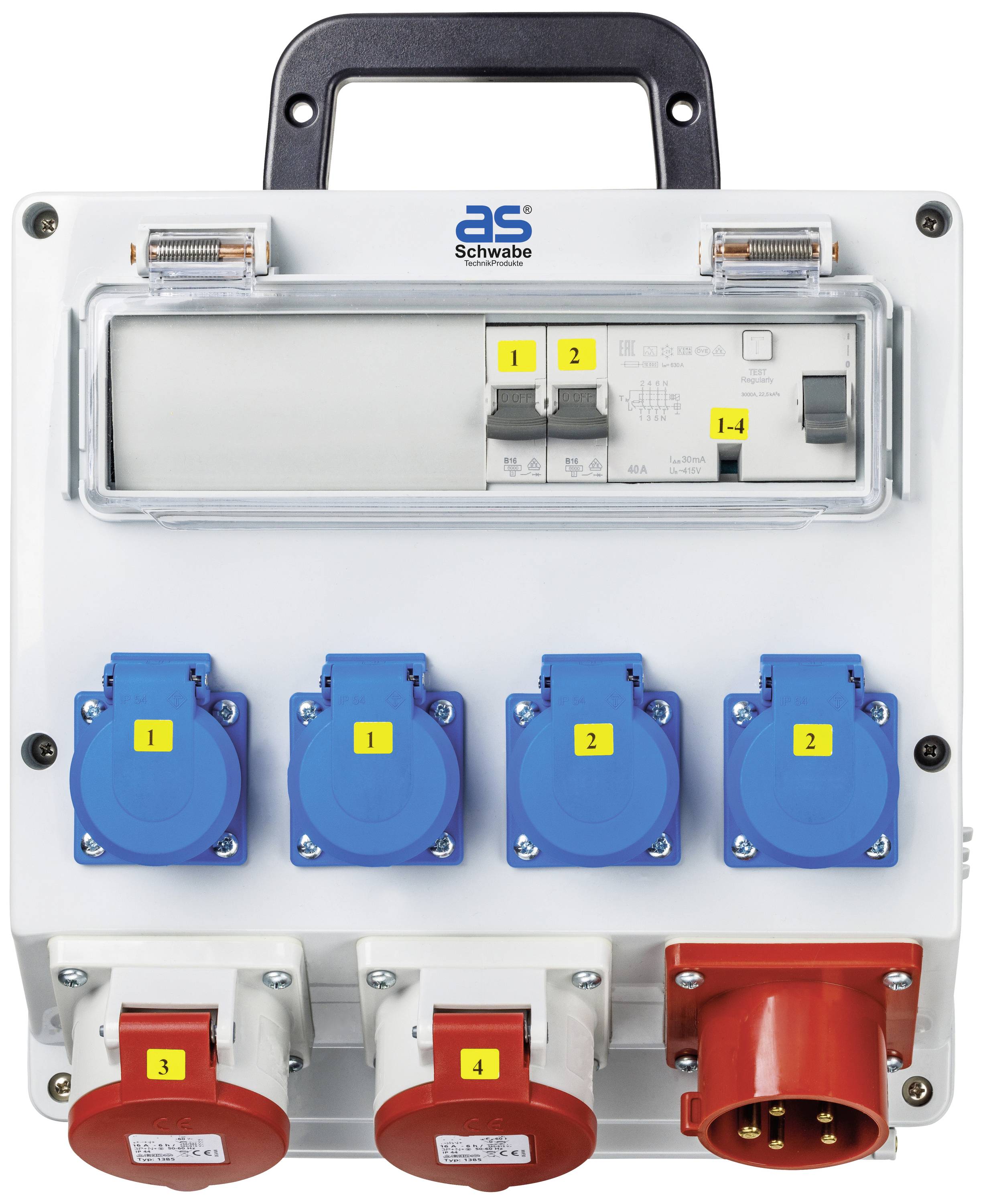

Distribution box with four blue and three red sockets, labelled '1' to '4', and two switches in the top right corner.

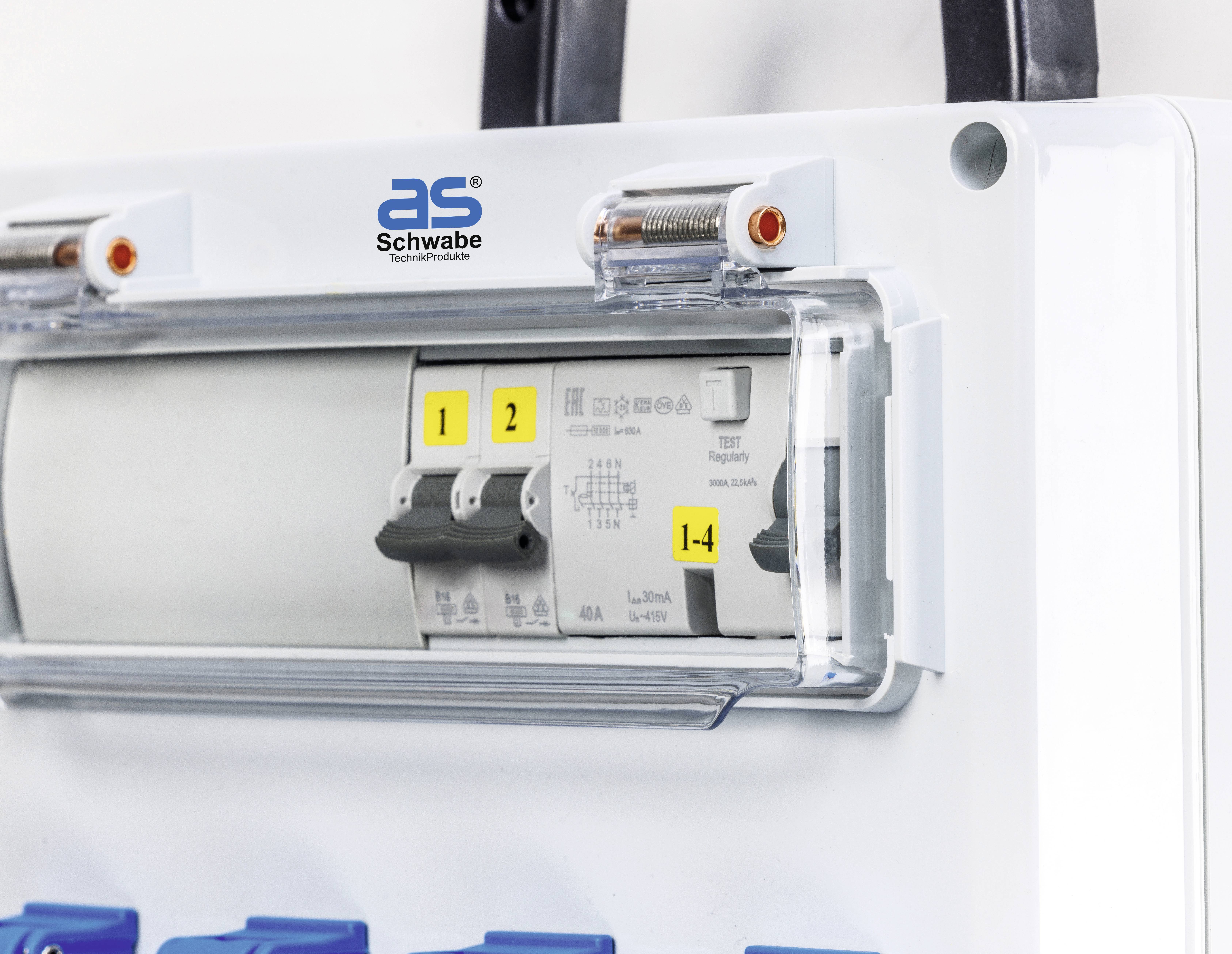

'Close-up of an electrical fuse box by AS Schwabe with multiple switches and labels for controlling various electrical circuits.'

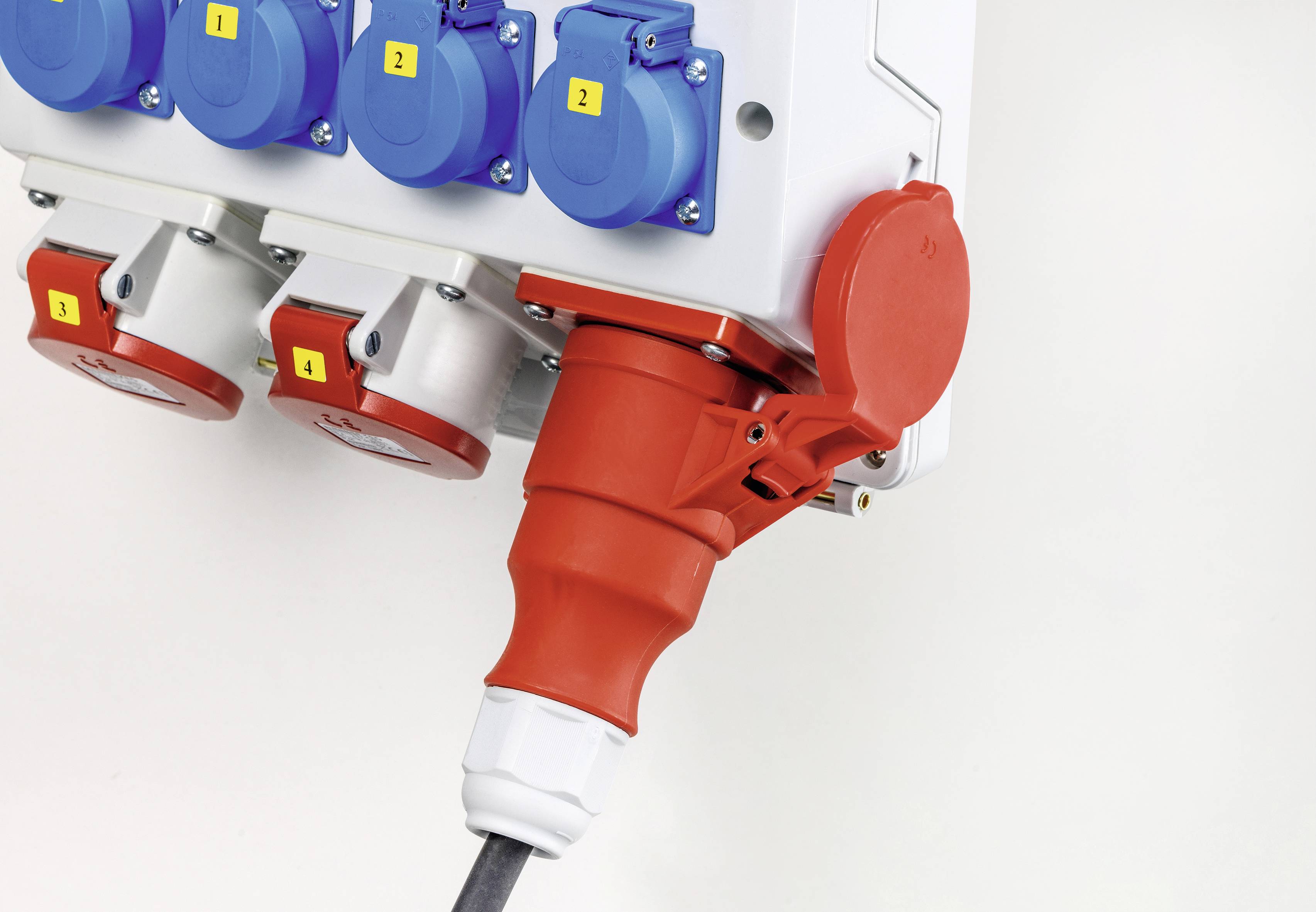

Industrial multi-socket power strip with blue and red sockets, with a red plug inserted.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

as - Schwabe FIXO 1 Wall distributor

Wired as ready to connect
With mounted plug for start-up with standard extension cable with CEE coupling
The sockets are protected by an earth leakage and circuit breaker
Robust housing made from high-strength special plastic including carrying handle

Technical specifications

4 x earthing contact socket-outlet
2 x CEE socket 16 A 5-pin

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 16 A)

Type B: PG socket
CEE socket (5-pin, 16 A)

No. of PG sockets: 4

Inputs: 1

Outputs: 6

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 16 A

: IP44

Protection: 1 x FI-circuit breaker 40A, 30mA, 4-pole, type A
2 x circuit breaker B16A, 1-pole

Standards: Tested according to DIN EN 61439-3

Factory colour: White

Weight: 3 kg

Dim: (L x W x H) 280 x 118 x 280 mm

Length: 280 mm

Width: 118 mm

Height: 280 mm

Type: FIXED O 1

Inputs (CEE power distributor): CEE plug (5-pin, 16 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)

Content: 1 pc(s)

Number of pins: 5

Documents & Downloads

Datasheet

Datasheet 2891061 AS Schwabe CEE power distributor FIXO 1 61522 400 V 16 A

User & Safety Instructions

User & Safety Instructions 2891061 AS Schwabe CEE power distributor FIXO 1 61522 400 V 16 A

Description

Mounted connector for start-up with standard extension cable with CEE coupling, rear view with markings for holes for wall mounting
The power distributor is already wired for connection. The hinges on the lid open the lid when it is connected and do not simply hang down
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
