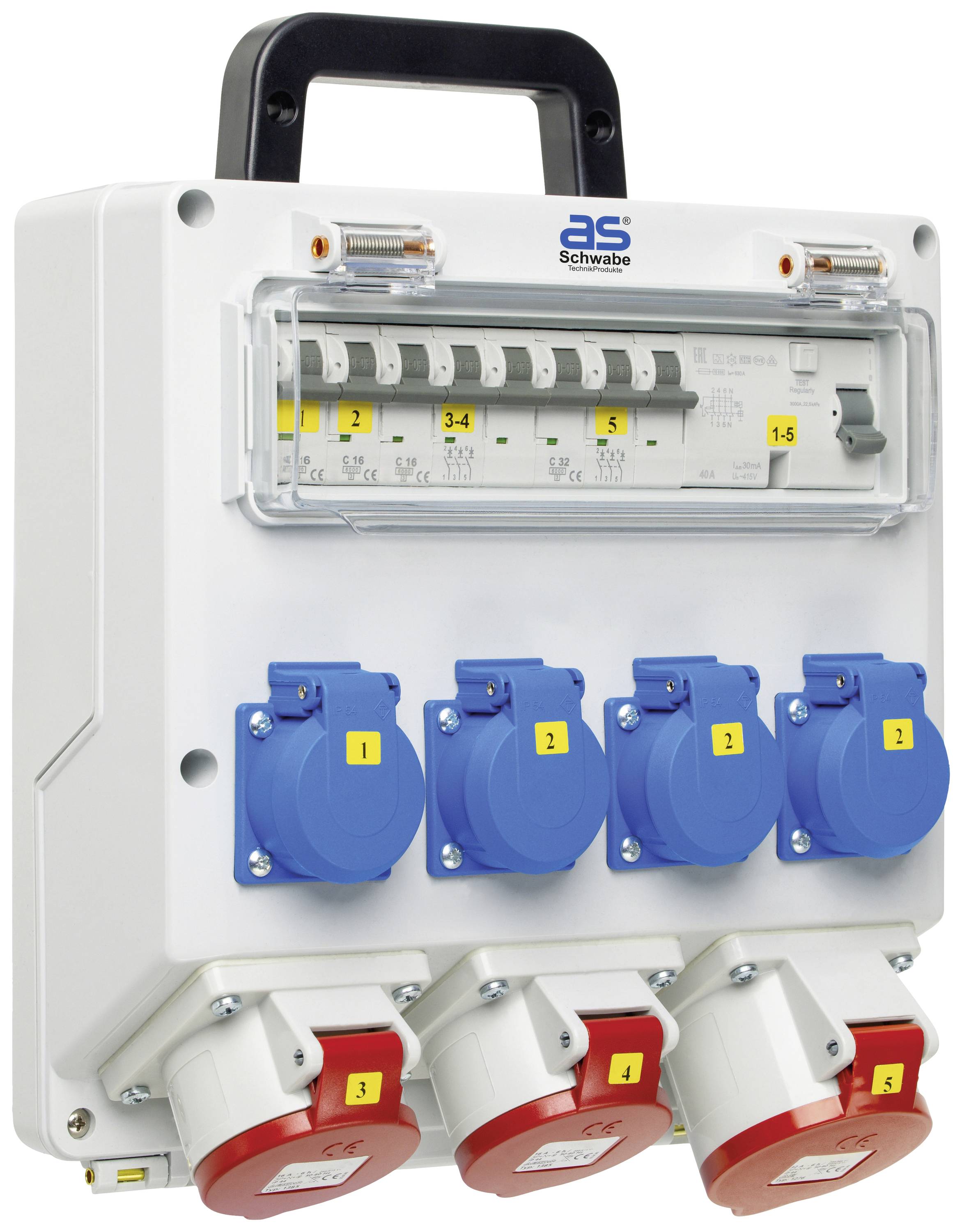

A white electrical distribution box with blue and red sockets, labelled '1', '2', '3-4', '5-6', and a black handle at the top.

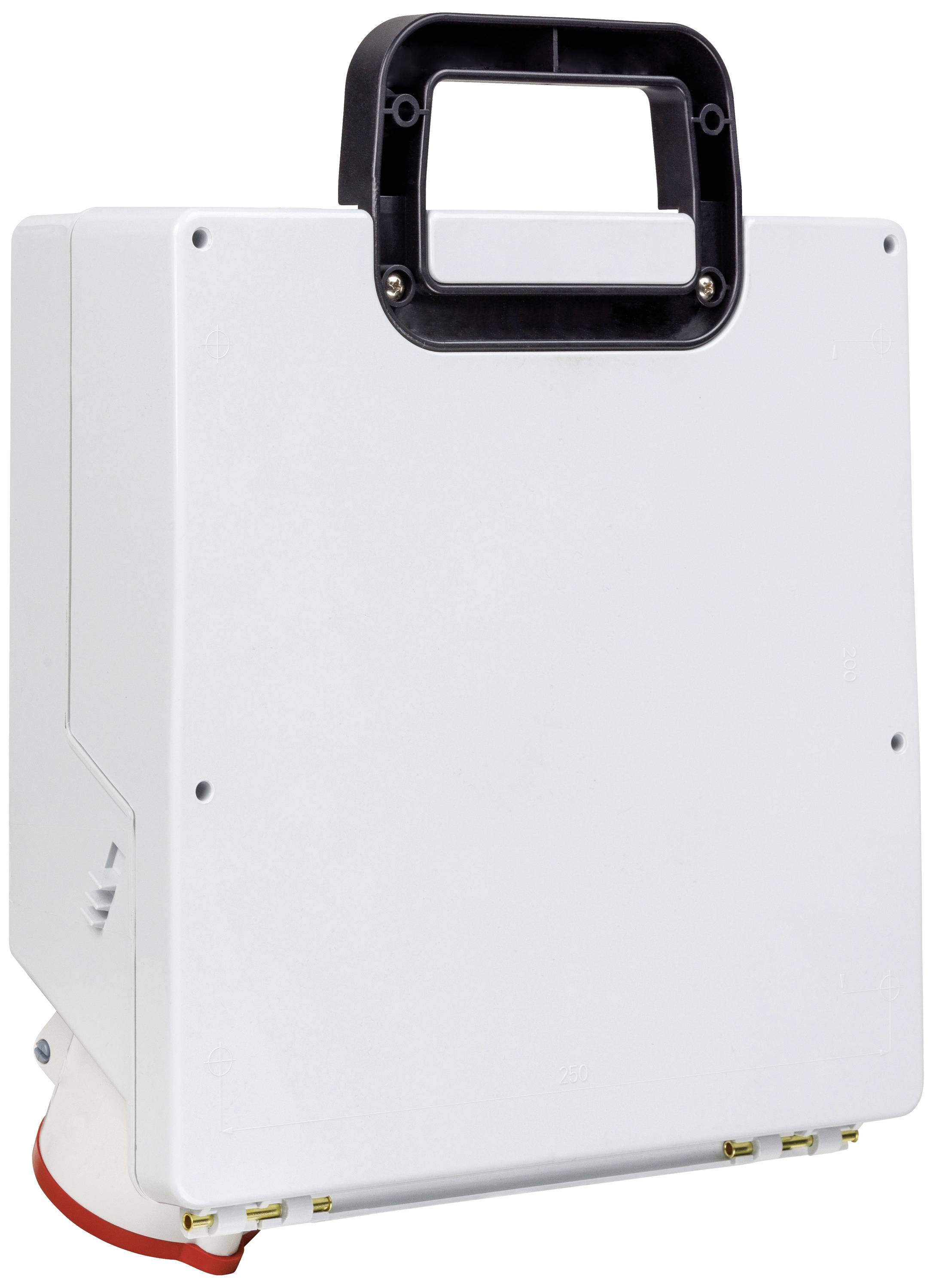

A rectangular, grey electrical device with a black handle on top, white socket at the bottom.

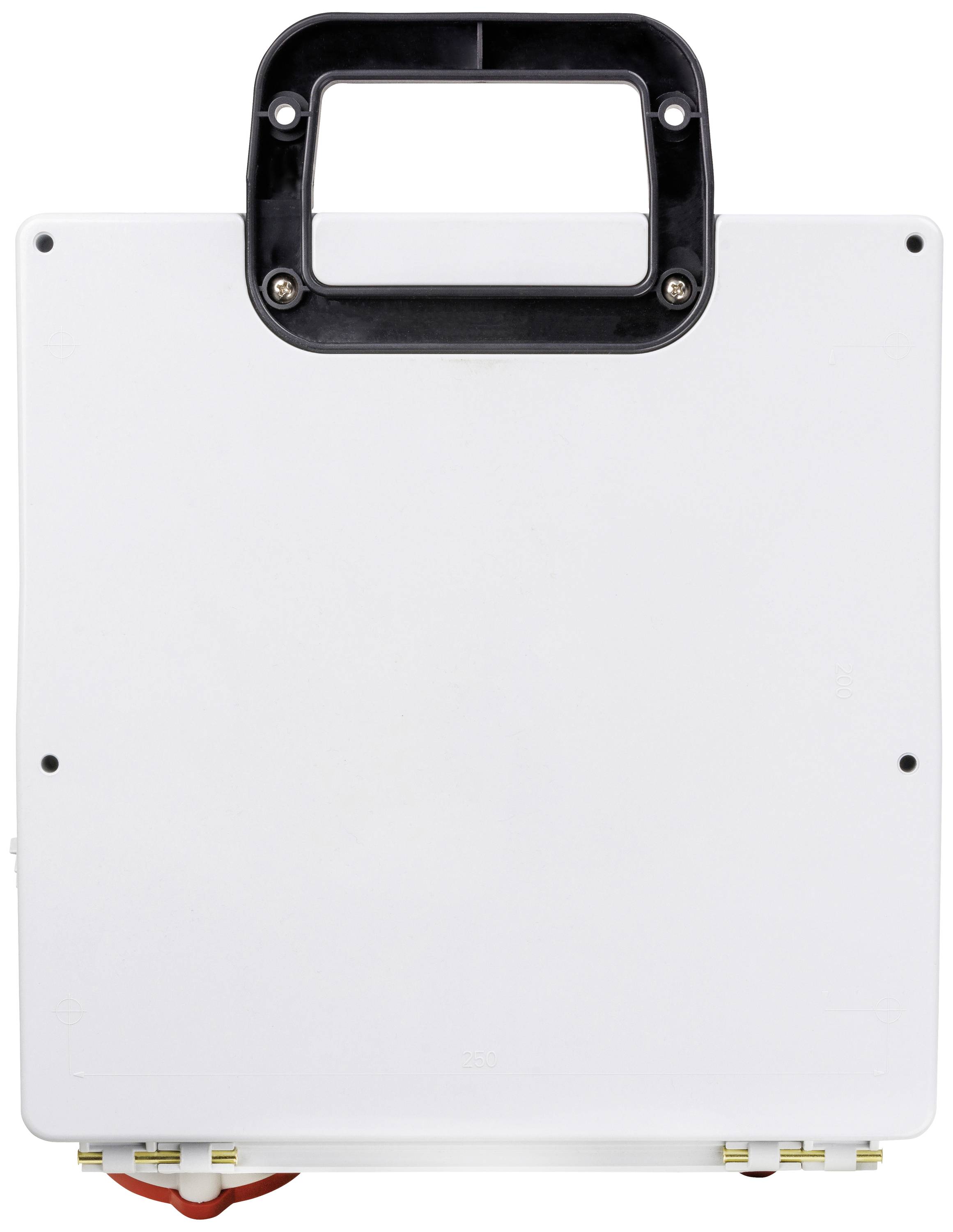

A white box with a black handle on top, showing no visible details or brands. Likely serves as a portable device.

An electrical distribution board with five blue sockets at the top and four red sockets at the bottom. Six rows of switches are located at the top.

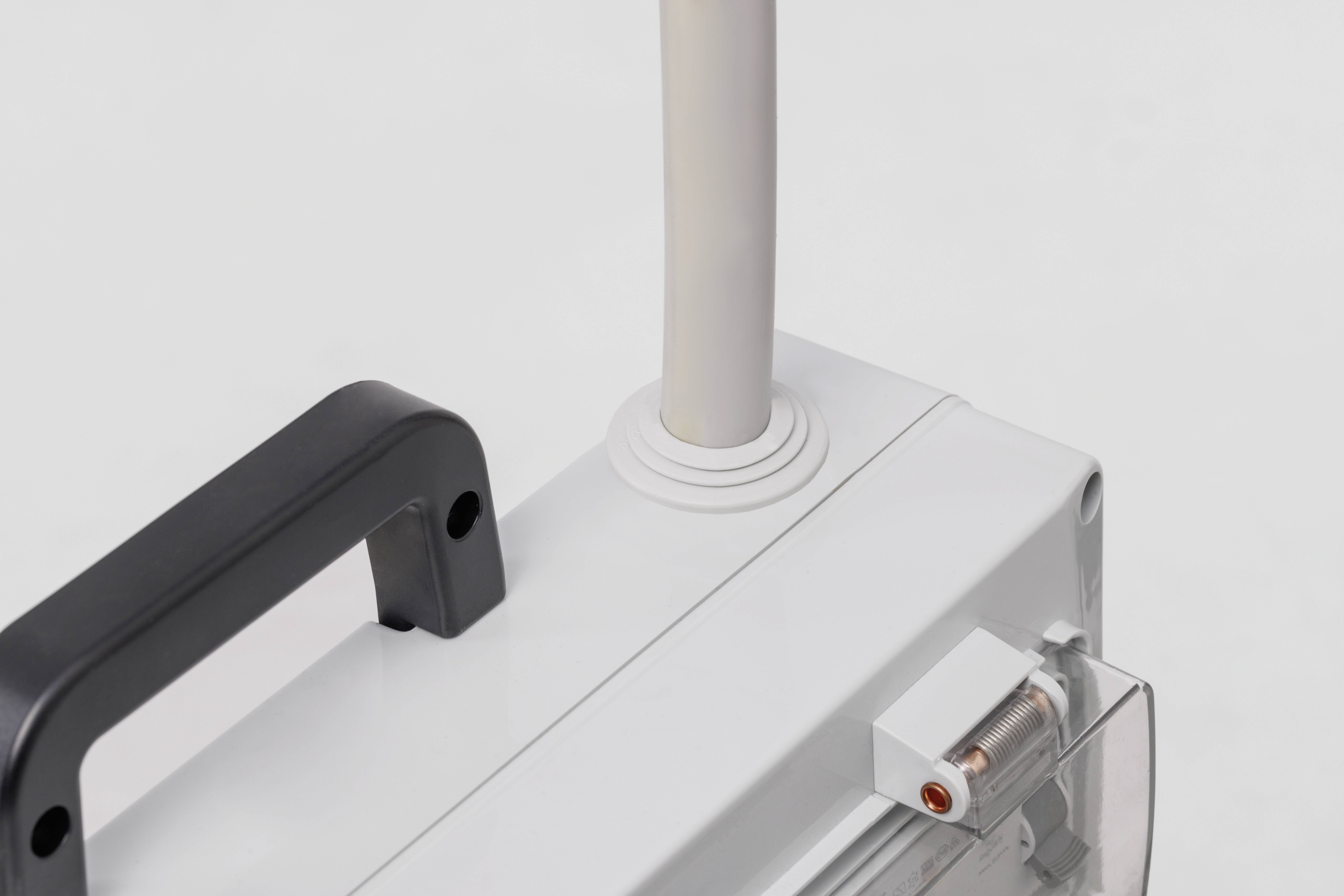

The carrying handle and cable connection of a white device are visible. This is a technical detail photograph focusing on design and functionality.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

as - Schwabe wall distributor FIXO 11D

Wired as ready to connect
Prepared for permanent connection of NYM-J up to max. 5x10
The sockets are protected by an earth leakage and circuit breaker
Robust housing made from high-strength special plastic including carrying handle

Technical specifications

4 x earthing contact socket-outlet
2 x CEE socket 16 A 5-pin
1 x CEE socket 32 A 5-pin

Product type: CEE power distributor

No. of CEE connectors: 3

Type A: Clip terminal

Type B: PG socket
CEE socket (5-pin, 32 A)

No. of PG sockets: 4

Inputs: 1

Outputs: 7

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Protection: 1 x FI-circuit breaker 40A, 30mA, 4-pole, type A
1 x circuit breaker C32A, 3-pin
1 x circuit breaker C16A, 3-pole
2 x circuit breaker C16A, 1-pole

Standards: Tested according to DIN EN 61439-3

Factory colour: White

Weight: 3.84 kg

Dim: (L x W x H) 280 x 118 x 280 mm

Length: 280 mm

Width: 118 mm

Height: 280 mm

Type: FIXO 11

Inputs (CEE power distributor): Screw terminals

Outputs (CEE power distributors): CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)

Content: 1 pc(s)

Number of pins: 5

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2891055 AS Schwabe CEE power distributor FIXO 11D 61513 400 V 32 A

User & Safety Instructions

User & Safety Instructions 2891055 AS Schwabe CEE power distributor FIXO 11D 61513 400 V 32 A

Description

FIXO wall distributor
Robust housing, made of highly break special plastic including carrying handle
Compact design provides optimum for wall mounting
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
