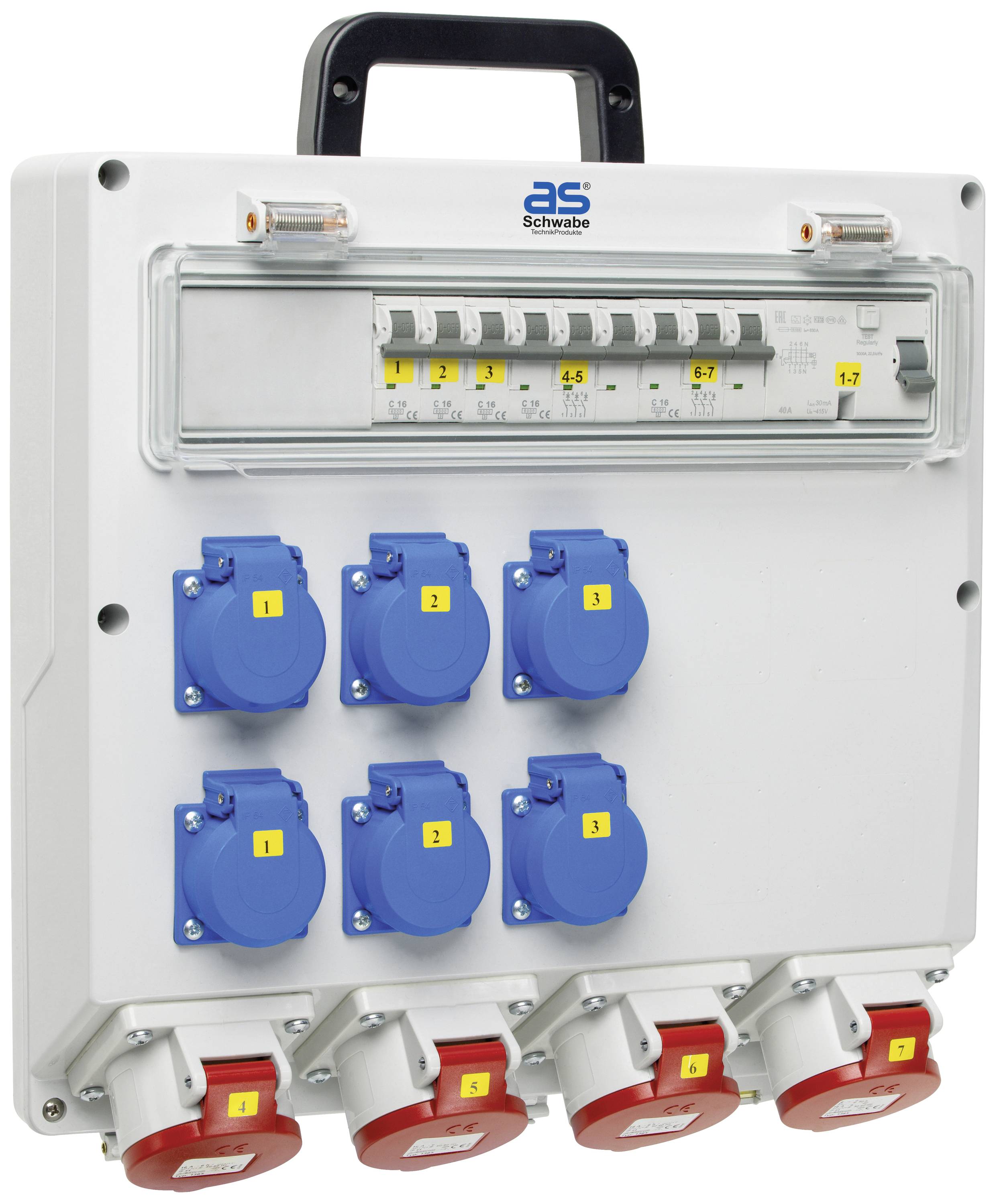

A portable distribution board with six blue and four red sockets. Several circuit breakers and indicators are visible on the top.

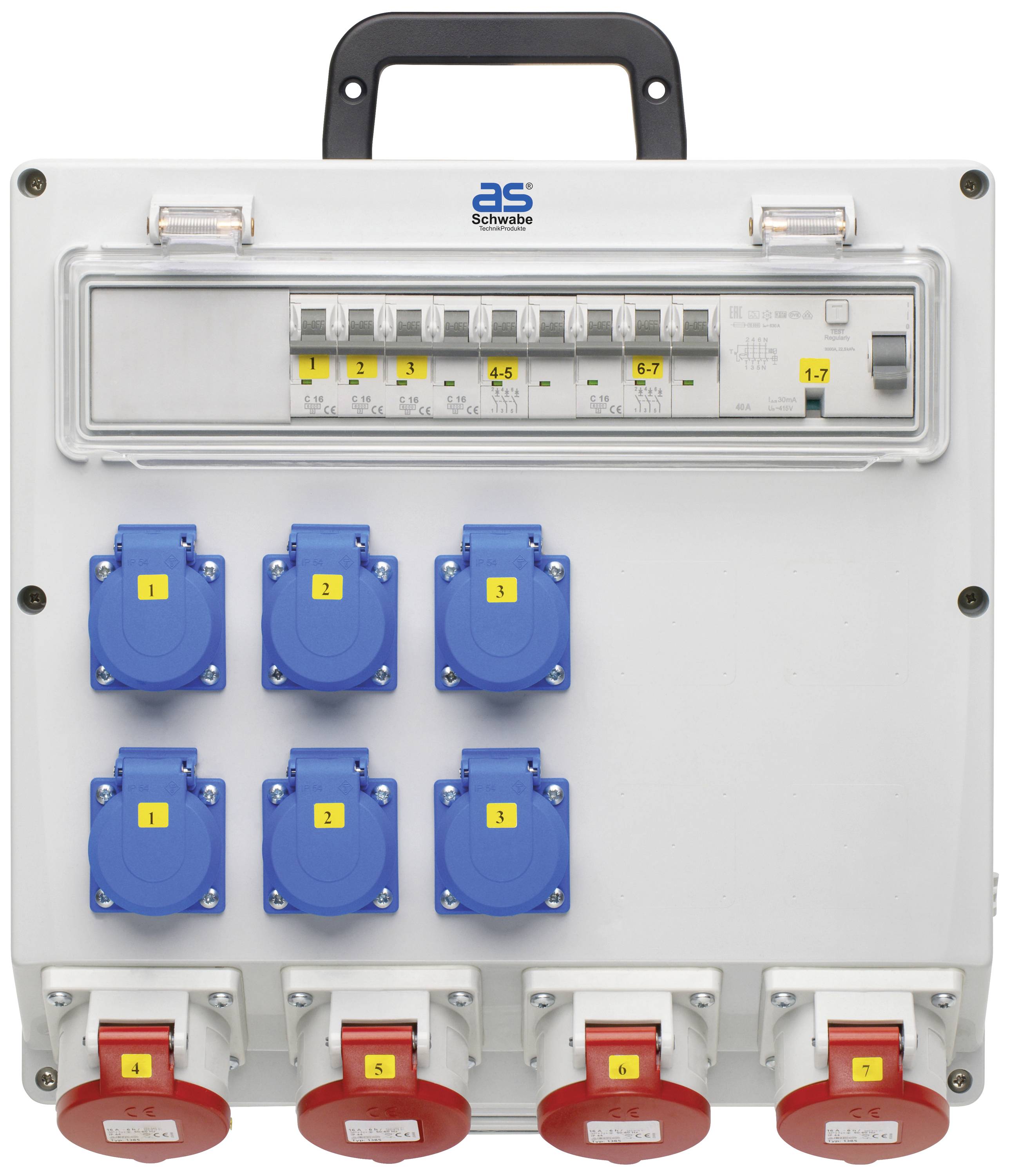

'Mobile electrical distribution board with protective switches and sockets. Four blue and three red connections for different voltages.'

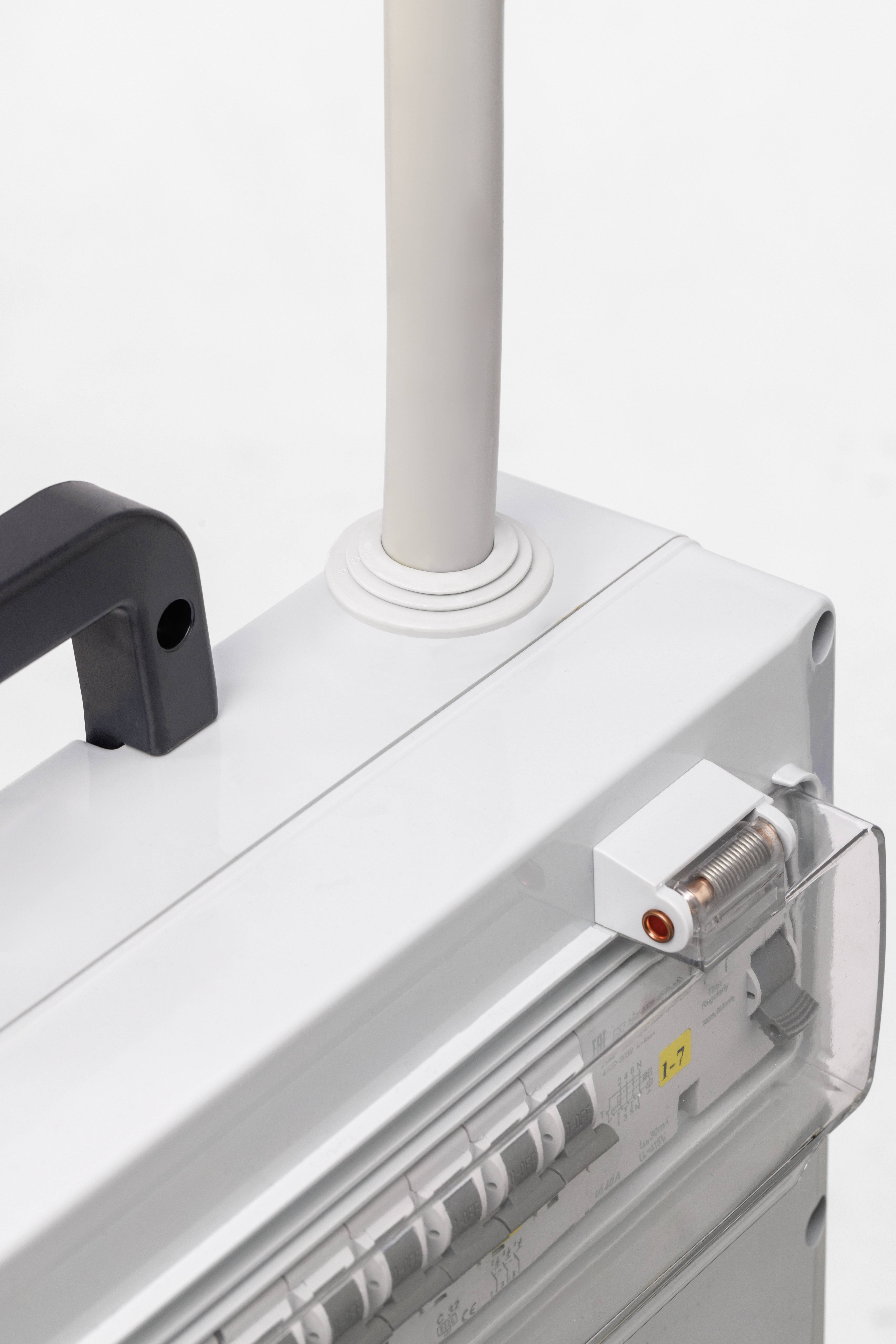

A white electric switching device with a handle and a protruding cable. Visible switches and connection terminal.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

as - Schwabe wall distributor FIXO 13D Max

Wired as ready to connect
Prepared for permanent connection of NYM-J up to max. 5x10
The sockets are protected by an earth leakage and circuit breaker
Robust housing made from high-strength special plastic including carrying handle

Technical specifications

6 x earthing contact socket-outlet
4 x CEE socket 16 A 5-pin

Product type: CEE power distributor

No. of CEE connectors: 4

Type A: Clip terminal

Type B: PG socket
CEE socket (5-pin, 16 A)

No. of PG sockets: 6

Inputs: 1

Outputs: 10

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 16 A

: IP44

Protection: 1 x FI-circuit breaker 40A, 30mA, 4-pole, type A
2 x circuit breaker C16A, 3-pole
3 x circuit breaker C16A, 1-pole

Standards: Tested according to DIN EN 61439-3

Factory colour: White

Weight: 4.92 kg

Dim: (L x W x H) 375 x 118 x 370 mm

Length: 375 mm

Width: 118 mm

Height: 370 mm

Type: FINO 13D MAX.

Inputs (CEE power distributor): Screw terminals

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)

Content: 1 pc(s)

Number of pins: 5

Documents & Downloads

Datasheet

Datasheet 2891057 AS Schwabe CEE power distributor FIXO 13D 61515 400 V 16 A

User & Safety Instructions

User & Safety Instructions 2891057 AS Schwabe CEE power distributor FIXO 13D 61515 400 V 16 A

Description

For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
