Buy AS Schwabe CEE power distributor FIXO 15D 61526 400 V 32 A

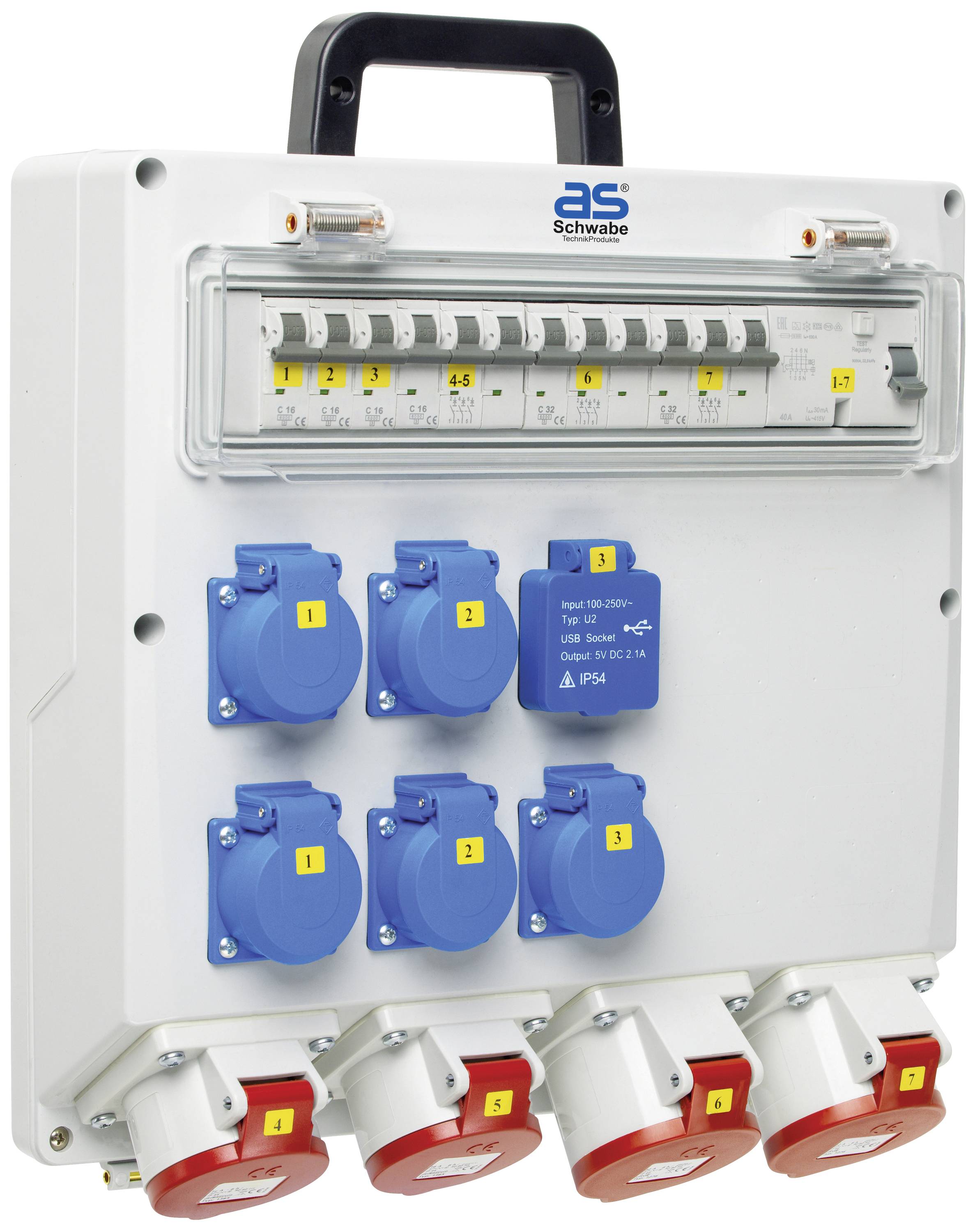

A mobile electrical distribution box with multiple blue and red sockets and switches. Primary purpose: energy distribution.

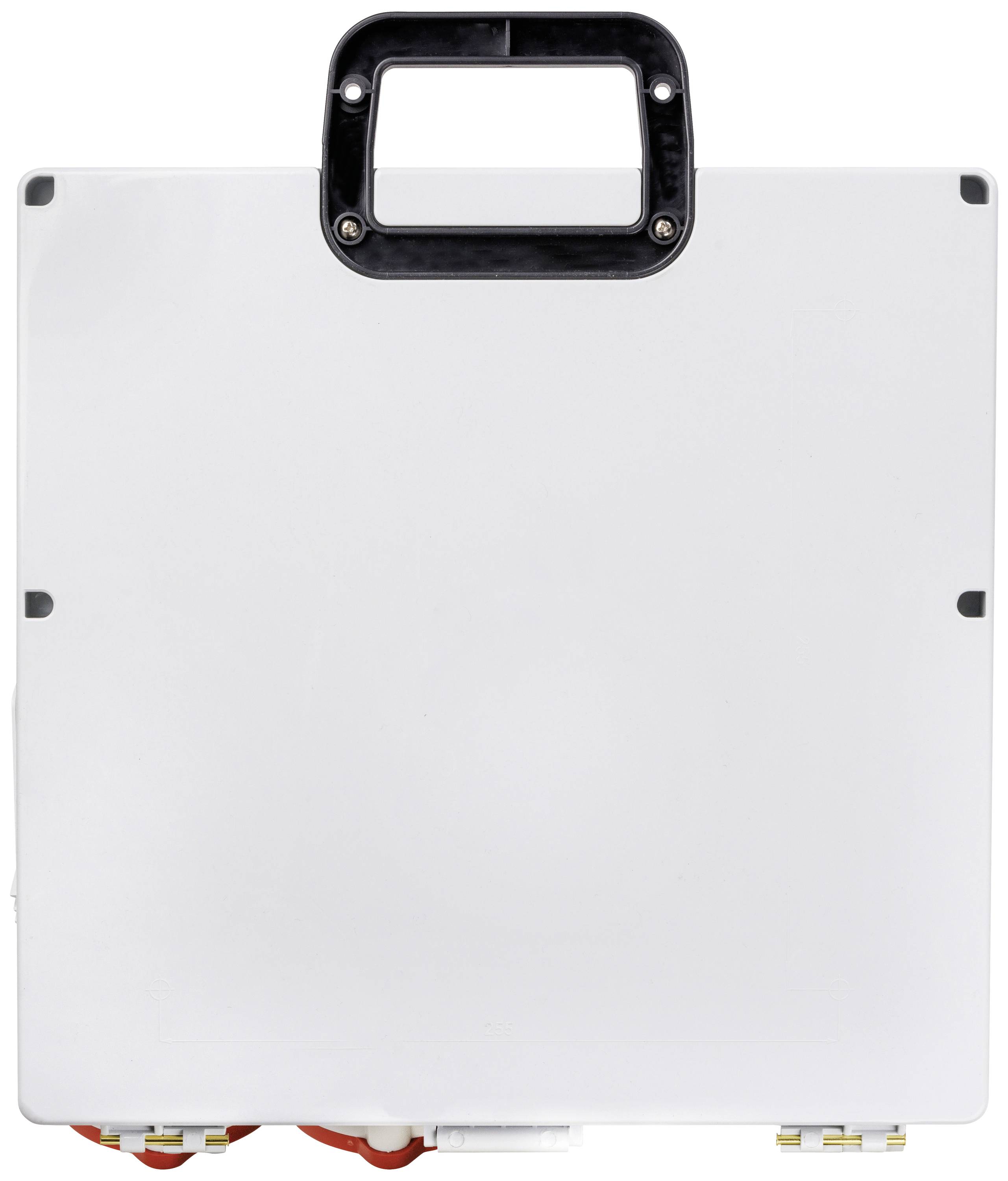

AS Schwabe CEE power distributor FIXO 15D 61526 400 V 32 A-1

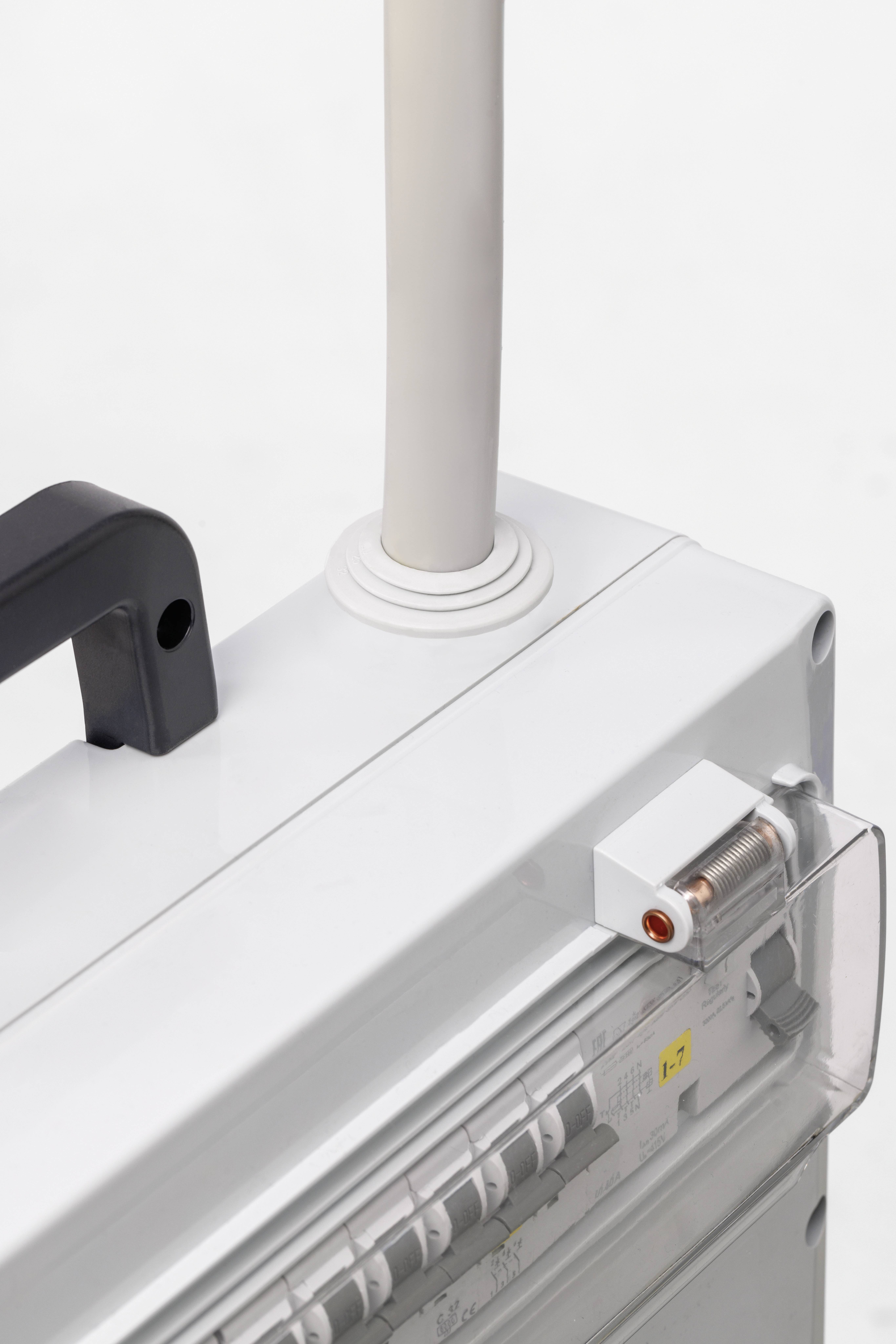

A white fuse box with several toggle switches, a handle, and a thick cable leading into the top.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

as - Schwabe FIXO 15D MAX wall-distributor

Wired as ready to connect
Prepared for permanent connection of NYM-J up to max. 5X16
The sockets are protected by an earth leakage and circuit breaker
Robust housing made from high-strength special plastic including carrying handle

Technical specifications

5 x earthing contact socket-outlet
2 x CEE socket 16 A 5-pin
2 x CEE socket 32 A 5-pin
2 x USB ports 5 V/2.1 A

Product type: CEE power distributor

No. of CEE connectors: 4

Type A: Clip terminal

Type B: PG socket
CEE socket (5-pin, 32 A)
USB

No. of PG sockets: 5

Inputs: 1

Outputs: 11

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Protection: 1 x FI-circuit breaker 63A, 30mA, 4-pin
2 x circuit breaker C32A, 3-pin
1 x circuit breaker C16A, 3-pole
3 x circuit breaker C16A, 1-pole

Standards: Tested according to DIN EN 61439-3

Factory colour: White

Weight: 6.12 kg

Dim: (L x W x H) 375 x 370 x 118 mm

Length: 375 mm

Width: 370 mm

Height: 118 mm

Type: FIXED 15D MAX.

Inputs (CEE power distributor): Screw terminals

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

Content: 1 pc(s)

Number of pins: 5

Documents & Downloads

Datasheet

Datasheet 2891065 AS Schwabe CEE power distributor FIXO 15D 61526 400 V 32 A

User & Safety Instructions

User & Safety Instructions 2891065 AS Schwabe CEE power distributor FIXO 15D 61526 400 V 32 A

Description

Main cable branch terminal: A high-quality, solid terminal was installed to ensure a long-term and reliable electrical installation.
The power distributor is already wired for connection. The hinges on the lid open the lid when it is connected and do not simply hang down.
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
