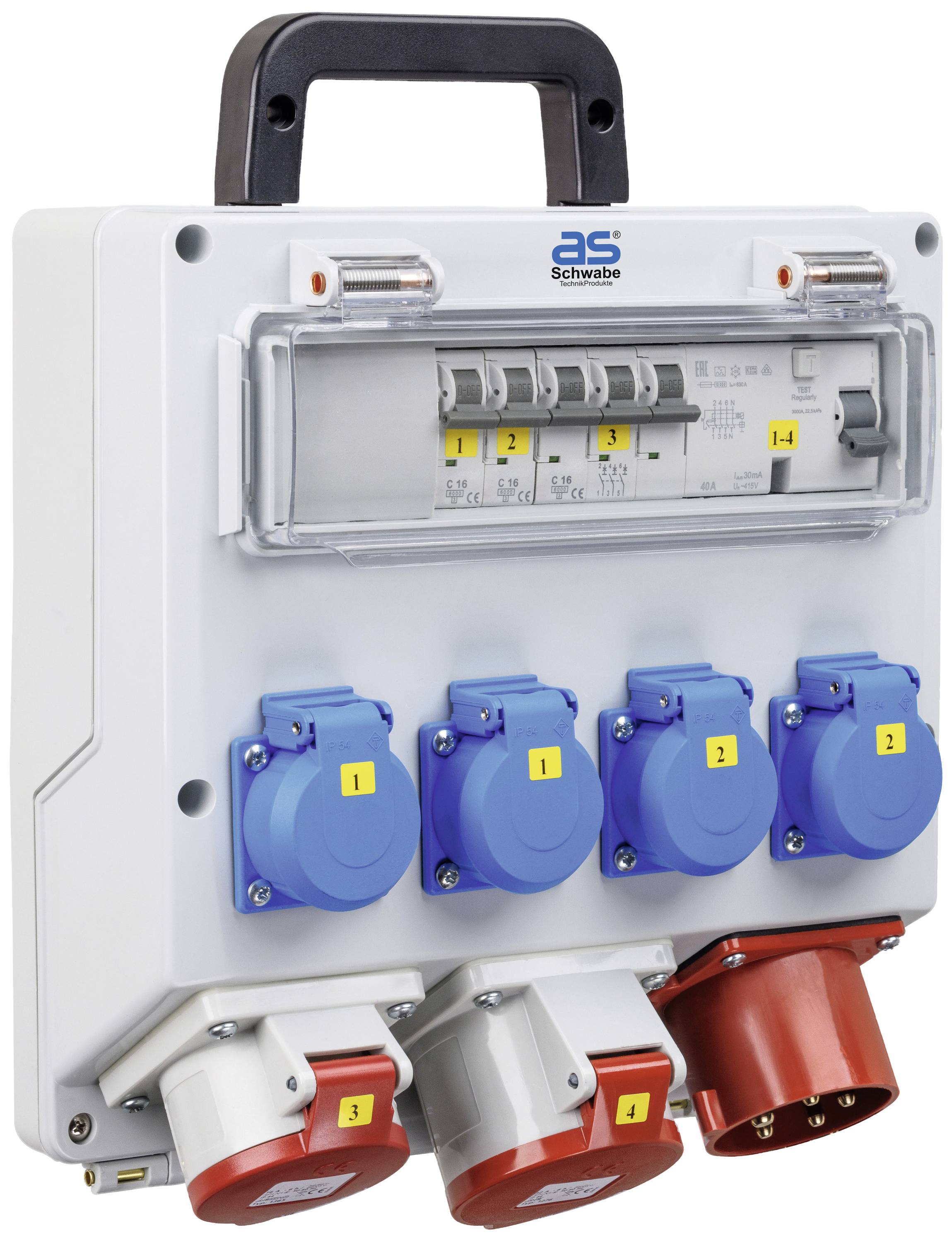

'Mobile electricity distribution system with protective switches and colour-coded sockets, suitable for construction or event use.'

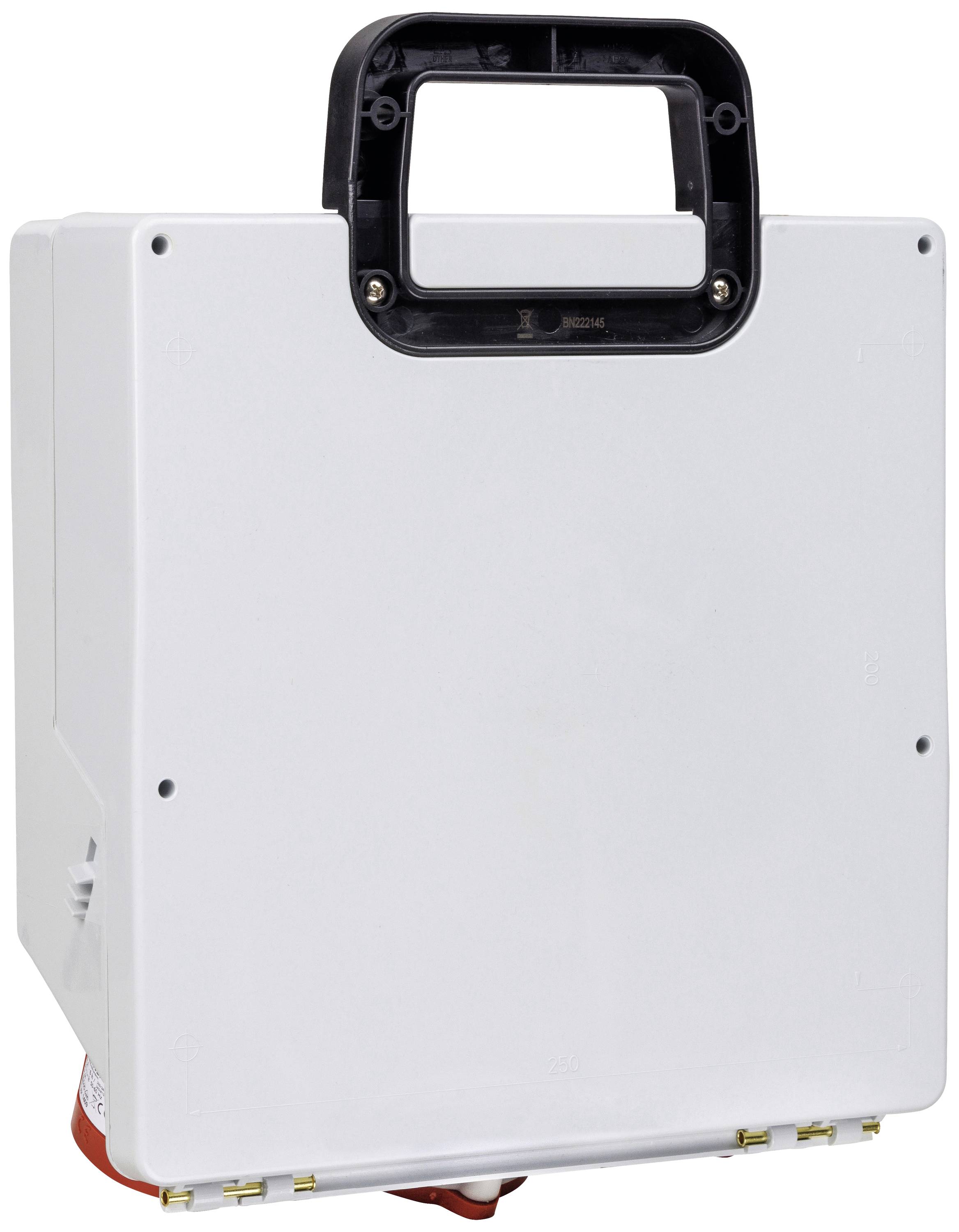

White portable socket with black handle, suitable for use on construction sites or in industrial environments.

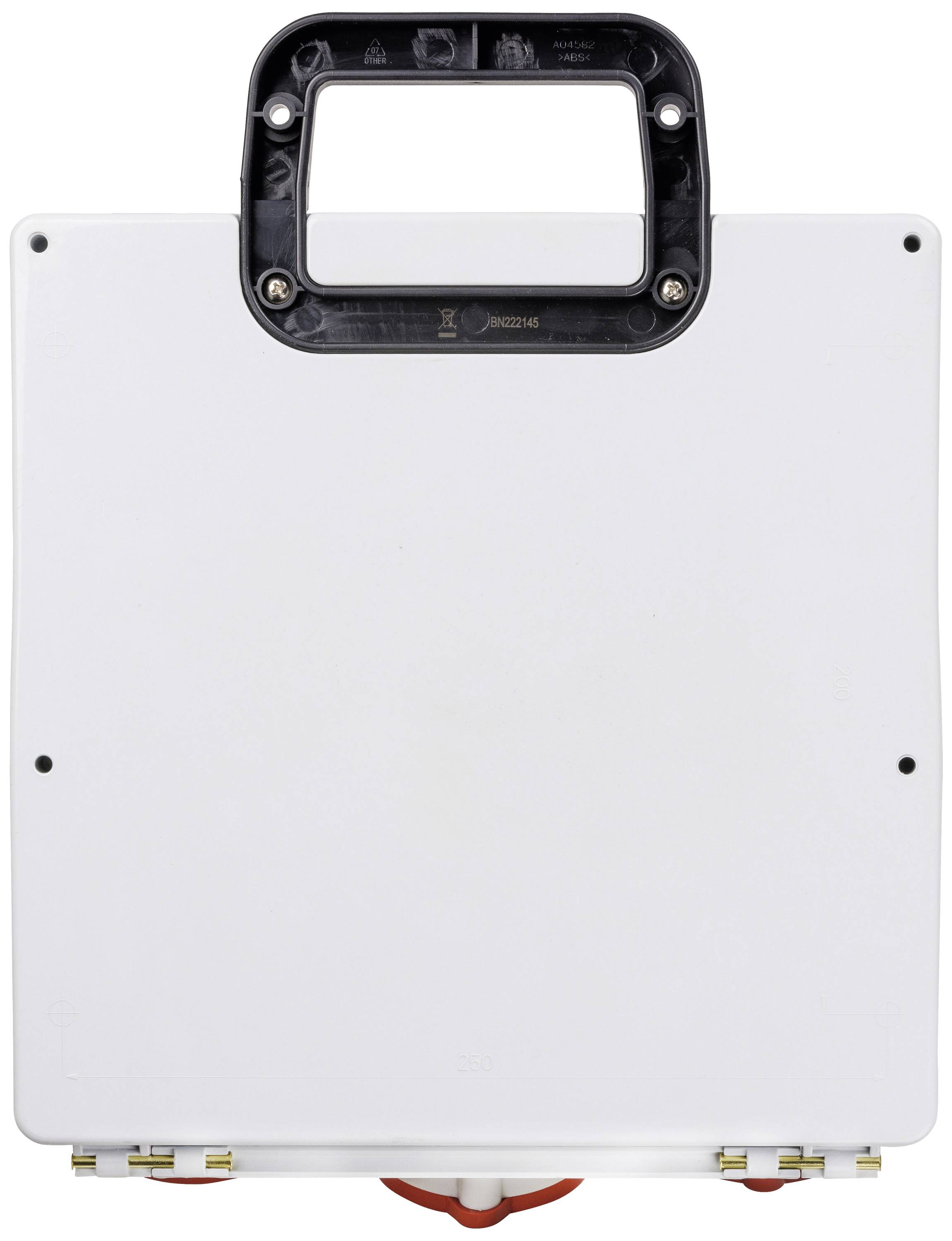

White rectangular device with a black handle on the top, four power sockets visible on the underside.

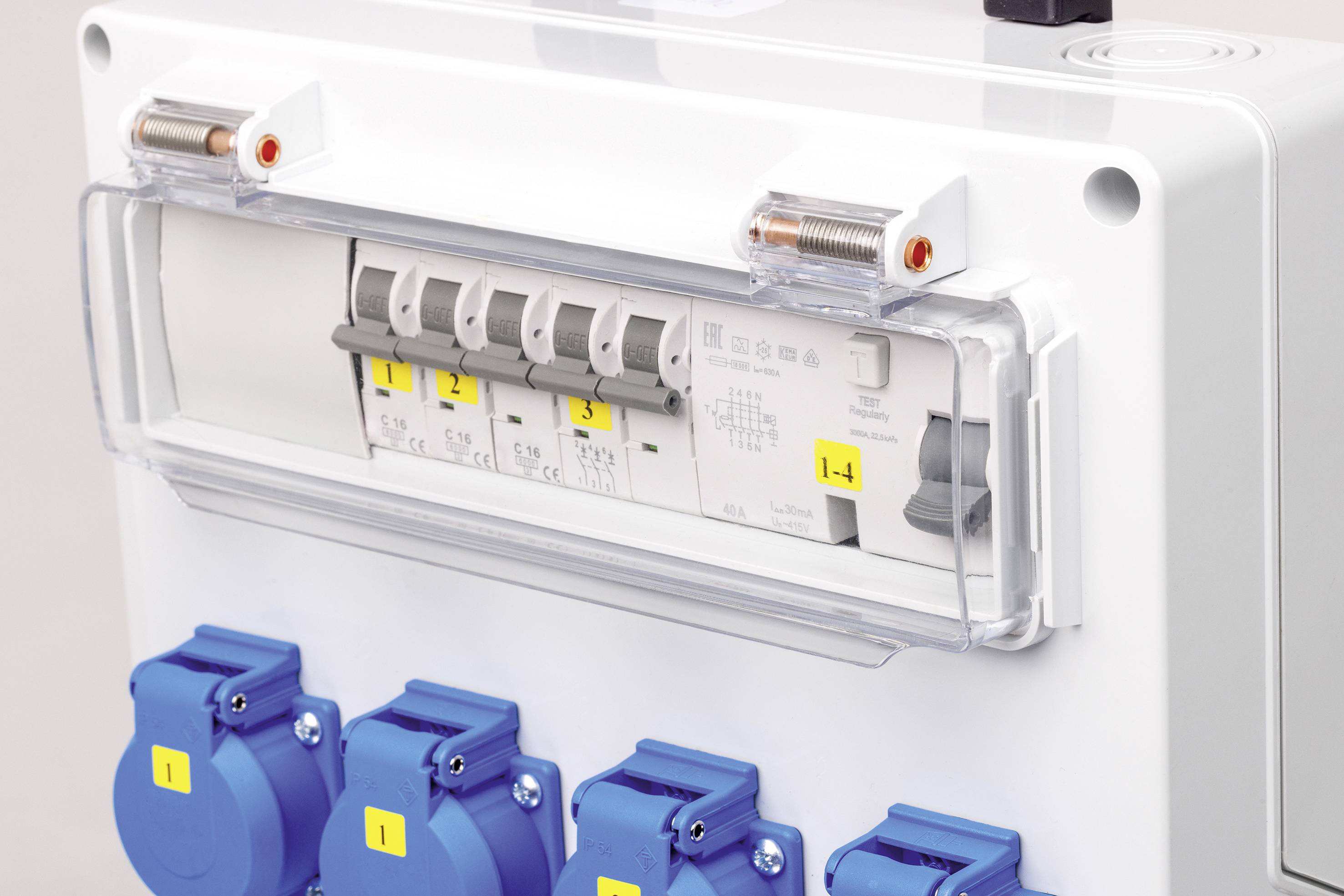

Distribution box with multiple blue sockets and circuit breakers, numbered from 1 to 4. Protective cover made of transparent plastic.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

as - Schwabe FIXO 4 Wall distributor

Wired as ready to connect
With mounted plug for start-up with standard extension cable with CEE coupling
The sockets are protected by an earth leakage and circuit breaker
Robust housing made from high-strength special plastic including carrying handle

Technical specifications

4 x earthing contact socket-outlet
1 x CEE socket 16 A 5-pin
1 x CEE socket 32 A 5-pin

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 32 A)

Type B: PG socket
CEE socket (5-pin, 32 A)

No. of PG sockets: 4

Inputs: 1

Outputs: 6

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Protection: 1 × FI 40 A, 4-pin, 30 mA, Type A
1 × LS C 16 A, 3-PIN
2 × LS C 16 A, 1-PIN

Standards: Tested according to DIN EN 61439-3

Factory colour: White

Dim: (L x W x H) 280 x 118 x 280 mm

Length: 280 mm

Width: 118 mm

Height: 280 mm

Type: FIXED O 4

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

Content: 1 pc(s)

Number of pins: 5

Documents & Downloads

Datasheet

Datasheet 2891054 AS Schwabe CEE power distributor FIXO 4 61512 400 V 32 A

User & Safety Instructions

User & Safety Instructions 2891054 AS Schwabe CEE power distributor FIXO 4 61512 400 V 32 A

Description

FIXO wall distributor
Robust housing, made of highly break special plastic including carrying handle
Compact design provides optimum for wall mounting
Mounted connector for start-up with standard extension cable with CEE coupling, rear view with markings for holes for wall mounting
The power distributor is already wired for connection. The hinges on the lid open the lid when it is connected and do not simply hang down
