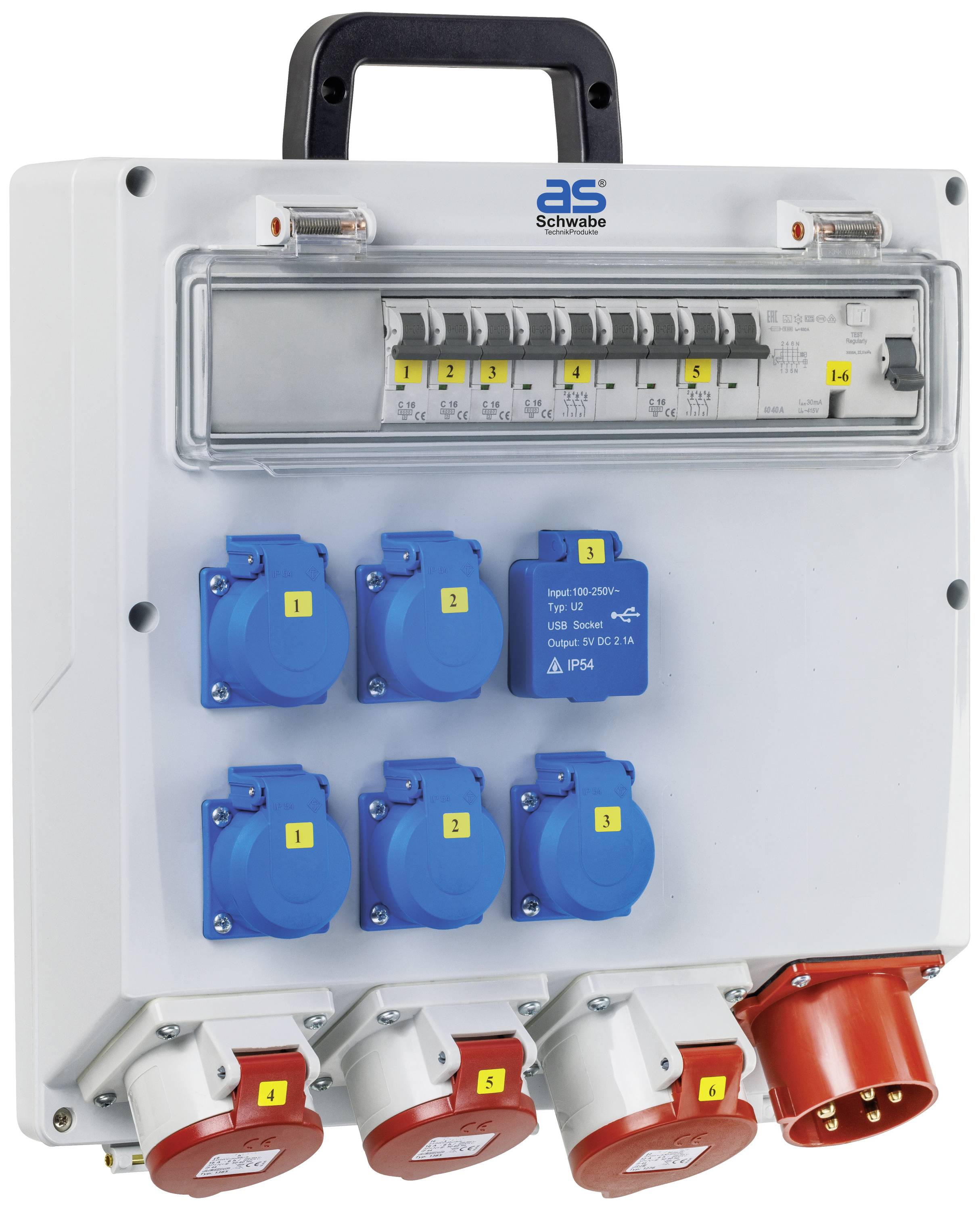

A portable electrical distribution box with blue and red connectors and multiple fuses on top.

A mobile electrical distribution box with multiple blue and red sockets, a carrying handle, and a transparent cover for circuit breakers.

A white suitcase with a black handle, standing upright. The suitcase appears sturdy and functional, without any visible markings or logos.

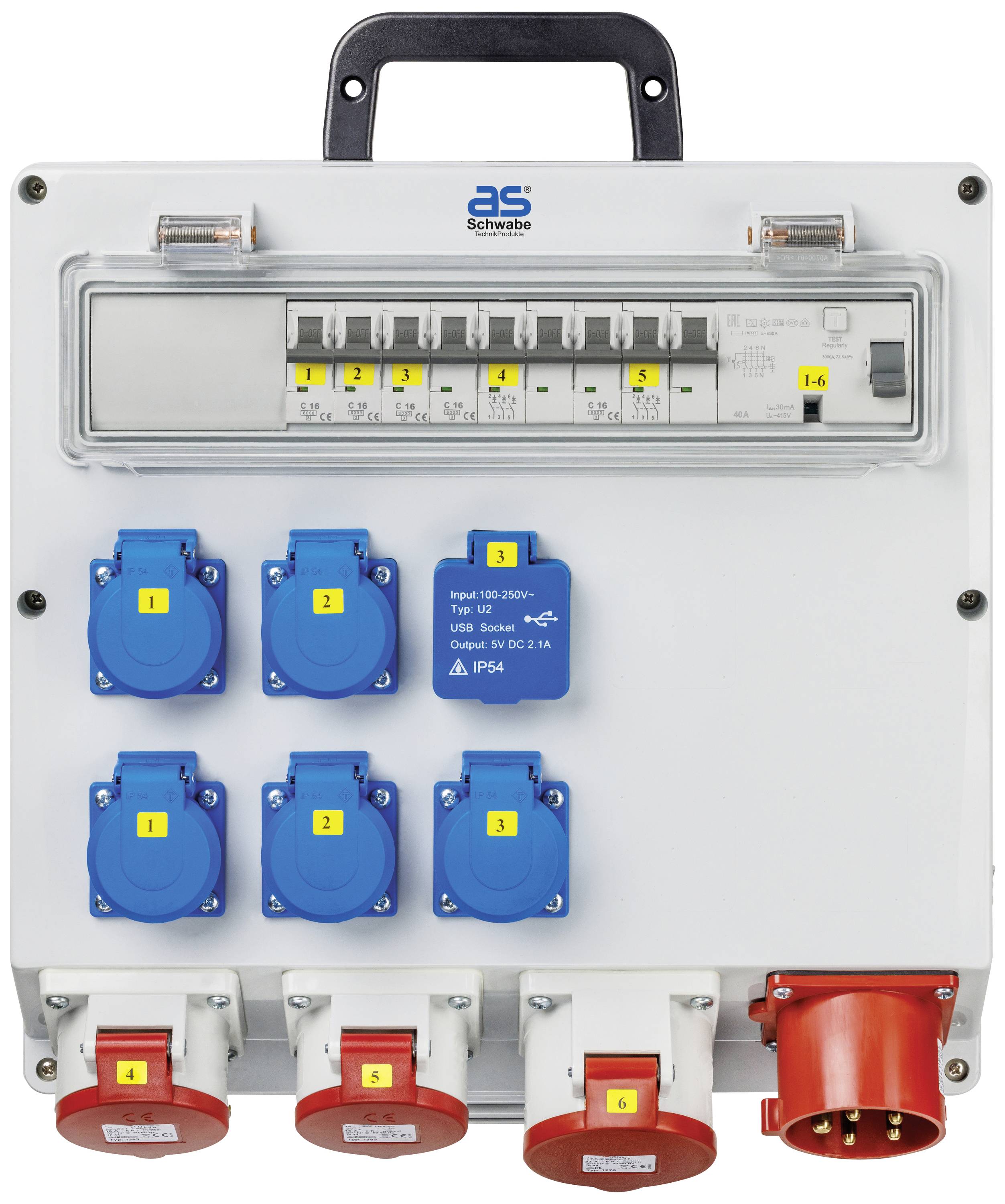

'Portable distribution box with fuses and sockets, suitable for 16 A, IP54 protection type. Four blue and three red sockets.'

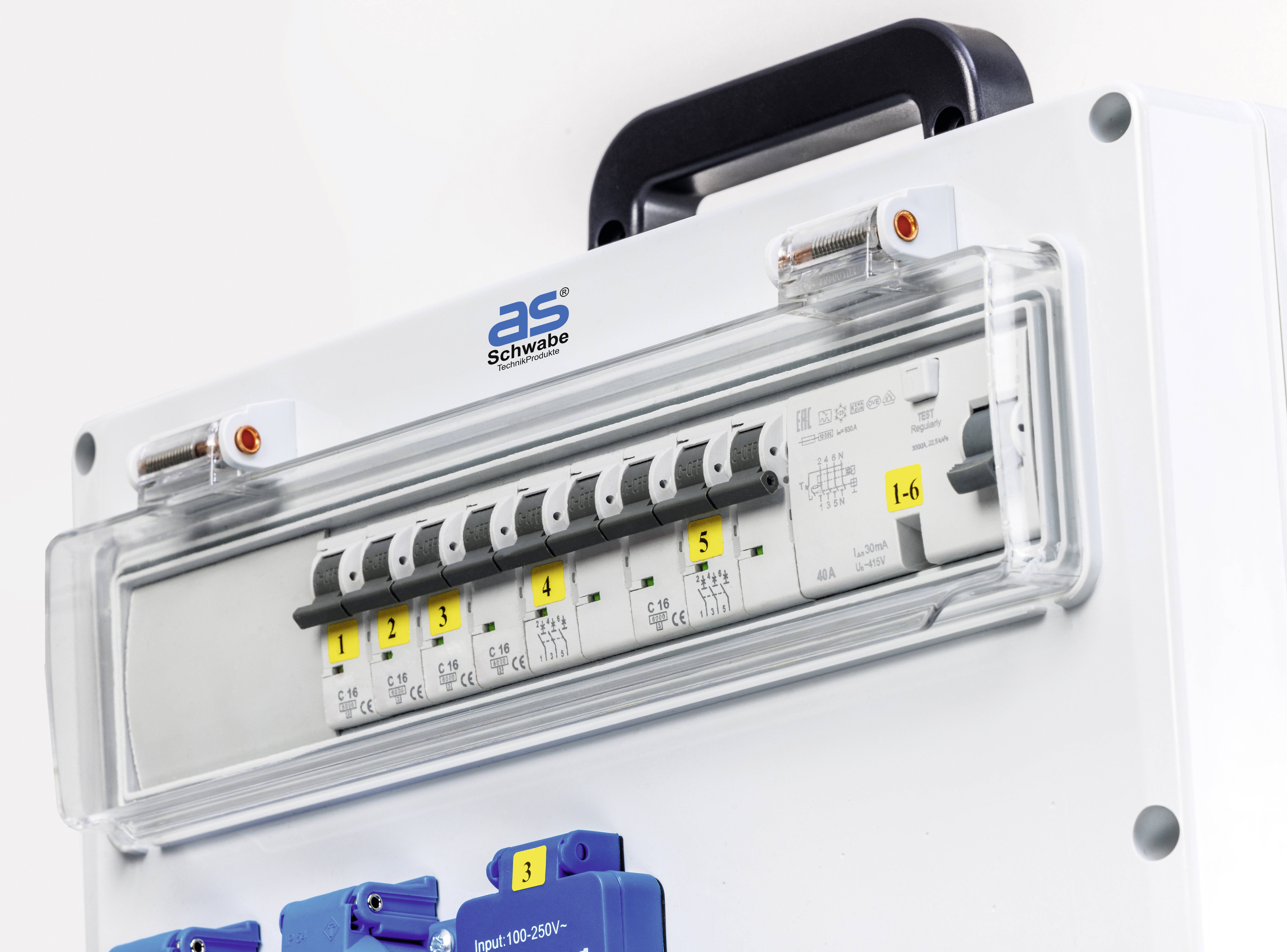

A mobile distribution box with multiple switches and sockets, marked with numbers. Upper handle for carrying.

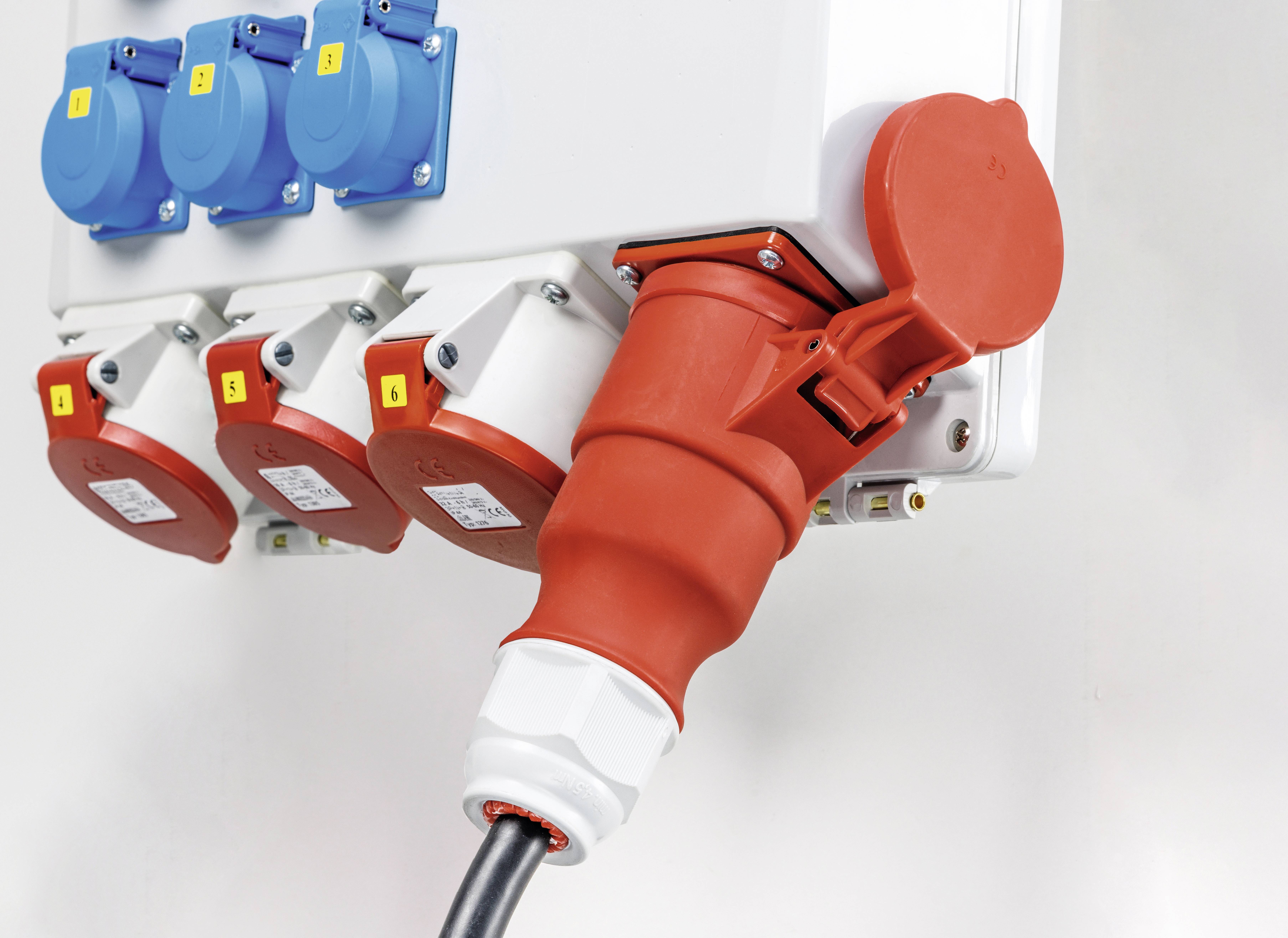

A red, industrial electrical coupling is plugged into a white distribution box. Beside it are blue and red sockets.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

As – Schwabe FIXO 6 MAX Wall-distributor

Wired as ready to connect
With mounted plug for start-up with standard extension cable with CEE coupling
The sockets are protected by an earth leakage and circuit breaker
Robust housing made from high-strength special plastic including carrying handle

Technical specifications

5 x earthing contact socket-outlet
2 x CEE socket 16 A 5-pin
2 x CEE socket 32 A 5-pin
2 x USB ports 5 V/2.1 A

Product type: CEE power distributor

No. of CEE connectors: 3

Type A: CEE plug (5-pin, 32 A)

Type B: PG socket
CEE socket (5-pin, 32 A)
USB

No. of PG sockets: 5

Inputs: 1

Outputs: 10

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Protection: 1 x FI-circuit breaker 40A, 30mA, 4-pole, type A
2 x circuit breaker C16A, 3-pole
3 x circuit breaker C16A, 1-pole

Standards: Tested according to DIN EN 61439-3

Factory colour: White

Weight: 5 kg

Dim: (L x W x H) 375 x 118 x 370 mm

Length: 375 mm

Width: 118 mm

Height: 370 mm

Type: FIXO 6 MAX.

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

Content: 1 pc(s)

Number of pins: 5

Documents & Downloads

Datasheet

Datasheet 2891063 AS Schwabe CEE power distributor FIXO 6 MAX 61524 400 V 32 A

User & Safety Instructions

User & Safety Instructions 2891063 AS Schwabe CEE power distributor FIXO 6 MAX 61524 400 V 32 A

Description

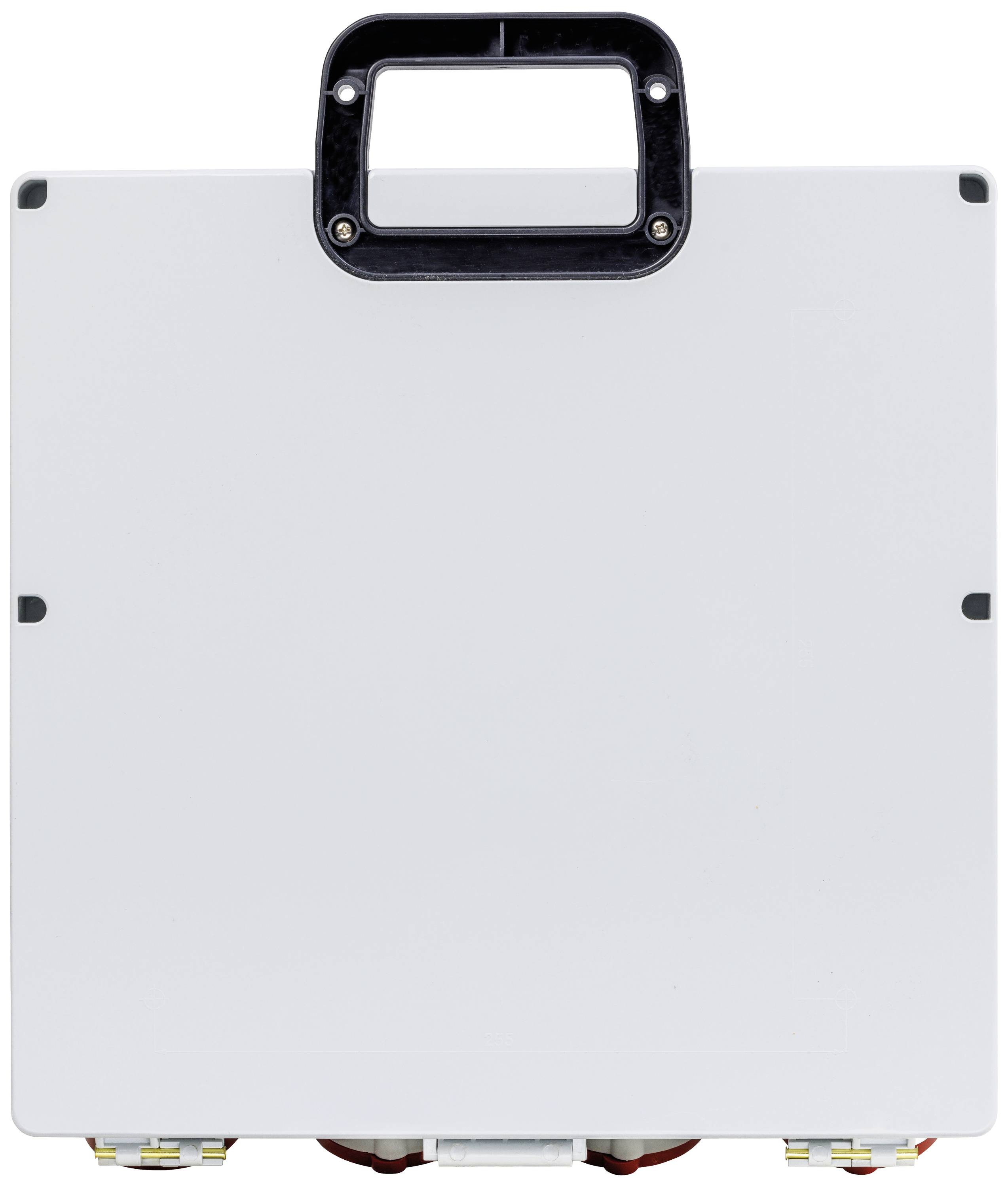

Mounted connector for start-up with standard extension cable with CEE coupling, rear view with markings for holes for wall mounting
The power distributor is already wired for connection. The hinges on the lid open the lid when it is connected and do not simply hang down
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
