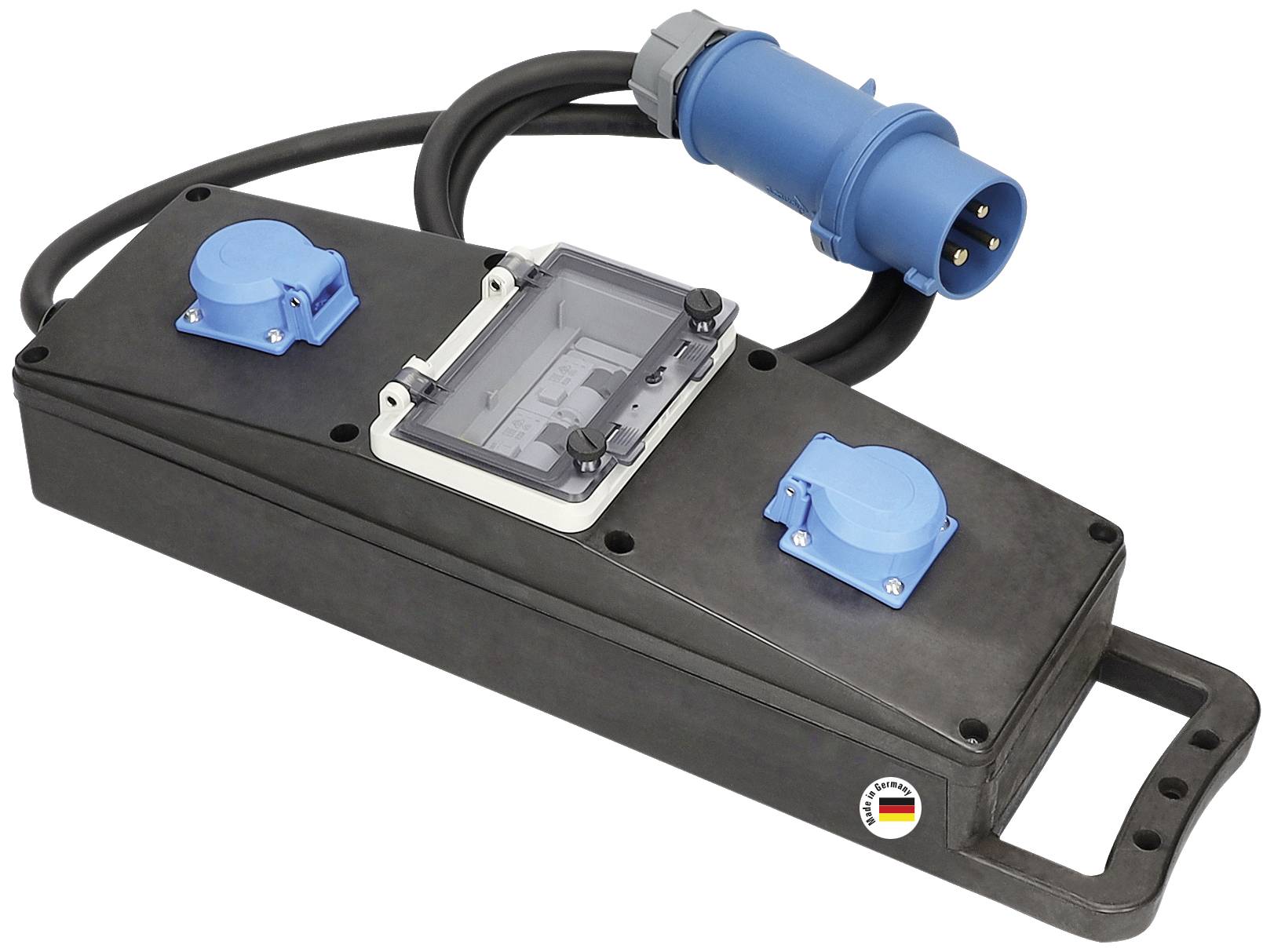

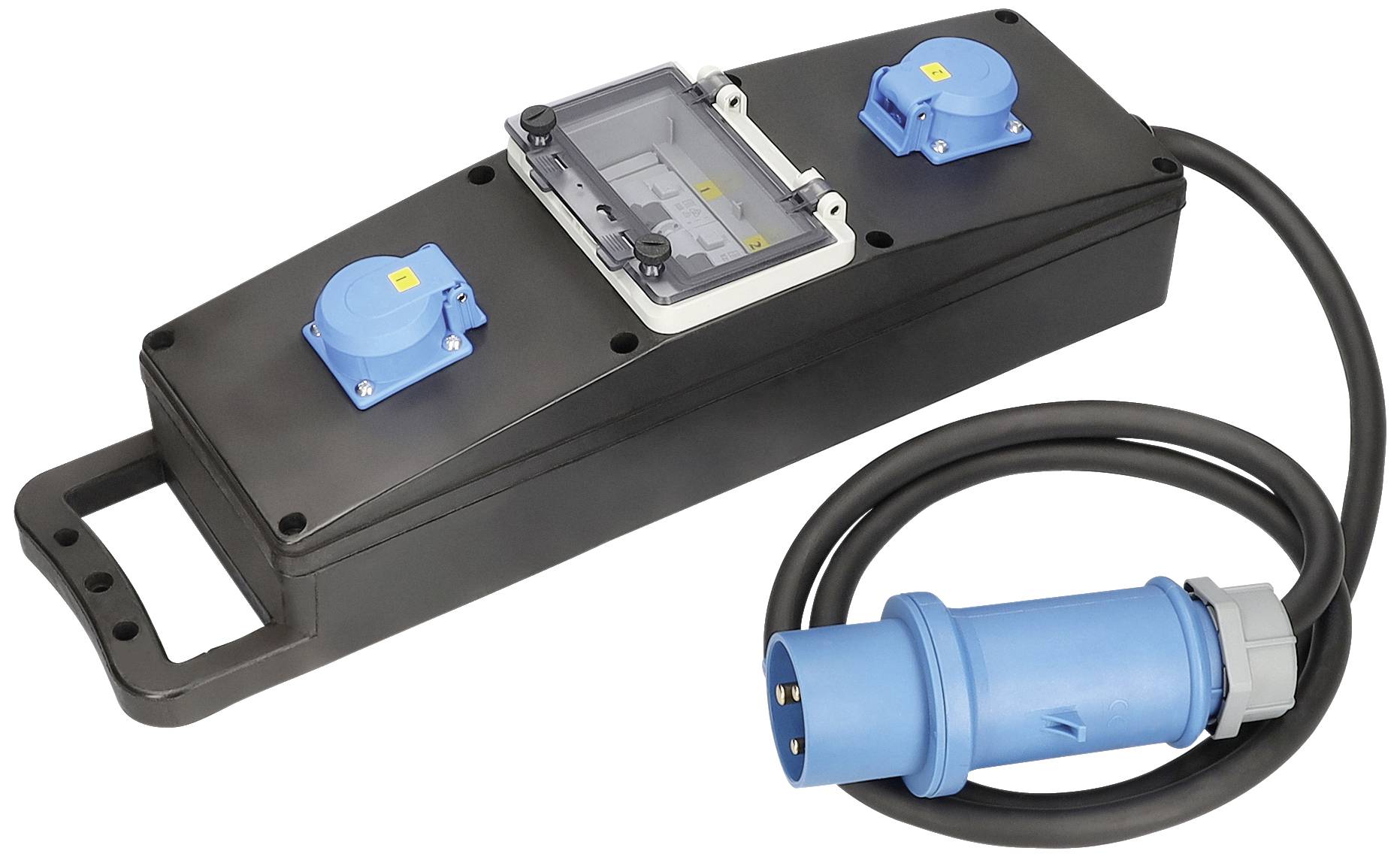

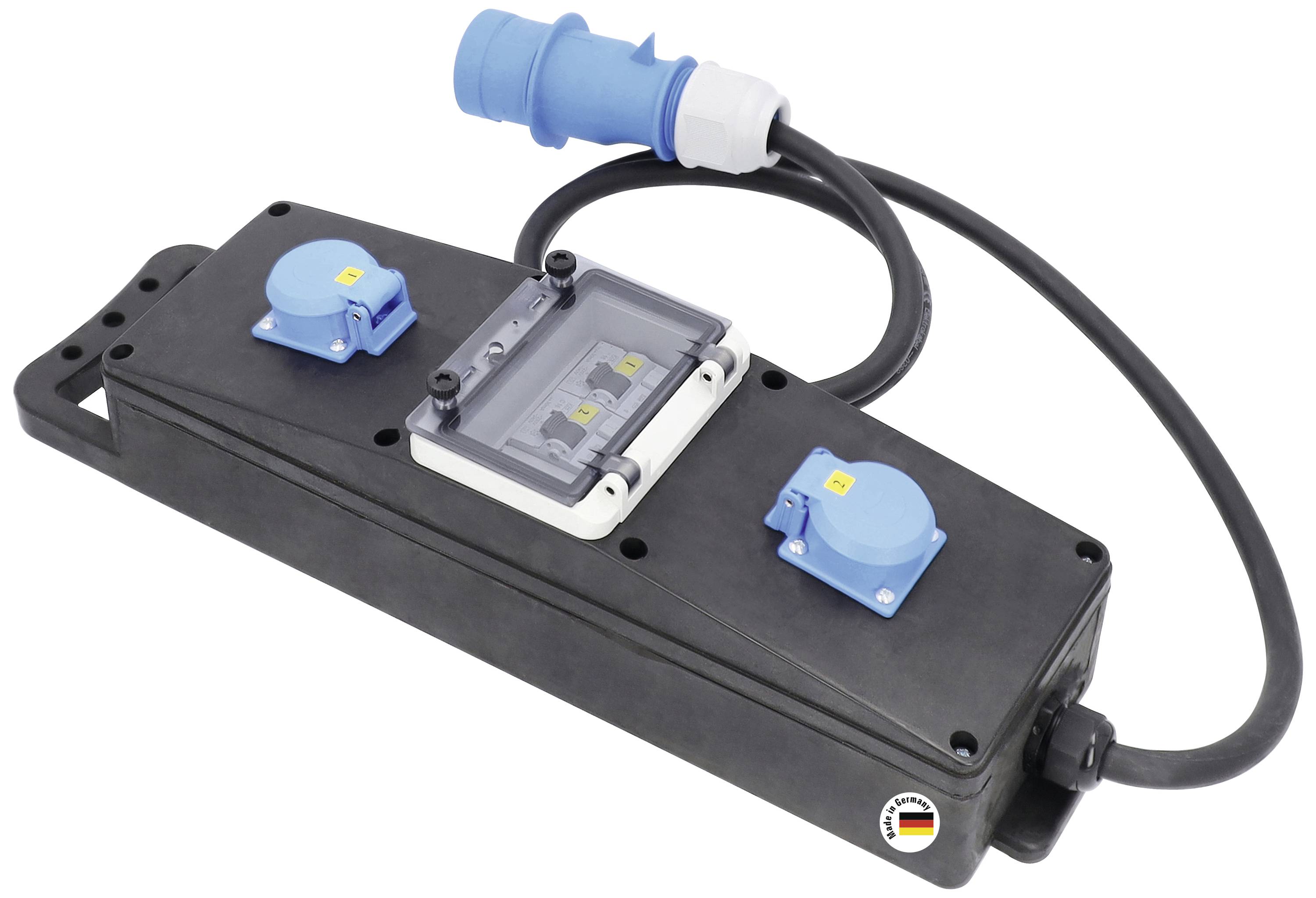

AS Schwabe CEE power distributor G-S22 63261 230 V 32 A
EAN:
Part number:
Item no:
Highlights & Details
as - Schwabe mobile solid rubber socket strip G-S22, 7.2 kW
- 2X SOCKET 230 V / 16 A
- 2 m H07RN-F 3G6 cable
- 2x combination switch FI/LS 2-pin, C16A, 30 mA, 10 kA, Type A
Technical specifications
- Product type
CEE power distributor
- Type A
CEE plug (3-pin, 32 A)
- Type B
PG socket
- No. of PG sockets
2
- Inputs
1
- Outputs
2
- Nominal input voltage
230 V
- Nominal output voltage
230 V
- Nominal input current
32 A
IP44
- Cable length
2 m
- Cable standard
H07RN-F 3G 6 mm²
- Protection
2x combination switch FI/LS 2-pin
- Standards
Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- Factory colour
Black
- Dim
(L x W x H) 500 x 140 x 130 mm
- Length
500 mm
- Width
140 mm
- Height
130 mm
- Content
1 pc(s)
- Number of pins
3
- Cable type
H07RN-F
- Insulation material
Neoprene
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2891093 AS Schwabe CEE power distributor G-S22 63261 230 V 32 A
Description
The power distributor has the protection class IP44 and is Ideal suitable for the application in the external area and on construction sites
The construction site distributor is safe from accidental contact in accordance with BGV A2. The fuses provide additional security: 2x combination switches FI/LS 2-pin, C16A, 30 mA, 10 kA, Type A
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
The construction site distributor is safe from accidental contact in accordance with BGV A2. The fuses provide additional security: 2x combination switches FI/LS 2-pin, C16A, 30 mA, 10 kA, Type A
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- Connection: The power distributor-strip has a 2 m heavy rubber hose cable H07RN-F 3G6.
- The G series rubber strip has a 230 V, 32 A, CEE input
- 2 earthing contact sockets 230 V, 16 A outputs
- 2x combination switch FI/LS 2-pin
- Housing: The casing of the power distributor for emergency power units is made of extremely robust solid rubber and was designed especially for heavy construction sites use
