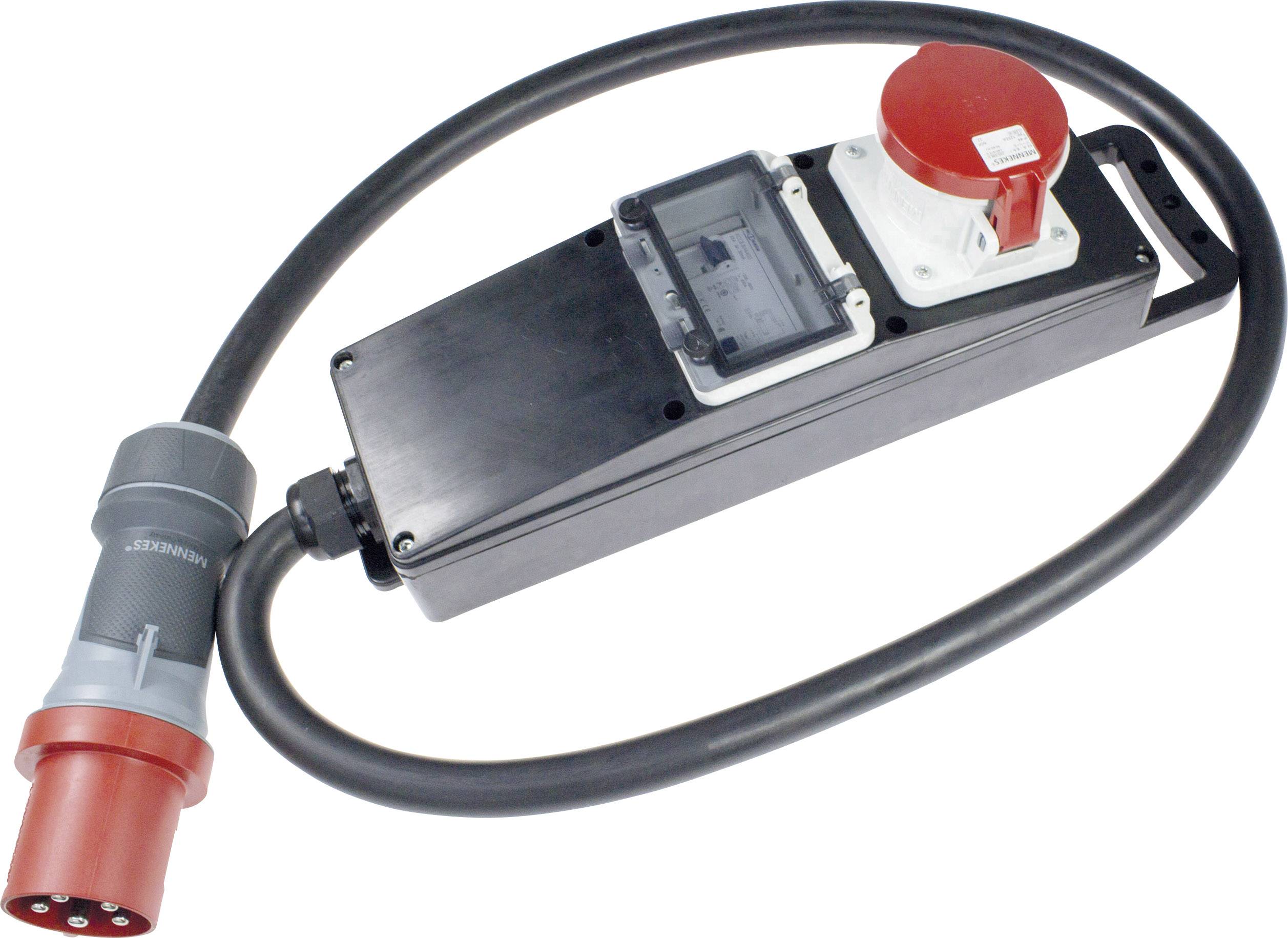

AS Schwabe CEE power distributor S21+ 60814 400 V 63 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solid rubber power strip "S-series "S21+
- Casing made from extremely robust solid rubber
- Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
- Protection: 1x FI 63 A, 4-pin, 300 mA and all-current sensitive FI type B
- This text is machine translated.
Technical specifications
- Tested according to DIN VDE 0620-1, IEC 60309, DIN 50525-2;Outputs: 1 CEE-sockets 63 A 400 V 5 pin
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
CEE plug (5-pin, 63 A)
- Type B
CEE connector (5-pin, 63 A)
- Nominal input voltage
400 V
- Nominal input current
63 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 16 mm²
- Standards
DIN VDE 0620-1, IEC 60309, EN 60439-4, DIN VDE 0282-4
- Dim
(L x W x H) 54 x 25 x 13 cm
- Length
54 cm
- Width
25 cm
- Height
13 cm
- Type
S21+: 400V/63A/5-pin/43kW - outputs: 1
- Content
1 pc(s)
- Number of pins
5
- Plug type
CEE connector
- Used at
Outdoors
